Blue Sea System

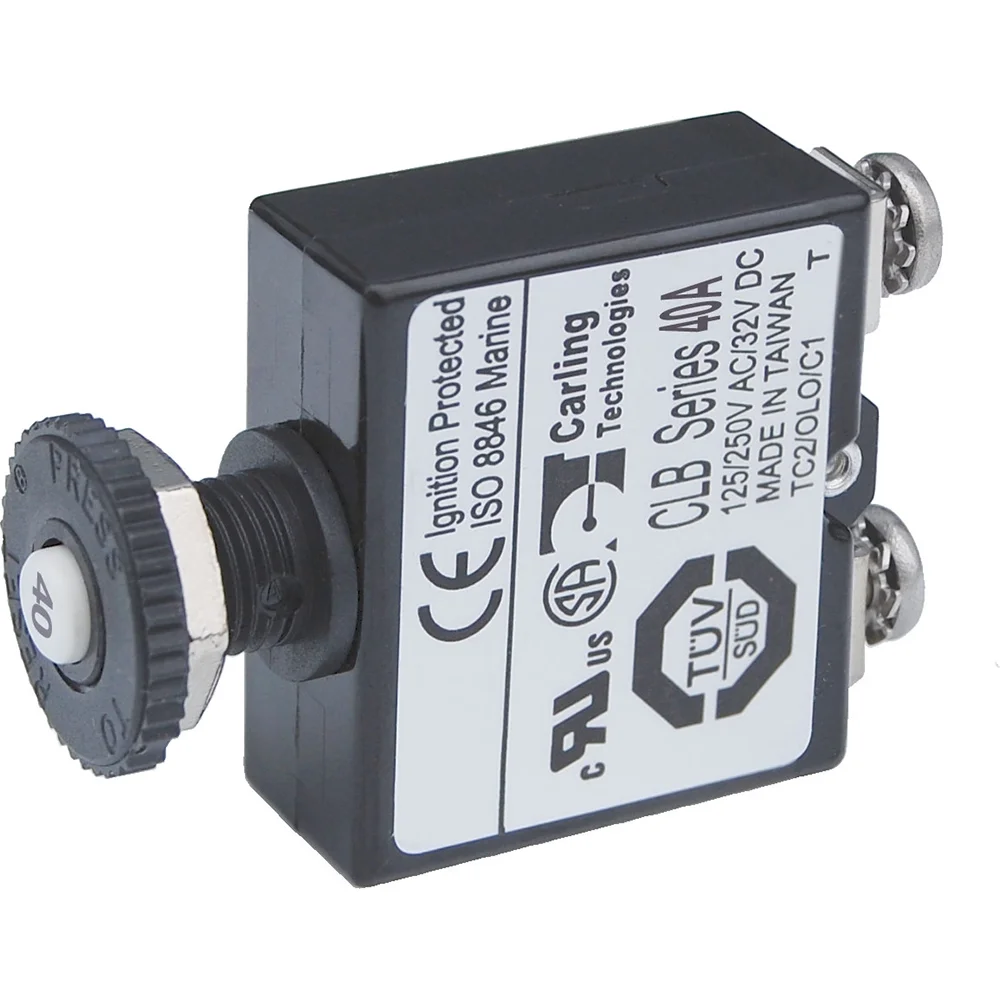

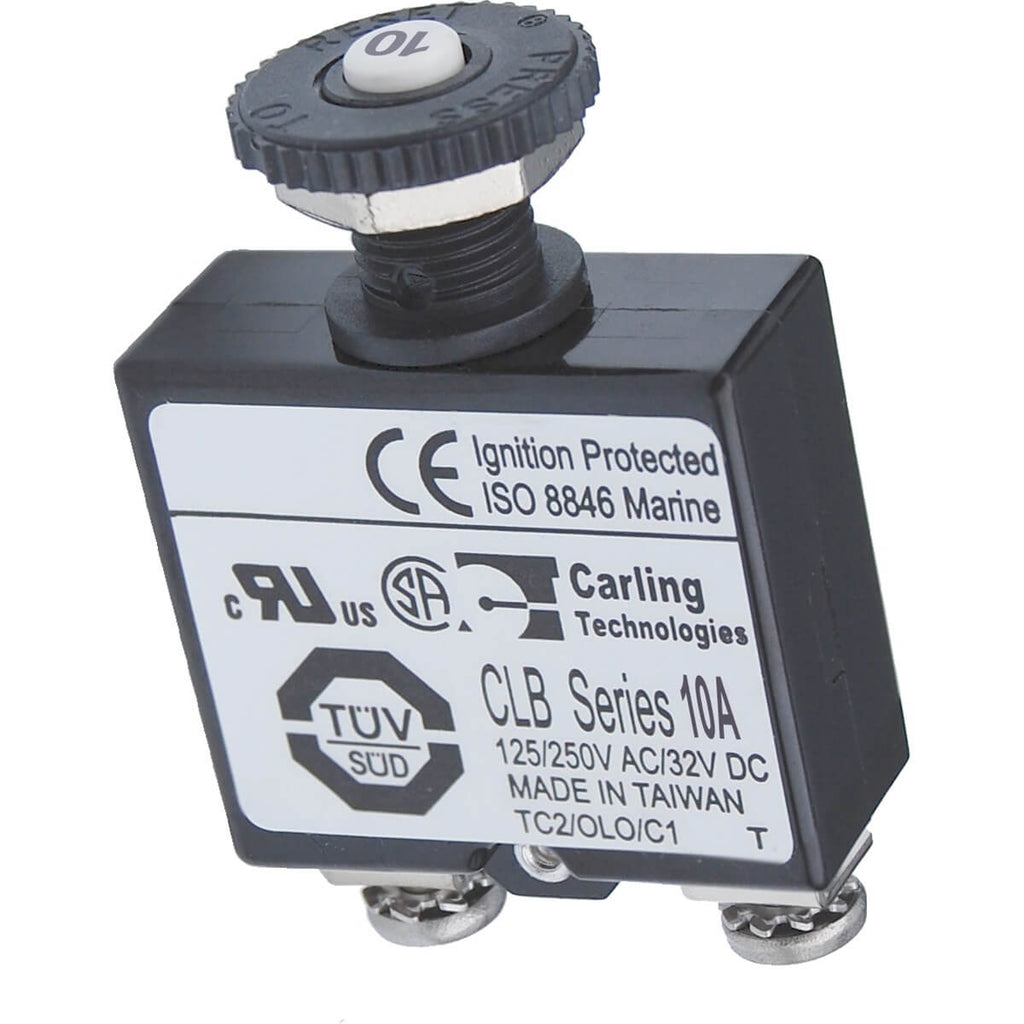

Push Button Reset Only Screw Terminal Circuit Breaker

SKU: 2129

Pre Order

RM49.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Amperage 3A 5A 7A 10A 15A 20A 25A 30A 40A

Branch circuit breakers (can also be used for 24-hour circuit protection)
Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
Compact design enables high density circuit protection configurations
Push-to-reset operation
“Trip Free” design cannot be held “ON” during fault current condition
Ignition protected - Safe for installation aboard gasoline powered boats
Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Maximum Voltage: 32V DC

Mounting: Panel Mount 3/8-27 UNS

Circuit Breaker Type: Thermal trip, manual push-button reset only

Terminal Type: #8 Screw

Interrupt Capacity : 3000A @ 14.7V, 2500A @ 28V

Minimum Operating Temperature: -10° C

Maximum Operating Temperature: 60° C

Screw Terminal Torque: 6 in-lb (0.68 Nm)

Weight: 0.06lb (0.03 kg)

Weight: 0.09lb (0.04 kg)
