R509 Chirp-ready Thru-hull External Mount

Airmar Technology

R509 Chirp-ready Thru-hull External Mount

SKU: R509C-LH
Pre Order
RM32,032.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

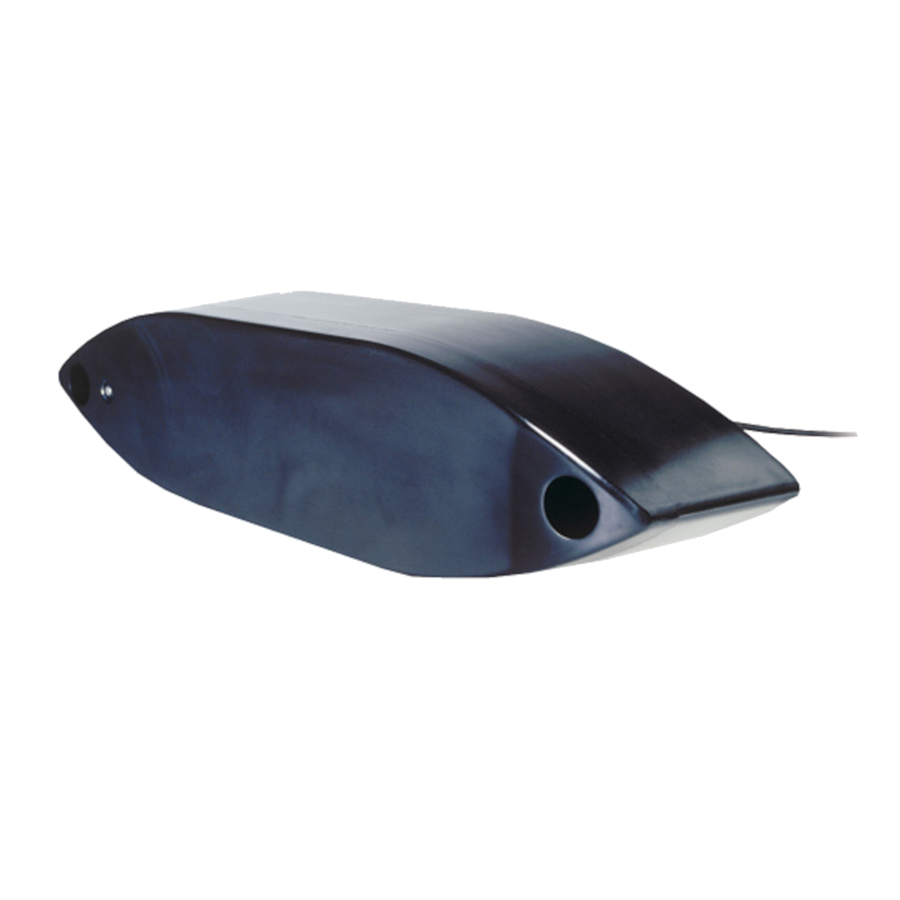

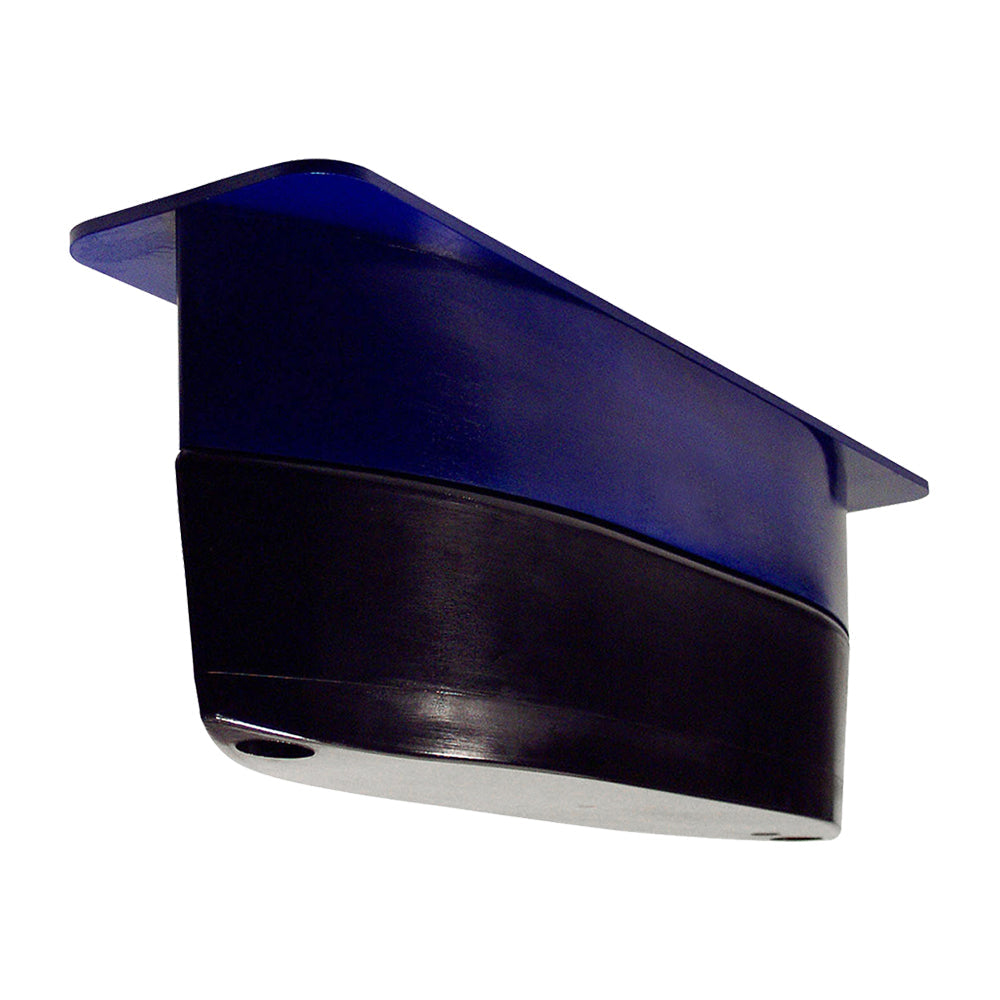

The R509 is the go-to transducer for today’s top captains who want maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game-fish separation at all depths.
Frequency
SIZES & DIMENSIONS
WHAT'S IN THE BOX
  • R509LH CHIRP-Ready Transducer
  • Fairing for optimal performance
  • Mounting hardware
  • Installation guide
FEATURES
  • Depth and fast-response water-temperature sensing
  • 2 to 3 kW of power for exceptional deep-water performance
  • Low frequency: 28 to 60 kHz
  • 23° to 9° port-starboard beamwidth
  • 11° to 5° fore-aft beamwidth
  • Maximum depth of 3048 m (10000')
  • High frequency: 130 to 210 kHz
  • 8° to 4° beamwidth
  • Maximum depth of 457 m (1500')
  • 112 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Urethane housing with fairing for optimal performance
  • Also available as cavity/welded tank (CM599LH) and in-hull (R599LH) mounts
  • Patented Xducer ID® technology
SPECIFICATIONS
  • Power Rating: 2-3 kW
  • Max Deadrise Angle: 22°
  • Housing: Epoxy
  • Functions: Depth, Temperature
  • Hull Material: Compatible w/ all hull materials
  • Max Vessel LOA: 12 m (40') and above
  • Mounting Style: Thru-Hull
  • Acoustic Window: Epoxy/urethane
  • Common Use: Fishing, Commercial Fishing
  • High Frequency: 130-210 kHz
  • High Frequency Beamwidth: 8°-4°
  • Low Frequency: 28-60 kHz
  • Low Frequency Beamwidth: 11°x23°-5°x9°
  • Max Deadrise: Up to 22°
  • Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500')
  • Retractable housing: No
  • Single or Dual Frequency: CHIRP-Ready Dual-Band
  • Tilted Element: No
  • Weight: 20.8 kg (46 lb.)
DOCUMENTATIONS

Acoustic Data L: 28-60A H: 130-210B

Brochure Thru-Hull Chirp Transducers

Dimensions D-19959

Installation D-17-335-01

Installation D-17-423-01

Installation D-17-573-01

The R509LH provides extreme depth coverage and precise target resolution. Its dual-frequency CHIRP technology, high-performance fairing, and multiple mounting options make it ideal for offshore fishing and advanced sonar applications.
