Opsin Ultra Low-Light Color Monocular

Your tactical toolbox just stepped into the future.

Inspired by the U.S. DoD’s desire to integrate digital night vision into surveillance and support low-light operations, OPSIN is changing the night vision game. It brings next-level innovation to the traditional night vision market with our proprietary XQE-1350 Black Silicon CMOS sensor. OPSIN’s technology provides unmatched color low-light capability plus immersive digital display, recording, and navigation features that make operations more precise, efficient, and informative. Heightened visual detail and data collection inform tactical decisions and refine intelligence – advanced capabilities you won’t find with traditional night vision. Plus, with a jurisdiction and classification of EAR99, OPSIN is available globally with minimal export restrictions.

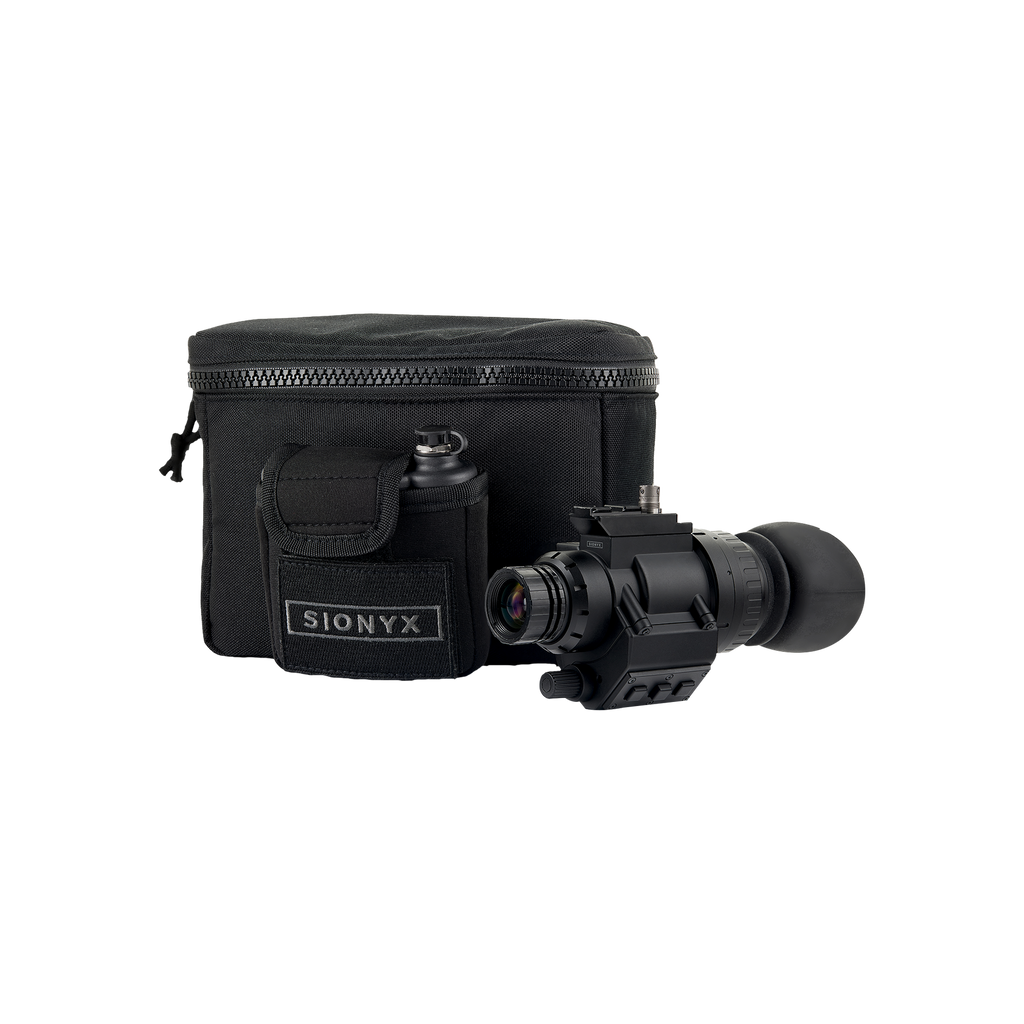

WHAT’S IN THE BOX

• OPSIN Camera
• Eye Cup
• Swing Arm
• Battery Pack (>16 HRS Operation Time)
• Canvas Pouch
• Micro SD Card
• Lens Cap
• Charger
• User Manual

FEATURES

• <1 millilux moonless starlight night vision
• Extra-large 1920x1080 HD micro-OLED display with a custom eyepiece for 25mm eye relief
• 44 degree field of view for maximum situational awareness
• Photo, video, and audio recording
• Manual focus of objective lens and diopter
• Onboard digital magnetic compass and GPS to document and geo-tag location
• Up to 256GB on-board storage
• Battery provides up to fourteen hours of operation with a full charge
• Flexible helmet mounting options with a standard dovetail interface
• Adjustable and reversible swing arm with quick-release button
• Exceeds MIL-STD-810G drop test
• IP67 rated: water-resistant at 1m/30min submersion, vibration/shock, salt/sand

CAMERA

• SENSOR TYPE: XQE-1351 (COLOR)
• RESOLUTION: 1280 X 1024
• FRAME RATE: 30 I 60 I 90 HZ
• HORIZONTAL FOV: 45°
• VISIBLE SPECTRUM: 400-1200NM
• FOCUS RANGE: 0.2M TO INFINITY
• LENS: 15MM F/1.3

SYSTEM

• SYSTEM LATENCY: < 1 FRAME
• DISPLAY: AMOLED 1920 X 1080
• DIOPTER ADJUSTMENT: -4 TO +4
• EYE RELIEF: 25MM
• EXIT PUPIL: 7.5MM
• LOCATION SYSTEM: BUILT-IN GPS
• ORIENTATION SYSTEM: DIGITAL MAGNETIC COMPASS
• WIRELESS COMMUNICATIONS: WIFI + BLUETOOTH
• AUDIO: BUILT-IN MICROPHONE
• POWER IN: 7.2VDC
• STORAGE MEDIA: MICRO SD CARD
• STORAGE CAPACITY: UP TO 256GB

ENVIRONMENTAL

• INGRESS PROTECTION: IP67
• SHOCK & VIBRATION: 2M
• OPERATING TEMPERATURE: -20°C TO +55°C
• STORAGE TEMPERATURE: -40°C TO +70°C

CAMERA - PHYSICAL

• WEIGHT: 301 G [10.6 OZ]
• DIMENSIONS: 120 X 80 X 58 MM [ 4.7 X 3.1 X 2.3 IN]
• MOUNTING OPTIONS: MINI RAIL
• MATERIAL: GLASS REINFORCED POLYCARBONATE

BATTERY PACK

• BATTERY CELLS: 4 X 18650 LI-ION
• VOLTAGE: 7.2VDC
• CAPACITY: 5960MAH | 42.9WH
• DIMENSIONS: 97 X 92 X 49 MM [3.8 X 3.6 X 1.9 IN]
• WEIGHT: 298G [10.5OZ]
• OPERATION TIME [ALL SYSTEM FEATURES ON] UP TO 10 HRS
• OPERATION TIME [VIEWING ONLY] UP TO 14 HRS

RANGE PERFORMANCE

• CLEAR WEATHER AT 1/4 MOON
• DETECT MAN-SIZED TARGET: 150 M

MANUAL AND GUIDES

• Product Specifications
• User Manual
• Quick Start Guide
• Regulatory Statement

FIRMWARE

Falcon 2.1.0 (JUL 2024)

• FW24.2.1_HW2062_WIFI2.4.2_BLE1.1.0
• Various bug fixes and performance improvements
• Implemented support for RTC (Real Time Clock)
• Includes Osprey

Osprey 2.0.0 (SEPT 2023)

• FW23.2.1_HW2062_WIFI2.3.9
• This is a major upgrade of Opsin
• Enabled SIONYX mobile application connectivity
• Includes image processing improvements
• Updated graphical user interface (GUI)
• New Menu structure
• Exposure Value (EV) is managed by Front knob potentiometer
• Additional SD card status messages
• Added EXIF support in JPG file including: software version, GPS data, image capture data, etc.
• Add GPS metadata to MP4 video recording (per chapter, not per image)
• Improved video recording performance
