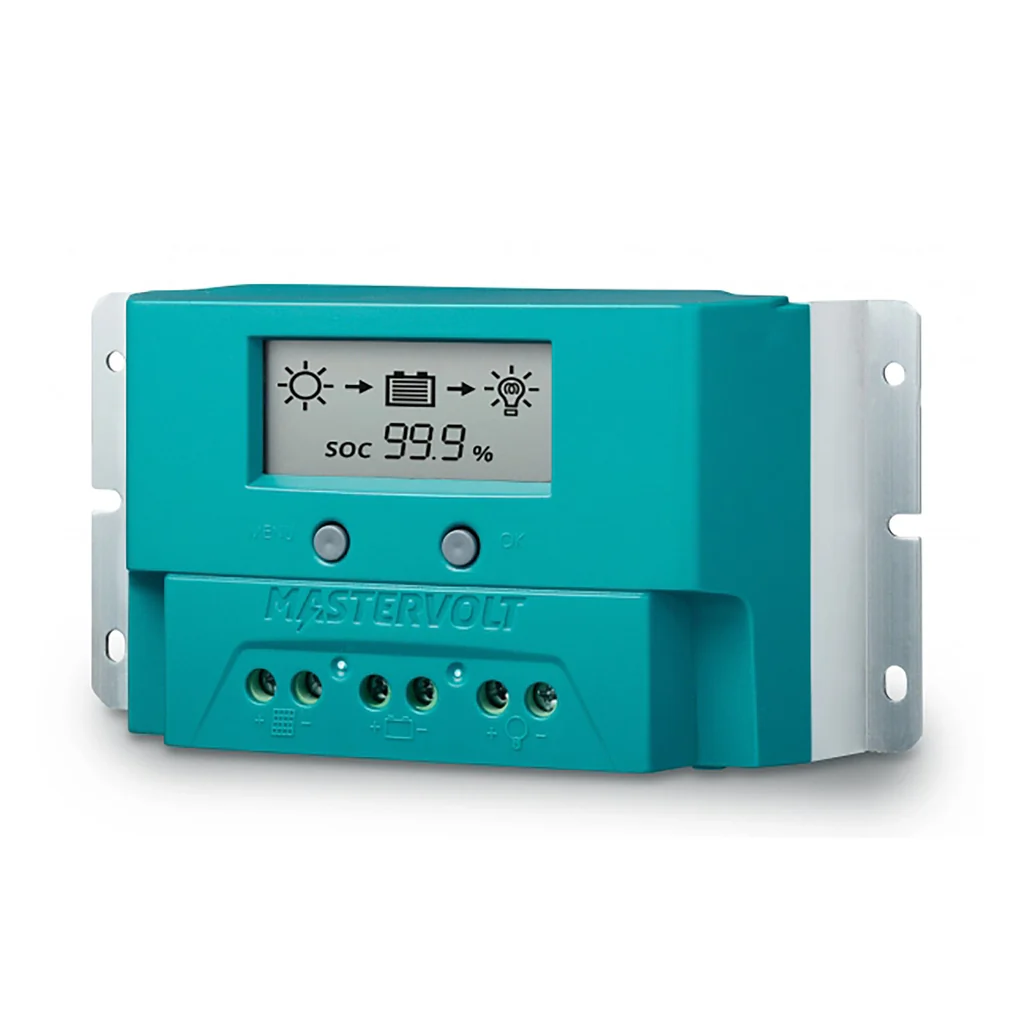

Solar Chargemaster SCM boatyardmalaysia

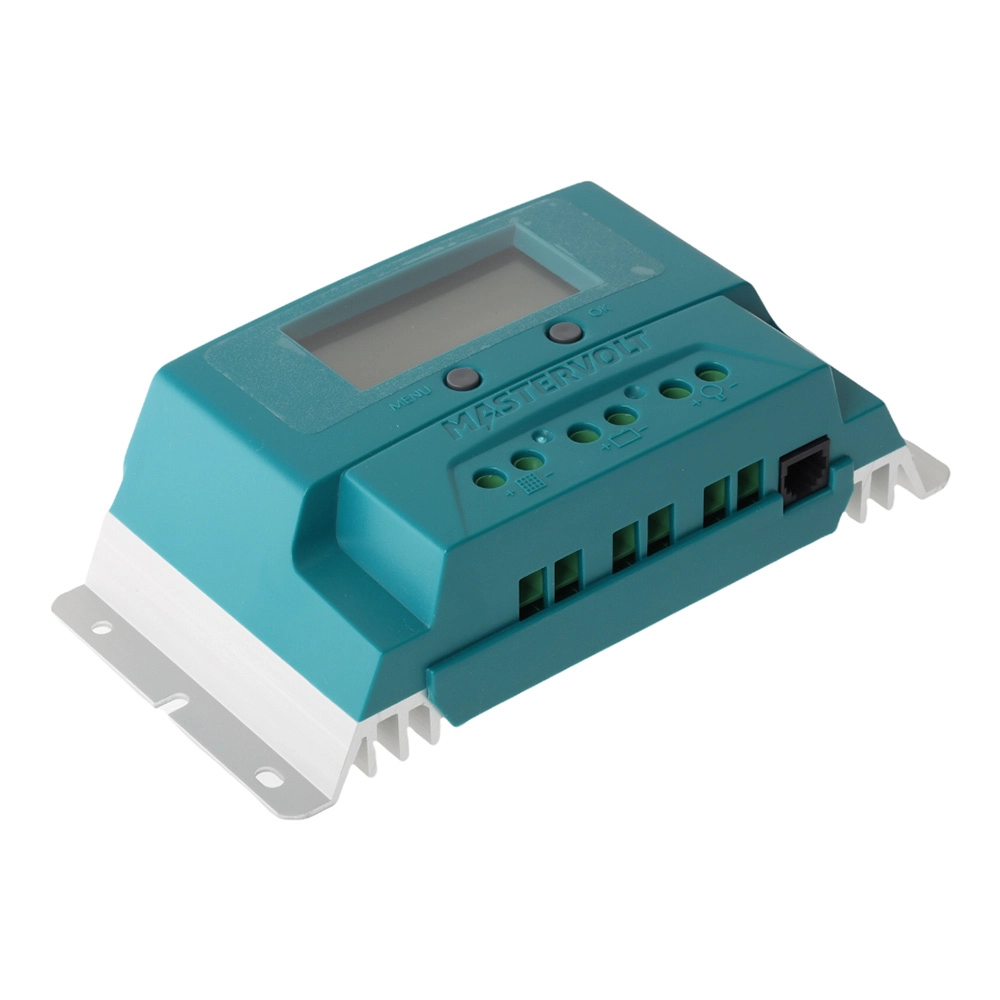

  • Solar Chargemaster SCM boatyardmalaysia

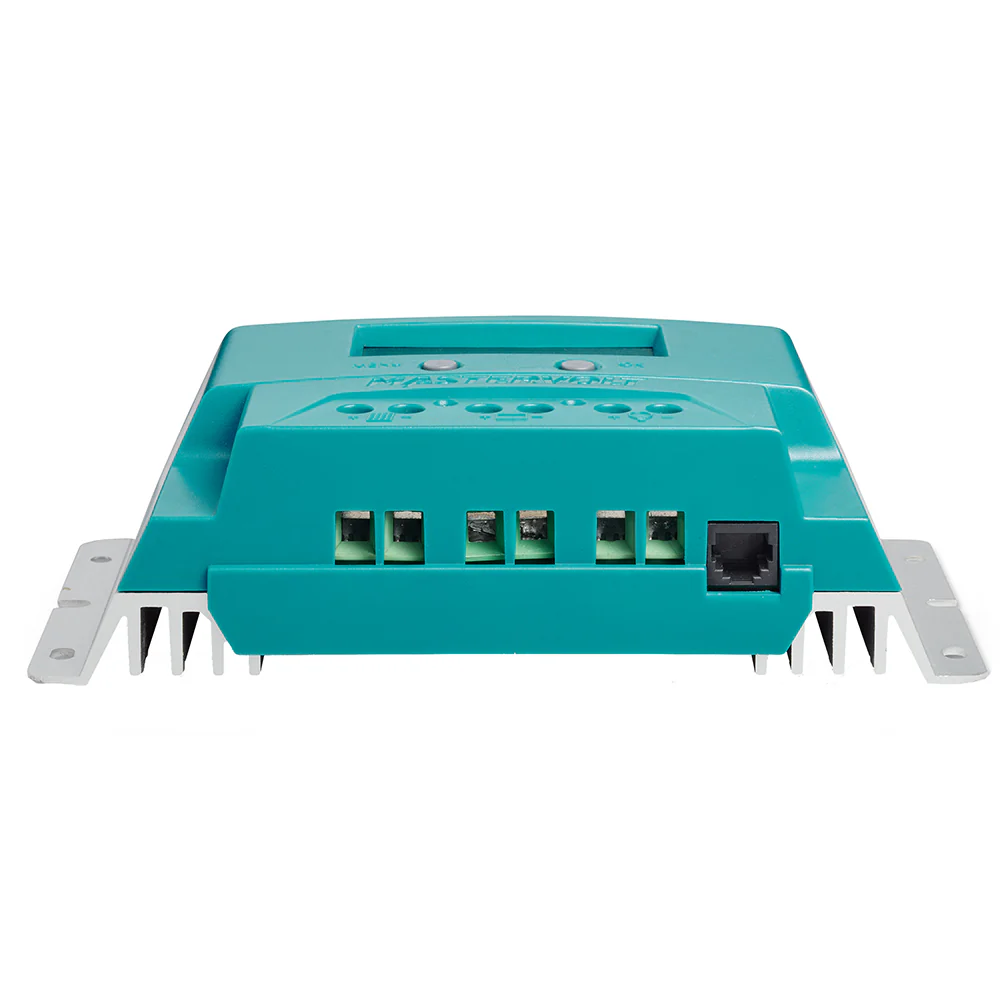

  • Solar Chargemaster SCM boatyardmalaysia
  • Solar Chargemaster SCM boatyardmalaysia
Solar Chargemaster (SCM)

Mastervolt

Solar Chargemaster (SCM)

SKU: 131824000
Pre Order
RM976.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

This solar charge regulator based on PWM technology is a great solution to charge your batteries with solar energy. Suitable for both 36 cells panels (in 12 V systems) and 72 cells panels (in 24 V systems). Its protection against water spray, suitability for high ambient temperature and compatibility with negative grounding, make it the perfect solar regulator for marine and mobile environments. Optionally, a temperature sensor is available.
Current
SIZES & DIMENSIONS
  • 98 x 189 x 53 mm; 3.9 x 7.4 x 2.1 inch
WHAT'S IN THE BOX
FEATURES

Safe, user friendly, and flexible

The SCM40 PWM is suitable for all types of lead-acid batteries in both 12 V and 24 V. The device features a large display and switchable output with evening / night lighting function.
SPECIFICATIONS

Specifications battery charger

  • System voltage (battery): 12/24 V auto select
  • Nominal charge current: 20A or 40A
  • Battery types: AGM, Gel, flooded
  • Battery temperature sensor: optional, product code 41500500
  • Switchable output (max. current): 20A or 40A
  • Energy consumption (night): < 7 mA



Specifications solar input (DC)

  • Panel type (12 V system): 36 cells
  • Panel type (24 V system): 72 cells
  • Max. PV current (Impp): 40 A
  • Recommended PV power (12 V system): 360 and 720 Wp
  • Recommended PV power (24 V system): 720 and 1440 Wp



General specifications

  • Cooling: passive
  • Display/read-out: backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
  • Grounding: common negative grounding
  • Protection degree: IP23
  • Dimensions, hxwxd: 98 x 189 x 53 mm; 3.9 x 7.4 x 2.1 inch
  • Weight: 0.5 kg; 1.1 lb



Technical specifications

  • Technology: PWM (Pulse Width Modulation)
  • Temperature range (ambient temp.): -20 °C to 50 °C, derating power > 40
  • Cable size: max. 16 mm²
  • Protections: over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
  • Relative humidity: 95 % non-condensing
DOCUMENTATIONS

User’s and installation manual

Important safety instructions
