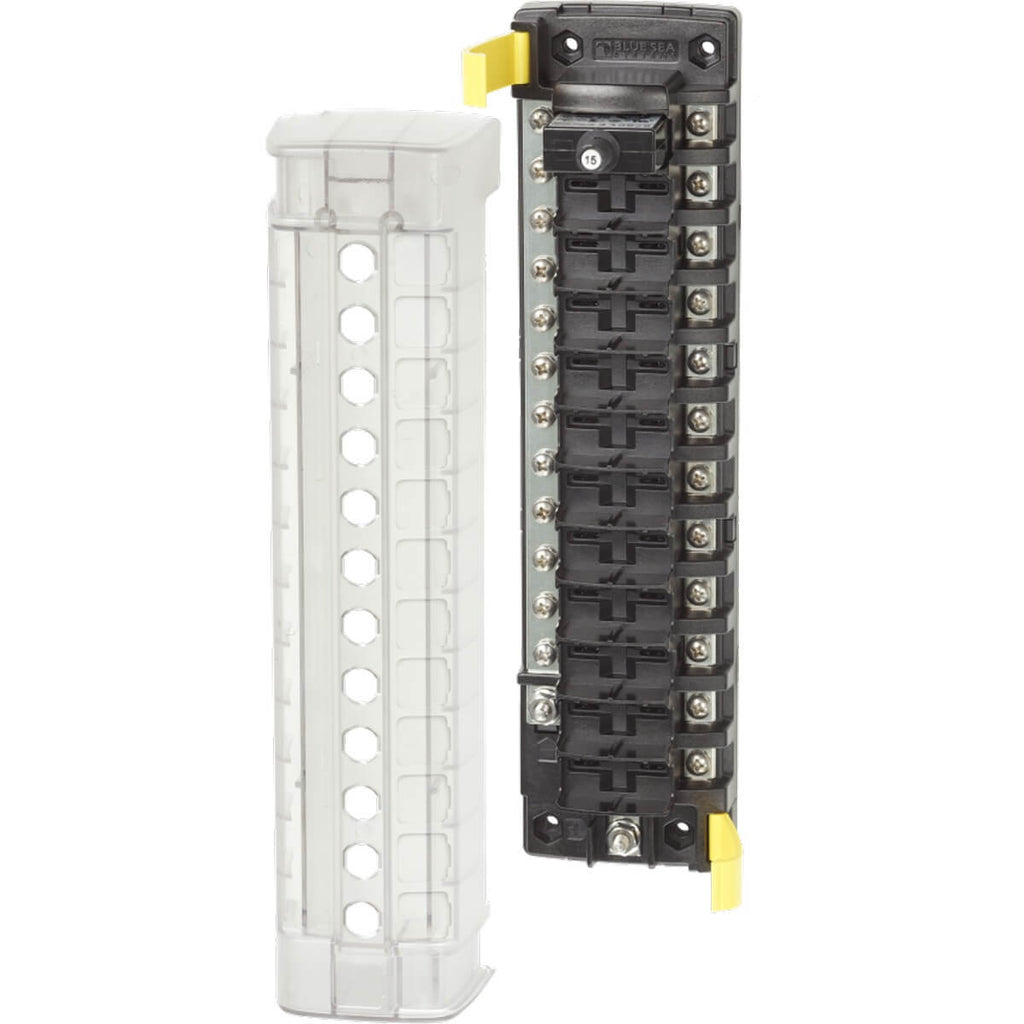

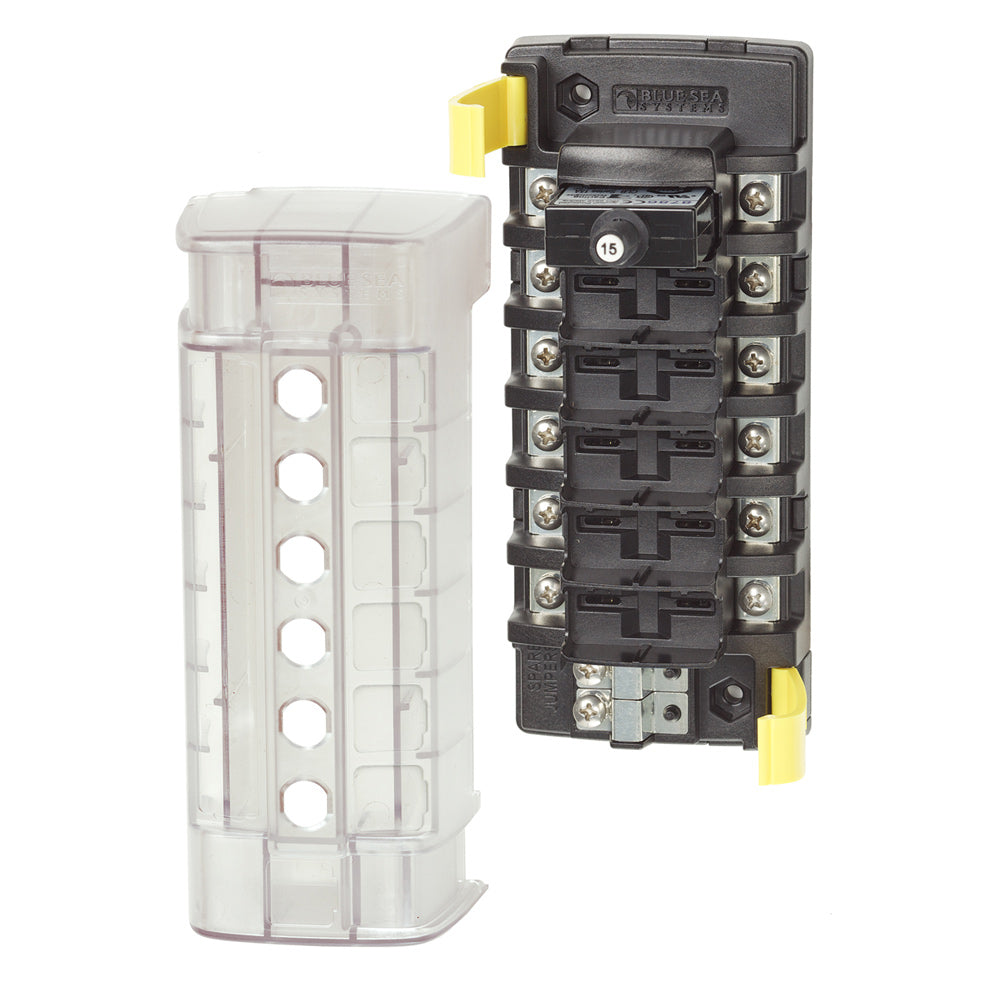

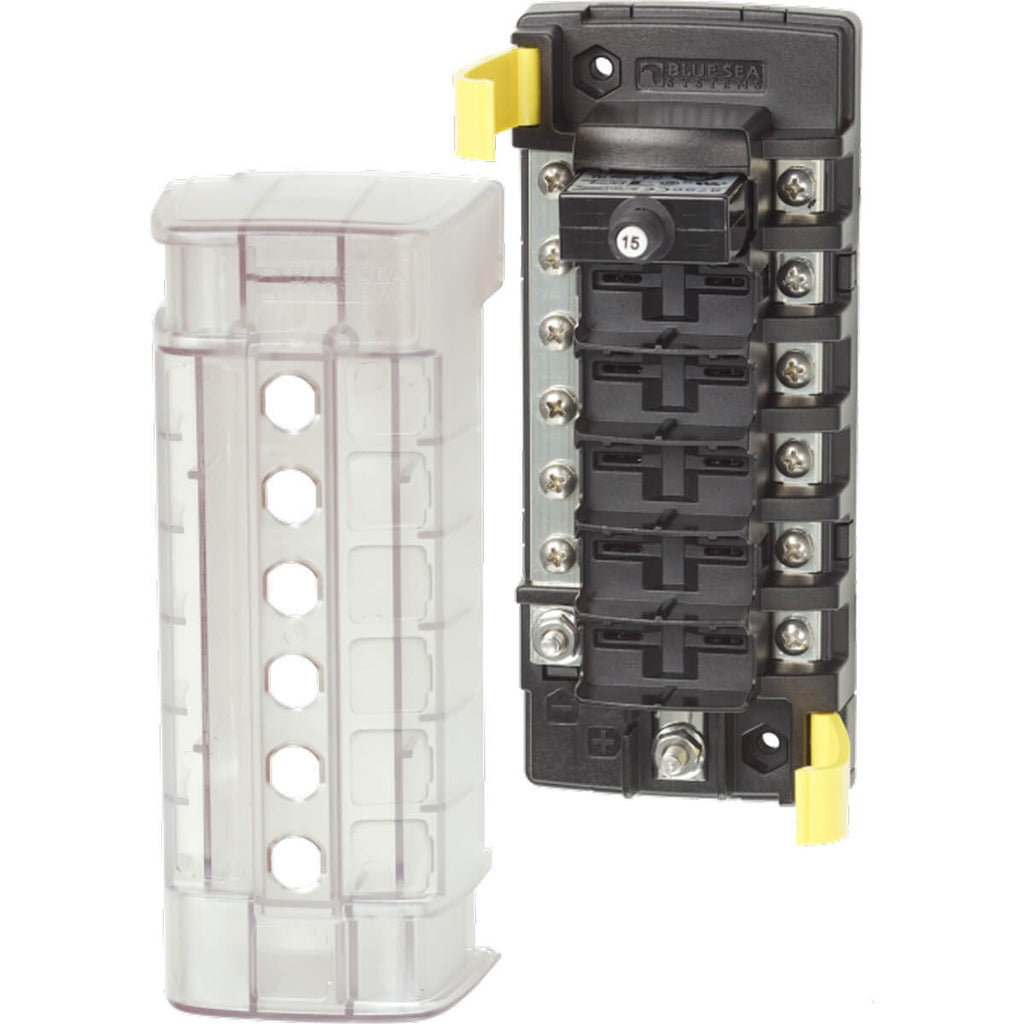

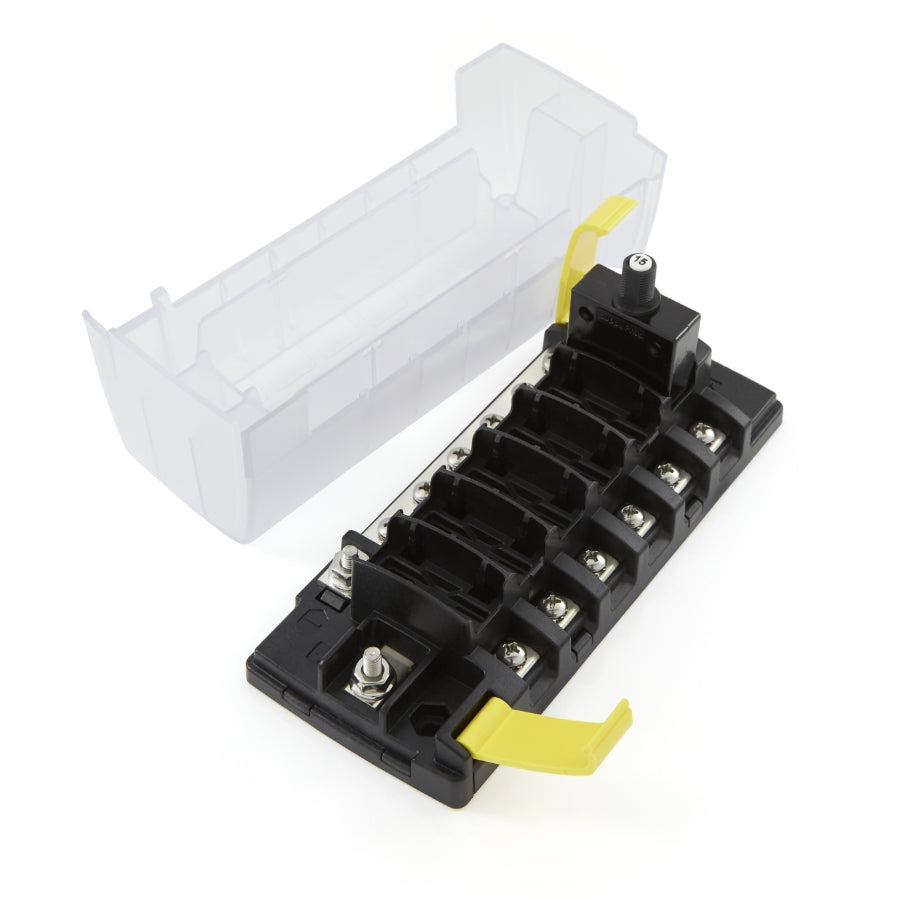

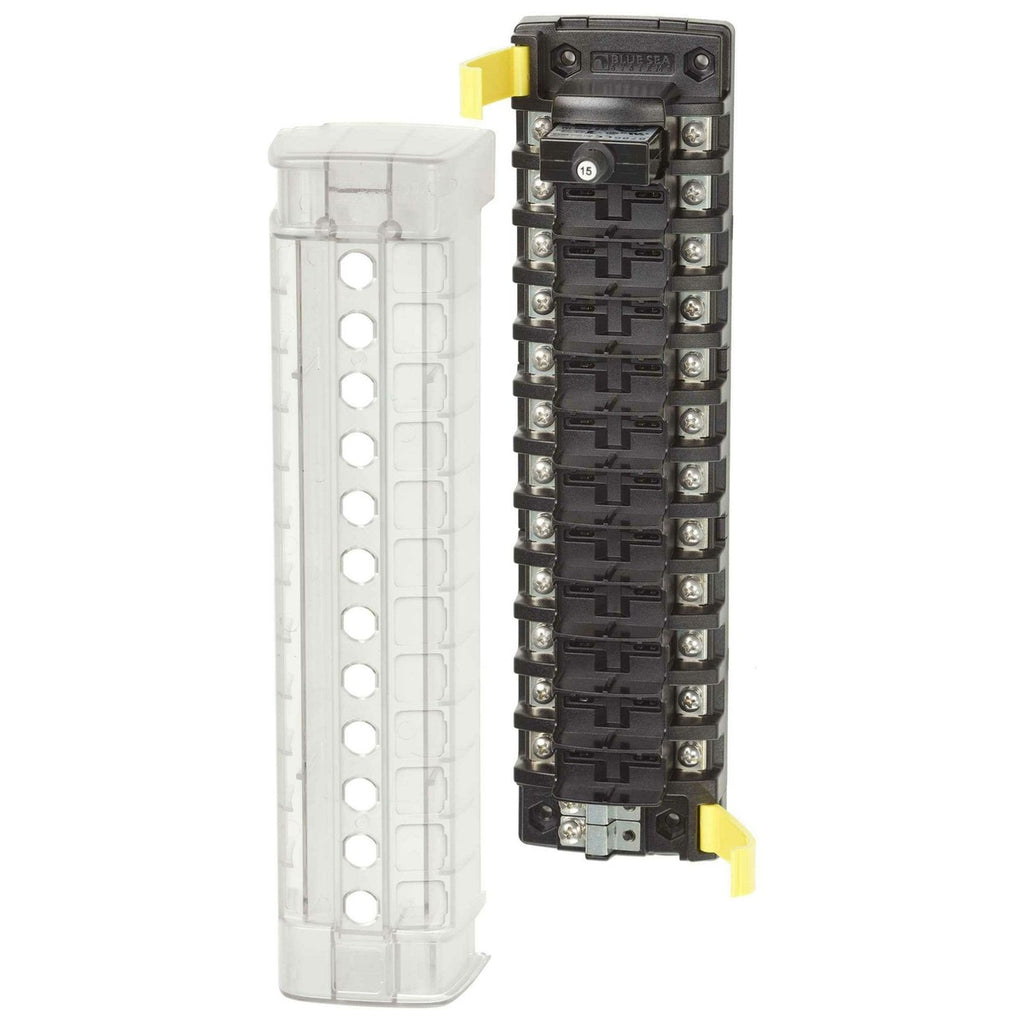

ST CLB Circuit Breaker Block

Blue Sea System

ST CLB Circuit Breaker Block

SKU: 5050
Pre Order
RM422.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
Configurations
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels
SPECIFICATIONS

Dimensioned Drawing
DOCUMENTATIONS

Circuits: 6 or 12

Maximum Amperage : 32A (per circuit); 40A (per jumped circuit group)

Maximum Voltage: 32V DC

Mounting: #8 Screw (M4) or #8 Nut

Source: Independent Source

Minimum Operating Temperature: -10° C

Maximum Operating Temperature: 60° C

Mounting Centers: 5.63in (143 mm)

Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
