Water-Resistant Circuit Breaker Switch Panel boatyardmalaysia

Blue Sea System

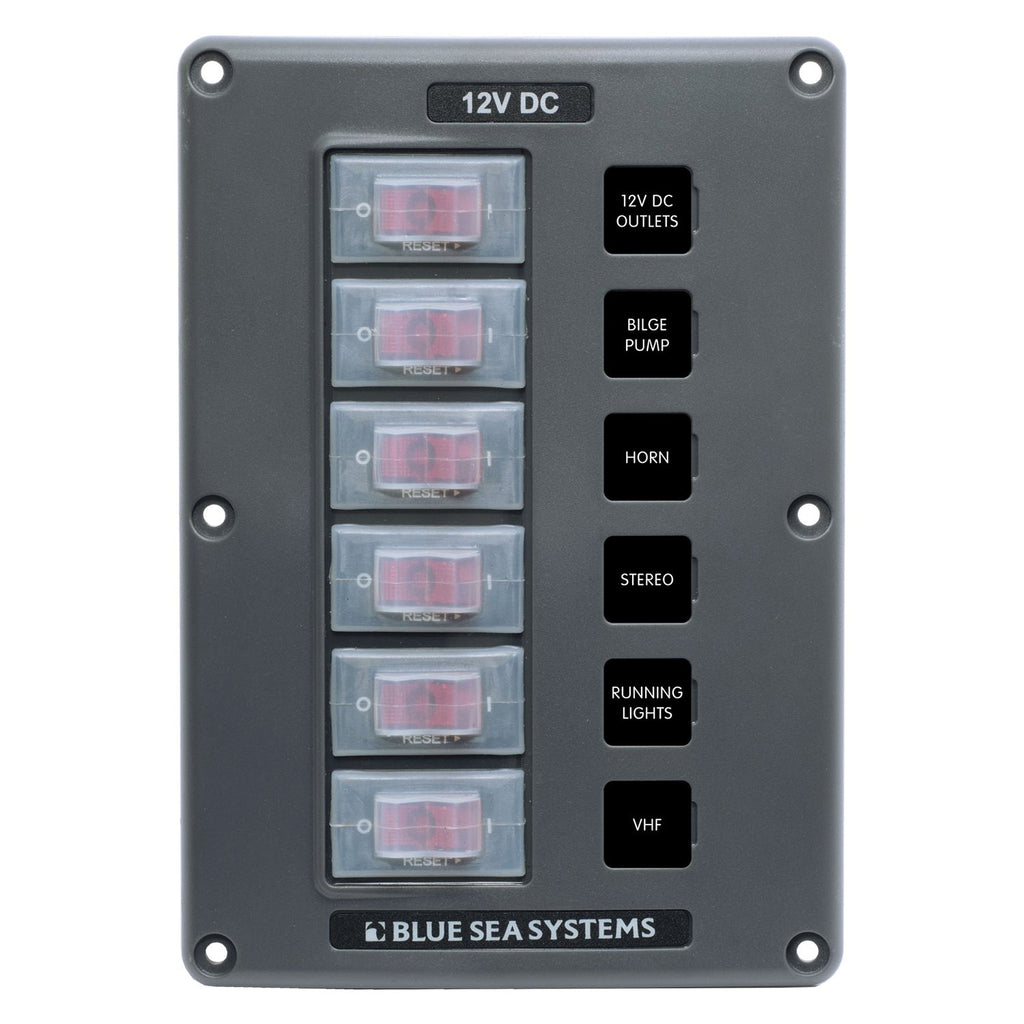

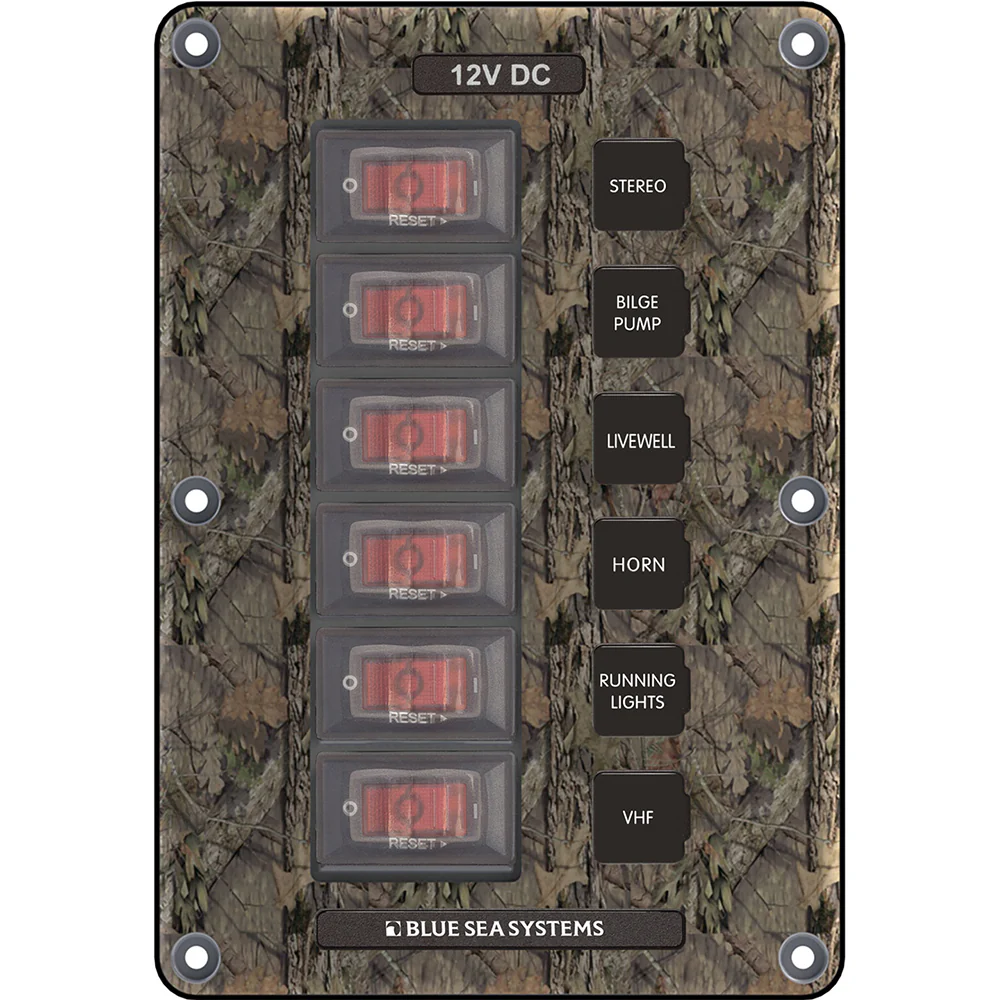

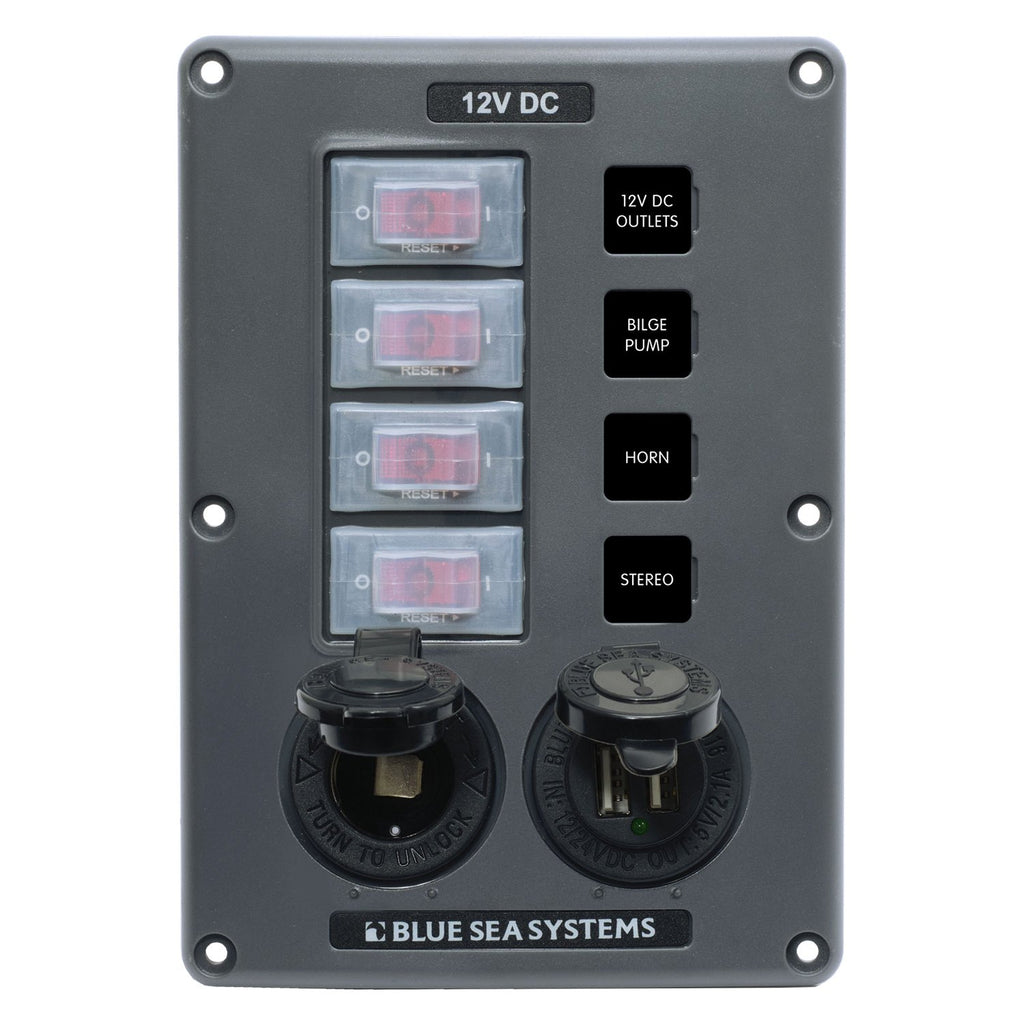

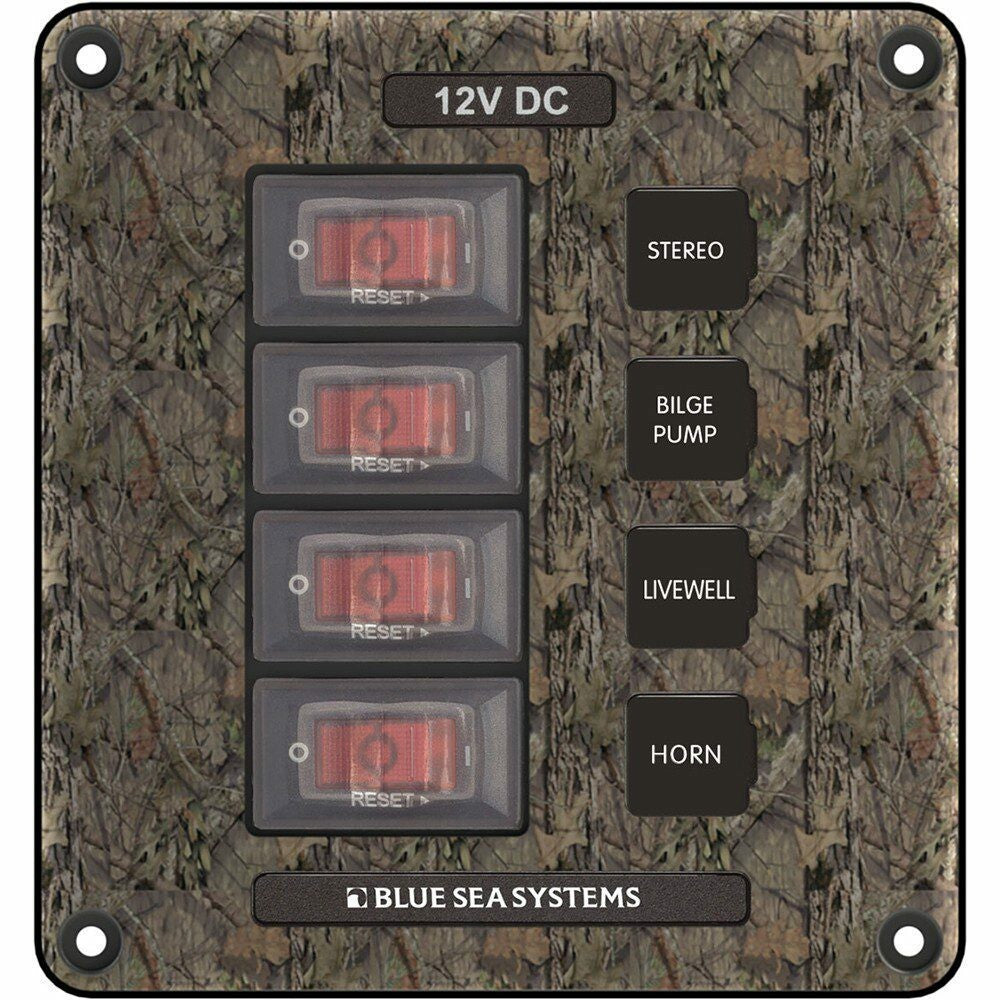

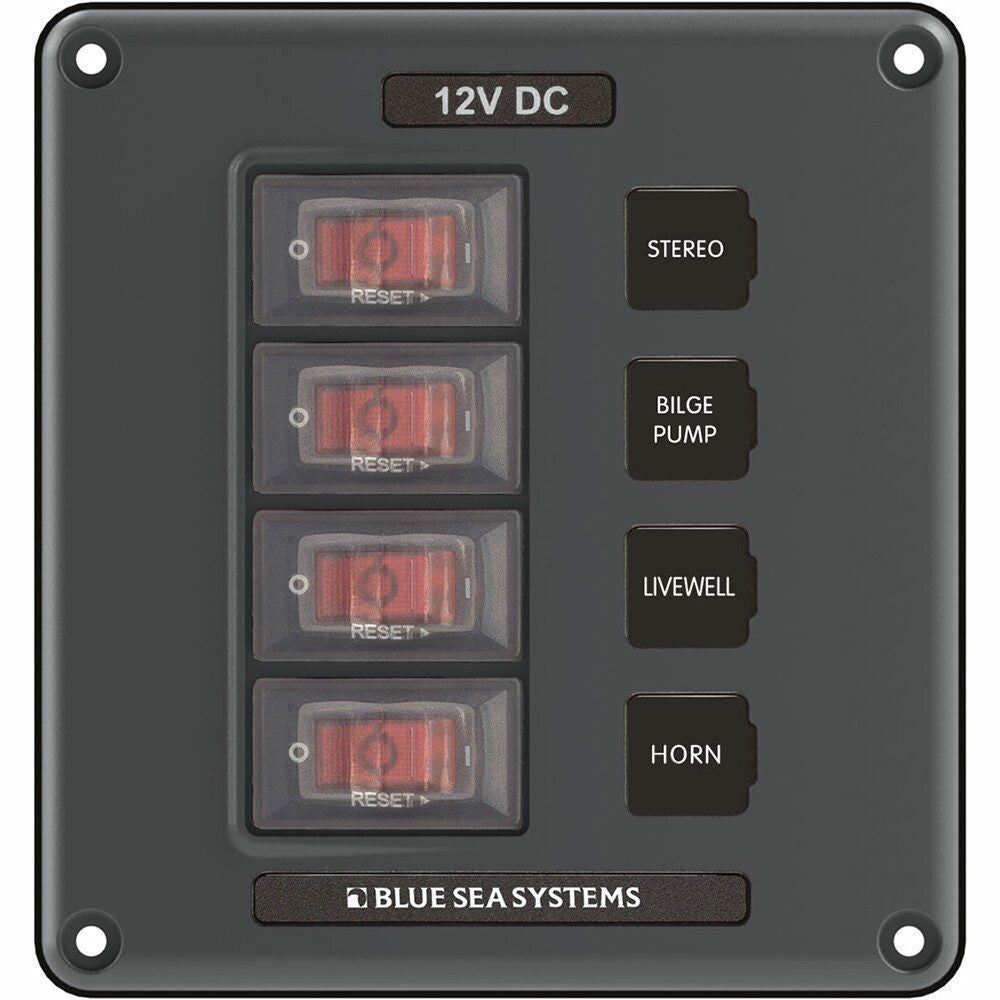

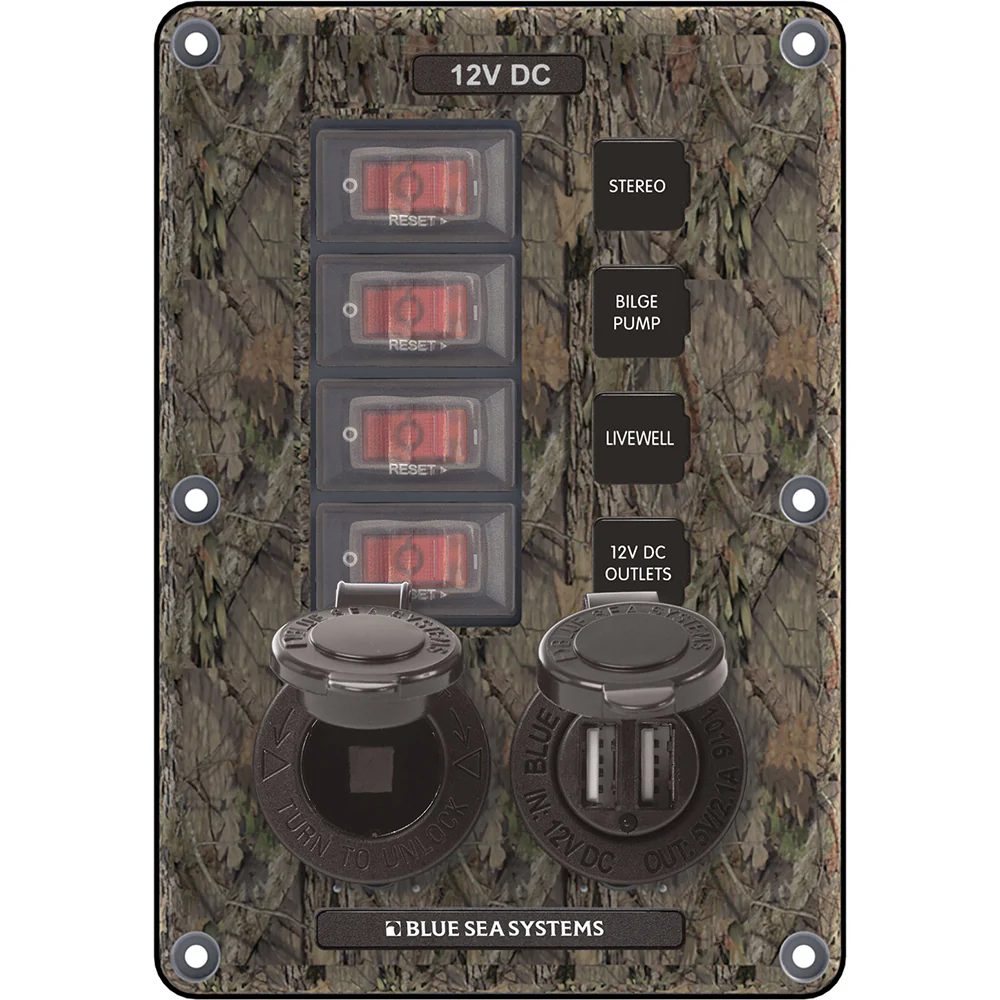

Water-Resistant Circuit Breaker Switch Panel

SKU: 4321
Pre Order
RM605.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

Designed for exposed mounting applications

ColorGray
Positions
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
  • Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
  • Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
  • Silicon breaker boots and gasket protects against water ingress
  • Low profle makes it easy to install in tight spaces
  • Fast-on circuit breaker connectors make it quick to wire
  • Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
  • Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
SPECIFICATIONS

Positions: 4, 6, 8

Nominal Voltage: 12V DC

Maximum Amperage : 45A

Terminal Type: 1/4" Male quick connect

Hardware: Stainless Steel #6 x 5/8" mounting screws

Ring Terminal Size: M5 (#10)

DOCUMENTATIONS
