WeatherDeck® 12V DC Waterproof Circuit Breaker Panel boatyardmalaysia

Blue Sea System

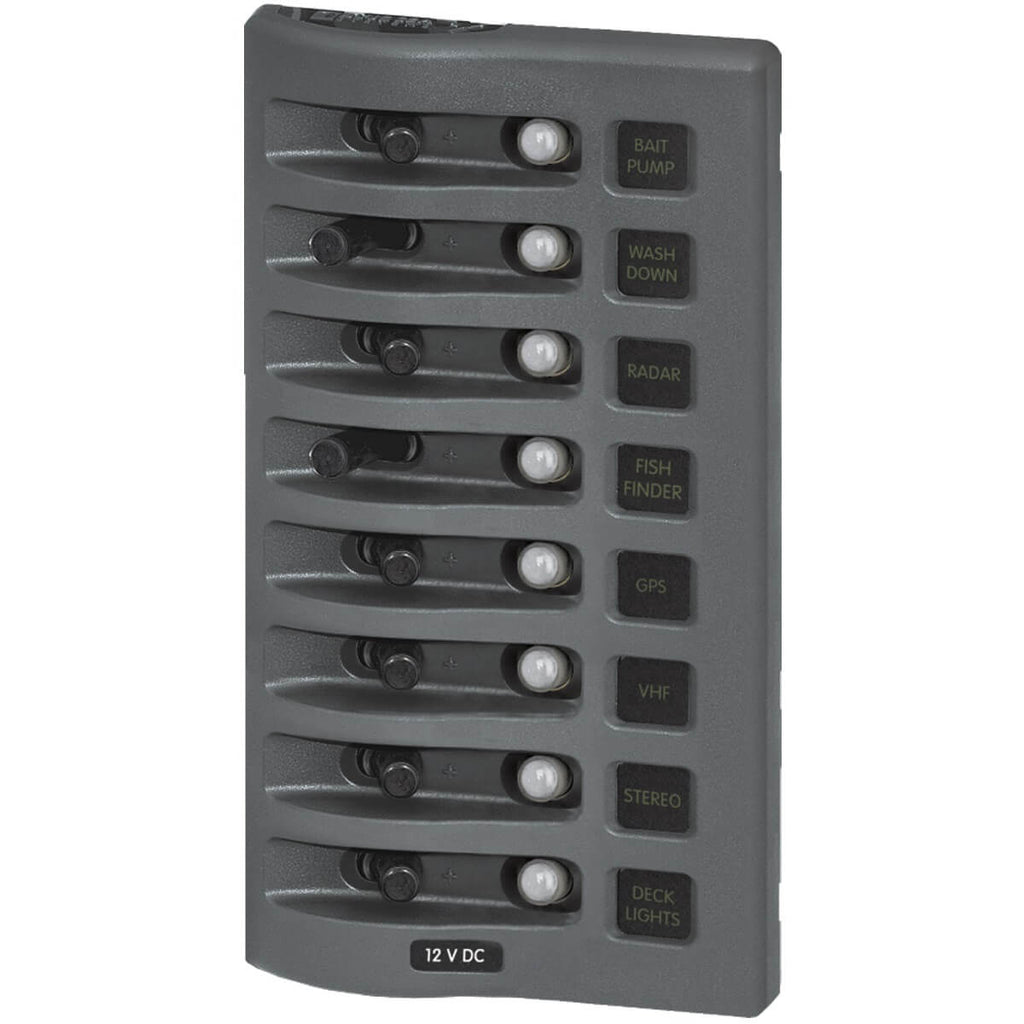

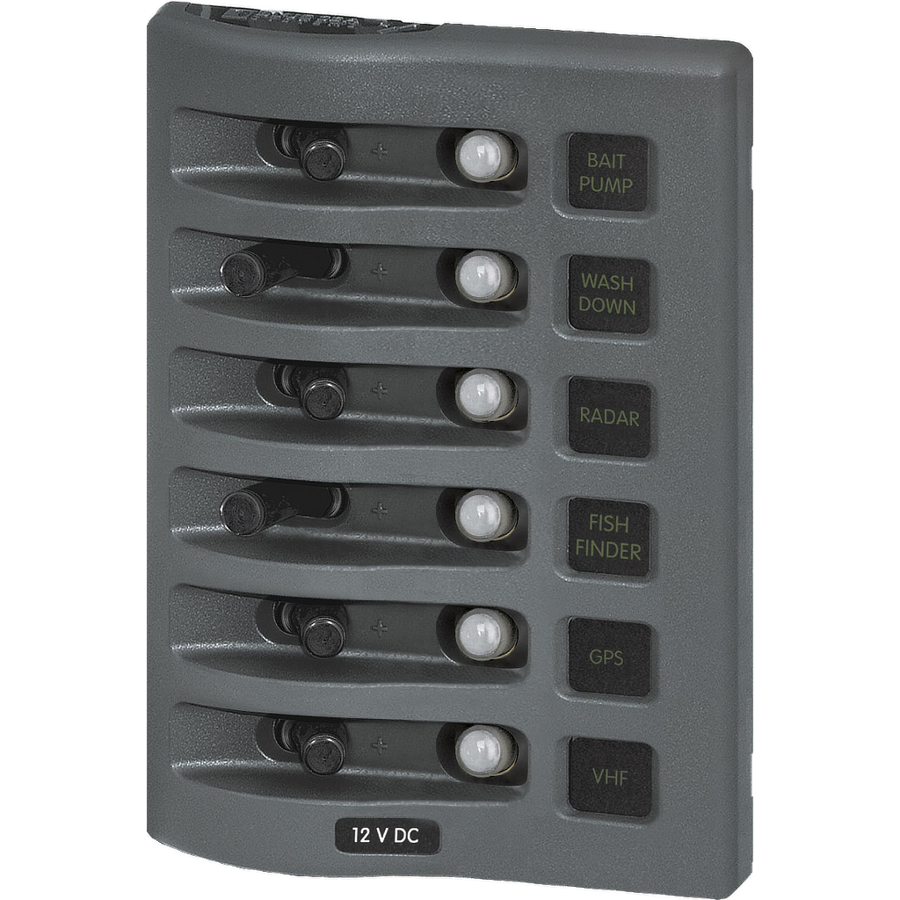

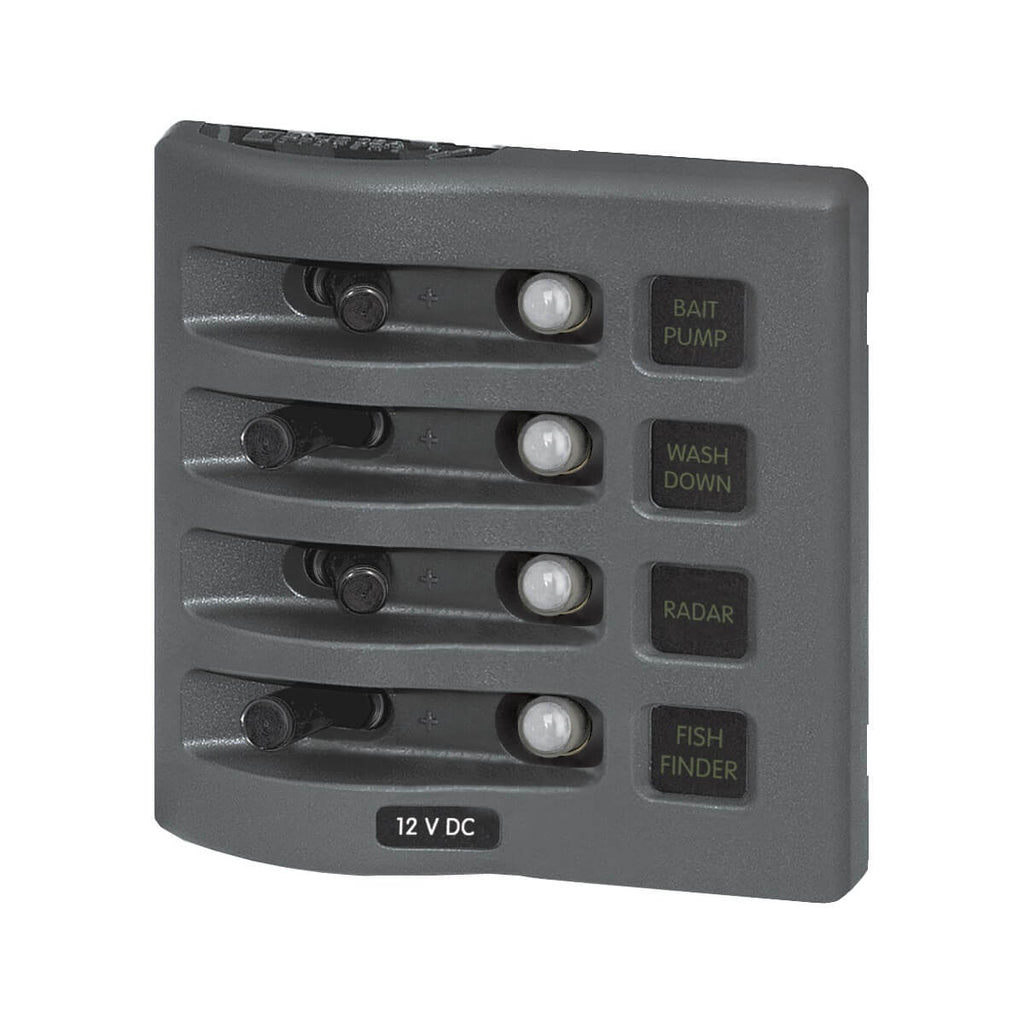

WeatherDeck® 12V DC Waterproof Circuit Breaker Panel

SKU: 4374
Pre Order
RM1,009.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

Positions
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Rated IP67-temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting allows switching and dimming
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Available in 4 and 6 circuit models
  • Each panel can be mounted in four different orientations
  • Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
SPECIFICATIONS

Weatherproof : Waterproof

Positions: 4, 6, 8

Nominal Voltage: 12V DC, 24V DC

Circuit Protection: Circuit Breaker

Maximum Amperage : 15A @ 12V DC (per circuit)

9A @ 24V DC (per circuit)

Panel Cumulative Rating: 45A

Backlit Label : Green LED

Backlighting Amperage: 10mA /Illuminated Circuit

Backlighting Voltage: 12 or 24V DC

Material: Reinforced Polycarbonate

DOCUMENTATIONS
