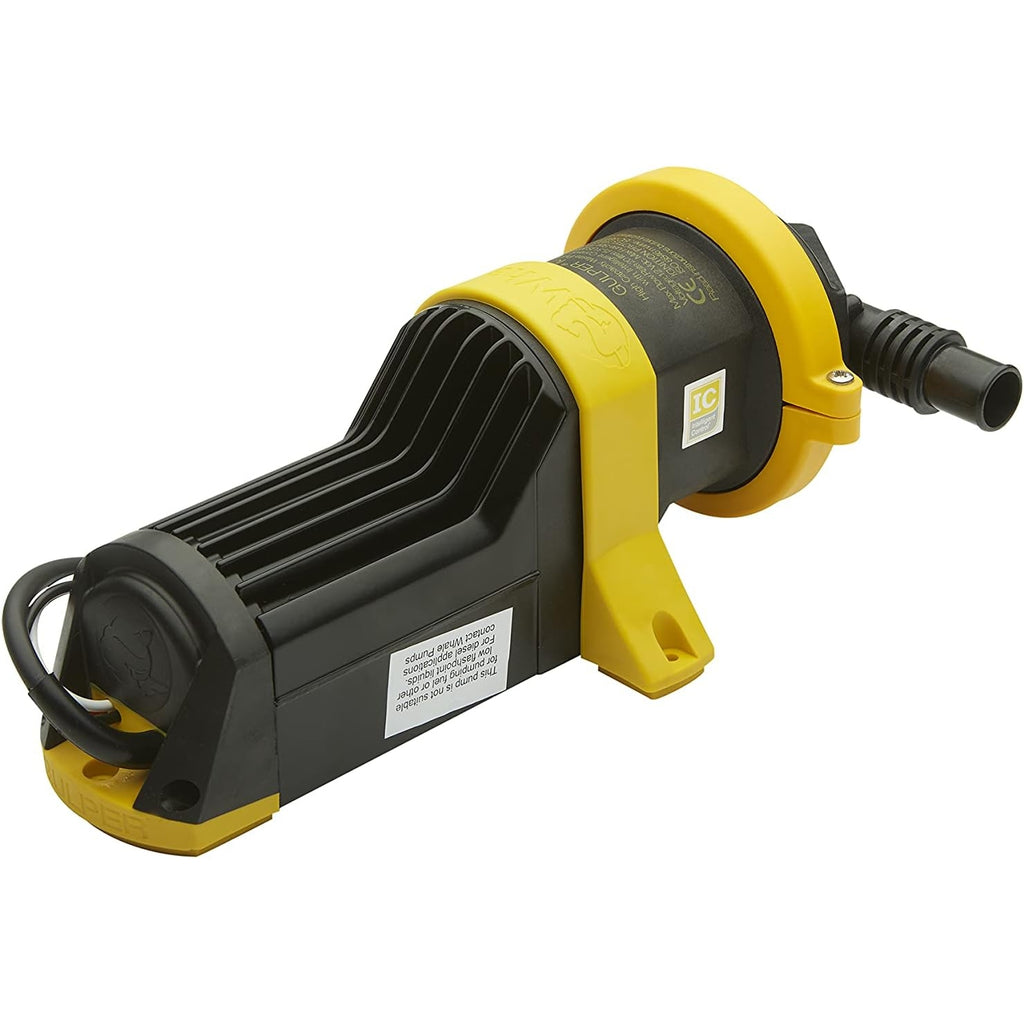

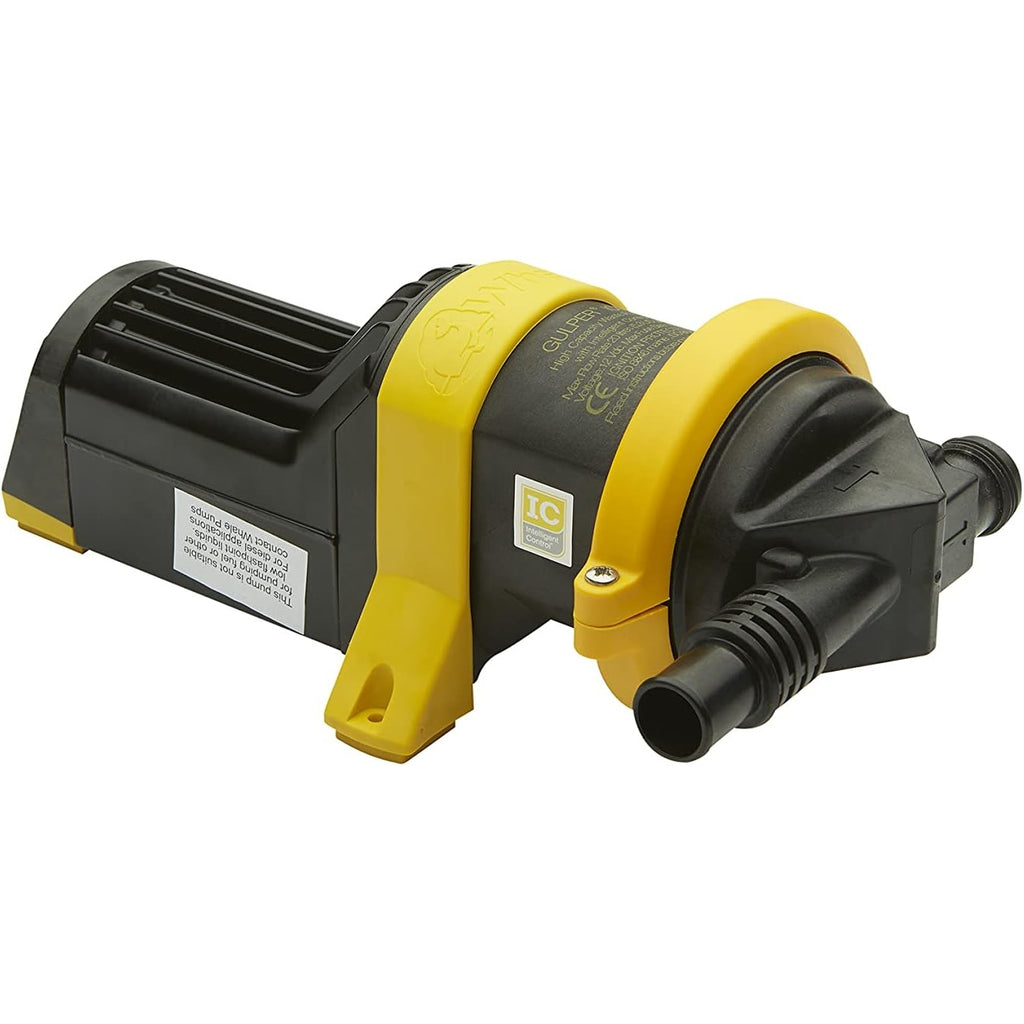

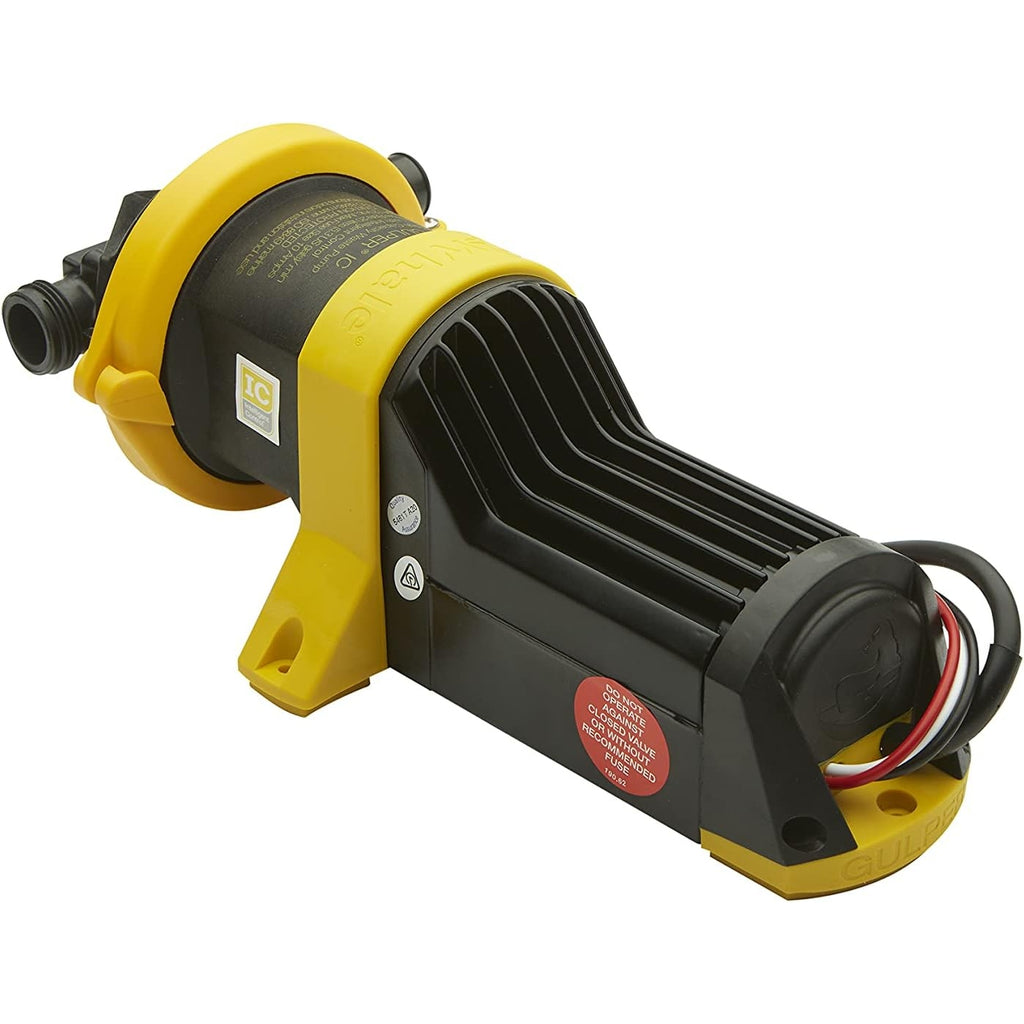

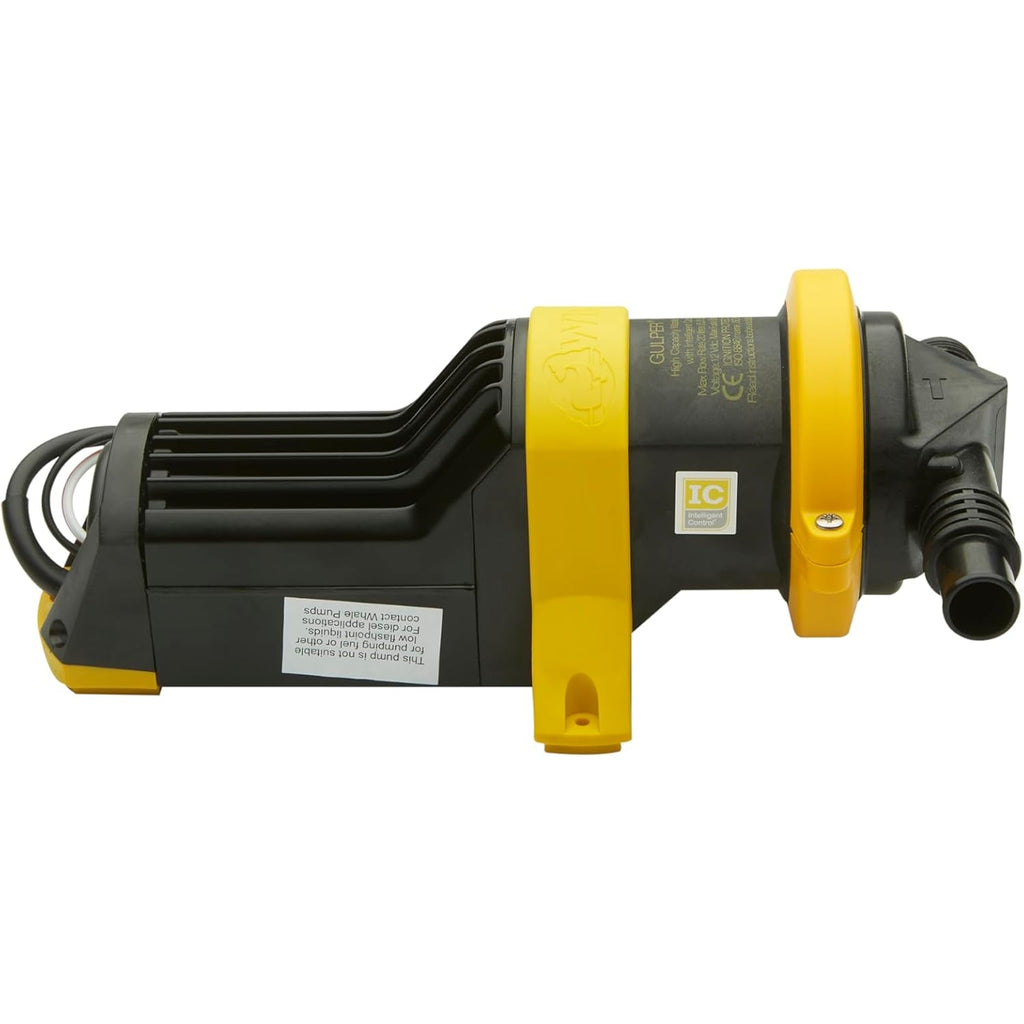

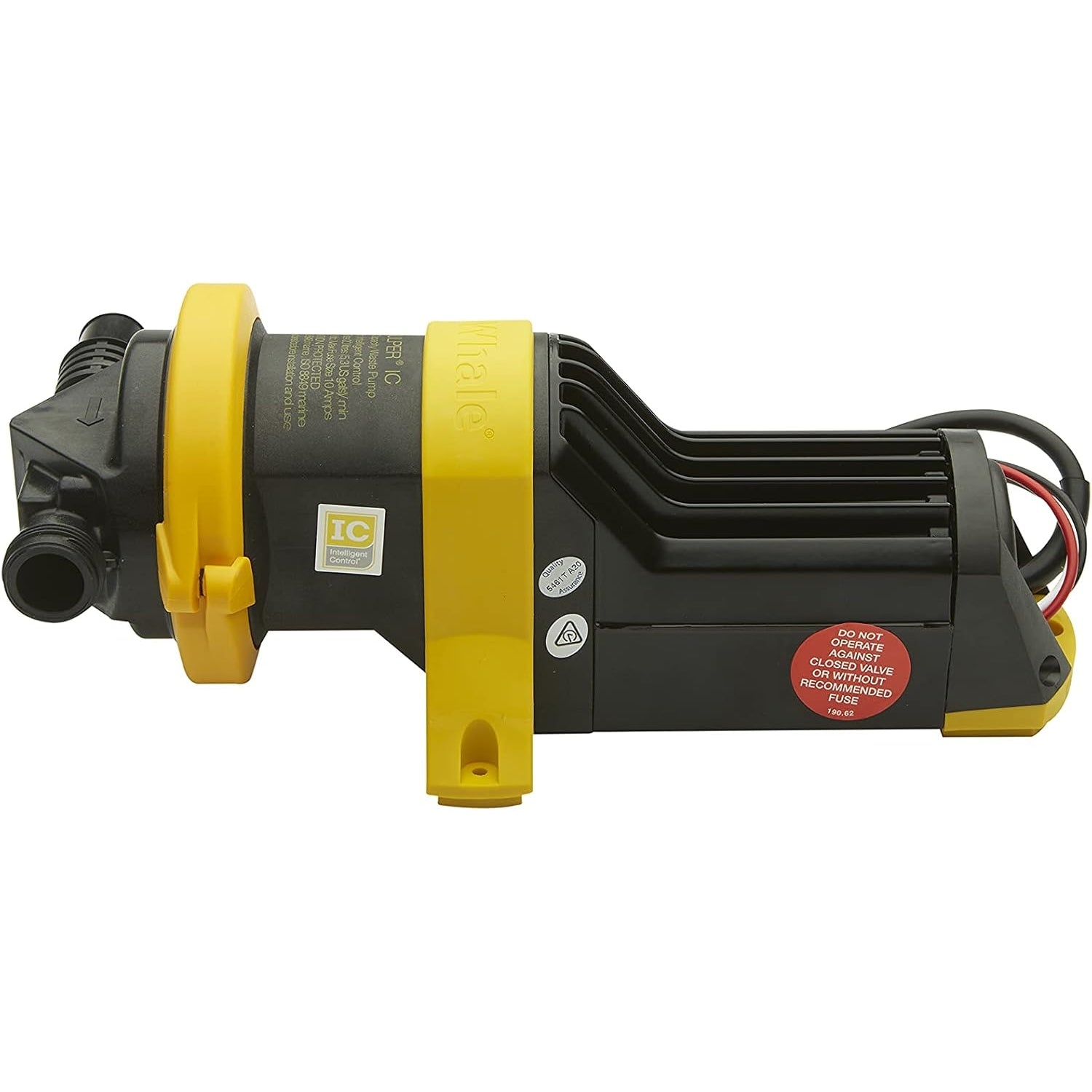

Whale Grey IC Waste Pump

Whale Marine

Whale Grey IC Waste Pump

SKU: WM8484
Pre Order
RM2,707.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Optimize your bilge and greywater management with a dependable DC-powered diaphragm pump that combines automatic sensing, strong flow rate, and dual-inlet versatility. Ideal for compact spaces, this system supports efficient drainage from multiple sources while protecting the pump through dry‑run capability and self‑priming performance. The included two‑way valve with sensor streamlines installation and control, making it a smart upgrade for marine and RV wastewater systems.

Key benefits: fast flow, automatic operation, dry‑run safe, compact size, low current draw, and easy maintenance—engineered for reliable greywater and bilge applications.
Voltage
SIZES & DIMENSIONS
  • Pump: approx. L 280 mm x W 198 mm x H 110 mm
  • Sensor: approx. L 140 mm x W 103 mm x H 114 mm
WHAT'S IN THE BOX
  • 1 x pump with 19 mm (3/4")
  • 25 mm (1") hose connections

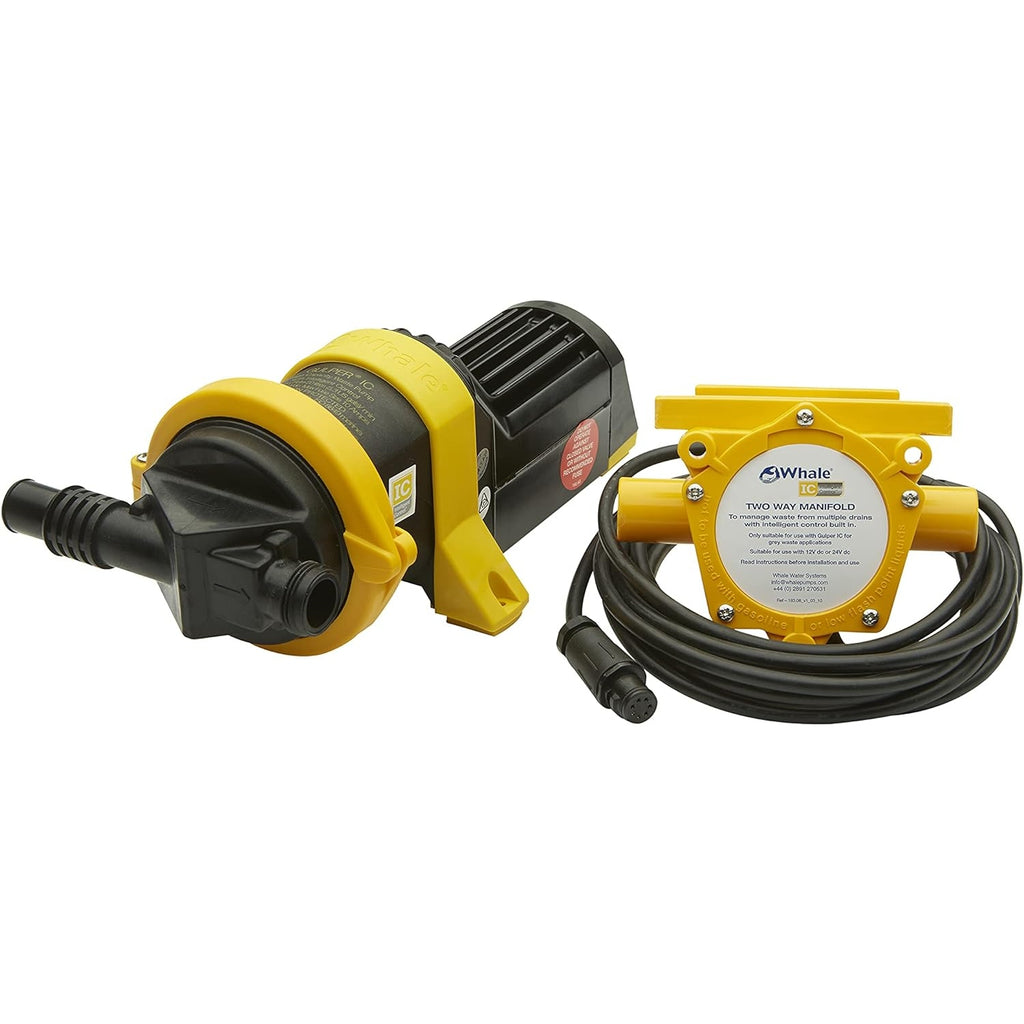

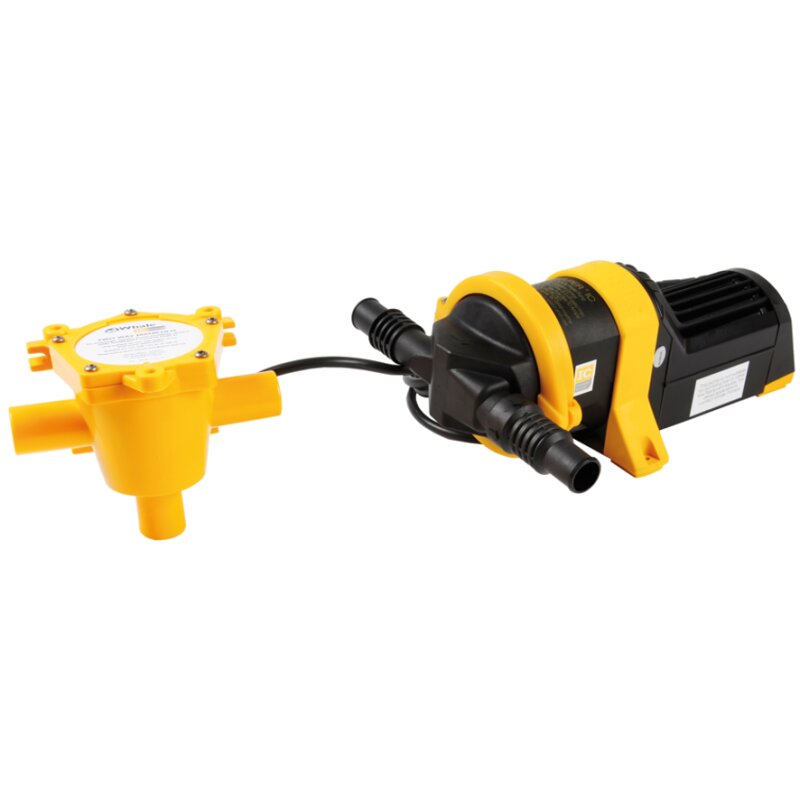

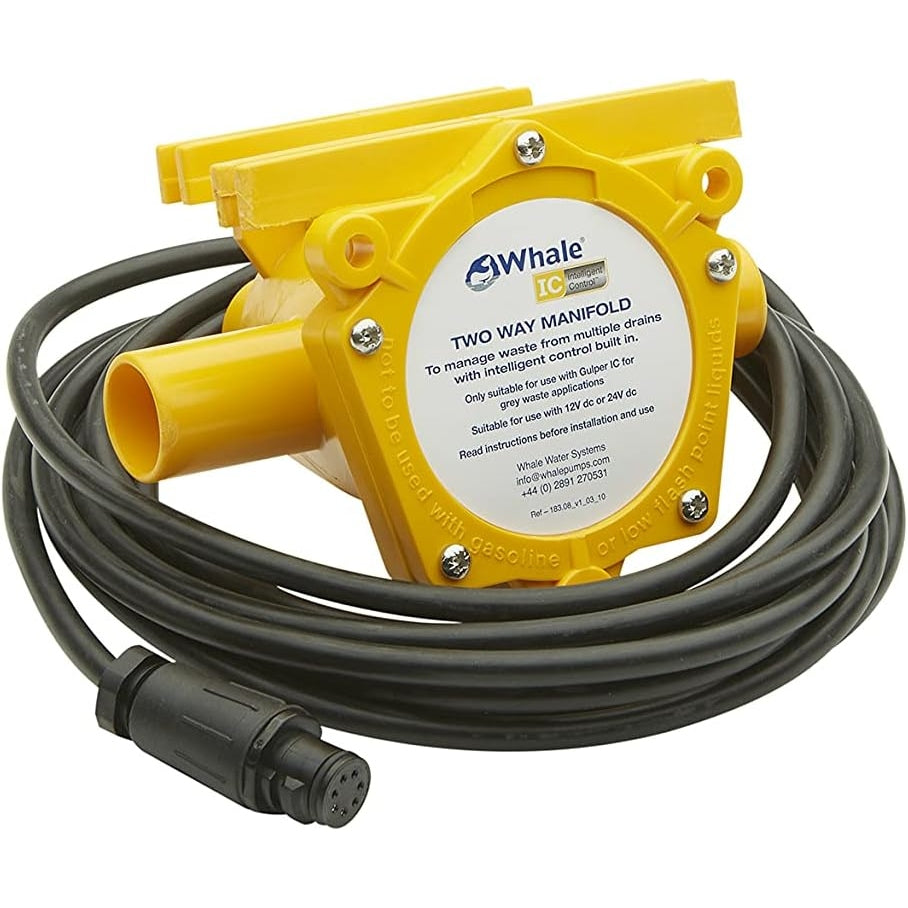

  • 1 x two‑way valve with sensor (25 mm / 1")
FEATURES
  • High-performance greywater pump system for boats and RVs, delivering up to 19 litres/min (5 GPM) with free discharge for fast, reliable waste water removal.
  • Intelligent sensor automatically activates on contact with water and switches off after emptying, helping prevent overflow and reduce power consumption.
  • Single‑chamber Santoprene diaphragm pump designed for greywater systems with two inlets, ideal for sinks, showers, and galley applications.
  • Self‑priming up to 3 m for flexible installation above or away from the water source; can run dry without damage for added protection.
  • Manual sensor override available for quick servicing or manual control when needed.
  • Includes pump with 19 mm (3/4") and 25 mm (1") hose connections plus a two‑way valve with integrated sensor (25 mm / 1") for dual‑source management.
  • Current consumption max. 3.25 A; recommended fuse 5 A for safe, efficient operation on DC power systems.
  • Built for marine and mobile applications, with durable components engineered to handle frequent cycling and intermittent dry running.
  • Suggested for unisex-adult users; easy to install with clear component interfaces and robust hose fittings.
SPECIFICATIONS
DOCUMENTATIONS
