SD Card Reader

Garmin SD Card Reader Product Description

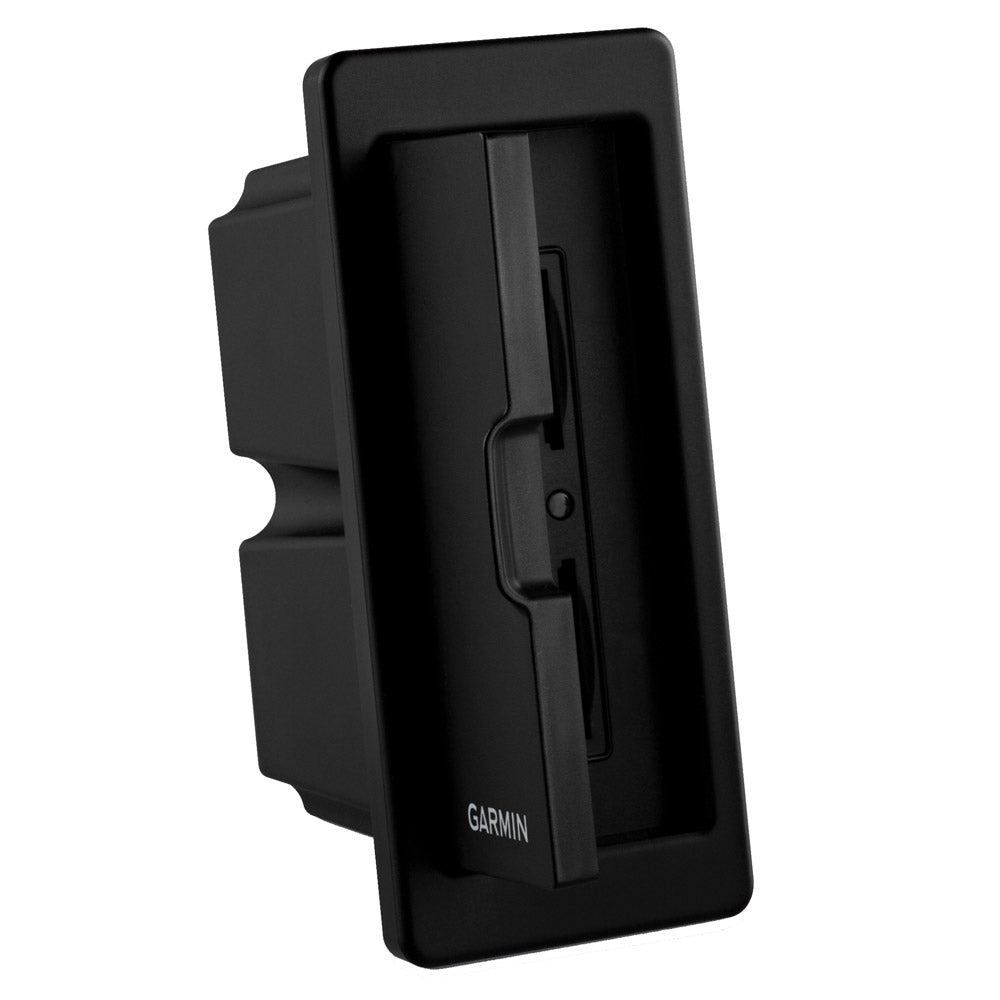

Garmin Card Reader

Provide convenient remote mounting and a single access point for 2 SD card slots for mapping with our Garmin Card Reader. A waterproof, magnetic door allows the card reader to be mounted horizontally or vertically - and you can add multiple card readers for additional access points.

In The Box:

• Garmin Card Reader
• Mounting hardware
• Power cable
• Network cable (6 ft)
• Documentation

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Provide convenient remote mounting and a single access point for 2 SD™ card slots for mapping with our Garmin Card Reader. A waterproof, magnetic door allows the card reader to be mounted horizontally or vertically - and you can add multiple card readers for additional access points.

• Dimensions (W H D): 2 1/8" x 4 7/8" x 3 3/16" (54.3 x 124.1 x 81.2 mm)
• Weight: 6.3 oz. (178.6 g)
• Temperature range: From 5 to 158 F (from -15 to 70 C)
• Material: Fully gasketed, high-impact plastic, waterproof to IPX7 standards
• Input power: 10-35 Vdc
• Fuse: 7.5 A, 42 V fast-acting
• Maximum power usage at 10 Vdc: 2.4 W
• Typical current draw at 12 Vdc: 80 mA
• Maximum current draw at 12 Vdc: 240 mA
• Compass-safe distance: 36" (915 mm)

What's in the Box:

• Garmin Card Reader
• Mounting hardware
• Power cable
• Network cable (6 ft)
• Documentation
