Garmin Force Freshwater Trolling Motor - 57" - Boatyard Malaysia

Garmin

Force® Trolling Motor

SKU: 010-02025-00
Pre Order
RM22,776.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

FISH WITH FORCE

Get on fish faster, and stay on the water with Force, the trolling motor that’s powerful, efficient and quiet.

Length
SIZES & DIMENSIONS

12" L x 9" W x 4 1/2" H

WHAT'S IN THE BOX
  • Trolling Motor
  • Built-in GT54UHD-TM transducer
  • Foot Pedal
  • Remote
  • High Efficiency Propeller
  • Stabilizer
  • Assembly and Mounting Hardware
  • Documentation
FEATURES
  • More efficient at 24 volts than the competition’s 36-volt system
  • Wireless integration with Garmin chartplotters
  • Built-in transducer for traditional and scanning sonars
  • Wireless foot pedal with instant responsiveness
  • Handheld remote with point-and-go gesture steering
SPECIFICATIONS
  • For Use In: Freshwater, Brackish Water And Saltwater
  • Mount Style: scissor-style mount
  • Max Thrust: 100 Lbs Per Iso 13342 Using High Efficiency Propeller At 36 V; 80 Lbs Per Iso 13342 Using High Efficiency Propeller At 24 V
  • Voltage: 24 V Or 36 V
  • Electric Steering: Yes
  • Built-In Heading Sensor: Yes
  • Built-In Gps: Yes (Dual Frequency Gps)
  • Warranty: 3-Year, Limited Lifetime On Shaft
  • Water Rating: IPX7
  • Mounting Location: Bow
  • Wireless Remote: Yes (Included)
  • Foot Pedal Compatible: Yes (Included)

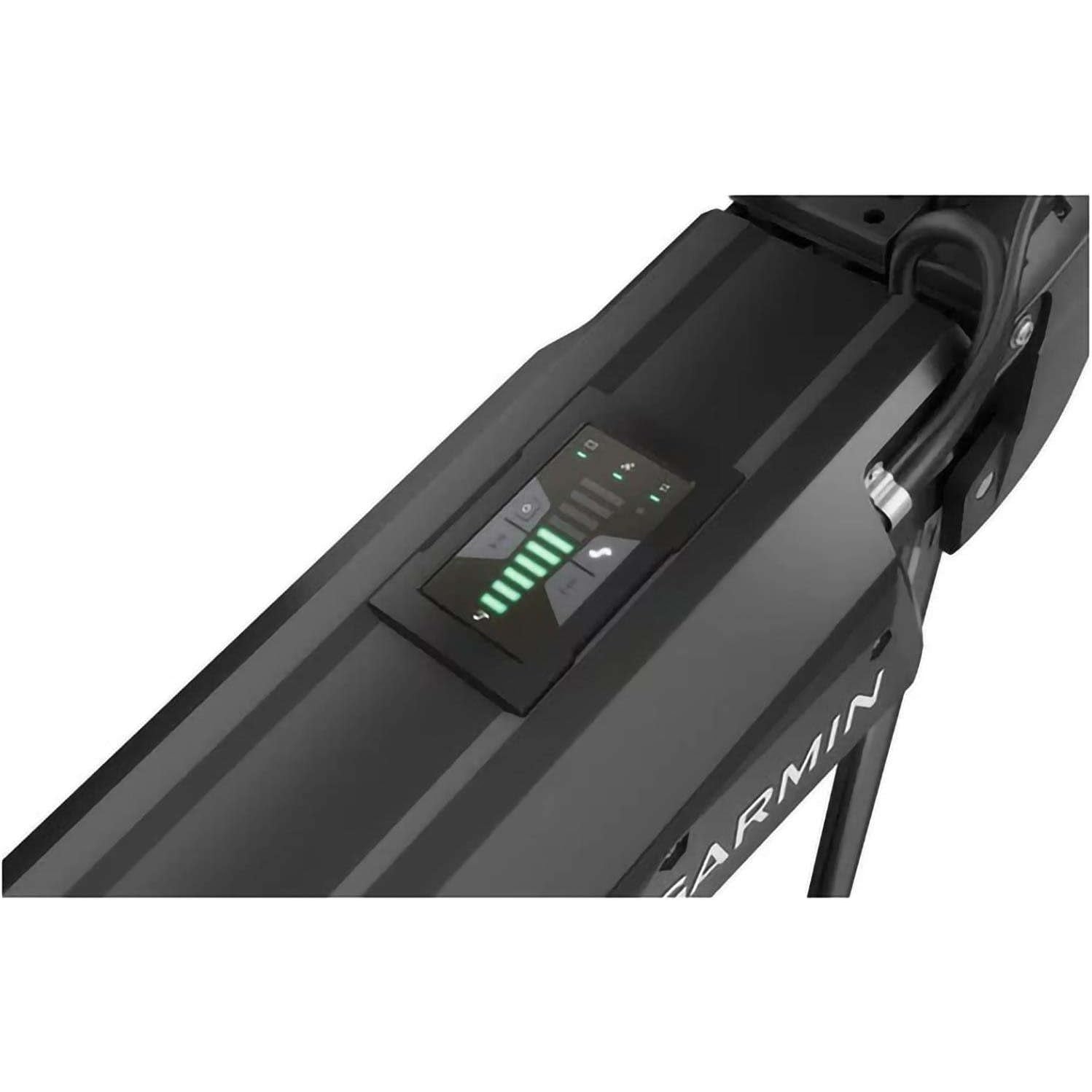

  • Battery Indicator: Yes
  • Variable Speed Control: Yes (20 Steps)
  • Lighted Direction Indicator: Yes
  • Quatix Remote Control Supported: Yes



Sonar Features

  • Frequencies Supported: CHIRP sonar: High-wide CHIRP (150-240 kHz); ClearVü: Ultra-high definition 800 kHz; SideVü: Ultra-high definition 1200 kHz and 455 kHz
  • Transmit Power: 350W
  • Maximum Depth: CHIRP sonar: 800'; ClearVü: 200'; Ultra-high definition SideVü: 125' to each side; 250 total at a max depth of 30' 455 kHz; SideVü: 500' to each side; 1000' total
  • Depth/Speed/Temperature: depth and temperature
  • Number of Pins: 12-pin (orange connector)



Autopilot Features

  • Route Following: Yes
  • Anchor Lock: Yes
  • Smart Anchor Lock Features: Yes
  • Anchor Lock Jog: Yes
  • Heading Hold: Yes
  • Cruise Control: Yes
  • Gesture Features: Yes (Manual+, Heading Hold+, Jog+)

Foot Pedal Features

  • Dimensions: 12" L X 9" W X 4 1/2" H
  • Wireless Communication: Yes
  • Power Installation: 12 V/24 V/36 V Wired Or Battery Powered (2 Aa)
  • Aa Battery Life: 1 Full Season
  • Water Rating: IPX7
  • Adjustable Pedal Resistance: Yes

Remote Features

  • Display Size: 1.2" (30.2 Mm) Diameter
  • Display Resolution: 240 X 240 Pixels
  • Display Type: Color, Sunlight-Visible, Transflective Memory-In-Pixel (MIP)
  • Chartplotter User-Programmable Keys: Yes
  • Autopilot Feature Control: Yes
  • Water Rating: IPX7
  • Battery Life: Typical Use With Backlight At Low, 43 Weeks
  • Floats: Yes
DOCUMENTATIONS

Powerful. Efficient. Quiet.

The Force trolling motor has the power to move you from spot to spot more quickly and stand up better to winds and currents — and it’s still whisper quiet.

The high-efficiency brushless motor operates at either 36 volts or 24 volts. When running at 24 volts, it delivers comparable thrust to our competitors’ 36-volt motors.

The ultraquiet motor doesn’t scare fish and is nearly undetectable to sonar, so it won’t fuzz up your sonar screens with static.

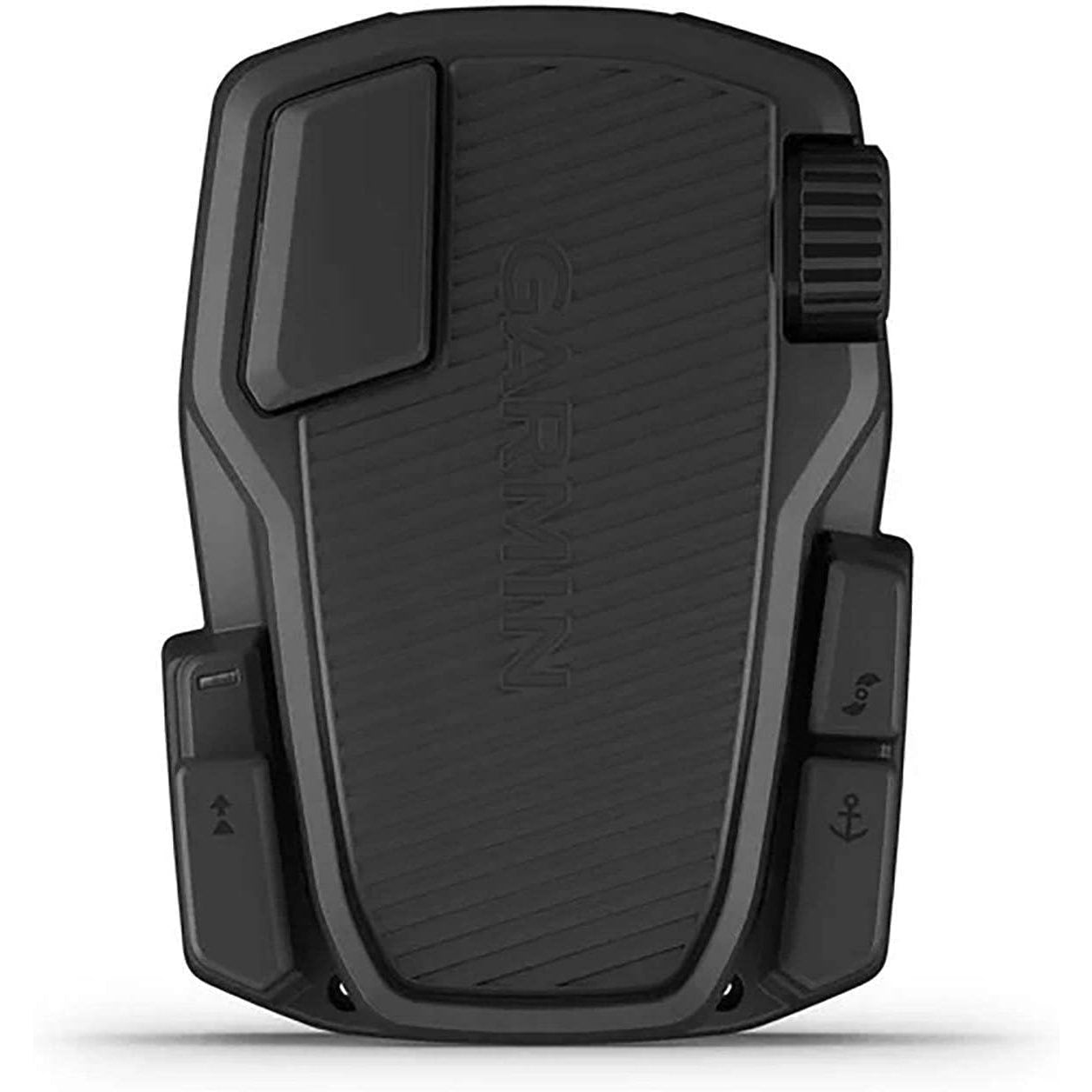

Get instant responsiveness in a convenient pedal that feels and steers just like a cable-steered pedal. It operates wirelessly using AA batteries, but it can still be hardwire installed.

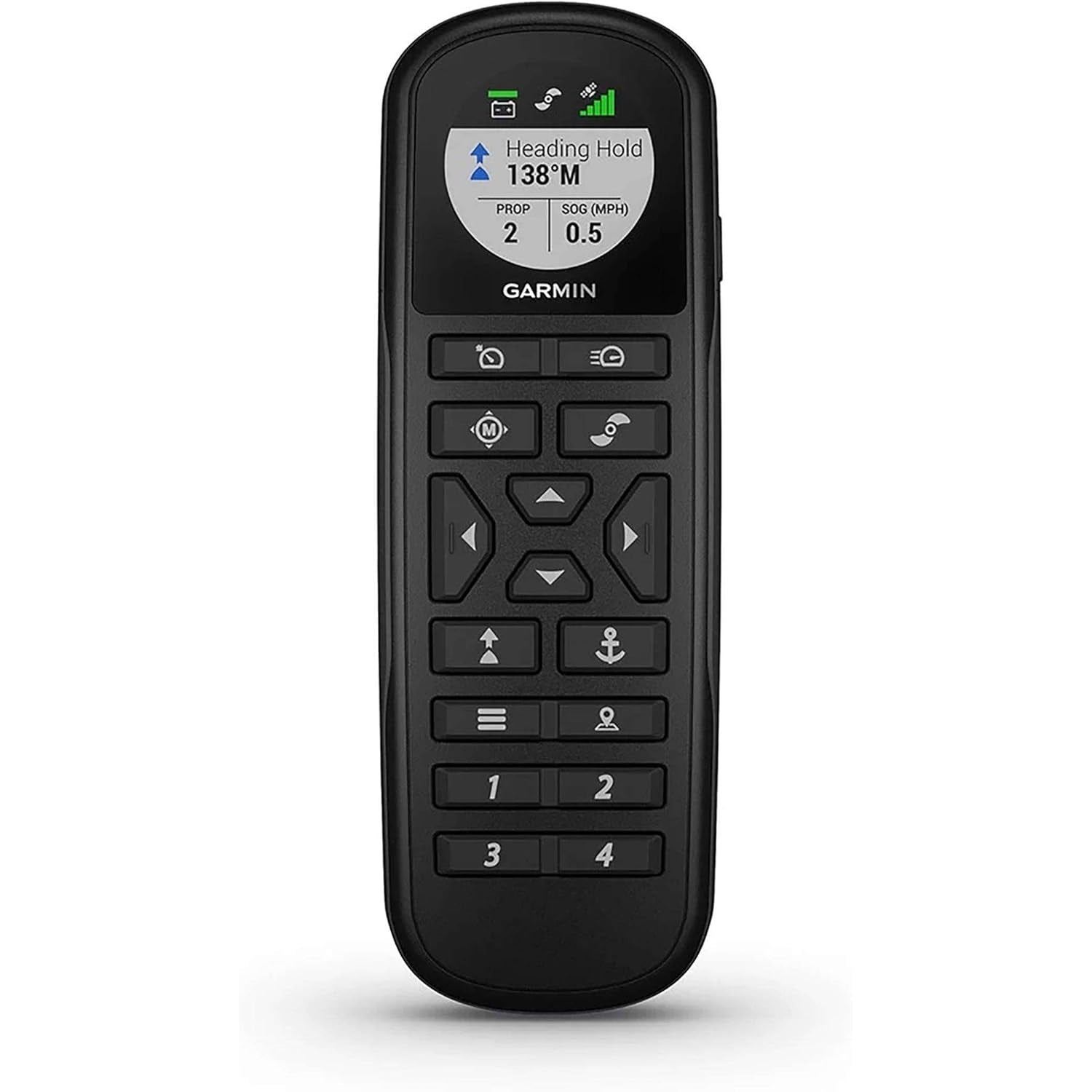

The included handheld remote control with a sunlight-readable display controls the trolling motor and features point-and-go gesture steering. User-programmable keys can be used to control your chartplotter.

Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.

By networking select Garmin chartplotters with a Force® trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features1 from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance2 end-of-route anchoring. Spend more time fishing, less time positioning.
