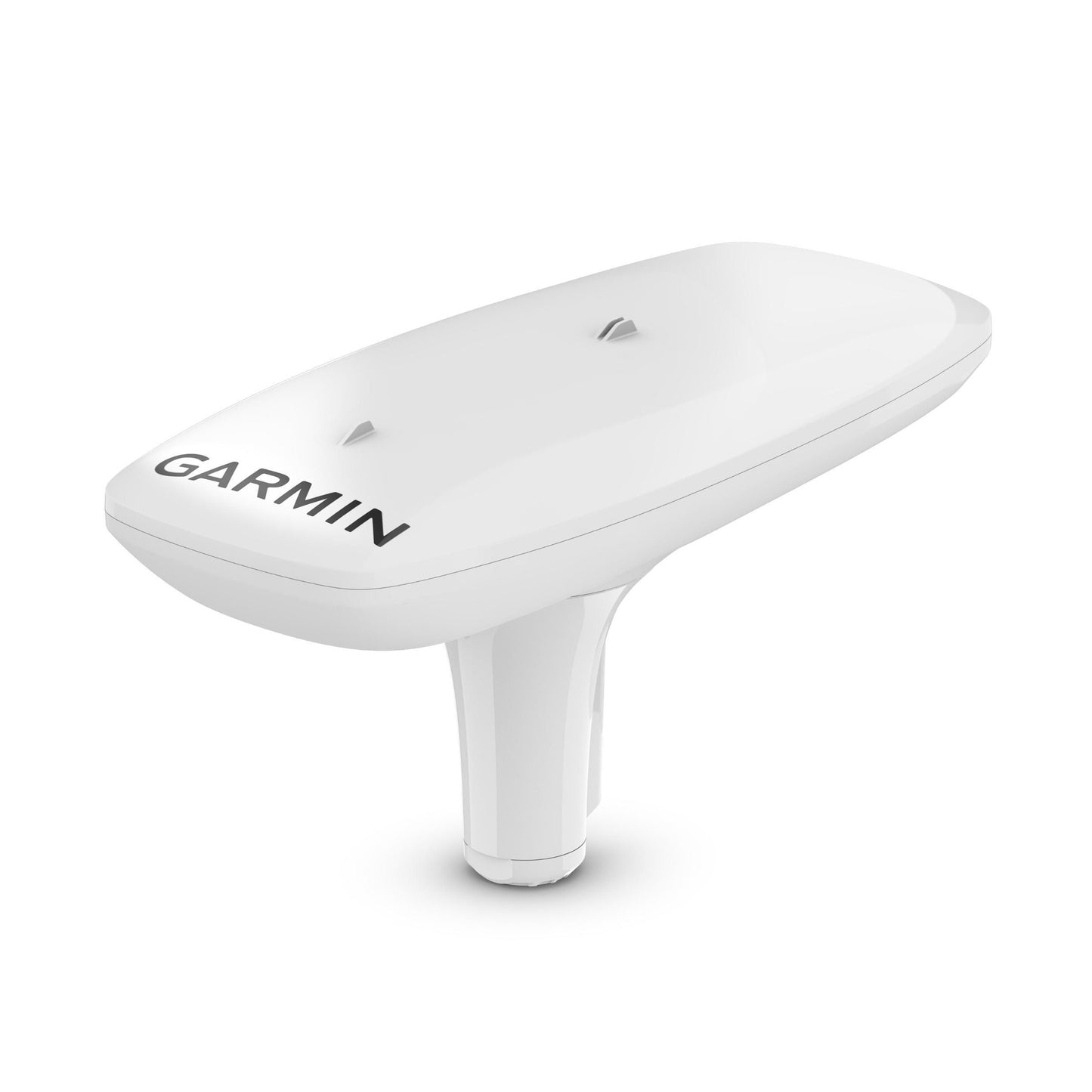

MSC 10 Marine Satellite Compass

Garmin MSC 10 Marine Satellite Compass Product Description

Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.

Garmin 100240700 Attributes

• Dimensions: 13 Inch Length X 6 Inch Width X 3 Inch Height
• Temperature Range: 5 Degree Fahrenheit To 150 Degree Fahrenheit
• Ampere Rating: 180 mA
• Voltage: 9 To 32 Volt
• Color: White
• Material: Plastic

Garmin 100240700 Features & Benefits

• Accuracy Comes Easy When You’ve Got A Multi-Band GNSS Receiver On Board
• Faster Updates And More Detailed Tracking
• MSC 10 Delivers Pitch, Roll And Heave Info, Too
• You Can Use MSC 10 As The Primary Sensor For Autopilots And Other Onboard Systems That Need Accurate Heading Information
• With A Fully Integrated Attitude And Heading Reference System For Better GPS Heading At All Speeds
• Get Heading, Pitch, Roll And Heave Information Delivered Straight To Your Compatible Garmin Chartplotter Via The NMEA 2000 Network
• Easy To Install
• Limited 2 Year Warranty

Garmin 100240700 Installation Instructions

• MSC_10_Installation_EN-US.pdf

Garmin 100240700 Warranties

• garmin-marine-warranty-policy.pdf

Garmin 100240700 Technical Bulletins

• Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US.pdf
• Technical_Reference_for_Garmin_NMEA_2000_Products_EN-US.pdf
• MSC_10_Template.pdf

MSC 10 Marine Satellite Compass

KNOW EXACTLY WHERE YOU'RE HEADED

Get reliable, accurate heading information with the easy-to-install GPS-based MSC 10 marine satellite compass.

Features:

• Accuracy comes easy when you've got a multi-band GNSS receiver on board.
• Faster updates. More detailed tracking.
• Rough waters got you worried? MSC 10 delivers pitch, roll, and heave info, too.
• If other onboard systems need a heading sensor, we've got you covered.

MULTI-BAND GNSS AND MULTI-CONSTELLATION

The multi-band GNSS (L1 and L5 GPS) and multi-constellation (GPS, Galileo1, GLONASS, and BeiDou1) receiver deliver precise positioning2.

BOAT HEAVE AND MORE

Get reliable, accurate boat heave, pitch, and roll information even in rough waters.

BUILT-IN ATTITUDE HEADING REFERENCE SYSTEM (AHRS)

With a fully integrated attitude and heading reference system for better GPS heading at all speeds, including pitching in rough seas, taking sharp turns, or standing still.

ACCURATE HEADING DATA

Multiple receivers deliver heading accuracy within 2 degrees. Because it uses satellite signals, you don't have to worry about magnetic interference.

PRIMARY SENSOR ACROSS MULTIPLE SYSTEMS

You can use MSC 10 as the primary sensor for autopilots and other onboard systems that need accurate heading information.

NMEA 2000 NETWORK COMPATIBLE

Get heading, pitch, roll, and heave information delivered straight to your compatible Garmin chartplotter via the NMEA 2000 network.

EASY TO INSTALL

This compact device is simple to install and easily integrates into your Garmin marine ecosystem.

10 HZ UPDATE RATE

Get better, more detailed tracking information, thanks to the 10 Hz position update rate.

BACKUP HEADING SENSOR

In the extremely rare case that you lose a satellite signal, MSC 10 will seamlessly transition from GPS-based to magnetometer-based heading3.

What's In The Box?

• MSC-10 Marine Satellite Compass
• Pole mount
• Mounting hardware
• NMEA 2000 backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

1 Supported when available

2 < 1 meter CEP, < 3 meters 95%

3 Magnetometer calibration required for backup magnetic heading support

Garmin MSC™ 10 Marine Satellite Compass

Model: 010-02407-00

• Built-in attitude and heading reference system to filter and smooth GPS-derived heading
• Seamlessly transition from GPS-based to magnetometer-based heading if you lose satellite signal (magnetometer calibration required for backup magnetic heading support)
• Get accurate heave information right on your chartplotter through the NMEA 2000® network
• Multi-band GNSS (L1 and L5 GPS) receiver delivers accurate positioning within 1 meter; heading accuracy of 2-degree RMS in dynamic situations
• Use as the primary sensor for autopilots and other onboard systems
• Works with multiple satellite constellations for faster, more reliable positioning
• Compact device is simple to install with no calibration required, unless using magnetometer-based heading
• Easily integrates into your Garmin marine ecosystem
• 10 Hz position update rates for high-sensitivity tracking

Know exactly where you’re headed with the MSC™ 10 marine satellite compass. Easily install this GPS-based heading sensor with a fully integrated attitude and heading reference system for better GPS heading at high speeds. The multi-band GNSS (L1 and L5 GPS) receiver enables position accuracy to within 1 meter. Plus, the GPS-based compass won’t be impacted by magnetic interference. It can even deliver boat heave information to your chartplotter via the NMEA 2000® network. You can also use MSC™ 10 as the primary sensor for autopilots and all your onboard systems that need accurate heading information.

What's in the Box:

• MSC™ 10 Marine Satellite Compass
• Pole mount
• Mounting hardware
• NMEA 2000® backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation
