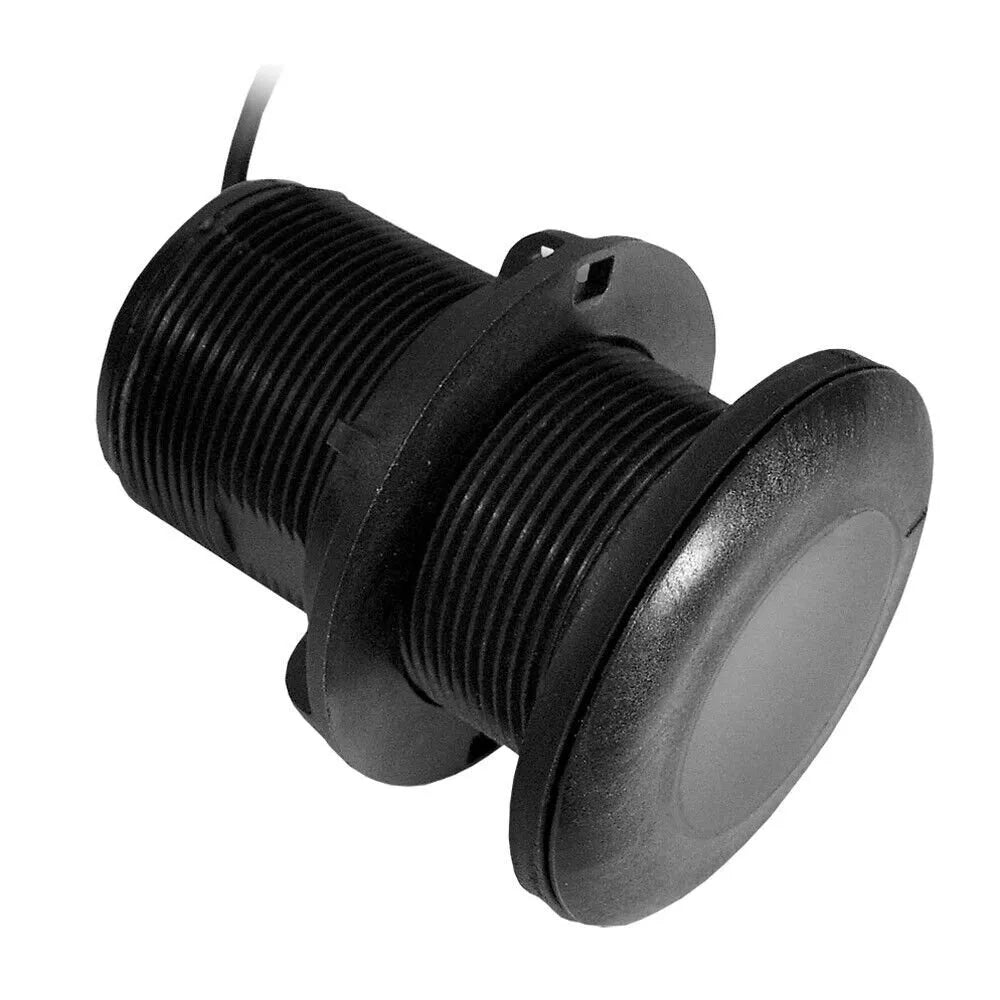

Garmin P19 Nylon 20 Degree Tilt 8 Pin Transducer

Garmin P19 Nylon 20° Tilt Transducer - 8-Pin Product Description

Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.

Garmin 101021822 Attributes

• Mounting Location: Thru-Hull Mount
• Number Of Pins: 8 Pin
• Depth: 900 Feet
• Power Rating: 300 Watt
• Frequency Range: 77/200 kHz
• Supported Angle: 16 To 24 Degree Deadrise
• Cable Length: 30 Feet

Garmin 101021822 Features & Benefits

• Plastic Thru-Hull Mount Transducer Performs Well At High Speeds
• Excellent Choice For Fiberglass And Metal Hulls
• 8-Pin 500 Watt Transducer Has A Depth Of 900 Feet
• Transducer Kit Comes With Installation Instructions
• Transducer Supports A 16 To 24 Degree Deadrise
• Limited 1 Year Warranty

Garmin 101021822 Warranties

• garmin-marine-warranty-policy.pdf

Tilted Element™ Thru-Hull

Minimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

Applications

• Cruising powerboats and sailboats

• Sailboats

Features

• Depth only or Depth and temperature

• Fixed 20° tilted versions for 16° to 24° hull deadrise

• Right angle cable exit offers low headroom and protection when transducer is stepped on

• Included rubber washer allows tightening of the hull nut to irregular hull surfaces

• Housings are ABYC H-27 compliant

• Optional temperature sensor

• Plastic housing

• Boat Size: Up to 9M (30')
