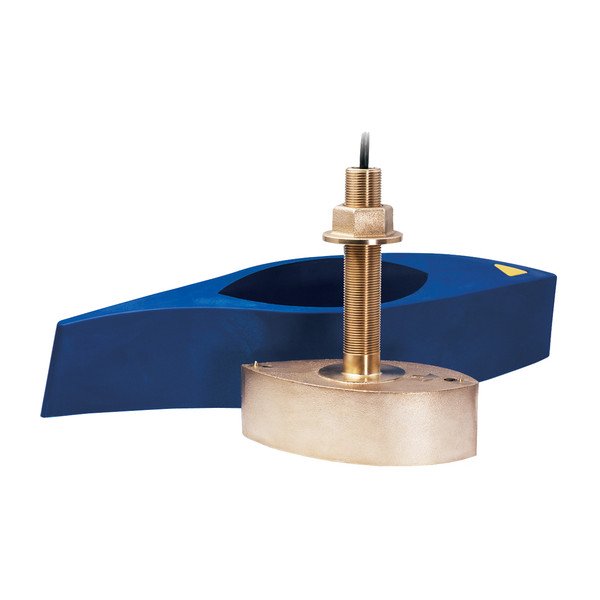

B275LH-W Bronze Thru-Hull Transducer - 12-Pin

Garmin B275LH-W Bronze Thru-Hull Transducer - 12-Pin Product Description

Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.

Garmin 101218320 Attributes

• Mounting Location: Thru-Hull Mount
• Number Of Pins: 12 Pin
• Depth: 3000 Feet
• Power Rating: 1000 Watt
• Frequency Range: 42-65 kHz For CHIRP Low And 130-210 kHz For CHIRP High Operating Frequency
• Supported Angle: 0 To 25 Degree Deadrise
• Cable Length: 12 Meter

Garmin 101218320 Features & Benefits

• Designed For Coastal Fishing
• CHIRP Transducer Has A Constant 25 Degree Beam Width Provides Increased Coverage Under The Boat
• Designed For Boats 25 Feet And Above With Fiberglass Or Wood Hulls
• Transducer Supports A 0 To 25 Degree Deadrise
• Limited 1 Year Warranty

Garmin 101218320 Warranties

• garmin-marine-warranty-policy.pdf

B275LH-W Bronze Thru-Hull Transducer - 12-Pin

Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmar’s dual frequency Chirp-ready transducers with wide beam coverage.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW for great deep water performance from the low frequency
• Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000')
• 25° to 16° beamwidth
• High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')
  • 25° constant beamwidth
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency provides superior shallow water performance, bottom detail and fish target separation
• High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
• Bronze transducer housing with high-performance fairing for optimal performance at higher speeds
• Recommended boat size: 8 m (25') and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID® technology
