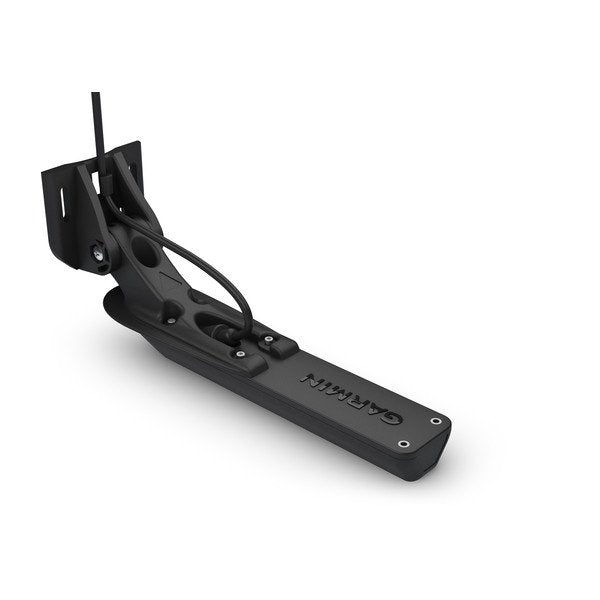

Garmin GT34UHD-TM Ultra Hd Transom Mount Transducer

Garmin GT34UHD-TM Ultra HD Transom Mount Transducer Product Description

Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.

Garmin 101277600 Attributes

• Mounting Location: Transom Mount
• Number Of Pins: 12 Pin
• Depth: 200 Feet For Ultra High-Definition ClearVü And 125 Feet For Ultra High-Definition SideVü
• Power Rating: 500 Watt
• Frequency Range: 800 kHz For Ultra High-Definition ClearVü And 1200 kHz For Ultra High-Definition SideVü
• Supported Angle: 0 To 70 Degree Transom Angle
• Cable Length: 20 Feet

Garmin 101277600 Features & Benefits

• Ultra High-Definition Sonar System Transom Mount Transducer
• Ultra High-Definition ClearVu Scanning Mode Provides Brilliant Image Clarity Of Structure And Fish Below Your Boat At Greater Depths Than Other High-Frequency Scanning Sonars
• Ultra High-Definition SideVu Scanning Mode Delivers Stunningly Clear Images Of Structure And Fish Off To The Sides Of Your Boat
• Makes It Easy To Scout A Fishing Area Quickly, Because You Can See Everything The First Time With Such Amazing Clarity
• Limited 2 Year Warranty

Garmin 101277600 Installation Instructions

• TransomTrolling_Mount_Transducer_Install_Instructions_EN-US.pdf

Garmin 101277600 Warranties

• garmin-marine-warranty-policy.pdf

GT34UHD-TM Ultra HD Transom Mount Transducer

Ultra High-Definition Sonar System Transom Mount Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

• Frequency:

• Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
• Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500W
• Beamwidth:

• Ultra High-Defintion ClearVü: 0.74° x 46°
• Ultra High-Defintion SideVü: 0.44° x 55°

• Maximum depth

• Ultra High-Defintion ClearVü: 200' down
• Ultra High-Defintion SideVü: 125' sides, 250' total

• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 12-pin
• Cable length: 20'
• Supported deadrise/Transom angles: 0°-70° degree transom
