Inverter 2000W 12V Modified Sine

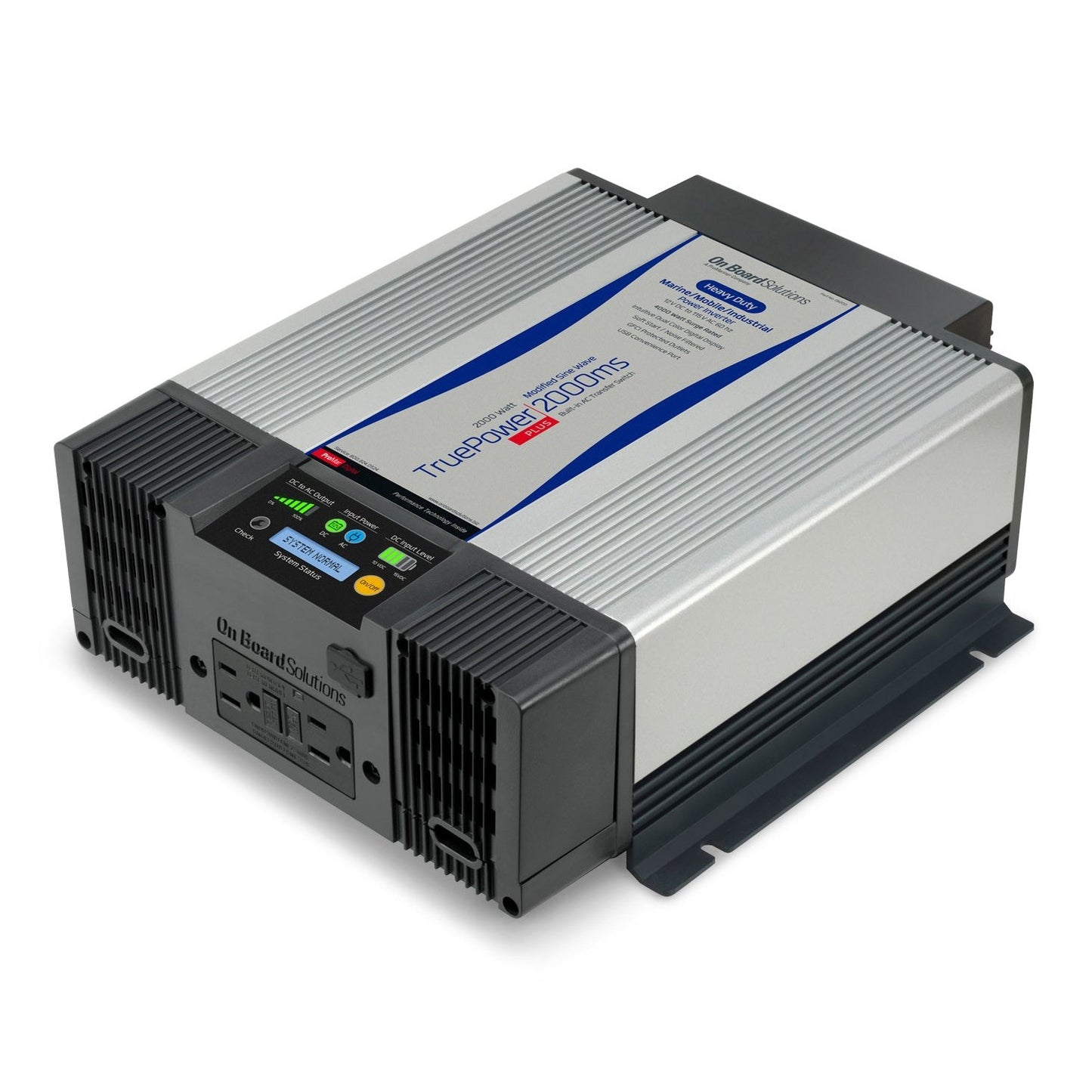

ProMariner Modified Sine Wave Inverter - 2000W Product Description

Designed to convert 12 VDC battery power to 115 VAC and will automatically pass through AC Inlet power when present. TruePower Plus is rich with features including; Innovative dual color digital LCD message center, dual color gauges for AC power output and battery DC input, USB power port, GFCI convenience outlets, DC cable covers, and separate on and off remote. Our integrated AC cable strain reliefs and front screw connection terminal blocks allow for quick and easy installation without the added need for ring terminals for AC power connections. Designed with soft start noise filtered technology and x2 surge capability for powering demanding loads. Shock resistant construction with internal conformal coated electronics for protection in harsh environments. The TruePower Plus PS Series has all the features of our MS series but provides a Pure Sine 115 VAC output ideal for high fidelity audio visual systems in addition to appliances with hysteresis and variable motor speed controls like washing machines and refrigeration etc.

Pro Mariner 06200 Attributes

• Output Voltage: 120 Volt AC
• Input Voltage: 12 Volt DC
• Continuous Output Power (W): 2000 Watt
• Peak Output Power (W): 4000 Watt
• Ampere Rating: 30 Amp
• Efficiency: 90 Percent
• Number Of AC Outlets: 1
• Length (IN): 4-1/2 Inch
• Width (IN): 10-1/2 Inch
• Height (IN): 11-1/2 Inch
• Remote On/Off Capable: Yes
• With USB Port: Yes
• With Volt/Watt Meter: No
• With Short Circuit: Yes
• With Reverse Battery Protection: Yes
• With Thermal Protection: Yes
• With Battery Cables: Yes
• With Built-In Charger: No
• With Fuse: No

Pro Mariner 06200 Features & Benefits

• Intuitive Dual Color Digital LCD Message Center
• Dual Color Gauges For AC Power Output And Battery DC Input
• Internal 30 Ampere AC Transfer Switch Will Automatically Pass Through AC Inlet Power When Present

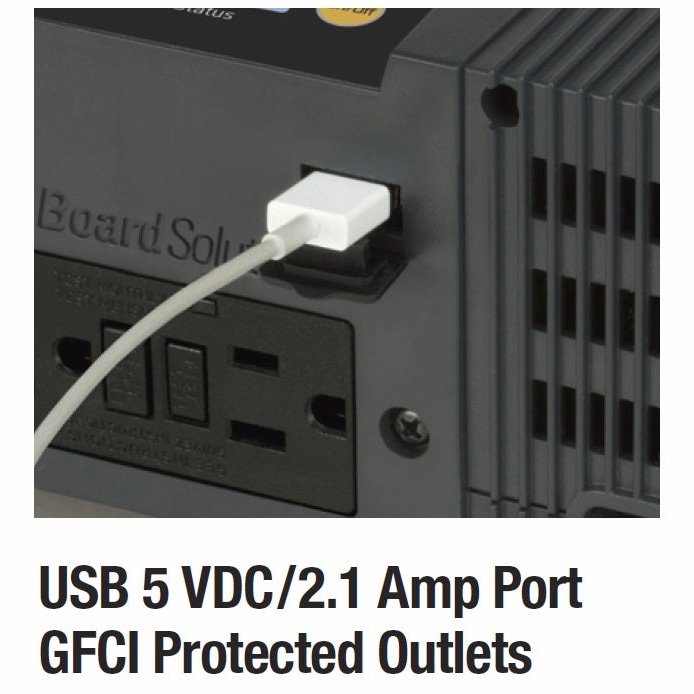

• USB Power Port And GFCI Convenience Outlets
• Compact And Lightweight Design
• Soft Start Noise Filtered Technology With X2 Surge Capability: Audible Alarm And Shut Down For Low And High DC Voltage, Overload And Over Temperature Conditions

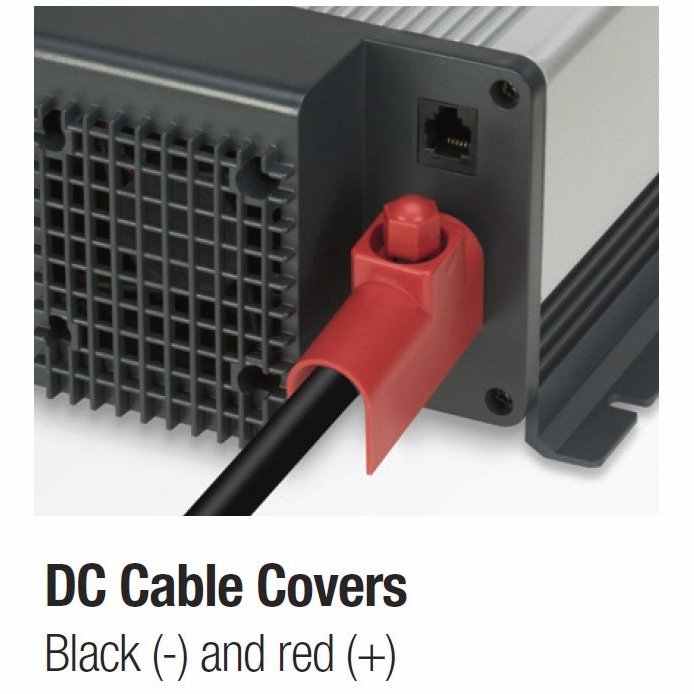

• On And Off Remote With 9 Foot Cable And DC Cable Cover: Shock Resistant Construction With Internal Conformal Coated Electronics
• Built-In Safety With Overload, Over Temperature, Short Circuit And Reverse Polarity Protection

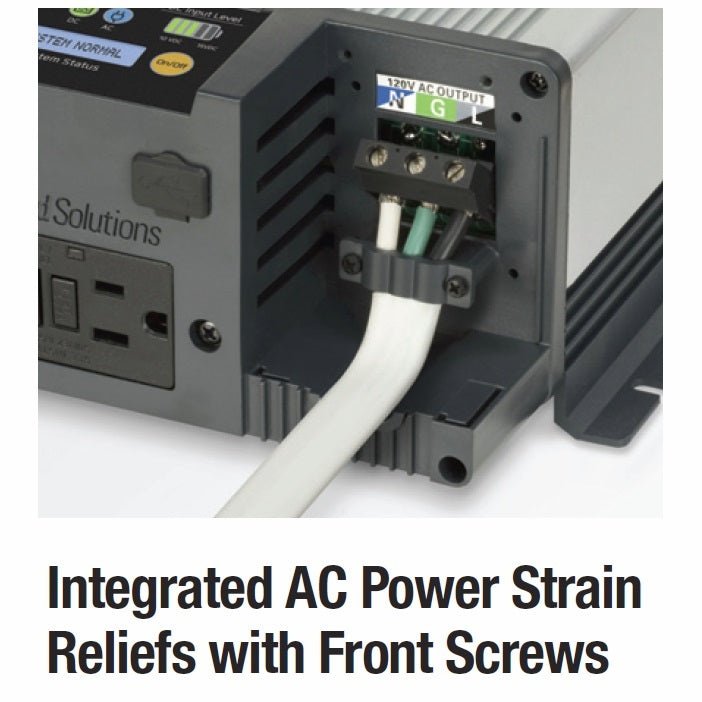

• Integrated AC Power Cable Strain Reliefs For Ease Of Installation
• Limited 2 Year Warranty

Pro Mariner 06200 Installation Instructions

• 06120_USE.pdf

Pro Mariner 06200 Technical Bulletins

• 07100_NPA.pdf

TruePower Plus Series - Modified Sine Wave Inverter - 2000W

Heavy Duty Marine, Mobile and Industrial Grade Inverters

Our next generation of TruePower Plus Inverters are designed to convert 12V DC battery power to 115V AC and will automatically pass through AC Inlet power when present. TruePower Plus is rich with features including; Innovative dual color digital LCD message center, dual color gauges for AC power output and battery DC input, USB power port, GFCI convenience outlets, DC cable covers, and separate on/off remote. Our integrated AC cable strain reliefs and front screw connection terminal blocks allow for quick and easy installation without the added need for ring terminals for AC power connections.

Designed with soft start noise filtered technology and x2 surge capability for powering demanding loads. Shock resistant construction with internal conformal coated electronics for protection in harsh environments.

Features:

• Intuitive dual color digital LCD message center
• Dual color gauges for AC power output and battery DC input
• Internal 30 amp AC transfer switch will automatically pass through AC inlet power when present
• USB power port and GFCI convenience outlets
• Compact and lightweight design
• Soft start noise filtered technology with x2 surge capability
• On/Off remote with 9 foot cable and DC cable covers Included
• Integrated AC power cable strain reliefs for ease of installation
• Built-in safety with overload, over temperature, short circuit and reverse polarity protection
• Audible alarm and shut down for low and high DC voltage, overload and over temperature conditions.
• Shock resistant construction with internal conformal coated electronics
• 2 year warranty
