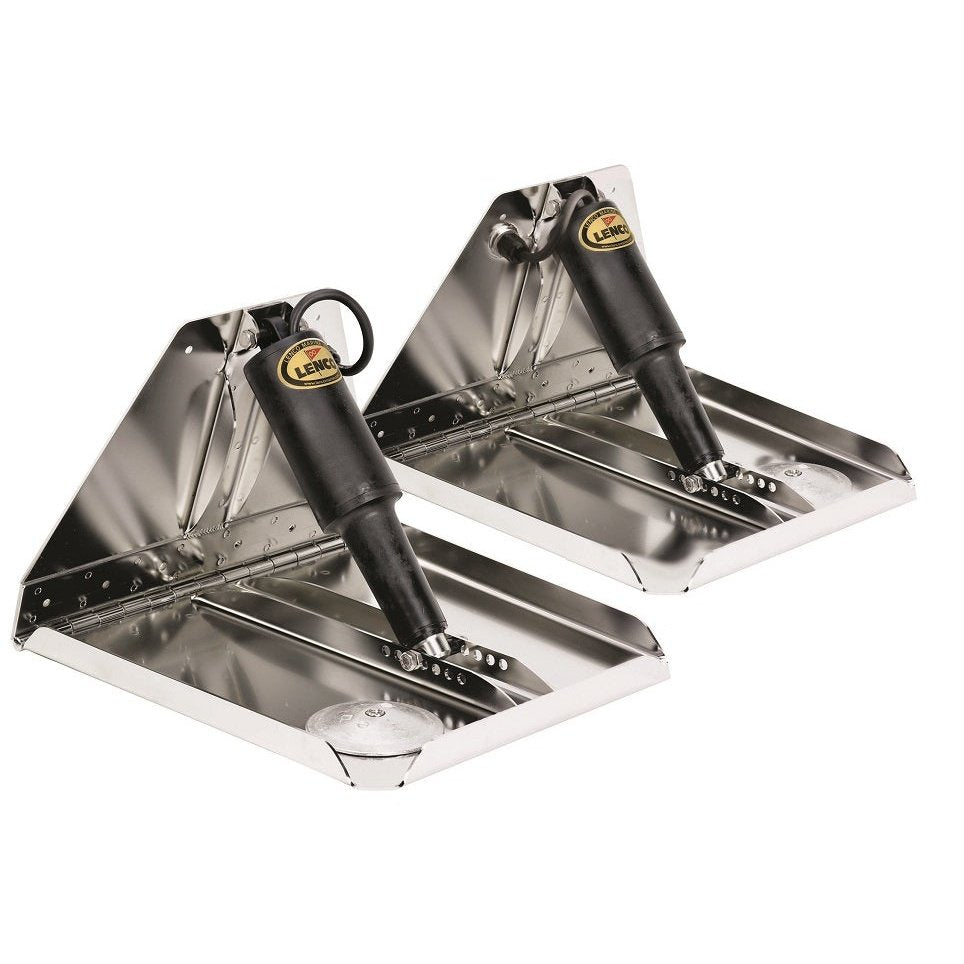

14" x 12" Electro-Polish

Our first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4” (6.4 mm) diameter hinge pin.

• L" X W": 14" x 12"
• Boat Length: 19' - 34'
• Hinge Height: 2" (5.1 cm)
• Min.Transom Height: 11" (27.9 cm)
• (2) 12-gauge stainless steel Electro-Polished blades
• (2) 15054-001 actuators with 6’ (1.8 m) leads & Deutsch connectors
• (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
• (2) 15085-001 upper mounting brackets with gland seal
• (2) 50014-001 lower mounting brackets
• Lenco owner's/installation manual
• Stainless steel mounting hardware
