Lenco 101XD Extreme Duty Actuator - 12V - 2-1/4" Stroke - 5/16" Hardware
Lenco 101XD Extreme Duty Actuator - 12V - 2-1/4" Stroke - 5/16" Hardware
SKU:15055-001
Pre-Order
Regular price
RM1,962.00
Regular price
Sale price
RM1,962.00
Unit price
/
per
Lenco 101XD Extreme Duty Actuator - 12V - 2-1/4" Stroke - 5/16" Hardware Product Description
Â
Lenco 15055001 Attributes
- Stroke Length:Â 2-1/4 Inch
- Voltage:Â 12 Volt

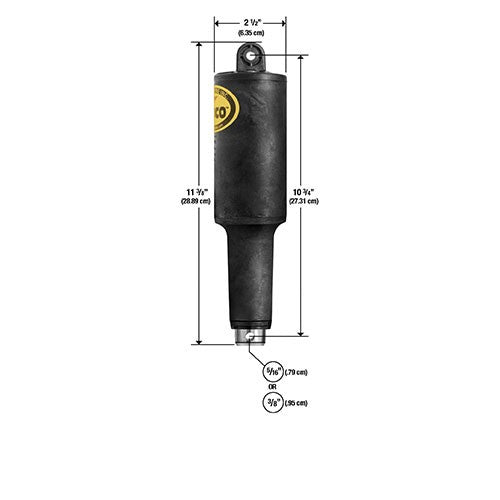

- Dimensions:Â 2-1/2 Inch Diameter x 11-3/8 Inch Length
- Mounting Hole Size:Â 5/16 Inch Top Hole And 5/16 Inch End Hole

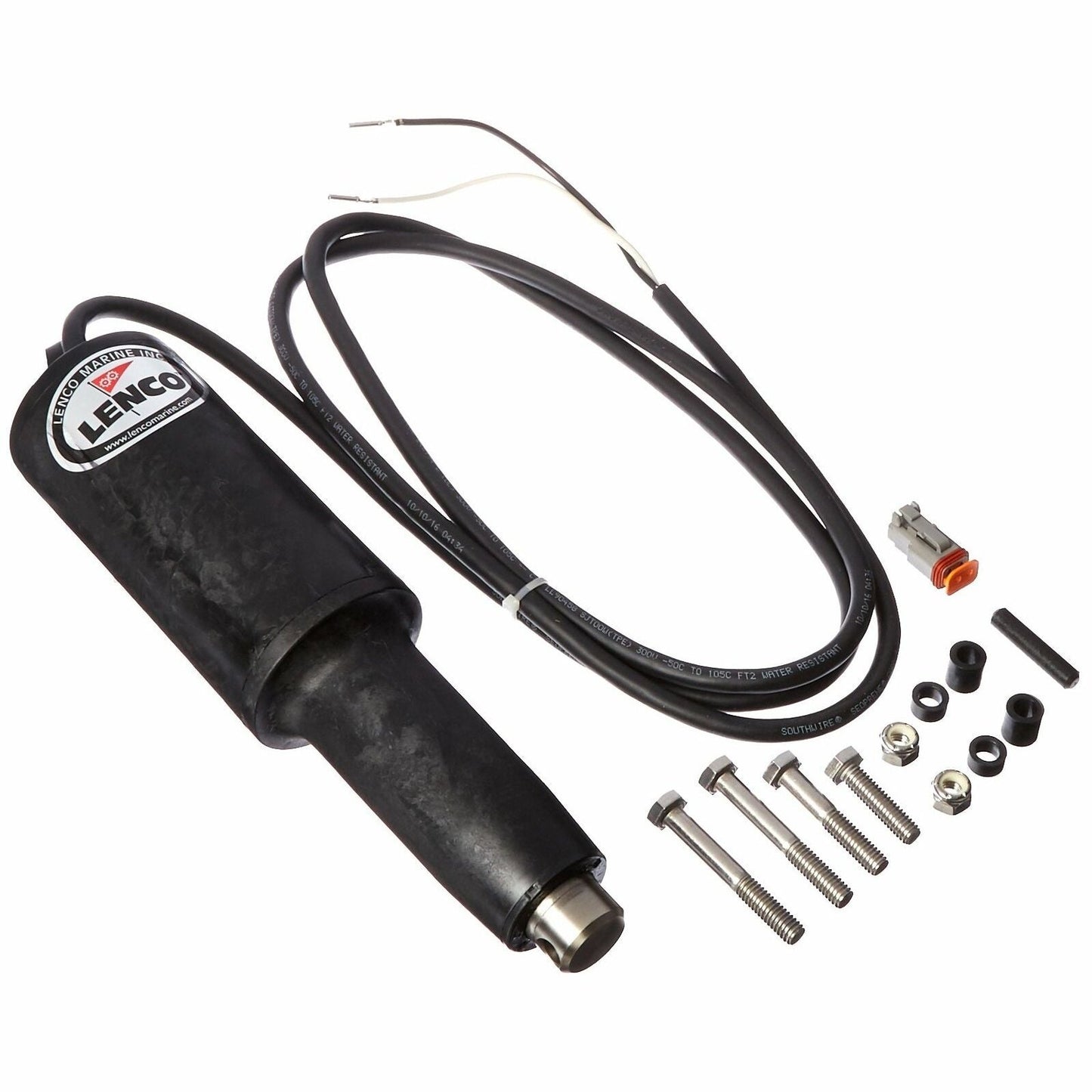

- Includes:Â With 5/16 Inch Mounting Hardware/ 6 Feet Cable
Lenco 15055001 Technical Bulletins
- Trim_Tab_Actuator_Rep_Guide_2018_TCHDAT.pdf
- Ski_Boat_5_Lobe_Actuator_Upgrade_Conversion_Guide_2018_TCHDAT.pdf
101 XD Actuator- 12 Volt- 2-1/4 Â Stroke with Mounting Hardware
The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 113/8Â inches. Â Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
Specifications:
- Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
- Stronger top cap and mounting clevis design
- Improved pressure-tight torx screws
- Integrated wiper seal at actuator base
- Molded-in brass thrust bearing design
- Thicker and stronger motor housing wall
- Improved O-Ring design for more consistent seal
- Over-molded cable providing a stronger tighter seal
- Upper mounting bracket with gland seal
Features:
- Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
- Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
- Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
- 12 Volt
- 5/16" mounting hardware
- 6 foot cable
