Lenco 101 Standard Actuator - 24V - 2-1/4" Stroke
Lenco 101 Standard Actuator - 24V - 2-1/4" Stroke
SKU:15061-001
No reviews
Pre-Order
Regular price
RM1,956.00
Regular price
Sale price
RM1,956.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Lenco 101 Standard Actuator - 24V - 2-1/4" Stroke Product Description
101 Actuator- 24 Volt- 2-1/4 Â Stroke with Mounting Hardware

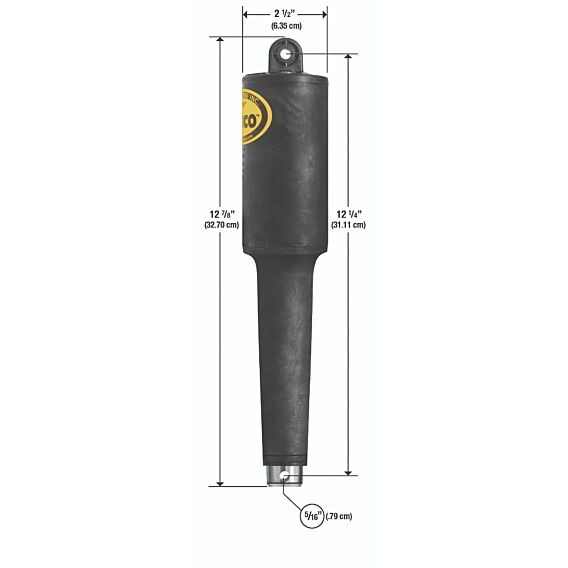

The 101 Actuator is used in all Standard, Edge Mount and Standard Performance kits. 2.25 stroke. Overall length (tip to top) is 12.5 inches. Â Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
Specifications:
- Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
- Stronger top cap and mounting clevis design
- Improved pressure-tight torx screws
- Integrated wiper seal at actuator base
- Molded-in brass thrust bearing design
- Thicker and stronger motor housing wall
- Improved O-Ring design for more consistent seal
- Over-molded cable providing a stronger tighter seal
- Upper mounting bracket with gland seal
Features:
- Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
- Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
- Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
- 24 Volt
- 5/16" mounting hardware
- 6 foot cable
