Auto Glide Boat Leveling System F/Single Actuator Tab Systems W/Existing NMEA 2000

Lenco Auto Glide Boat Leveling System f/Single Actuator Tab Systems w/Existing NMEA 2000 Product Description

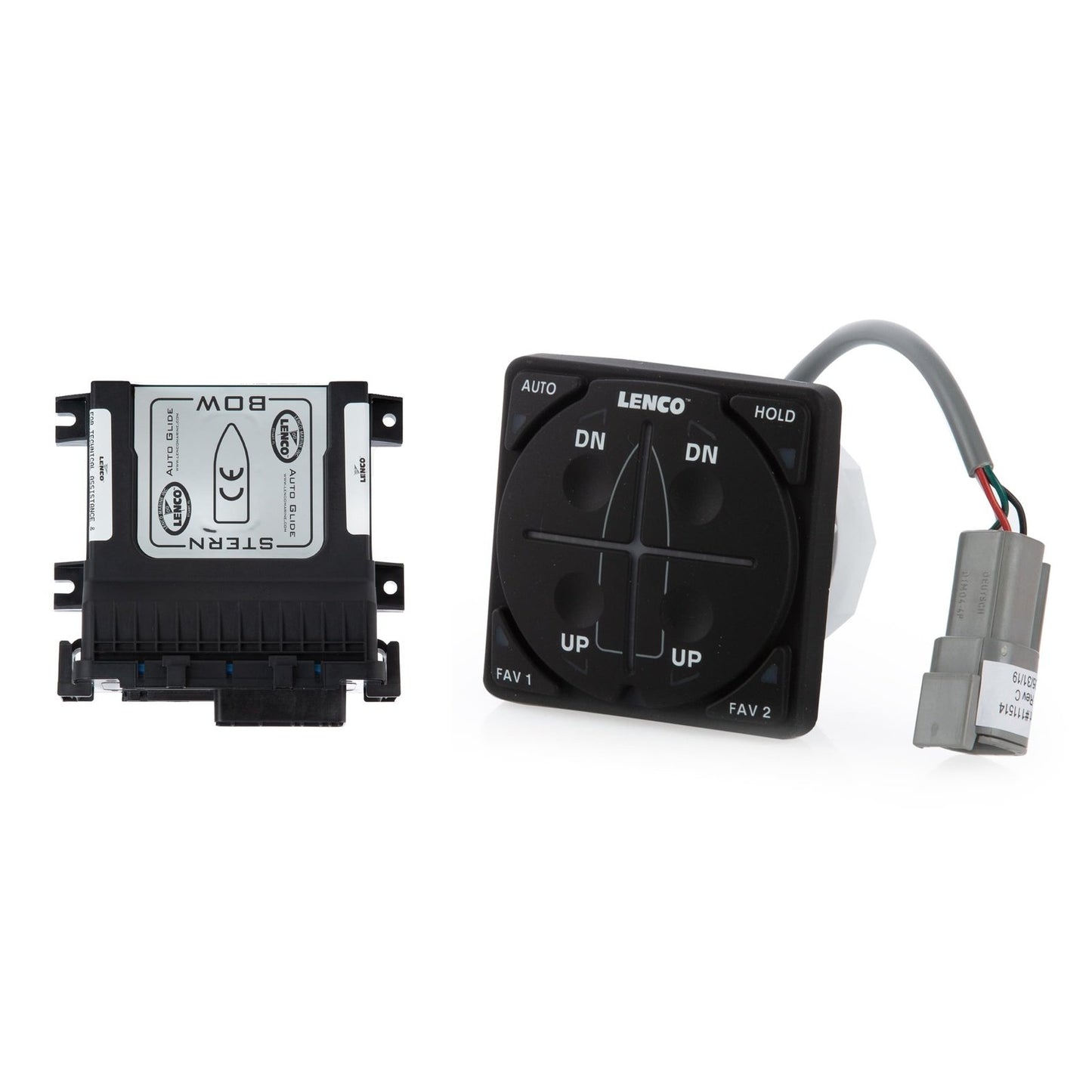

Auto Glide Boat Leveling System - Single ActuatorKit without GPS Antenna and Network - For boats with existing NMEA 2000 Networks A Real Automatic Boat Control / Trim Tab Control System that actually works - completely & automatically. The Auto Glide system controls your trim tabs from the time you leave your dock until you come home again! The Auto Glide uses engine data and GPS data (depending on your installation method) to drive your boat to the most efficient running angle by adjusting your Lenco trim tabs as needed. This optimum running angle is determined during the set-up process after the installation of your Auto Glide system. Imagine that your boat's running angle is measured 25 times per second and this data is used by the new Auto Glide control box to:- Automatically put your boat in the most efficient running angle.- Reduce the amount of bow rise of your boat during hole shot mode.- Eliminate bow porpoising (bow bounce).- Keep your boat level at all times.These actions will result in a smoother ride and the best possible fuel efficiency. Note: The Auto Glide does not control the "trim" function of your engine(s) / motor(s). Please remember to use the trim feature exactly as you would in the normal operation of your boat. The Auto Glide Control Box (brain) consists of gyroscopes, accelerometers, and new, very sophisticated, and patented software. The Auto Glide has 3 automatic operational modes, 4 automatic settings, and 2 manual operational modes. Although you will most likely keep your Auto Glide in automatic mode, you may immediately convert to manual mode simply by pressing one of the 4 up/down buttons on the key pad. All of these functions are fully explained in our Owner's Manual B / Operational Instructions.

Lenco 15504101 Attributes

• Compatibility: Single Actuator Trim Tabs And Boats Without Existing NMEA 2000 Networks

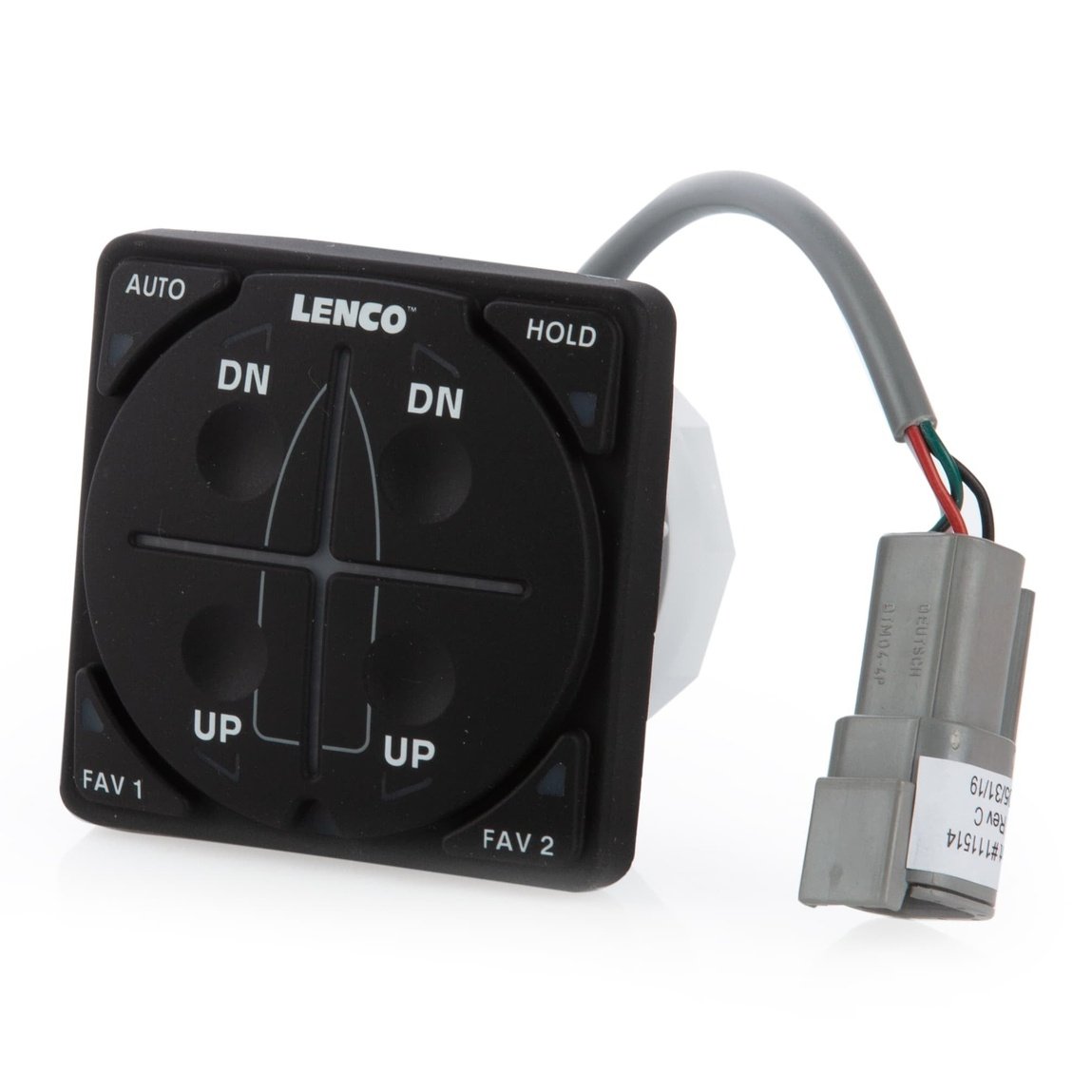

• Type: Key Pad

Lenco 15504101 Features & Benefits

• Automatic pitch and roll corrections
• Automatically trims boat to the most fuel efficient position.
• Manual override at the touch of a button.
• Built-in automatic trim tab retraction

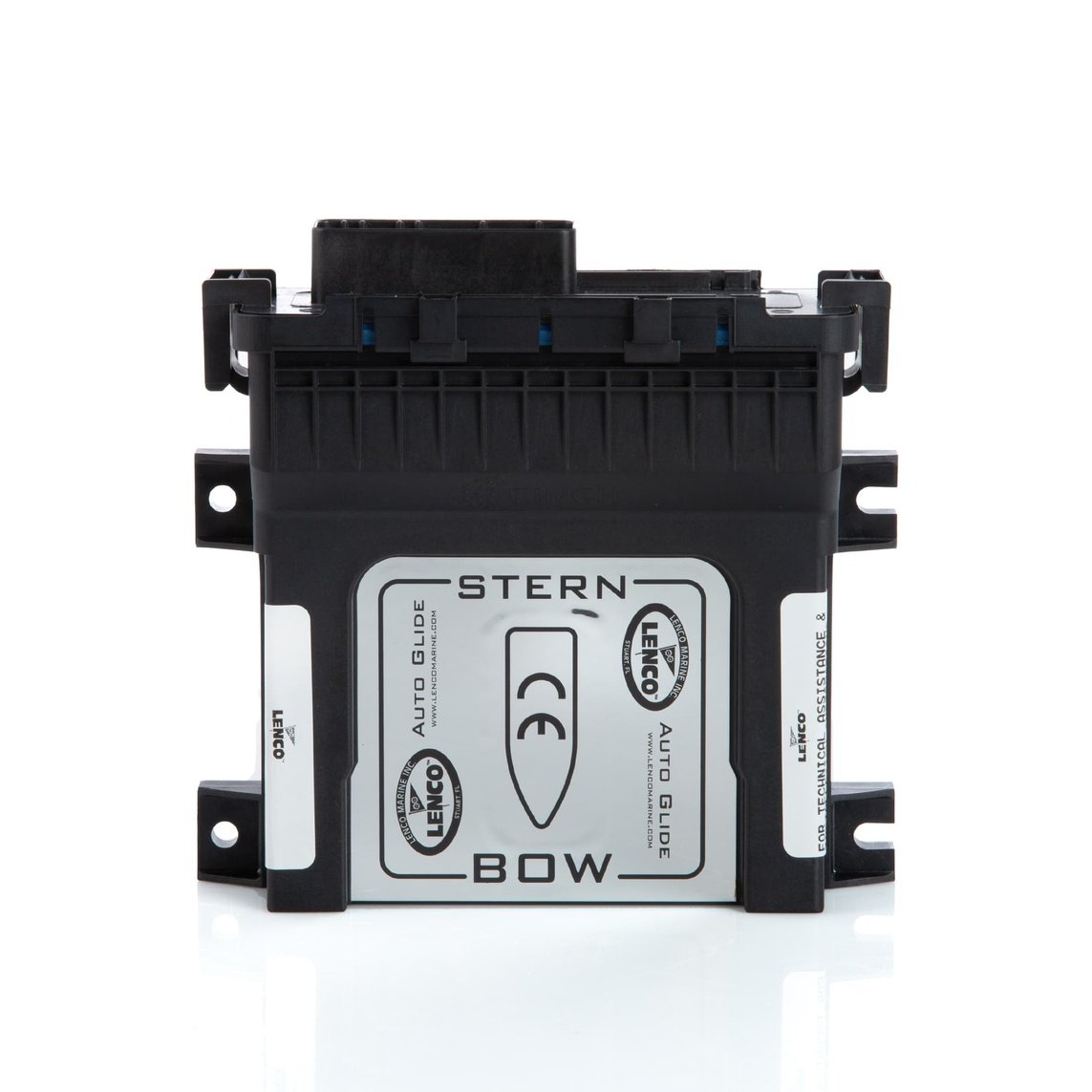

• Totally waterproof key pad and control box
• Three custom settings
• Limited 2 Year Warranty

Lenco 15504101 Installation Instructions

• Auto Glide Quick Reference Guide_TCHDAT.pdf
• 15504-101_TCHDAT.pdf

• Automatically put your boat in the most efficient running angle.

• Reduce the amount of bow rise of your boat during hole shot mode.

• Eliminate bow porpoising (bow bounce).

• Keep your boat level at all times.

• The Lenco Glide System will work on ALL boats with ALL engines. GPS data is used to provide data to control box. Optional connection to NMEA 2000 Network is included.For OEM System:

• Connection to analog systems is available.

• Connection to CANbus-based engines is available. See list below.

• Boat must have NMEA 2000 GPS network or NMEA 2000 antenna receiver.

• NMEA 0183 will work, but will have slower signal response. Lenco offers a NMEA 2000 GPS antenna receiver and optional stainless steel mounting bracket.

• Yamaha (Command Link Plus requires NMEA 2000 / Yamaha Gateway P/N:6Y98A2D00000)

• Evinrude

• Honda

• Suzuki
  E
• Volvo Penta (Non-EVC Engines) (With a Volvo NMEA2000 Gateway - Volvo P/N 3889757)

• Volvo Penta (EVC Engines)

• Yanmar

• Caterpillar

• Cummins

• Detroit Diesel

• John Deere

• Steyr

• Mercury - Verado

• Mercury - Optimax with SmartCraft ECU

• Mercruiser with SmartCraft ECU

• Cummins/Mercruiser w/ SmartCraft ECU
