ACR Electronics Pathfinder Pro SART Search And Rescue Transponder - Boatyard Malaysia

ACR Electronics

Pathfinder Pro SART Search And Rescue Transponder

SKU: 2914
Pre Order
RM5,166.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

The Pathfinder Pro is a fully approved Search and Rescue Transponder (SART) that complies with IMO SOLAS regulations. When interrogated by radar, the Pathfinder Pro returns 12 intense blips back to the vessels radar screen, greatly enhancing search and rescue efforts. The superior lithium battery provides over 96 hours of operating life in standby mode (waiting to be interrogated by radar) and 12 hours of active operating life (while interrogated by radar).

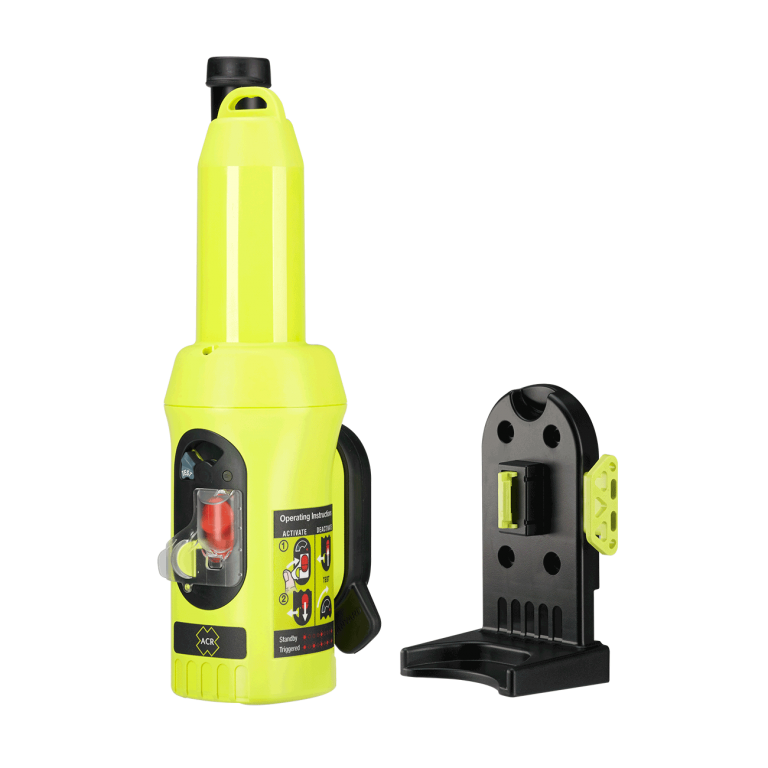

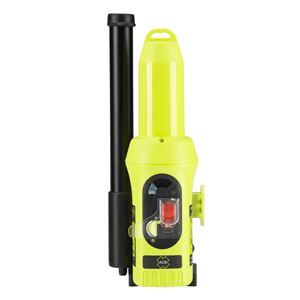

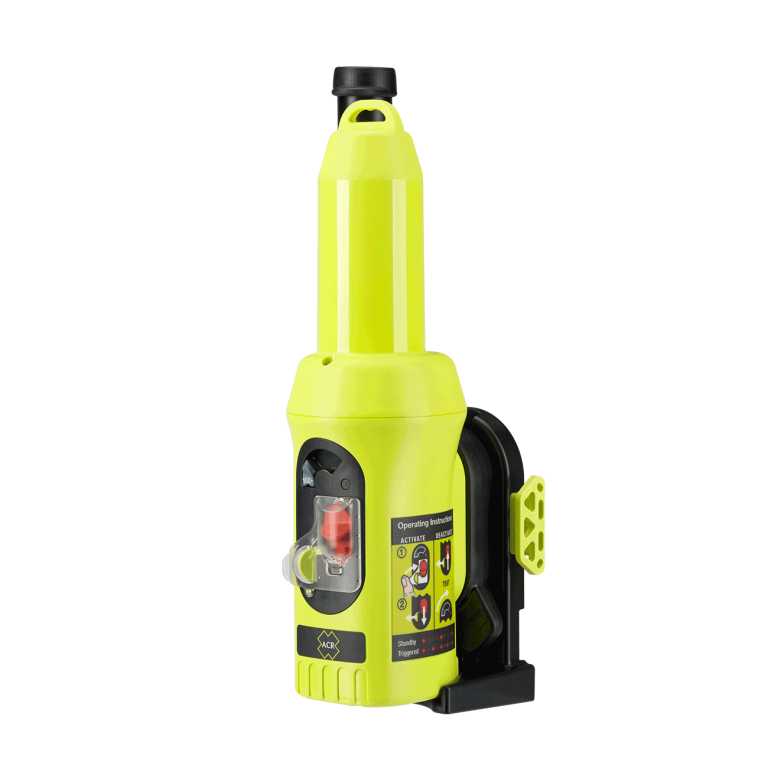

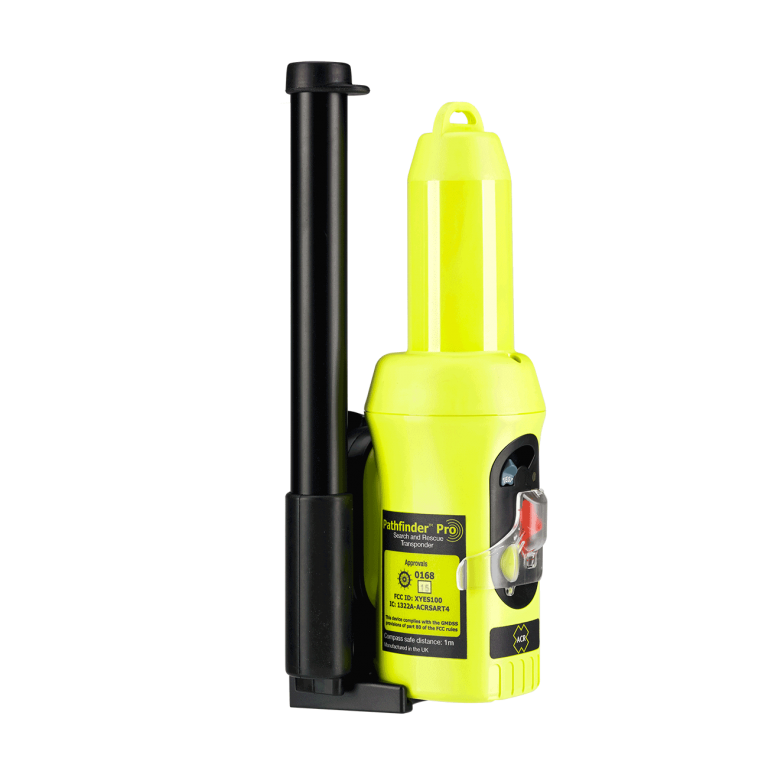

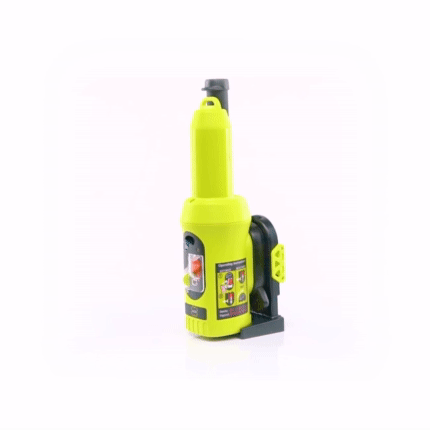

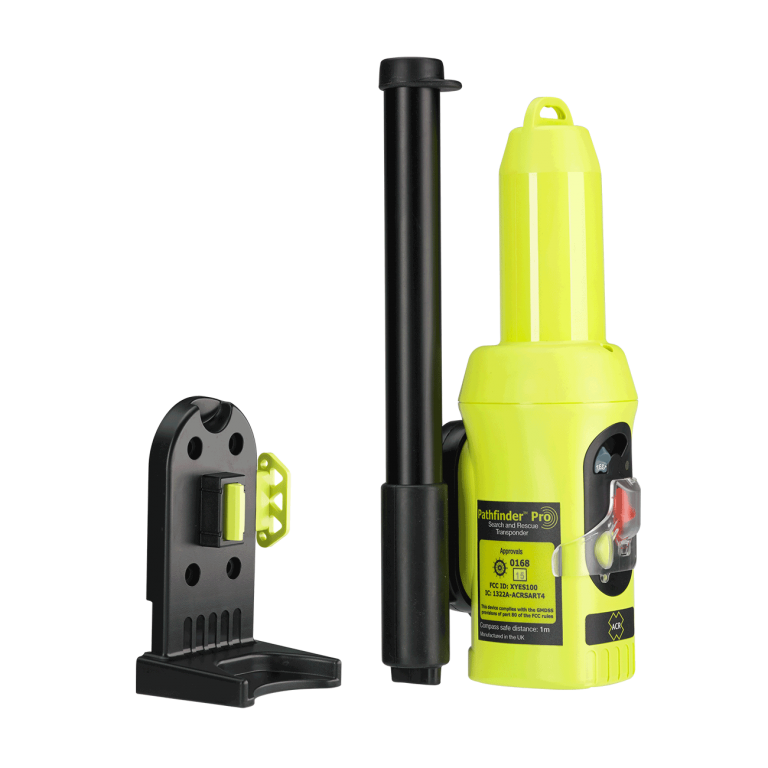

The Pathfinder Pro comes with a sleek wall mount to keep this compact SART out of the way, yet readily accessible in an emergency. The attached telescopic pole conveniently connects to the bottom of the SART and provides for maximum height and visibility out of a life craft. The SART can also be suspended inside the craft for hands free usage.

Search and Rescue Transponder (SART) is mandatory for all commercial vessels that must conform to GMDSS, and any vessel carrying more than one life raft.

Carriage Requirements

  • Any IMO SOLAS vessels on international voyages are required to carry a SART
  • 300-500 Gross Register Tonnage (GRT) must carry a minimum of 1 SART
  • Over 500 Gross Register Tonnage (GRT) must carry
    a minimum of 2 SARTs
  • 1 SART for every four life rafts on Ro-Ro passenger vessels

ACR Pathfinder Pro Sart Non-HazmatWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

SIZES & DIMENSIONS
  • 8.94" × 2.56"
  • 227 mm × 65 mm
WHAT'S IN THE BOX
  • Pathfinder™ Pro Search and Rescue Transponder (SART)
  • Vessel Wall Mount Bracket
  • Telescopic / Collapsible Pole
  • User Documentation
FEATURES
  • Fully IMO SOLAS–approved SART
  • Returns 12 intense radar blips to interrogating vessels
  • First radar blip shows exact SART position
  • Enhances radar visibility during search and rescue operations
  • Transmits automatically when interrogated by X-band marine radar
  • Compact design fits easily into life rafts and survival craft
  • Supplied with wall mount bracket for quick emergency access
  • Includes telescopic pole for maximum height and visibility
  • Can be suspended inside life craft for hands-free operation
  • Long-life non-hazmat lithium battery for extended emergencies
  • Worldwide certifications compliant with IMO, MED, FCC & IEC
SPECIFICATIONS
  • Device Type: Search and Rescue Transponder (SART)
  • Deployment: Manual
  • Operation:
    Break protective cover
    Slide and hold yellow switch to the left
    Slide red switch down

  • Radar Frequency Band: 9.2 – 9.5 GHz
  • Output Power (EIRP): >26 dBm
  • Battery Type: Lithium / Iron Disulfide (Li/FeS₂), Non-Hazardous
  • Battery Replacement Interval: 5 years
  • Operating Life (Standby): >96 hours
  • Operating Life (Active): >12 hours
  • Temperature Range (Operating): -20°C to +55°C
  • Temperature Range (Storage): -30°C to +70°C
DOCUMENTATIONS
  • User Manual


Certification & Compliance Documents

The Pathfinder™ Pro SART is a fully certified Search and Rescue Transponder designed to dramatically improve radar visibility during emergency situations. When interrogated by marine radar, it transmits 12 highly visible radar blips, clearly marking survivor location on the rescuer’s radar display. Built to meet strict IMO SOLAS and GMDSS requirements, Pathfinder Pro features a rugged waterproof housing, long-life non-hazardous lithium battery, and versatile mounting options for rapid deployment from life rafts or survival craft.
