Rigid Industries

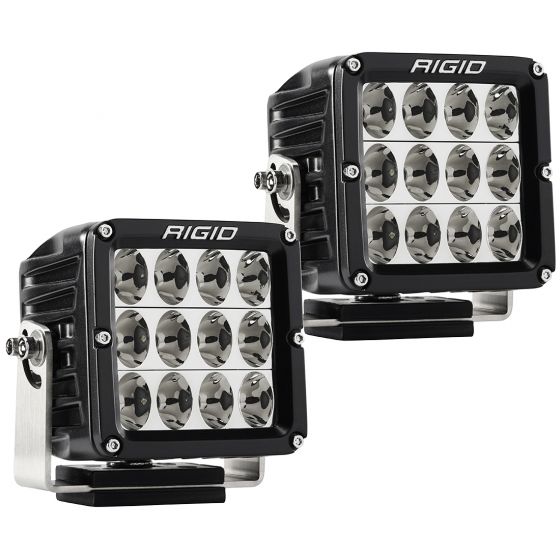

D-XL Pro Driving Pair
D-XL Pro Driving Pair
SKU: Part Number: 322613
Pre-Order
Description & Specification
With the enormous popularity of the original D-Series came the need for a slightly larger, more powerful lighting solution. The RIGID D-XL PRO boasts more light than ever before in a housing that measures 4x4. Recent improvements to the LEDS in the D-XL Series PRO with its new PROfessional Race Output of up to 170% more raw lumens while maintaining the efficiency that is the hallmark of the entire RIGID product line. Featuring an unbreakable polycarbonate lens, durable UV-resistant polyester powder coat, stainless steel hardware, and a vibration isolator, the D-XL Series PRO is available with your choice of beam pattern optics. Recent updates include new RIGID branding and blacked-out circuit boards for a more refined look. Whether its off-road, power sports, general automotive, mining, agriculture, or fire and rescue, the D-XL PRO is perfect for any application that requires a high intensity LED light.
- 50,000 Plus Hour Lifespan
- 9-36 V DC
- Durable UV Resistant Powder Coat
- High-Grade Aluminum Alloy
- Integrated Thermal Management System
- Impact Resistant Polycorbonate Lens
- Over/Under Voltage Protection
- RFI/EMI Protection
- Reverse Polarity Protection
- RoHS Compliant
- IP68 Compliant - Dust/Water Ingress
- Operating Temp -40 Deg F To +145 Deg F
- SAE J575 Compliant - Shock/Vibration
- Available In White And Black Housing
- Pressure Equalizing Vent
- Waterproof Connector (Exclusions Apply)
- Limited Lifetime Warranty
- Off Road Use Only
Product comes with:
- Mounting Hardware
- Stainless Steel, U-Shape Bracket
- Vibration Isolators
- Harness w/Switch
- Deutsch Connector
Specifications:

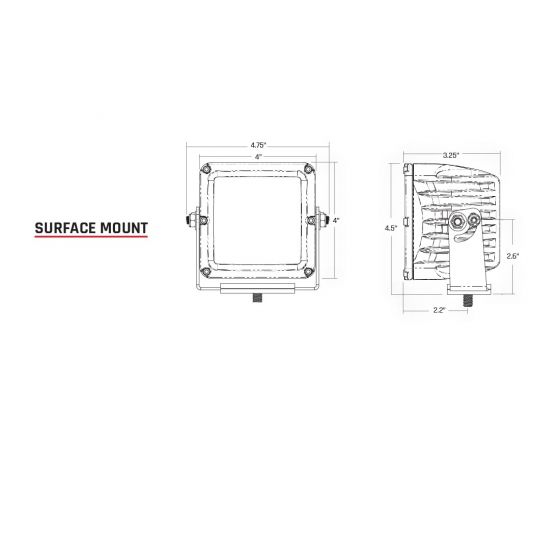

Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | Voltage Max | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | Horizontal Beam Angle |
---|---|---|---|---|---|---|---|---|---|---|---|
4"X4" | 322613 | 5.00 | DRIVING | 89 | 6.36 | 36 | 9504 | 638 | 252 | 505 | 47.3 |
