SHAKESPEARE AIS 4FT 396-1-AIS 3DB BROADBAND VHF FOR AIS SYSTEM

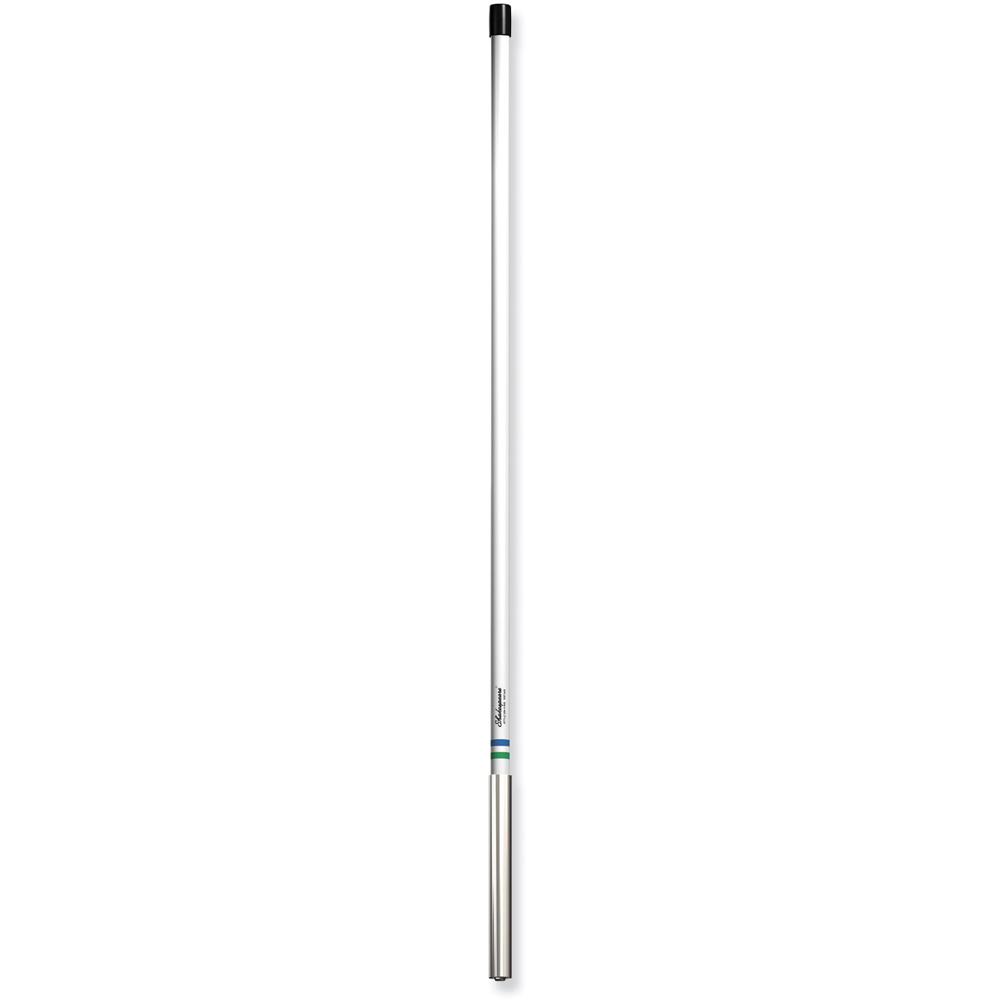

Shakespeare Style 396-1-AIS VHF Marine AIS
4' LENGTH 3dB

4' MAST MOUNT AIS ANTENNA

The 396-1-AIS has been specially designed to meet the broader bandwidth requirements of all popular AIS transceivers. Commercial-grade construction with a mast mounting sleeve.

• Brass and copper elements
• SO-239 connector at the base
• Suggested Mount: U-Bolts included. Can be strapped to a larger mast using steel banding (not supplied)
• One section
• Coax cable sold separately
• Shakespeare Limited Warranty: 2 years

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth within 2.0:1 SWR: 6.0 MHz
• SWR: 1.5:1 at 156.8 MHz
• Gain: 3dB
• Impedance (Ohms): 50
• Gain: 3dB
• Max. Input (Watts): 100
• DC Ground: no (will read open-circuit with ohmeter test)
• Termination: SO-239 at bottom of antenna
• Height (feet): 4
• Polarization: Vertical
• Radiation pattern: Omni-directional
