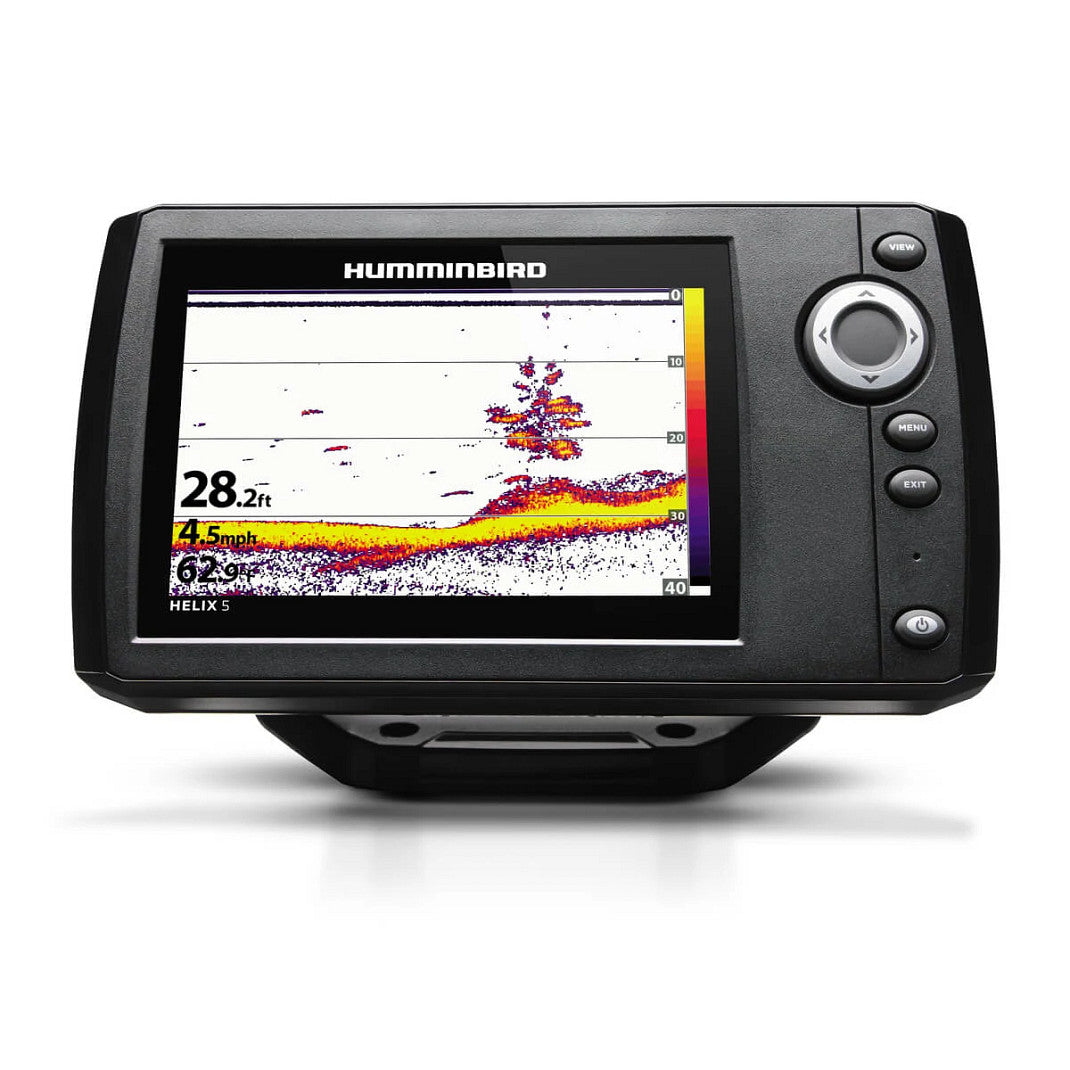

If fishing is in your DNA, there's no such thing as "too early" or "too far." High expectations go with the territory. The HELIX 5 Series answers the call with an uncompromising, 5" widescreen display. This HELIX 5 SONAR G2 PT model features DualBeam PLUS and SwitchFire.
Features
SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth.
1-Year Limited Warranty
Specification
Series
HELIX
Display Size - Diagonal
5"
Display Pixel Matrix
800H x 480V
Sonar-Standard
DualBeam PLUS
Sonar-Frequencies Supported
83/200 kHz
Depth-Sonar
1,500 ft (standard transducer)
Interface
Keypad Control
Memory Card Slot
None
Power Draw
650 mA
Power Input
10.8-20 VDC
Power Output Peak-to-Peak
4000 Watts
Power Output RMS
500 Watts
Screen Snap Shot
Not Supported
Sonar Recording
Not Supported

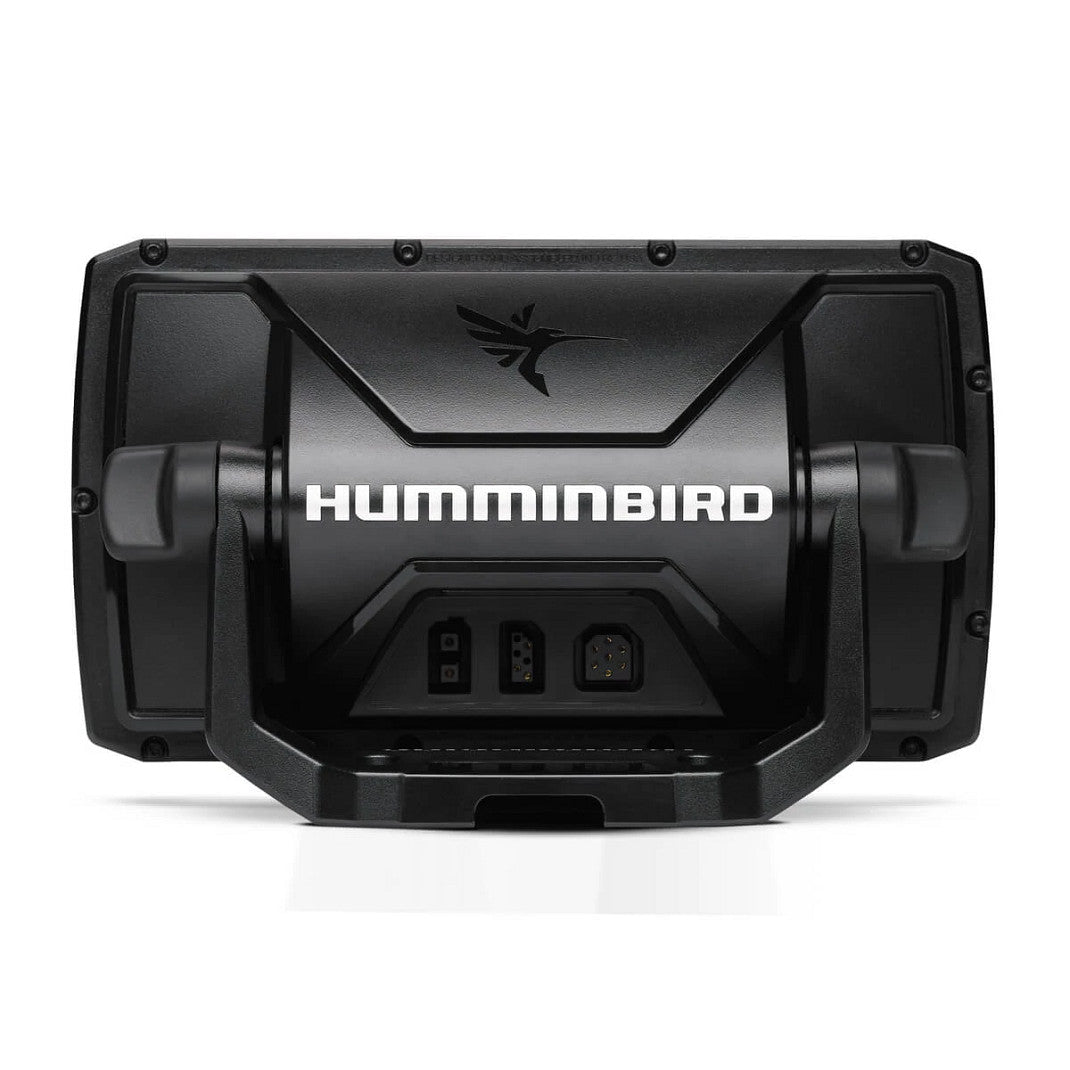

Mount-Standard
Gimbal
Mount-Standard Size
7.55" W x 4.64" H x 3.3" D
Mount-Optional
In-Dash Mounting Kit
Mount-Optional Size
7.55" W x 4.28" H x 1.13" D
Transducer Included
XNT 9 20 T
Transducer Mount Location
Transom
GPS Chartplotting
Not Supported
GPS Receiver
Optional
GPS Trackplotting
Not Supported
Humminbird Basemap
Not Supported
LakeMaster Compatibility
No
Minn Kota i-Pilot Link Compatibility
No
Minn Kota Talon Shallow Water Anchor Compatibility
No
Navionics Gold/HotMaps Compatibility
No
Navionics Platinum + Compatibility
No
Platinum Compatibility
No
Radar Compatibility
No
5-Port Ethernet Switch Compatibility
No
AIS Compatibility
Not Supported
Heading Sensor GPS Compatibility
No
NMEA2000
Not Supported
Target Separation
2.5"
Upgradable Software
Yes
View Preset Keys
Yes
X-Press Menu System
Yes
Custom Digital Readout
Yes
Custom View Selections
Yes
Display Colors Grayscale
16-Bit
Display Type
Color TFT
Temperature
Built In
Temperature Alarm
Yes
Temperature Graph
No
Warranty
One-Year Warranty
UPC
0082324048999
