APEX 16 MEGA SI+ CHARTPLOTTER CHO

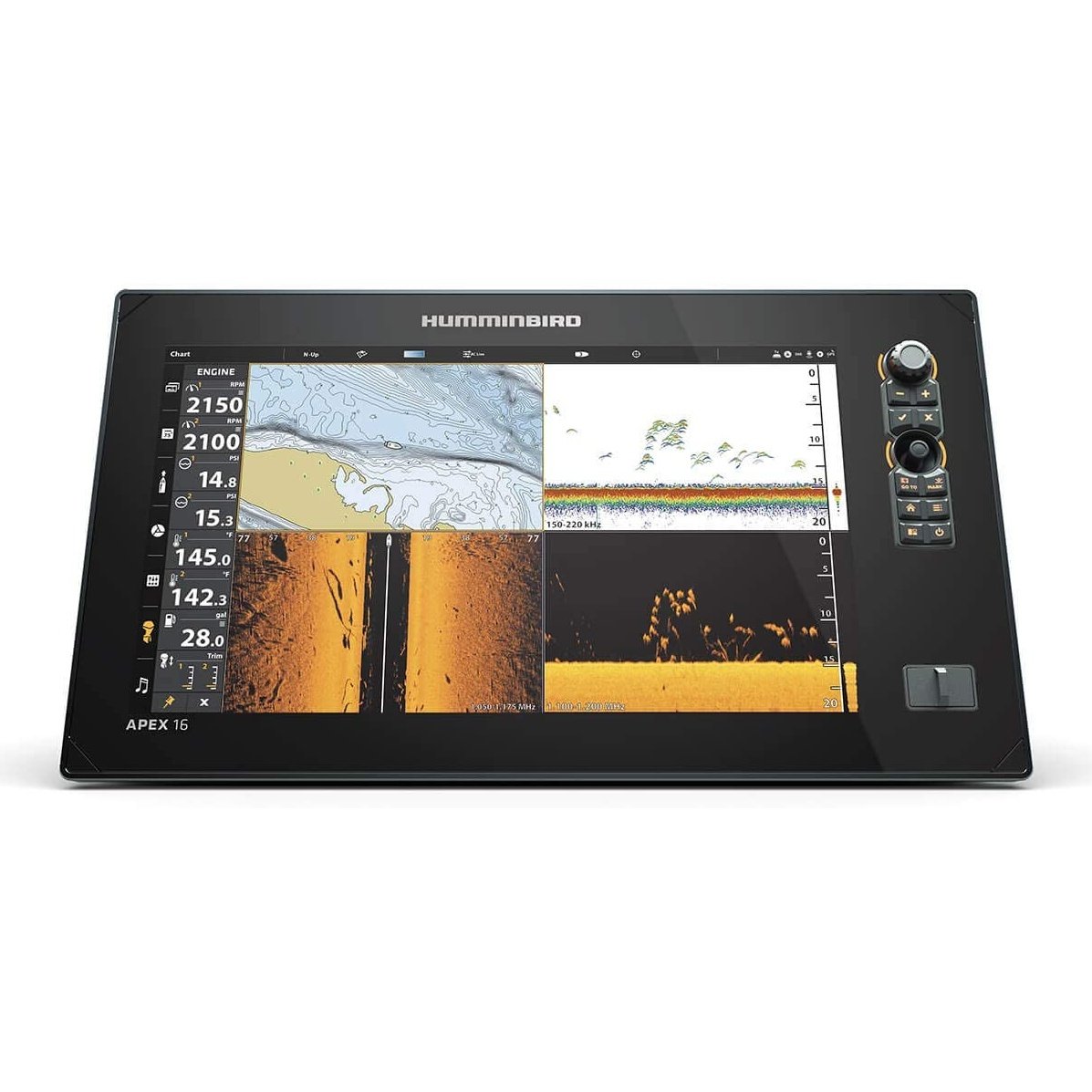

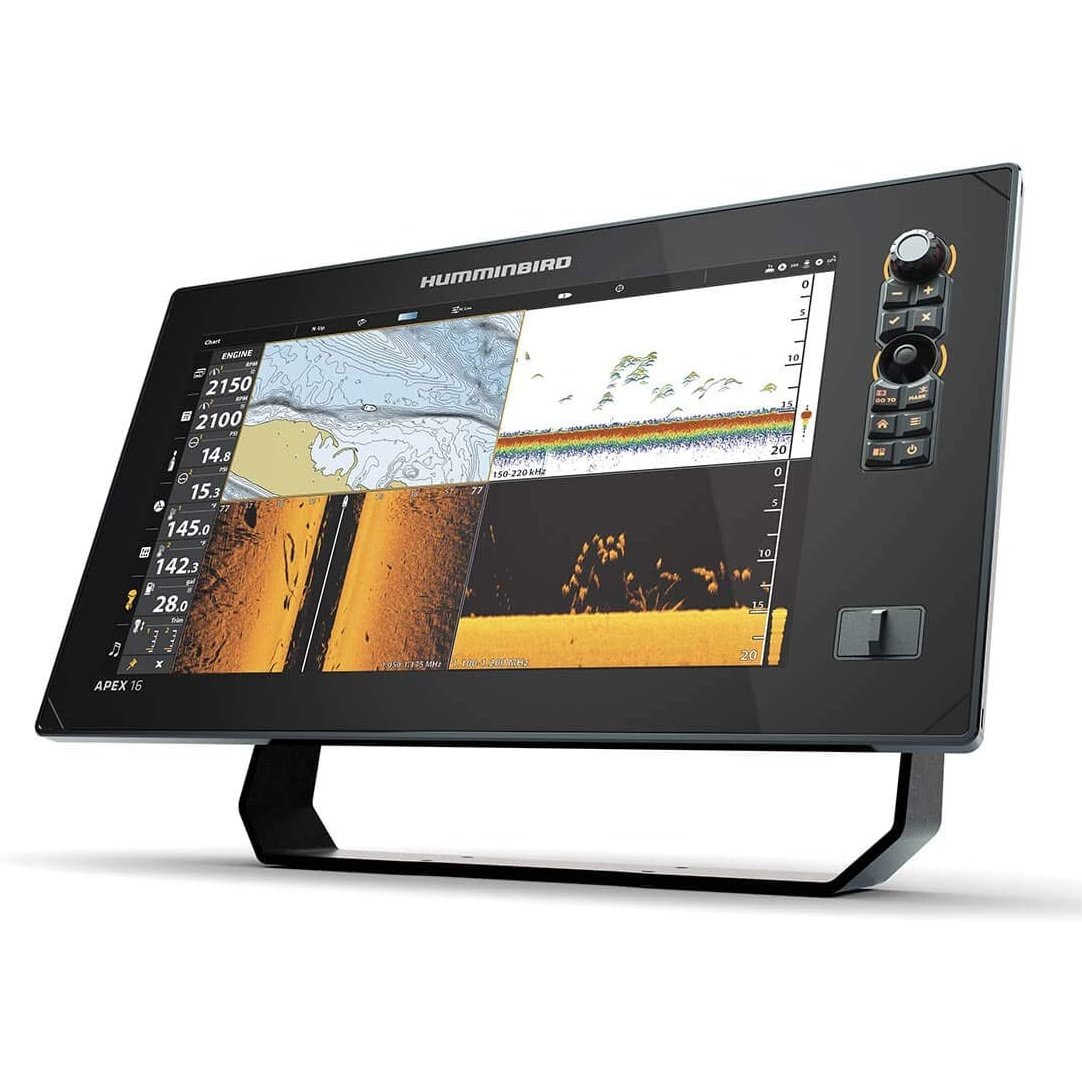

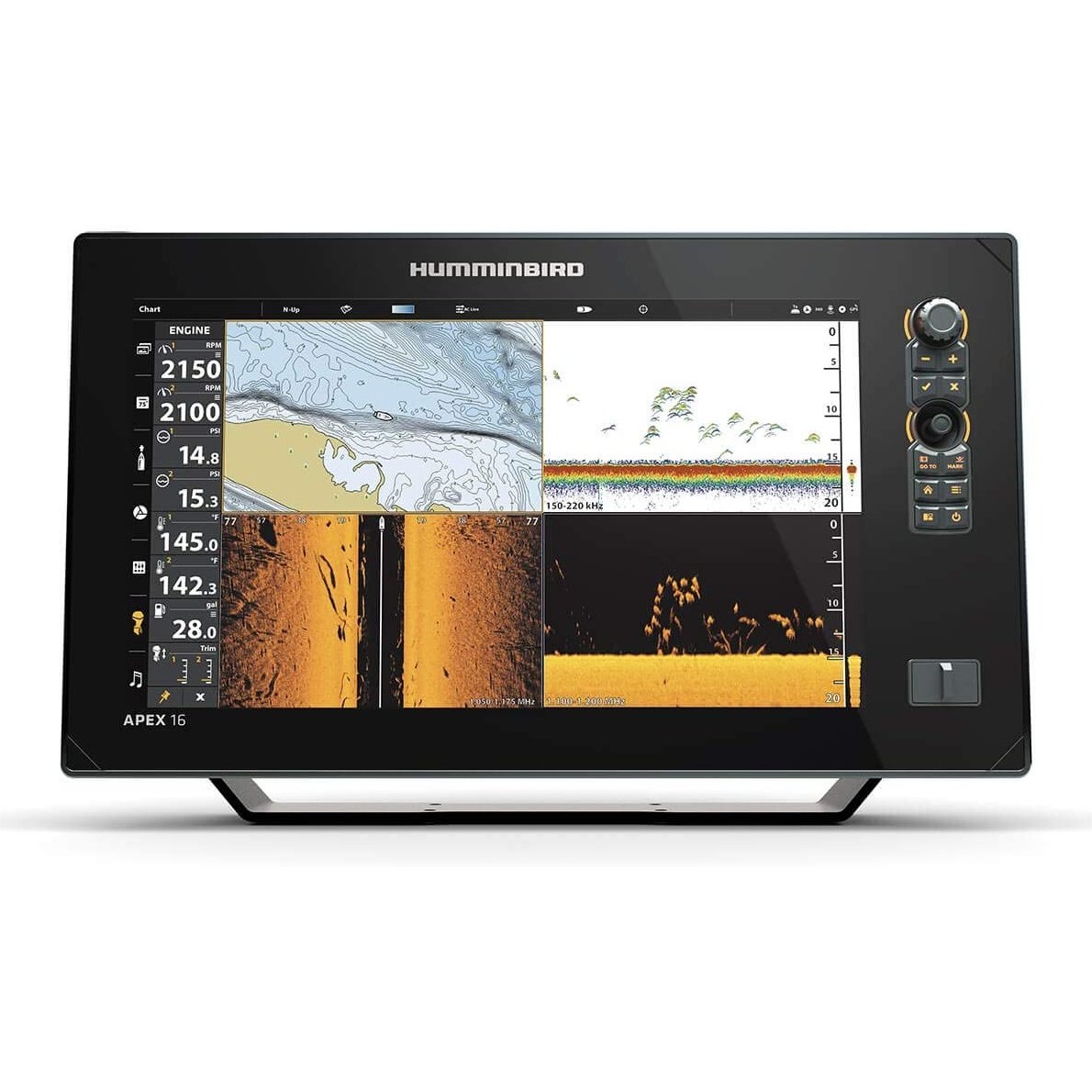

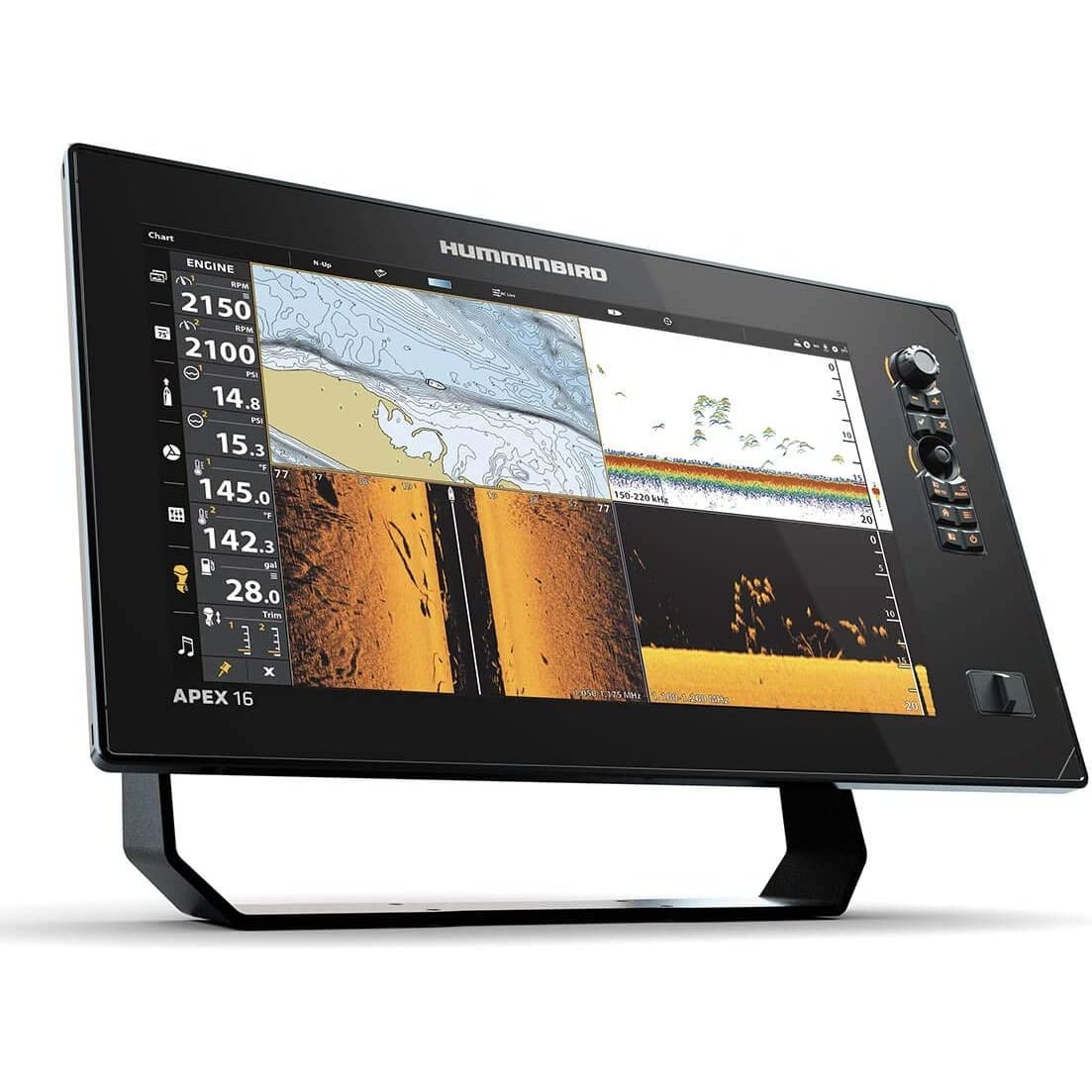

Humminbird APEX® 16 MSI+ Chartplotter CHO Display Only Product Description

The APEX 16 MEGA SI+ CHARTPLOTTER CHO provides the clearest sonar imaging on the sharpest multi-function display that anglers have ever seen. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2 Kilowatt. See it all clearly with a 15.6 Inch Full-HD touchscreen that provides a customized display of information from advanced network options like NMEA 2000 (R), HDMI In/Out, WiFi and Bluetooth (R). Add the power of the One-Boat Network ™ to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota (R), and reach new depths with wireless Cannon (R) Optimum ™ downrigger control. The APEX Series is a new kind of MFD that will take you fishing to a new level. This CHO (Control Head Only) model is the perfect pairing for anglers looking to select their own transducer, such as a Stainless Steel thru-hull option (SSTH 14 HW MSI+) or simply to add an additional display to an existing Humminbird network.

Humminbird 4115001CHO Attributes

• Maps: Charts Of More Than 10000 Lakes, Plus Coastal Coverage For The Continental U.S.
• Display Size: 16 Inch
• Display Type: Full HD LCD With 1920 X 1080 Pixels Resolution
• Interface: Touchscreen
• Sonar Compatibility: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+

Humminbird 4115001CHO Features & Benefits

• 1920 X 1080 Full HD Display
• Cross Touch Interface Allows You To Operate By Touchscreen Or Soft Key Control
• MEGA Live Delivers The Clarity And Detail Of MEGA Imaging In Live-Action, Allowing Anglers To See Fish And Structure In Real-Time
• MEGA Side Imaging+ Extends Out To 200 Feet On Either Side, Plus 20 Percent More Detail Than MEGA Side Imaging
• Extended Depth Down To 200 Feet, Plus 20 Percent More Clarity Than MEGA Down Imaging
• CHIRP Stands For “Compressed High Intensity Radar Pulse”: By Covering A Wide Range Of Frequencies, CHIRP Produces More Accurate, More Detailed Returns Of Fish, Structure And The Bottom
• Dual Spectrum CHIRP Sonar: By Covering A Wide Range Of Frequencies, CHIRP Produces More Accurate, More Detailed Returns Of Fish, Structure And The Bottom
• MEGA 360 Imaging Sweeps Up To 125’ In Every Direction Around Your Boat To Deliver The Clearest Images Of Structure, The Bottom And Fish, Even While You’re Sitting Still
• Precision GPS Provides An Accurate Position Fix, Meaning More Accurate Waypoints And Boat Positioning For Better Fishing
• Limited 2 Year Warranty

Humminbird 4115001CHO Installation Instructions

• 532793-1EN_B APEX SOLIX G3 Operations Manual.pdf
• 532549-3EN_A APEX SOLIX Quick Start Guide.pdf
• 532744-1_A APEX Series Installation Guide.pdf
• 532752-1_A APEX IDMK Installation Guide.pdf

Humminbird 4115001CHO Warranties

• Humminbird 2-Year Limited Warranty.pdf

Humminbird 4115001CHO Technical Bulletins

• 532741-2_A APEX 16 IDMK Template.pdf

APEX® 16 MSI+ Chartplotter CHO Display Only

The APEX 16 MSI+ CHARTPLOTTER CHO provides the clearest sonar imaging on the sharpest multi-function display that that anglers have ever seen. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. See it all clearly with a 15.6"" Full-HD touchscreen that provides customized display of information from advanced network options like NMEA 2000®, HDMI In/Out, WiFi and Bluetooth®. Add the power of the One-Boat Network™ to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota® and reach new depths with wireless Cannon® downrigger control.  The APEX Series is the kind of MFD that will take you fishing to a new level. This CHO (Control Head Only) model is the perfect pairing for anglers looking  to select their own transducer, such as a Stainless Steel thru-hull option (SSTH 14 HW MSI+) or simply to add an additional display to an existing Humminbird network.

Features:

• Control Head Only Model: This model does not include a transducer. This CHO model is a great choice for those looking to connect to connect to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or share sonar data from an existing Humminbird Ethernet network.
• Full HD Display with Cross Touch® interface: APEX delivers eye-popping detail with a 1920H x 1080V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all  using the touchscreen or the keypad—it's up to you.
• Customized Experience:  Utilize an intuitive user interface and sidebar menu which provide customizable settings and view combinations to make your fishing experience all your own.
• Dual Core Processor: Perform any task with speed and ease, thanks to the ultra-responsive interface and upgraded processing power.
• Industry-leading Humminbird sonar: Equipped with MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.
• Dual Channel CHIRP Sonar: Dual sonar ports offer connection with any Humminbird sonar options, as well as a dedicated port for 2D CHIRP transducers up to 2kW.
• Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat.  Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
• One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

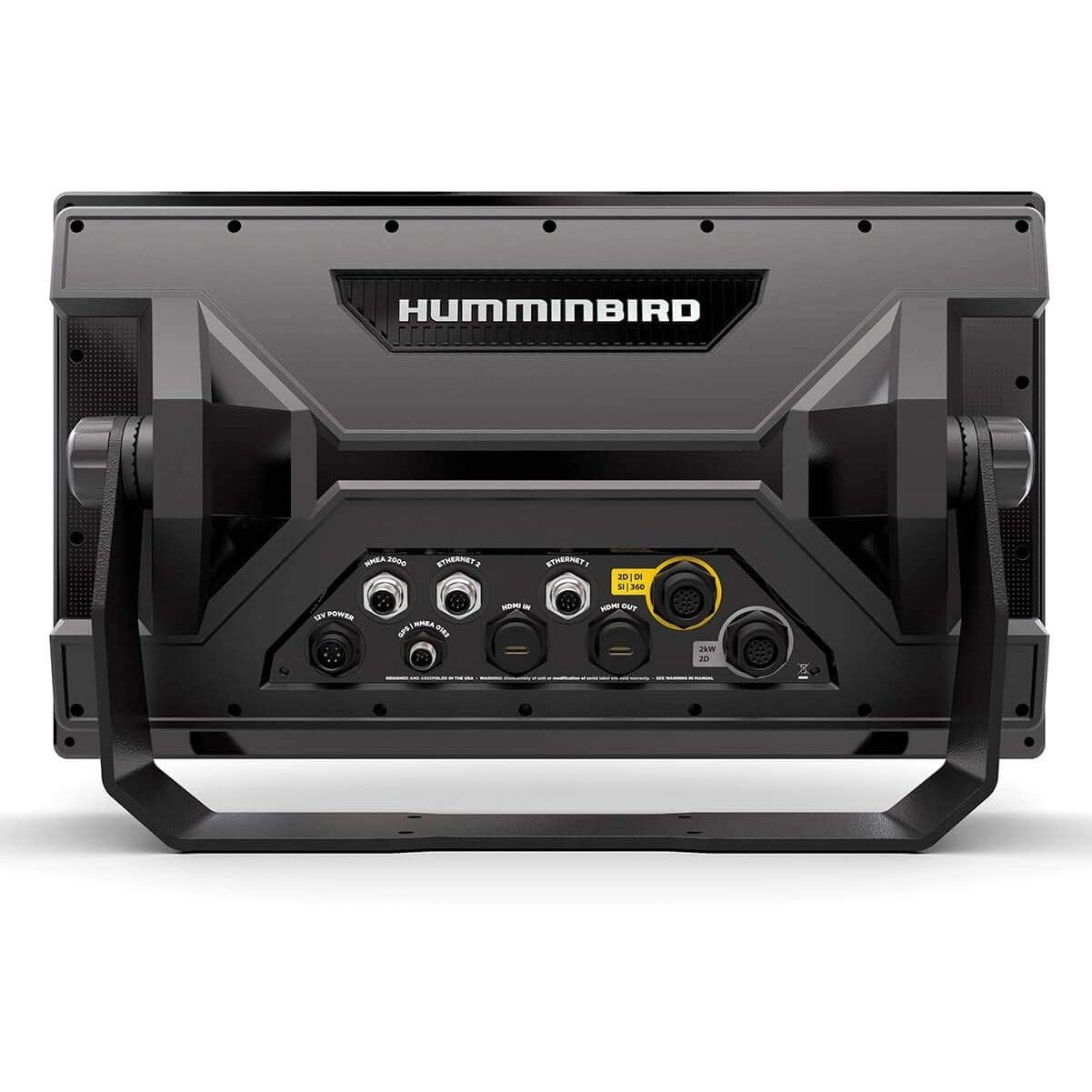

• Dual Ethernet Ports: Build a powerful, professional-grade fishing system with dual Ethernet ports on APEX chartplotters. Easily network products without the need for an external network hub, allowing the connection of multiple control heads and Ethernet accessories like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
• HMDI Compatible: See it all with independent HMDI In and HDMI Out ports on APEX. Connect and view accessory camera and video sources, as well as output to accessory displays for more viewing and rigging options.
• Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.
• NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking. Additionally, APEX is compatible with CZone® Contact 6, Contact 6 Plus and digital switching devices.
• Includes control head, power cable and gimbal mounting bracket. This CHO model does not include a transducer, allowing you to pick the best fit for your rigging needs.
• Product comes with 2-Year Limited Warranty.
