Osapian

Haswing

Osapian

SKU: 50701-80E
6 left
RM750.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

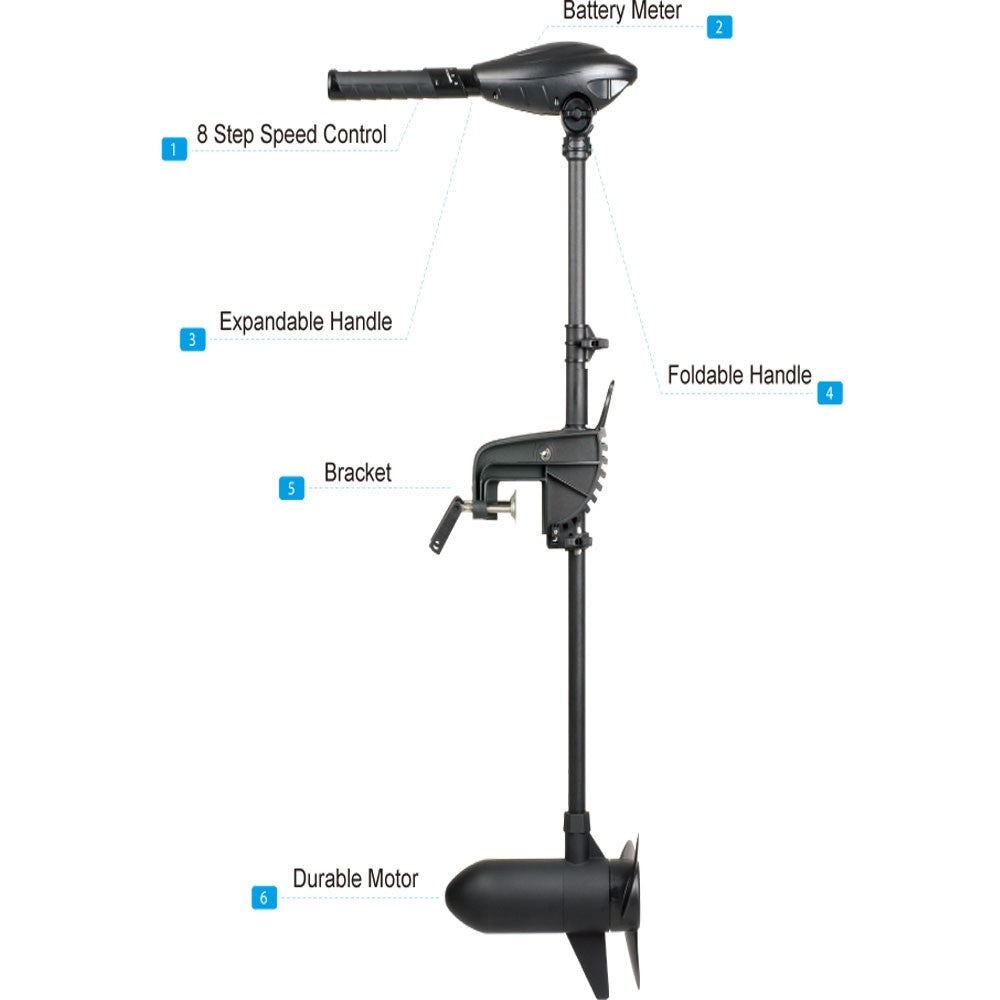

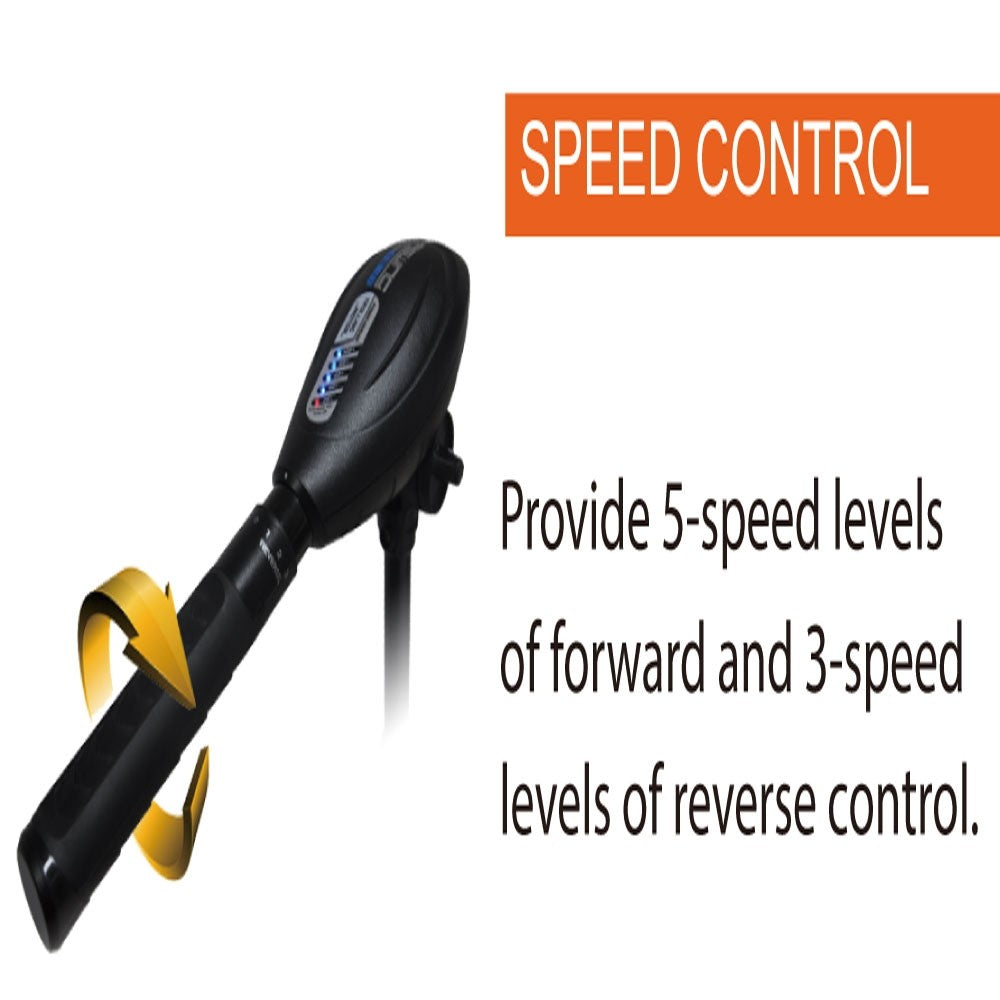

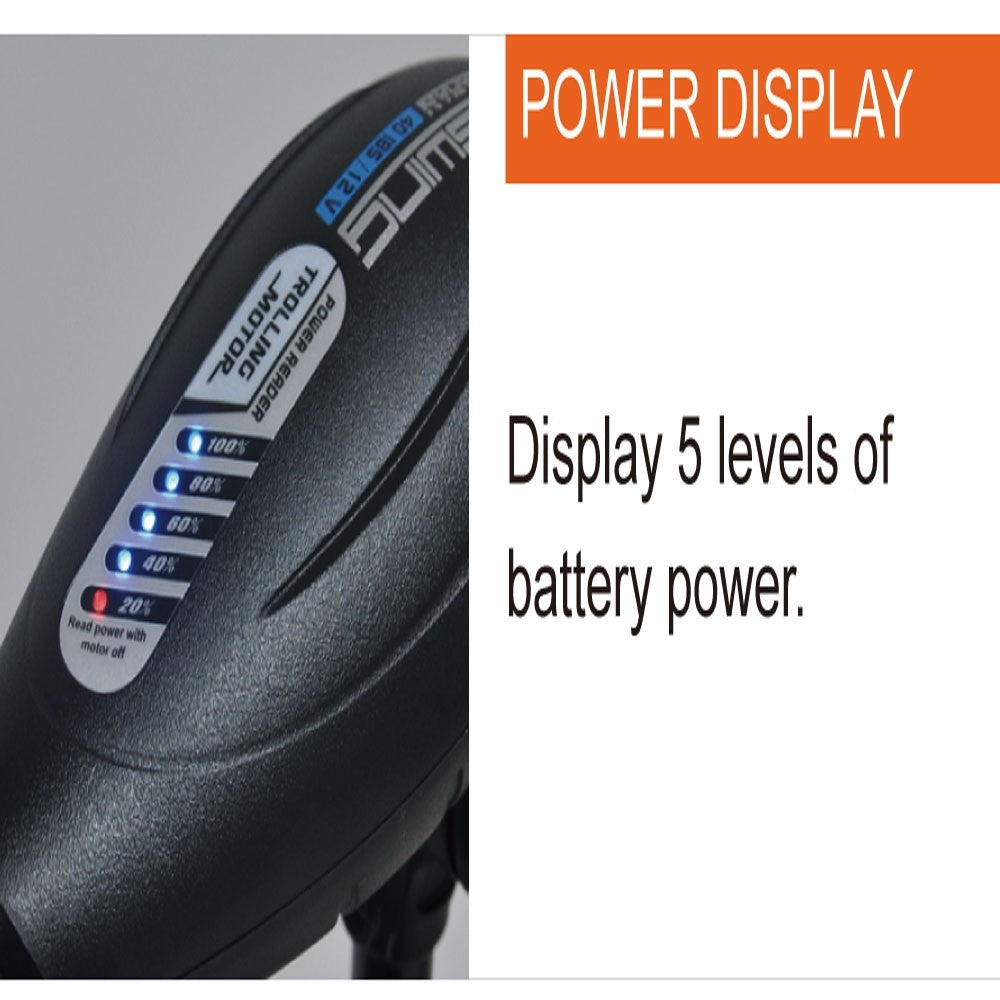

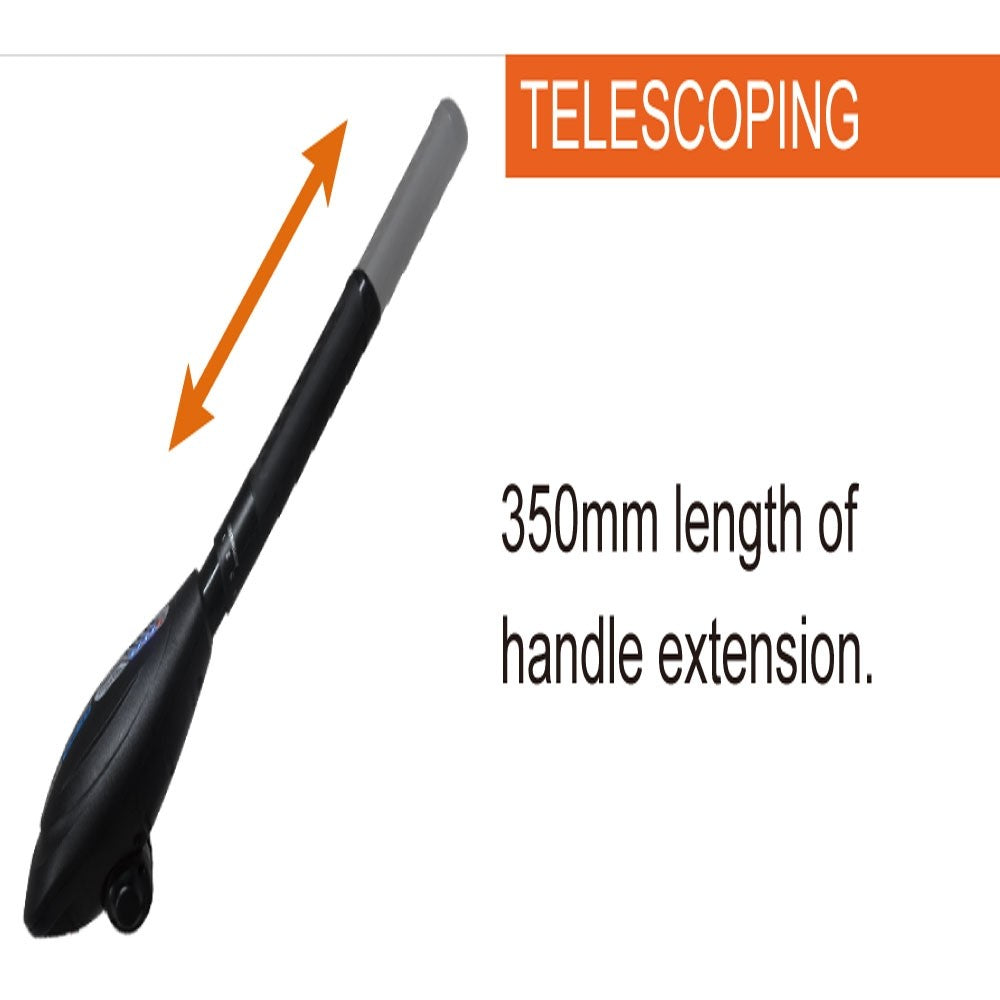

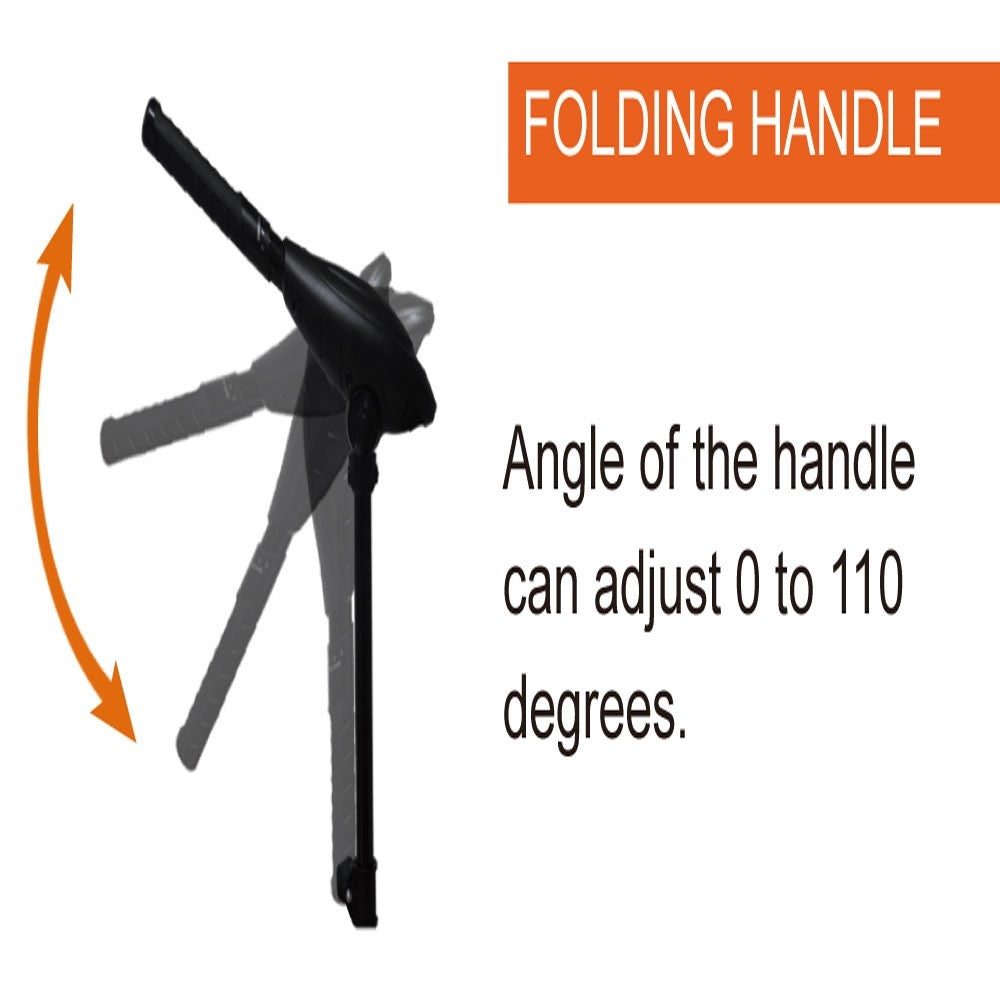

The Osapian range features durable 12 volt motors and available in 30, 40 and 55Lbs models. Osapian motors are equipped with 5 forward and 3 reverse positions. Osapian models are light-weight (from 6.6kg), easily portable and very compact thanks to the collapsible steering lever. The depth height can easily be adjusted, so you can motor in virtually any water. The steering lever adjusts to different angles, is telescopic and extendable for comfortable control. The Osapian models also features an LED battery level indicator suitable for both salt and fresh water.

SPECIFICATION

Model Osapian
Max Voltage DC 12V
Depth Adjustment Depth Collar
Max Thrust 30Lbs / 40Lbs / 55Lbs
Prop Type 2 blade prop 9inch diam (50701,50702) 3blade prop 9.3inch diam (50703)
Pro Speed at Full Power: Max. 1200 / 1380 / 1250 rpm underwater
Battery Type 1x105AH deep cycle
Max Boat Length & Load 4m / 4.7m / 5.5m
Steering Ratio 360 degree control
Power - Max 360W / 480W / 660W
Amp - Max 30A / 40A / 55A
Decivel Level (db) 50db
Mount Bow Mount
Shaft Type Cast Aluminium
Shaft Length 600mm / 800mm / 900mm
Voltage (Thrust)
Shaft Length
