Haswing

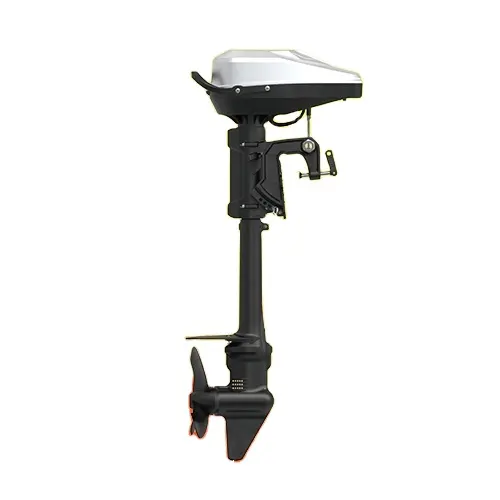

Armada F 10.0 Brushless Motor

SKU: Part Number: 50734-67_B

Pre-Order

RM10,000.00

~~RM0.00~~ RM10,000.00

% Off Sold out

Shipping calculated at checkout.

Voltage (Thrust) 48v (300 lbs)

Shaft Length 670mm

Quantity

Description & Specification

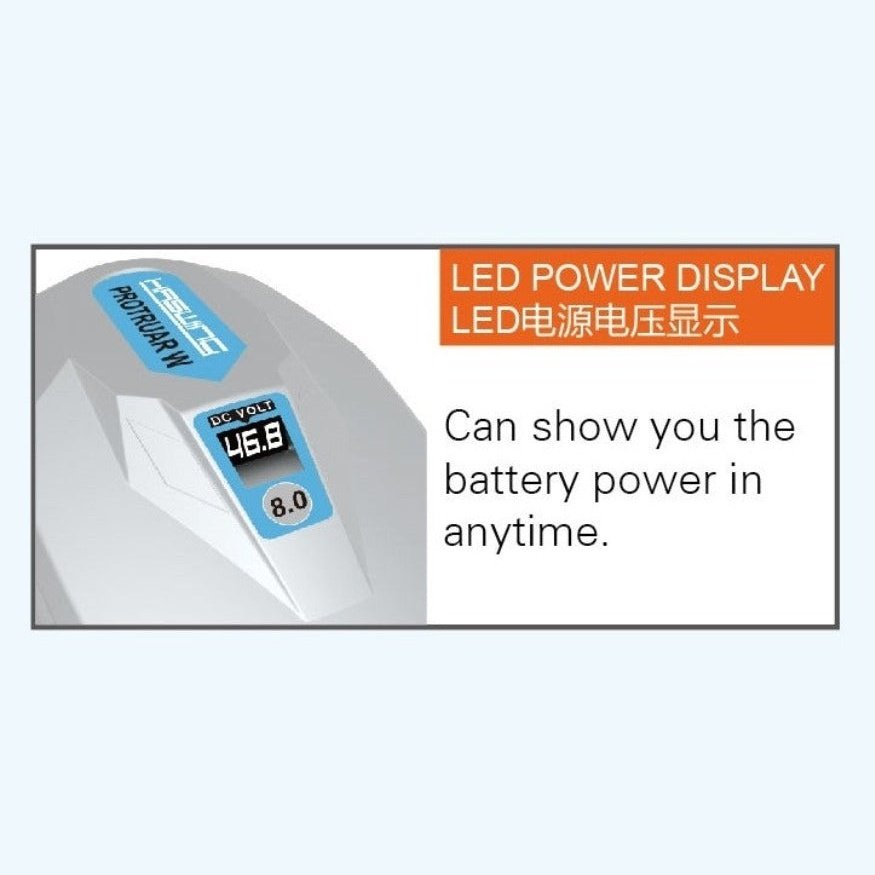

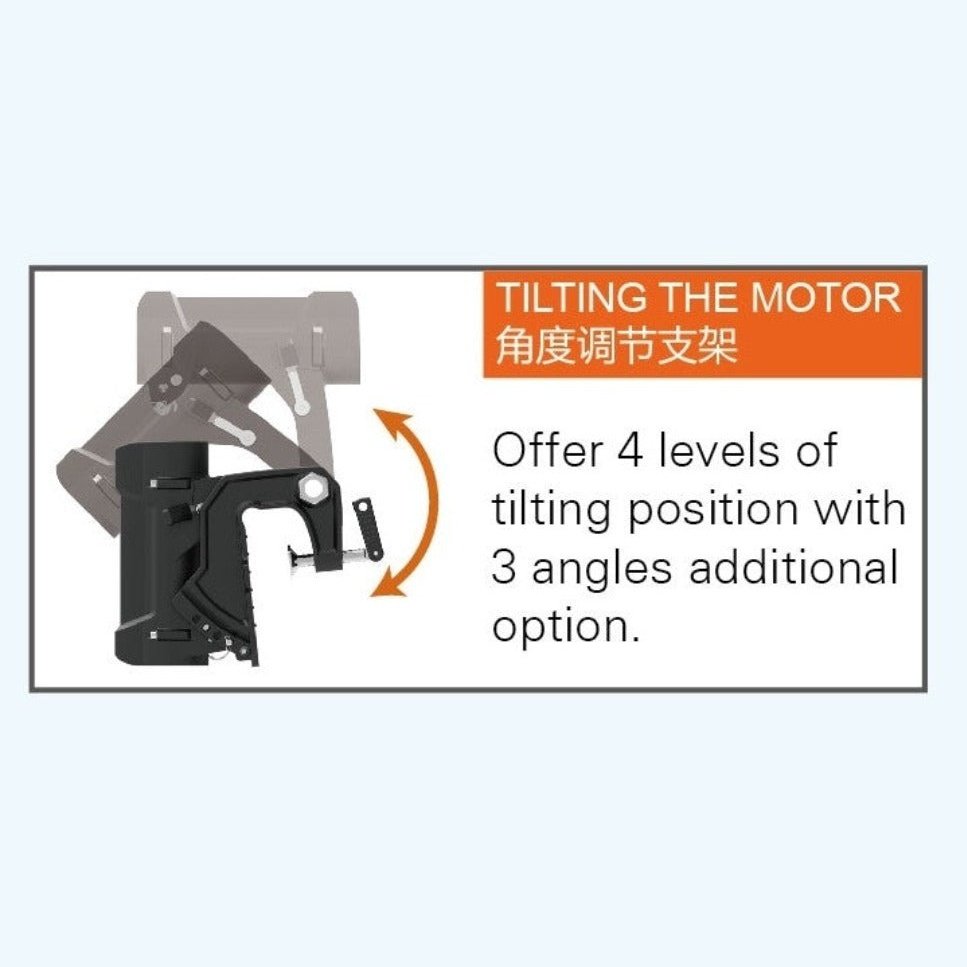

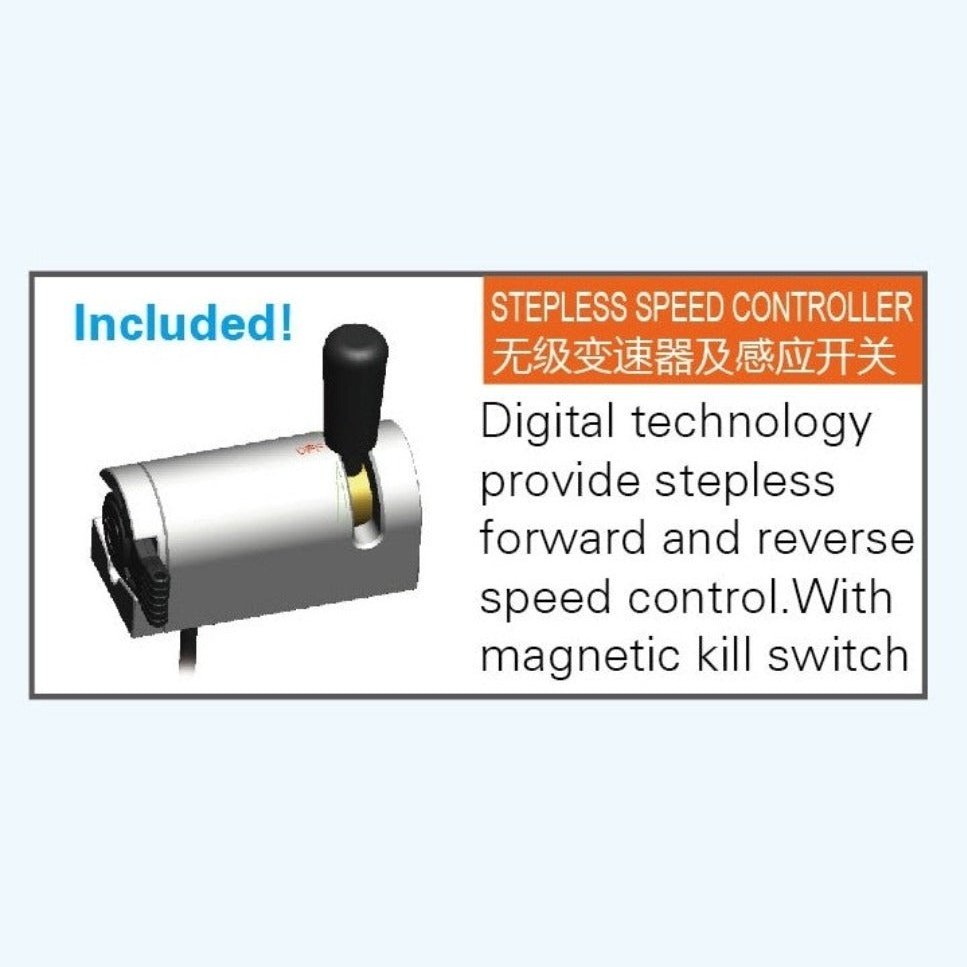

The Armada F is equipped with a brushless 8.0/10.0 48V motor and is excellent for the propulsion of a wide range of boats and waterway. This powerful motor is equipped with step-less adjustable speed control and a safety lanyard. The motor can easily be tilted in and out of the water. so you can motor in virtually any water. The Armada F models also features and LED battery level indicator. An additional steering wheel unit is required. Suitable for both salt and fresh water.

SPECIFICATION

Model	ARMADA F 8.0 / 10.0
Max Voltage	DC 48V
Depth Adjustment	Not Available
Max Thrust	10HP / 12HP
Prop Type	3blade prop / 11.8inch diam
Pro Speed at Full Power:	Max. 1050 / 1200 rpm underwater
Battery Type	4x120AH Deep Cycle
Max Boat Length & Load	9m
Steering Ratio	360 degree control
Power - Max	4320W / 6000W
Amp - Max	90A / 125A
Decivel Level (db)	75db
Mount
Shaft Type	Cast Aluminium
Shaft Length	670mm
