Haswing

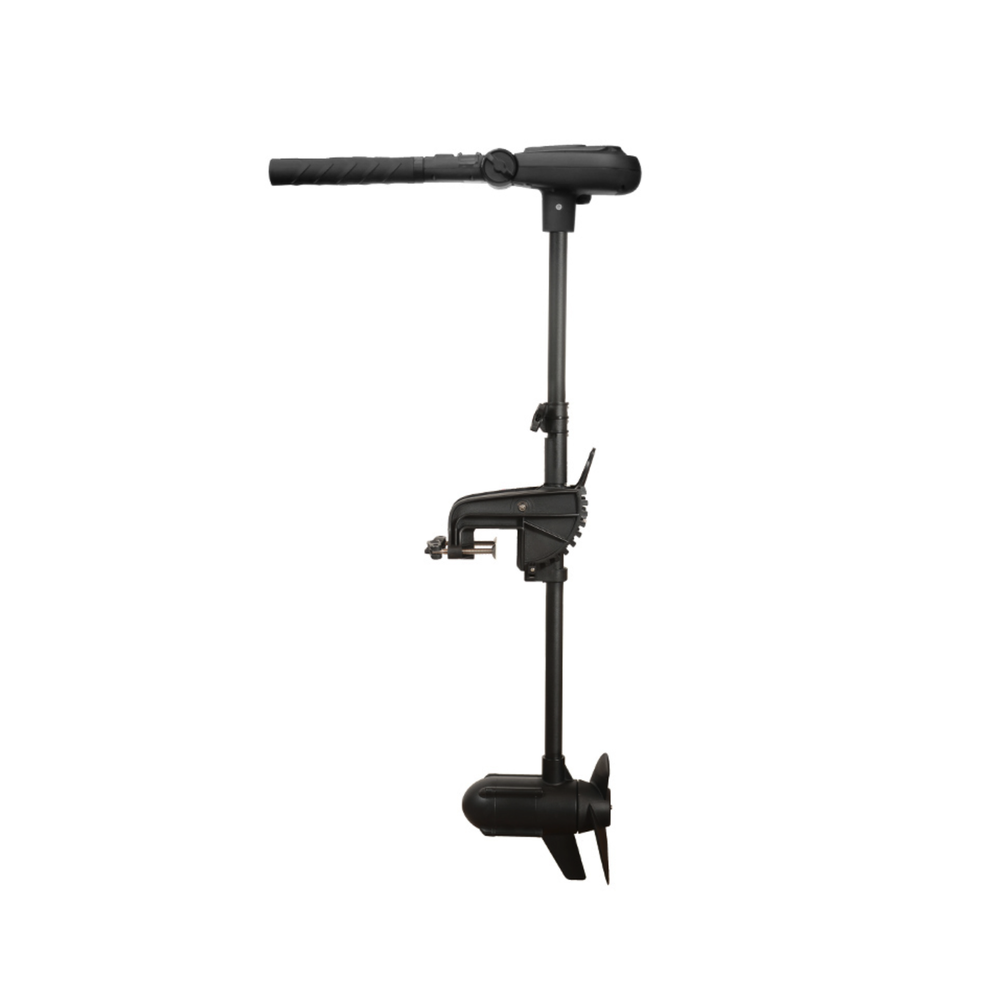

Protruar 1.0 Brushless Motor

SKU: Part Number: 50744-90_B

Pre-Order

RM1,250.00

~~RM0.00~~ RM1,250.00

% Off Sold out

Shipping calculated at checkout.

Voltage (Thrust) 12v (65 lbs)

Shaft Length 900mm

Quantity

Description & Specification

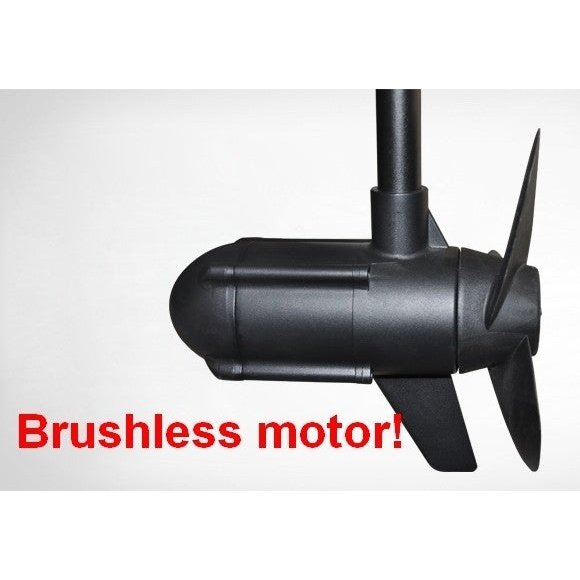

Brush-less Protruar is HERE!

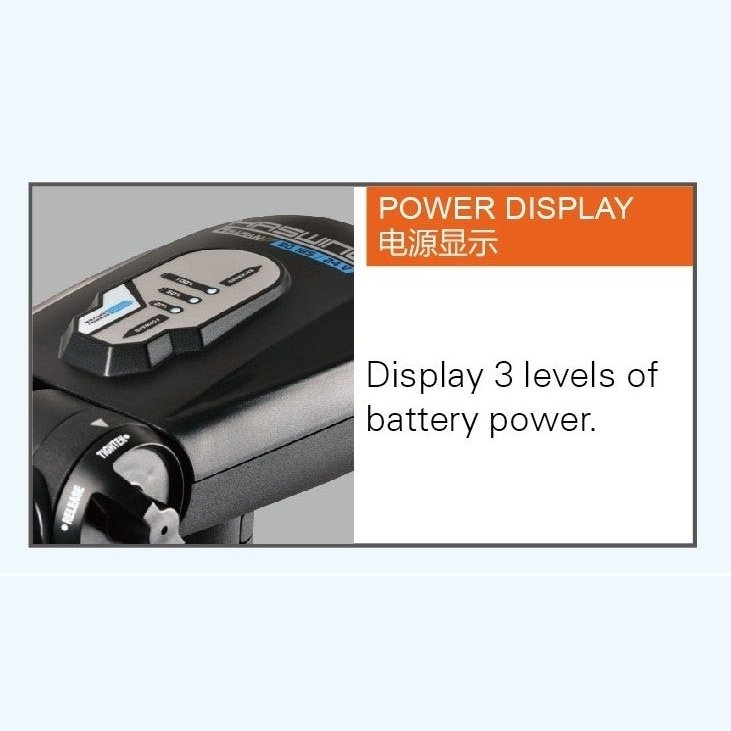

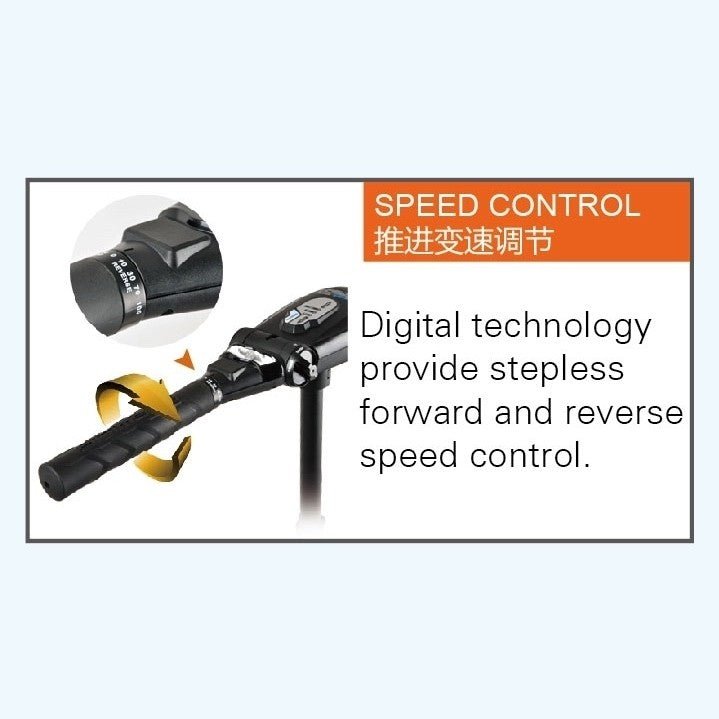

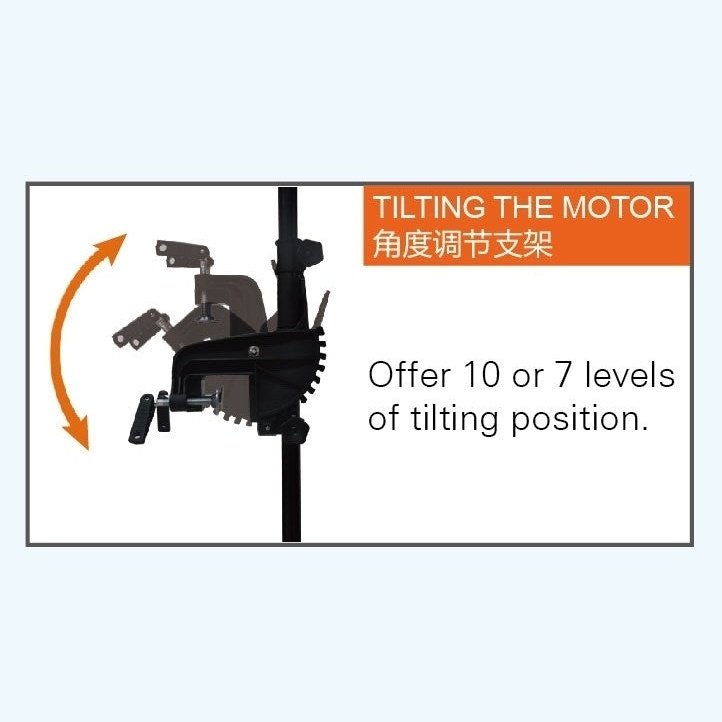

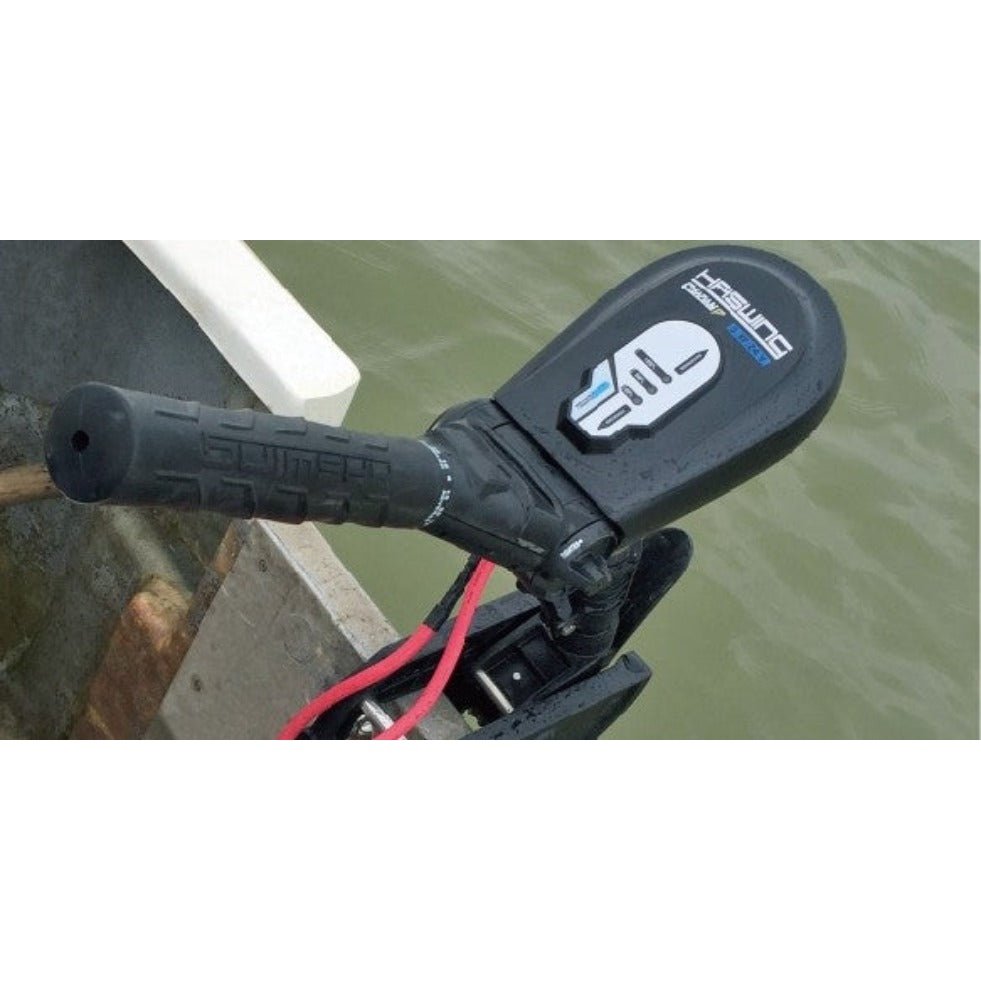

The Protruar is equipped with a brushless 1.0/2.0/3.0 12V or 24V motor and is excellent for the propulsion of a wide range of boats and waterways. This powerful motor is equipped with step-less adjustable speed control and a safety lanyard. The motor can easily be tilted in and out of the water and the trim height is adjustable by way of a quick lock, so you can motor in virtually any water. The Protruar models also features an LED battery level indicator. Suitable for both salt and fresh water.

SPECIFICATION

Model	Protruar 1.0 / 2.0 /3.0
Max Voltage	DC 12V/ 24V
Depth Adjustment	Depth Collar (All)
Max Thrust	65lbs / 85 lbs /110lbs
Prop Type	3blade prop / 9.3inch diam ( All)
Pro Speed at Full Power:	Max. 1250 / 1350 / 1450 rpm underwater
Battery Type	1x105AH deep cycle / 2x105AH Deep Cycle
Max Boat Length & Load	6.0m / 6.5m / 7m
Steering Ratio	360 degree control
Power - Max	600W / 960W / 1440W
Amp - Max	50A / 40A / 60A
Decivel Level (db)	< 55db (All)

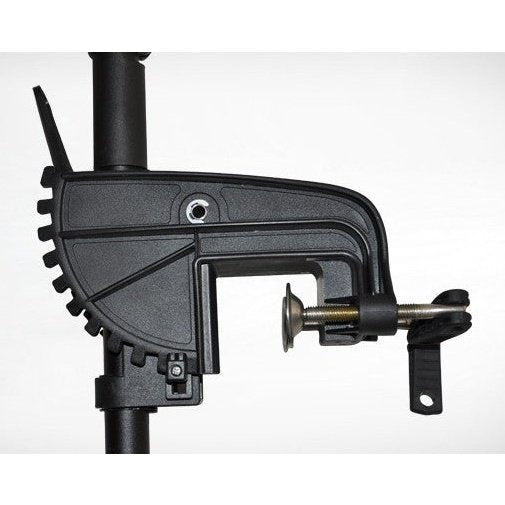

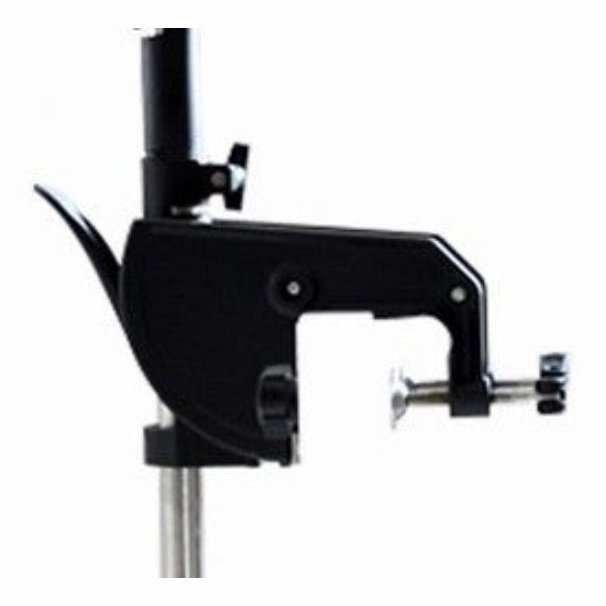

Mount	Transom MOUNT
Shaft Type	Cast Aluminium (1.0 2.0) / Stainless Stee (3.0)
Shaft Length	35INCH / 900MM (All)
