• VHF 8FT 5206-N 6DB RL VERSION SHORT VERSION boatyardmalaysia
1 1

Shakespeare

VHF 8FT 5206-N 6DB RL VERSION SHORT VERSION

VHF 8FT 5206-N 6DB RL VERSION SHORT VERSION

Part Number: 5206-N

Pre-Order

RM600.00
RM600.00
% Off Sold out
Shipping calculated at checkout.

Description & Specification

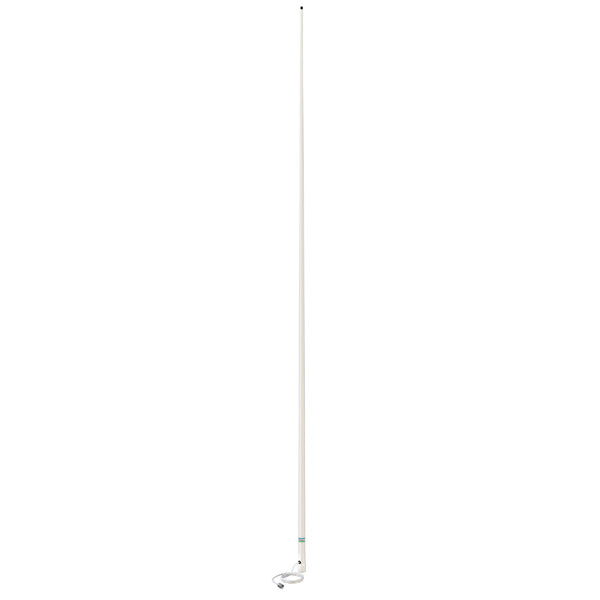

Shakespeare 5206-N 8' VHF Antenna Product Description

Built for value without compromising performance or durability, the Classic Series covers the widest variety of vessels in the Shakespeare ® family. These antennas keep you connected and meet essential communication needs while offshore.

Shakespeare 5206N Attributes

  • Compatibility: VHF Marine Radio
  • Type: Monopole
  • Length: 8 Feet
  • Gain: 6 Decibel
  • Mounting Type: Ratchet Mount
  • Color: White
  • Material: Nylon Ferrule

Shakespeare 5206N Features & Benefits

  • Smooth, Durable, High-Gloss White Or Fiberglass Finish Prevents Yellowing
  • Brass And Copper Elements Provide Standard Range And Reception
  • Chrome-Plated Brass Or Nylon Ferrule With Standard 1: -14 Thread Provides For Basic Install
  • Easy To Install
  • Limited 2 Year Warranty

Shakespeare Style 5206-N VHF Marine - Reduced Length Version

8' LENGTH 6dB

END-FED WITH MATCHING STUB

Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

  • Quality copper cable elements for good range and efficiency
  • Nylon ferrule with standard 1"-14 thread
  • Includes 15' RG-58 cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
  • Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
  • One section
  • Shakespeare Limited Warranty: 2 years


Technical Specifications:


Frequency: VHF Marine band
Bandwidth: 3 MHz
SWR: 1.5:1 @156.8 MHz
Impedance: (Ohms): 50
Gain: 6 dB
Max Input (Watts): 50
DC Ground: NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester.
Termination: RG-58
Height (feet): 8
Polarization: Vertical
Radiation pattern: Omni-directional

⚠️ IMPORTANT NOTE:
Product dimensions are subject to change without prior notice due to updates in manufacturer safety guidelines and standards. As a result, the size of the product delivered may vary slightly from the specifications provided at the time of order. We recommend reviewing the latest information before purchase to ensure compatibility. This policy is in place to prioritize your safety and the quality of our products.

Product images are for illustration purposes only and may vary based on your monitor’s resolution. Actual colors and details of the product may differ from what is displayed. Please consider this when making your purchase.
View full details
