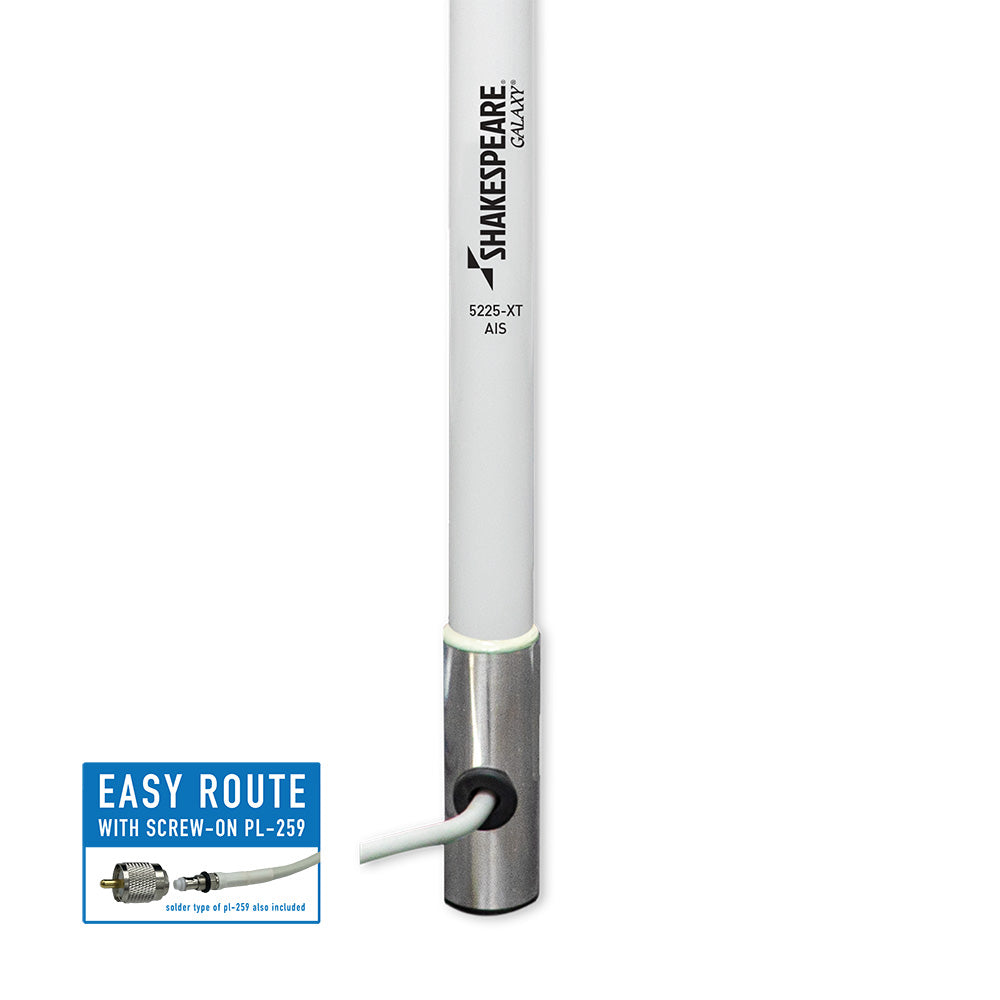

AIS 8' GALAXY AIS ANTENNA - 6DB GAIN - STAINLESS STEEL FERRULE

Shakespeare AIS 8' Galaxy Antenna - VHF/AIS - 6dB Stainless Steel Ferrule Product Description

Cruise with confidence and communicate reliably over the AIS band using the Galaxy® AIS antennas. Specifically designed and tuned to work with all popular AIS transceivers, this antenna features a commercial-grade fiberglass construction to ensure performance

Shakespeare 5225XTAIS Attributes

• Bandwidth: 3 Mega Hertz With 2.0:1 VSWR
• Color: White
• Compatibility: AIS Transceivers
• Connection Type: PL-259 Connector
• Gain: 6 dB
• Length: 8 Feet
• Material: Stainless Steel
• Mounting Type: Ratchet Mount
• Power: 100 Watt

Shakespeare 5225XTAIS Features & Benefits

• Thick Brass And Copper Elements Provide Greater Range, Clarity, And Efficiency
• Stainless Steel Ferrule Prevents Rust
• 20 Feet RG-8/X Low-Loss Cable Plus A Solder Free Screw-On PL-259 Connector Included For Easy Installation
• High-Gloss Polyurethane Finish Prevents Yellowing
• Antennas Come In A Single Section With A Built-In DC Connection
• Limited 5 Year Warranty

AIS 8' Galaxy Antenna - VHF/AIS - 6dB Stainless Steel Ferrule

Reduced Length Version

Features:

• Band: Broadband VHF
• Antenna Gain: 6dB
• Max. Input Power: 50 watts
• SWR: nominally 1.5:1 at 158 MHz
• Bandwidth: 5 MHz within 2.0:1 VSWR
• Ferrule: Stainless steel
• Coax Supplied: 20 ft of RG-8/X
• Connector Supplied: PL-259, not installed
• Color/finish: Galaxy White
• Polarity: Vertical
• Impedance: 50 Ohms
• DC Ground: DC Grounded - The antenna will read shorted on continuity test
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables
