CELLULAR/WI-FI WORLD BAND GALAXY ANTENNA
CELLULAR/WI-FI WORLD BAND GALAXY ANTENNA
SKU: Part Number: 5239
Pre-Order
Description & Specification

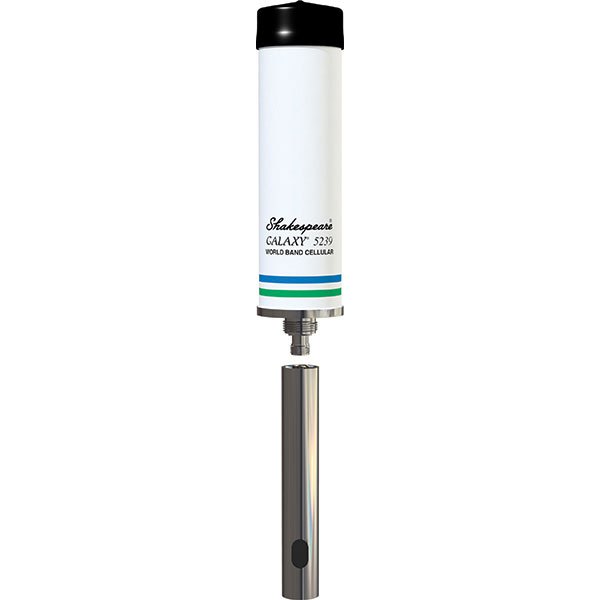

Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna Product Description
9.25" (.23m) World Band Cellular Antenna The Galaxy 5239 antenna is our smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1" -14 threaded mounts.The Galaxy® 5239 antenna is our smallest Galaxy antenna but don’t let the size fool you. This world-band antenna provides coverage for 5G, 4G, 3G, and WLAN systems for Cellular, PCS, AWS, and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature-rich antenna is at home on virtually any watercraft and is fitted with a stainless steel ferrule and N-connector that are compatible with all Shakespeare® 1 Inch -14 threaded mounts.
Shakespeare 5239 Attributes
- Router: Without Router
- Connectivity: 802.11N
- Data Bandwidth: 100 Megabits Per Second
- Frequency: 698 To 2700 MHz
- Gain: 3-4 dB
- Security Encryption: VSWR: 1.8
- Input Voltage: 12 Volt
- Power: 100 Watt
- Dimensions: 9-1/4 Inch Height
- Color: White
Shakespeare 5239 Features & Benefits
- Full Band 698 To 2700 Megahertz Broadband
- 100 Watt Maximum Input Power
- All Are Engineered To Withstand The Rigors Of The Marine Environment
- Easy To Install
- Limited 2 Year Warranty
Cellular/Wi-Fi World Band Galaxy Antenna
The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.
Features:
- Full Band (698 - 2700 MHz) Broadband
- 2G/3G/4G and WLAN systems
- Wi-Fi 802.11n compatible
- Designed for marine use
- Omni-directional antenna 3-4 dB Gain.
- Easy to install
- Includes FME Cables
Specifications:
- Frequency: 698-960/1700-2700 MHz
- Input Impedence: 50 ohm
- Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz
- VSWR: ≤ 1.8
- Power Rating (W): 10
- Polarization Type: Vertical
- Radiation: Omni-Directional
- Maximum Power (W): 100
- Connector Type: N-female
- Dimension: 9.25" H x 2.625" D
- Color: White
- Operating Temperature (F): -22 to +176
- Mounting: 1" x 14 Thread Mount
- Ground Plane: Internal
- Material: Fiberglass
