Humminbird

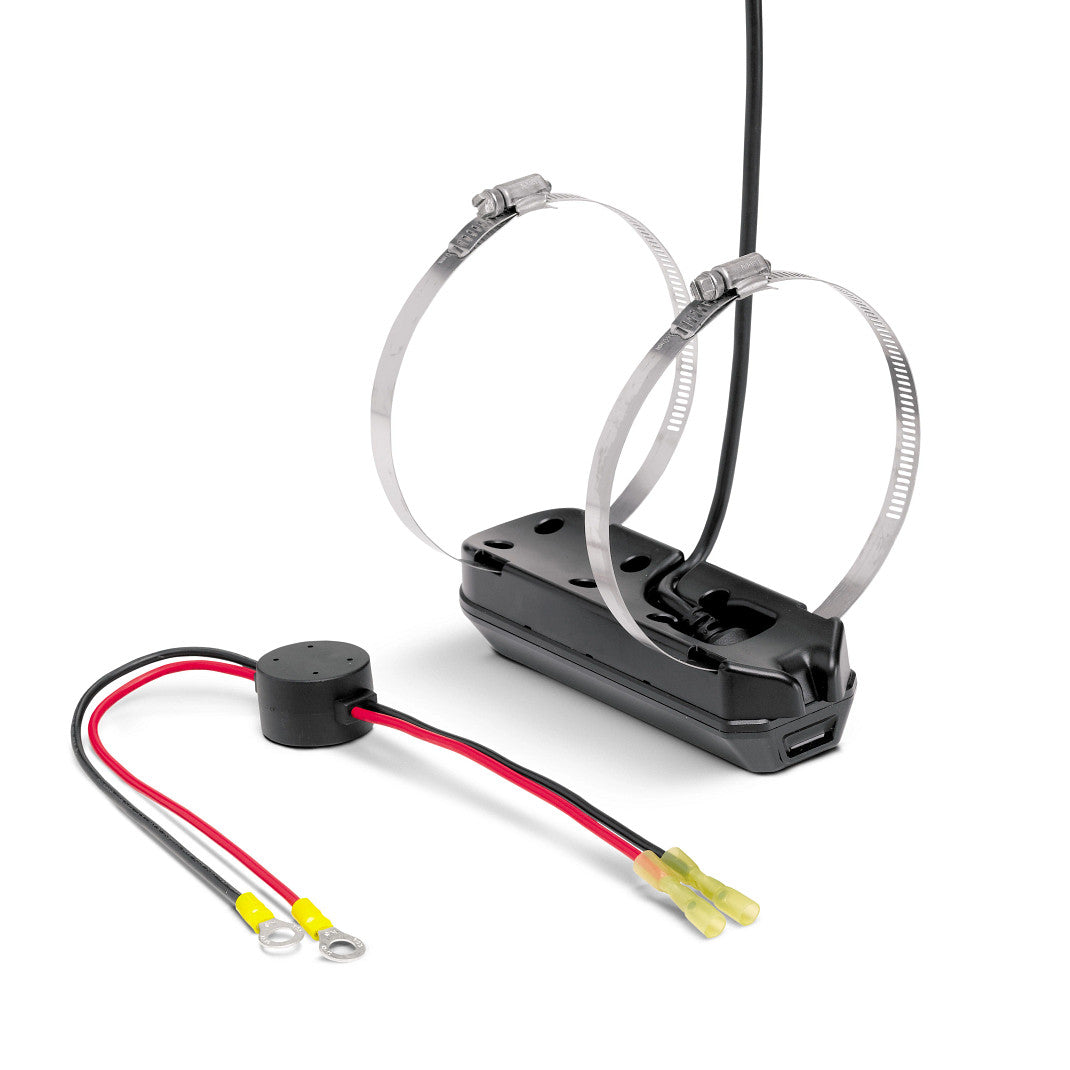

XTM 9 HW MDI T - HELIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Trolling

XTM 9 HW MDI T - HELIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Trolling

Part Number: 710281-1

Pre-Order

RM1,620.00
RM1,620.00
% Off Sold out
Shipping calculated at checkout.

Description & Specification

Trolling Motor Mount, MEGA Down Imaging+ 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor

Features
  • Compatible with: HELIX 8 G3N/G4N Series MEGA DI+ and MEGA SI+, HELIX 9 G3N/G4N Series MEGA DI+ and MEGA SI+, HELIX 10 G3N/G4N Series MEGA DI+ and MEGA SI+, HELIX 12 G3N/G4N Series MEGA DI+ and MEGA SI+, HELIX 15 G3N/G4N Series MEGA DI+ and MEGA SI+ to the maximum capabilities of the transducer
  • Cable Length: 15 Feet
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
  • MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
  • Note: This transducer will not fit Minn Kota trolling motors with less than 80 pounds of thrust as it measures 7.15" long by 2.3" wide and will not fit between the prop and the skeg.
  • 1-Year Limited Warranty
