Humminbird

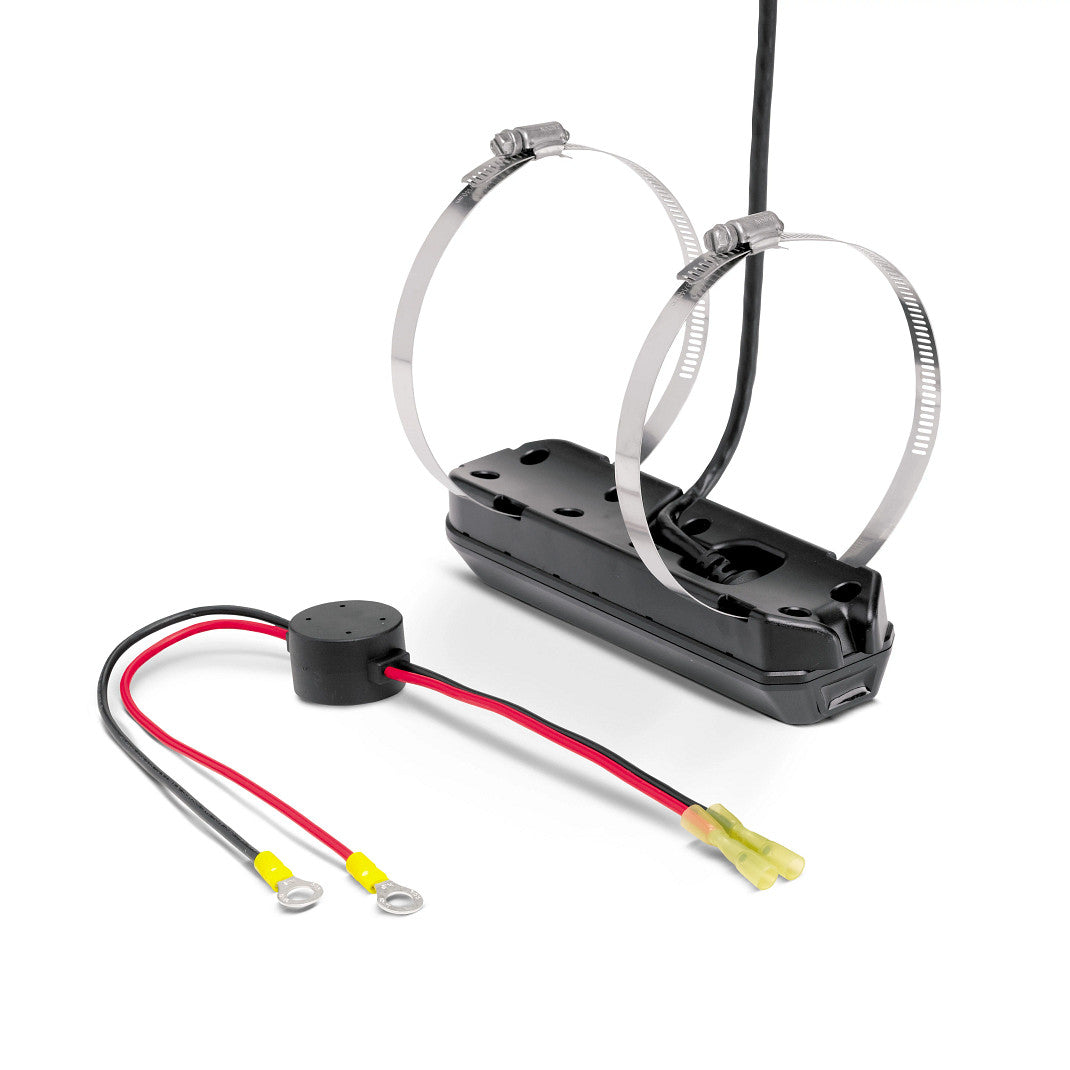

XTM 9 HW MSI T - HELIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp, Tr

XTM 9 HW MSI T - HELIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp, Tr

Part Number: 710283-1

Pre-Order

RM2,580.00
RM2,580.00
% Off Sold out
Shipping calculated at checkout.

Description & Specification

Trolling Motor Mount, MEGA Side Imaging+ 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature

Features
  • Compatible with: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G4N, HELIX 12 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G4N, HELIX 15 CHIRP MEGA SI+ GPS G4N,
  • Cable Length: 15 Feet
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
  • MEGA Side Imaging+ Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (m)
  • MEGA Down Imaging+ Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
  • Note: This transducer will not fit Minn Kota trolling motors with less than 80 pounds of thrust as it measures 8.4" long by 2.3" wide and will not fit between the prop and the skeg.
  • 1-Year Limited Warranty

⚠️ IMPORTANT NOTE:
Product dimensions are subject to change without prior notice due to updates in manufacturer safety guidelines and standards. As a result, the size of the product delivered may vary slightly from the specifications provided at the time of order. We recommend reviewing the latest information before purchase to ensure compatibility. This policy is in place to prioritize your safety and the quality of our products.

Product images are for illustration purposes only and may vary based on your monitor’s resolution. Actual colors and details of the product may differ from what is displayed. Please consider this when making your purchase.
View full details
