XPTH 9 HW MSI T - HELIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Pl

XPTH 9 HW MSI T - HELIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Pl

Part Number: 710284-1

Pre-Order

RM2,880.00
RM2,880.00
% Off Sold out
Shipping calculated at checkout.

Description & Specification

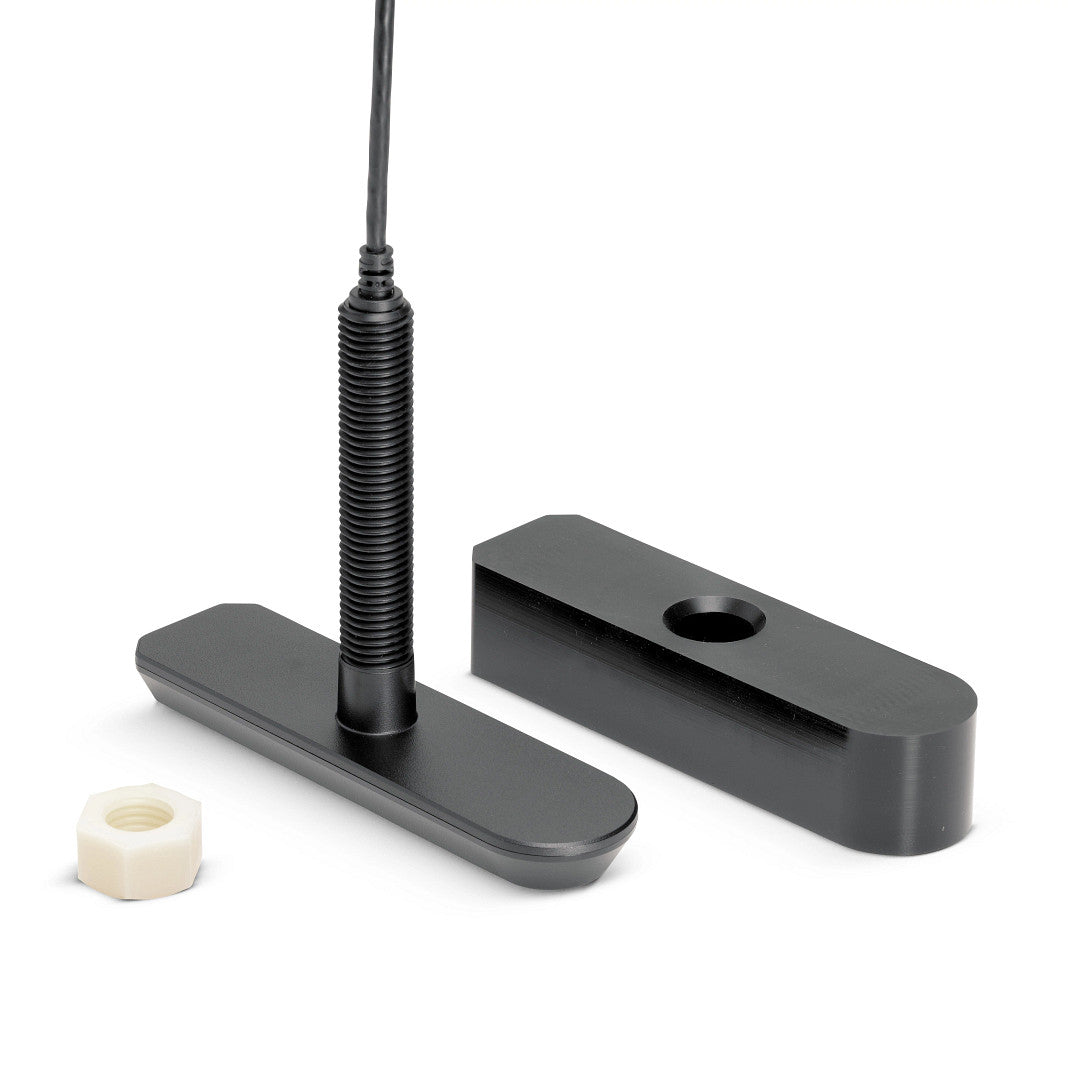

Plastic Thru Hull, MEGA Side Imaging+, MEGA Down Imaging+ 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor

Features
  • Compatible with: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G4N, HELIX 10 CHIRP MEGA SI+ GPS G3N, HELIX 10 CHIRP MEGA SI+ GPS G4N, HELIX 12 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G4N, HELIX 15 CHIRP MEGA SI+ GPS G4N,
  • Cable Length: 30 Feet
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHRIP Max Depth: 1200ft (365m)
  • MEGA Side Imaging+ Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (m)
  • MEGA Down Imaging+ Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
  • Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1"
  • 1-Year Limited Warranty
