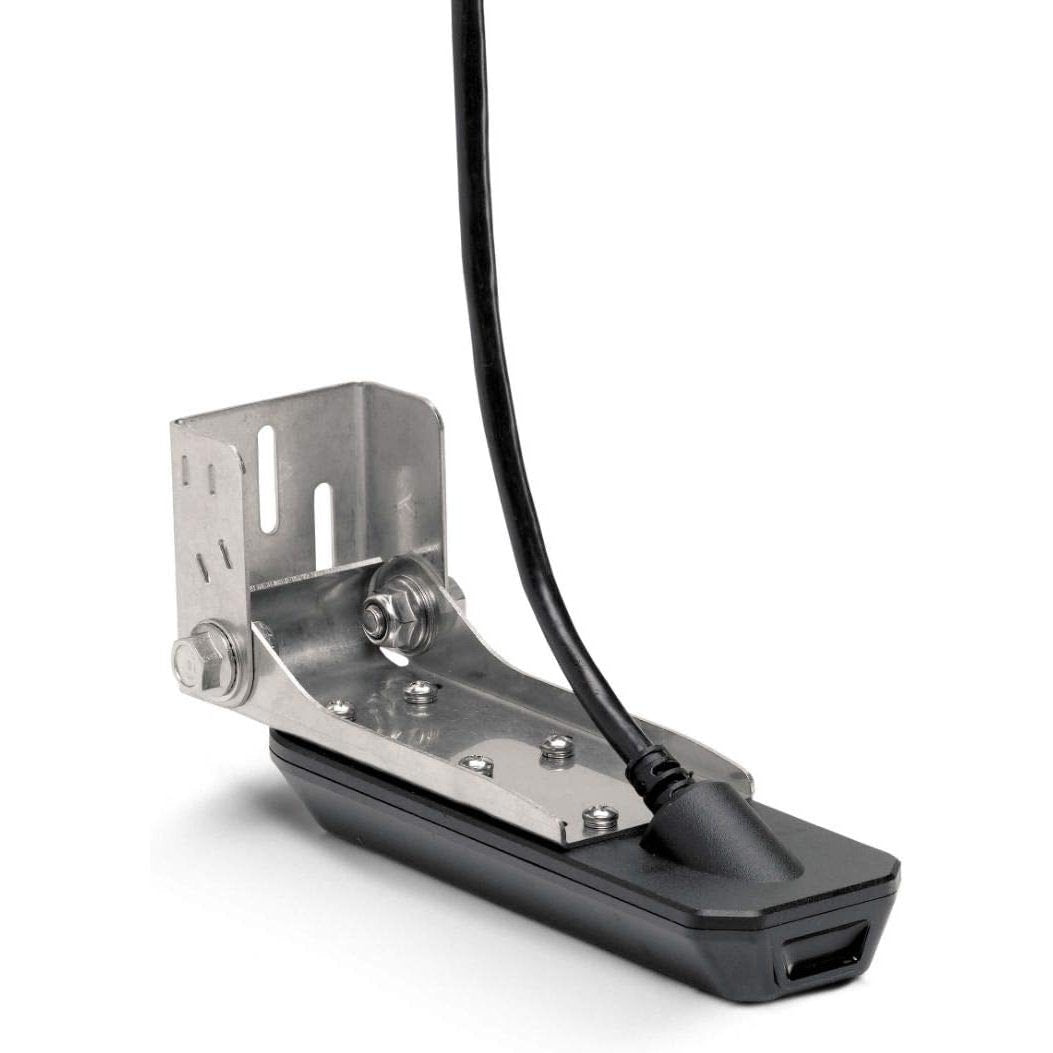

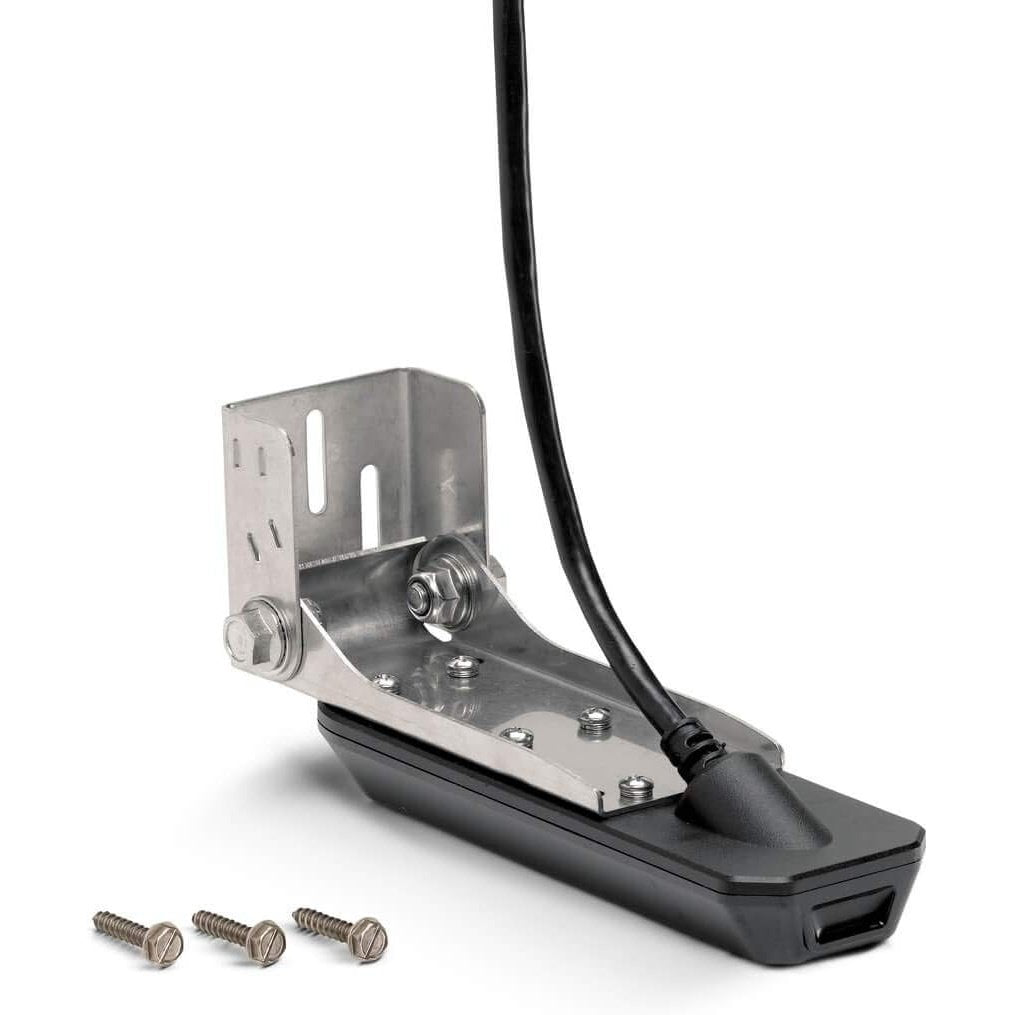

Humminbird XM-14-HW-MDI-T Transom Mount Transducer

Humminbird XM-14-HW-MDI-T Transom Mount Transducer



Regular price RM1,586.20
Regular price Sale price RM1,586.20
Sale Sold out
Shipping calculated at checkout.

Transom Mount, MEGA Down Imaging+ 800kHz/455k kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor

  • Compatible with: All APEX models, All SOLIX 10, 12, 15 models to the maximum capability of the transducer
  • Cable Length: 20 Feet
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
  • MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
  • 1-Year Limited Warranty
