Humminbird

SSTH 14 HW MSI+ T - SOLIX MEGA SI+, DI+, DS CHIRP w/ Temp Thru-Hull Transducer

SSTH 14 HW MSI+ T - SOLIX MEGA SI+, DI+, DS CHIRP w/ Temp Thru-Hull Transducer

Part Number: 710302-1

Pre-Order

RM5,100.00
RM5,100.00
% Off Sold out
Shipping calculated at checkout.

Description & Specification

Stainless steel thru-hull, MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar. includes built-in temperature sensor. Designed to bring our leading sonar technologies to larger vessels

Features
  • Compatible with: All APEX models, all SOLIX G3 models, SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
  • Connects to HELIX 8-15 MSI+ G3N and G4N models using adapter cable MKR MI-1 Humminbird HELIX Adapter Cable (#1852088)

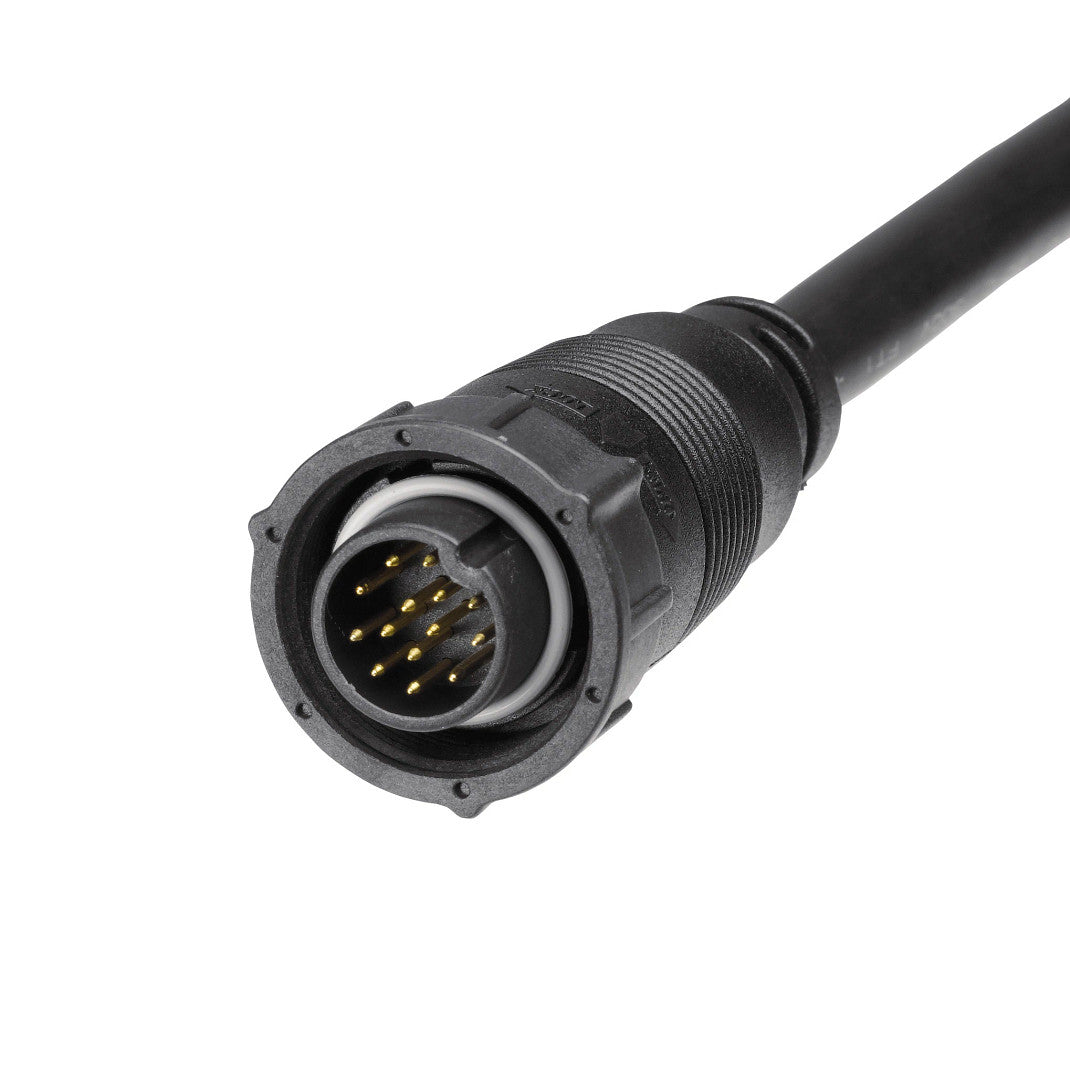

  • Cable Length: 20 Feet
  • This transducer provides Side Imaging (800kHz/455kHz), Down Imaging (MEGA DI+/800kHz/455kHz) and Dual Spectrum CHIRP 2D sonar with a CHIRP range of 150-220kHz
  • MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
  • MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)

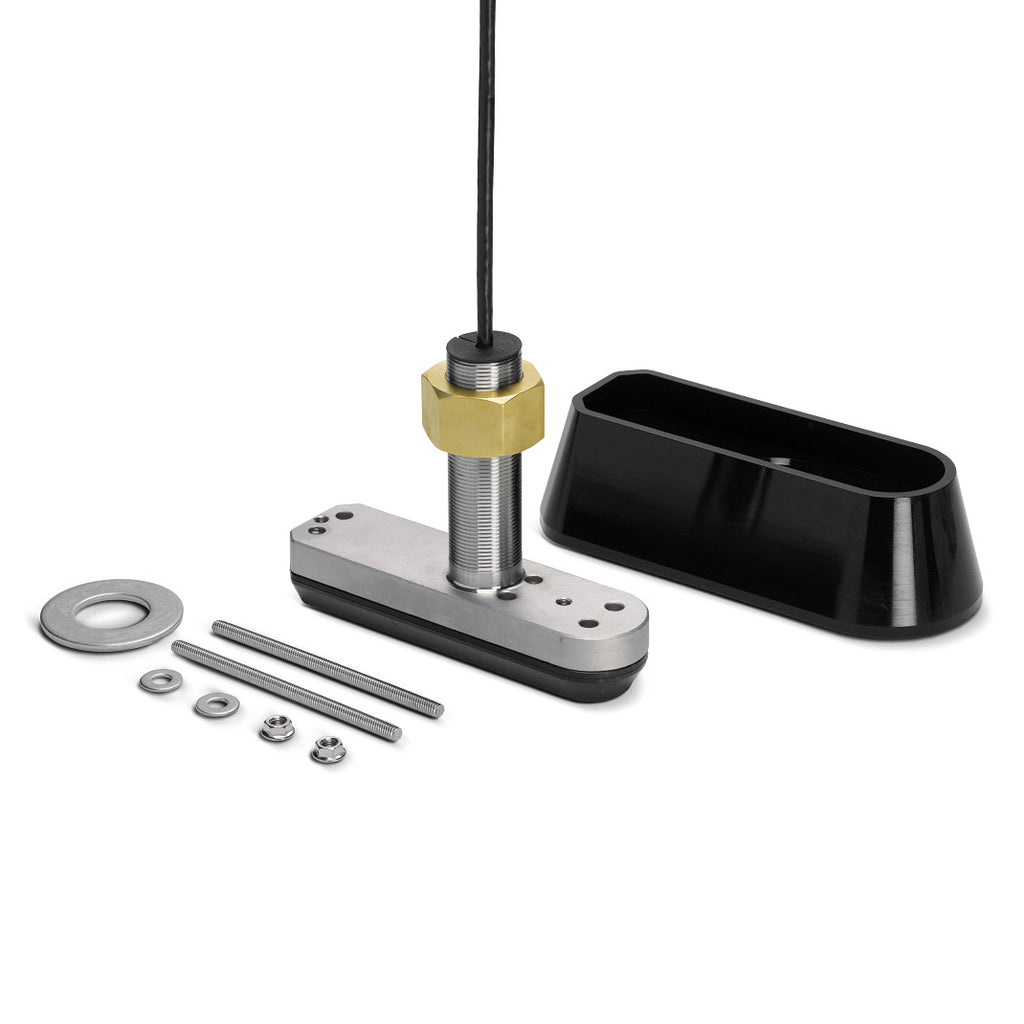

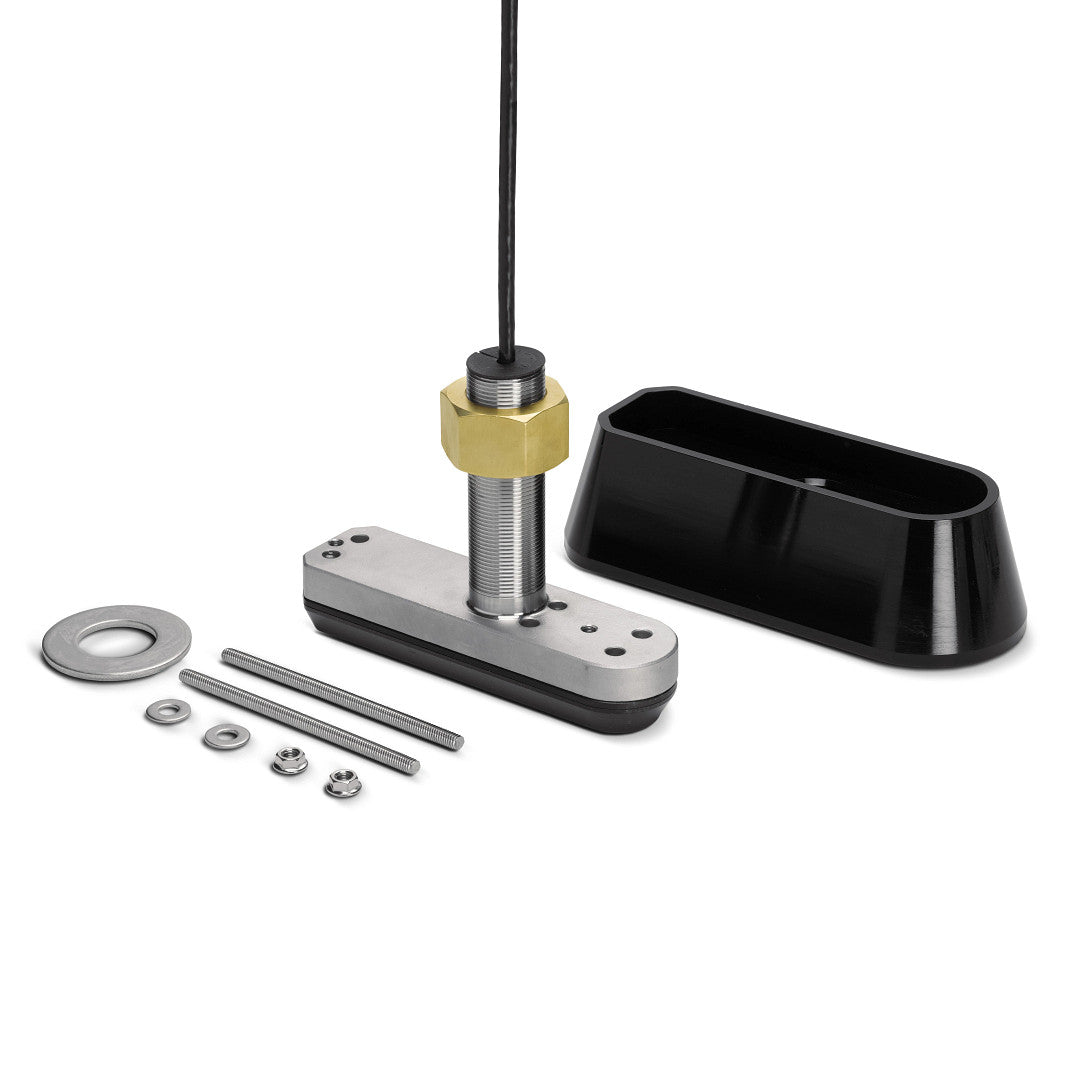

  • Transducer dimensions:8.4L x 2.3"W x 1.65"D (below hull); Shaft diameter: 1.5", Shaft length: 5"Fairing block included
  • 1-Year Limited Warranty
