Attwood

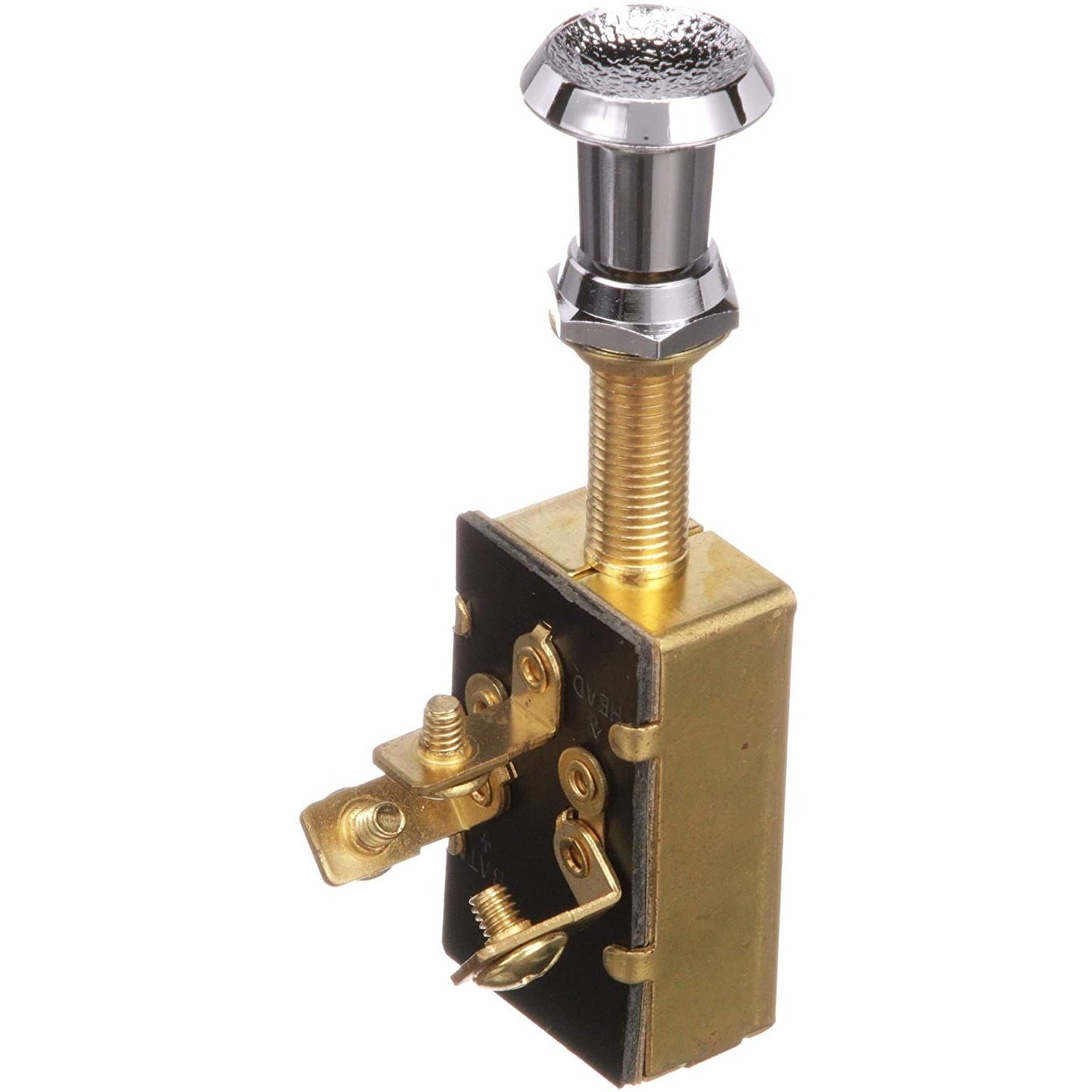

Push/Pull Switch Three Position Off/On/On

Push/Pull Switch Three Position Off/On/On

Part Number: 7594-3

Pre-Order

RM94.00
RM94.00
% Off Sold out
Shipping calculated at checkout.

Description & Specification

  • Reliably controls operation of multiple components such as lights
  • Large, easy-to-pull and push handle
  • 3-position switch: Off/On/On
  • Can be used to operate running lights and anchor lights separately
  • 3/4 inch-diameter chrome-plated knob with brass case
  • 3/8-inch-diameter installation hole, maximum panel thickness is 1 inch, switch extends 2 inches behind panel
  • Screw terminals for connection without wire lug, for 12-volts DC only
  • For operating running lights and anchor lights separately
  • Dimensions: 3 1/4" x 1 1/2"
  • Installation hole size: 3/8" diameter
  • Depth behind panel: 2"
  • Max Panel thickness: 1"
