Halogen 8504 Series Masthead/Floodlight Lamps

Hella Marine

Halogen 8504 Series Masthead/Floodlight Lamps

998504001
Pre Order
RM927.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Housing ColorBlack

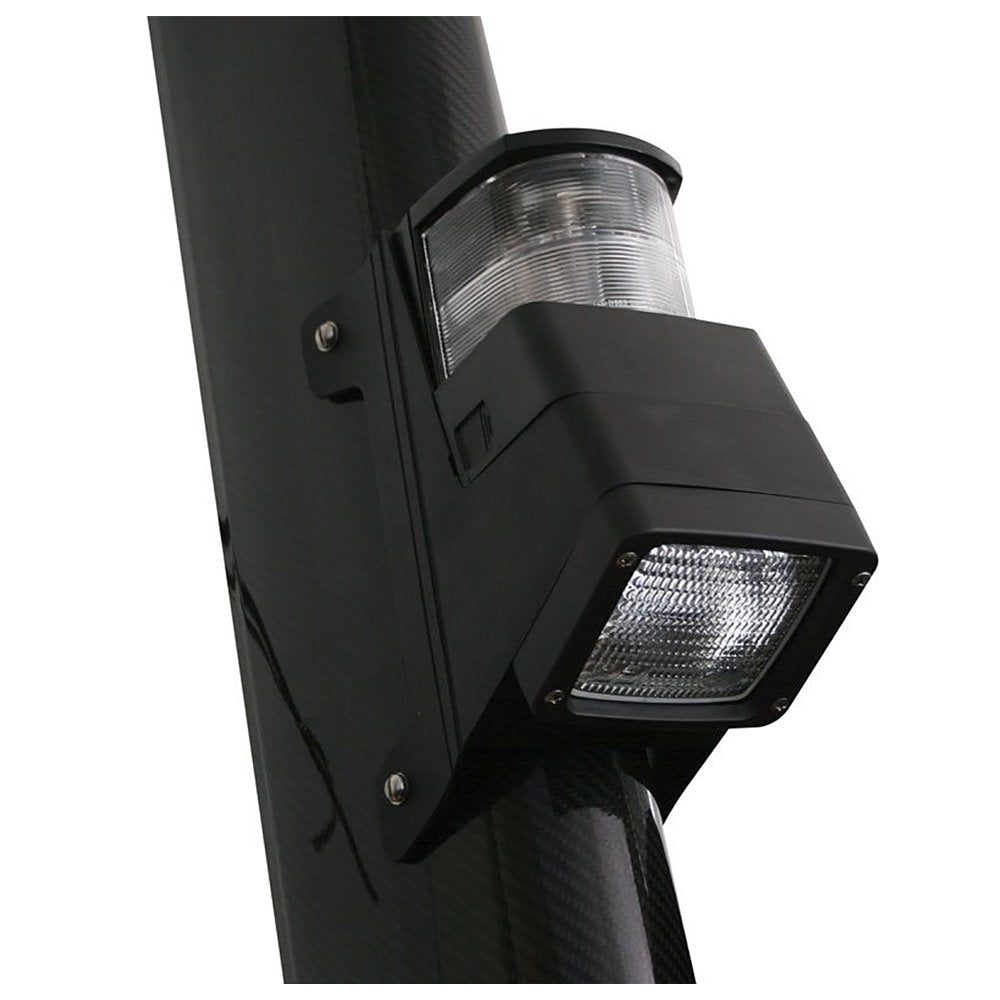

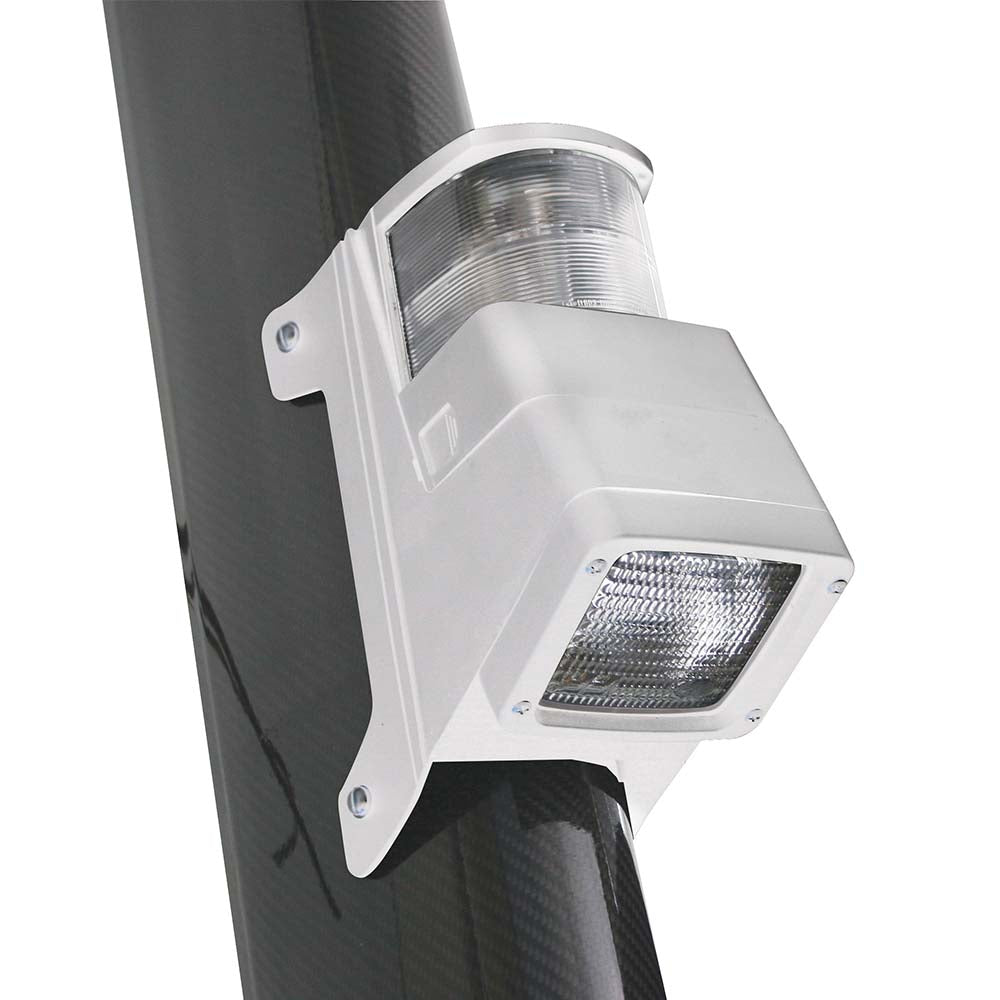

Deck Floodlight and Masthead Lamp combined in one robust housing.
Suitable for vessels less than 20m in length.
SIZES & DIMENSIONS

Length = 247mm / 9.73”
Width = 205mm / 8.08”
WHAT'S IN THE BOX

Halogen 8504 Series Masthead/Floodlight Lamps
FEATURES
SPECIFICATIONS
  • Housing Description: UV and impact resistant plastic housing
  • Bulb: 12V / 10W BAY15d and 12V / 55W H3 bulbs included
  • Mounting: Housing arms flex to fit around mast. Masthead lamp and Deck Floodlight are wired separately.
  • Degree of Protection: IP X4
  • Maximum Output: Deck lamp 12V / 55W or 24V / 70W, Note – Not suitable for 100W bulbs
  • Approvals: BSH, IMO COLREG, USCG, ABYC A-16, NMSC, Maritime NZ
DOCUMENTATIONS

Halogen 8504 Series, Drawing
