T-H Marine Atlas 10" Set Back Hydraulic Jack Plate Std

T-H Marine Atlas 10" Set Back Hydraulic Jack Plate Std


Regular price RM10,868.00
Regular price Sale price RM10,868.00
Sale Sold out
Shipping calculated at checkout.

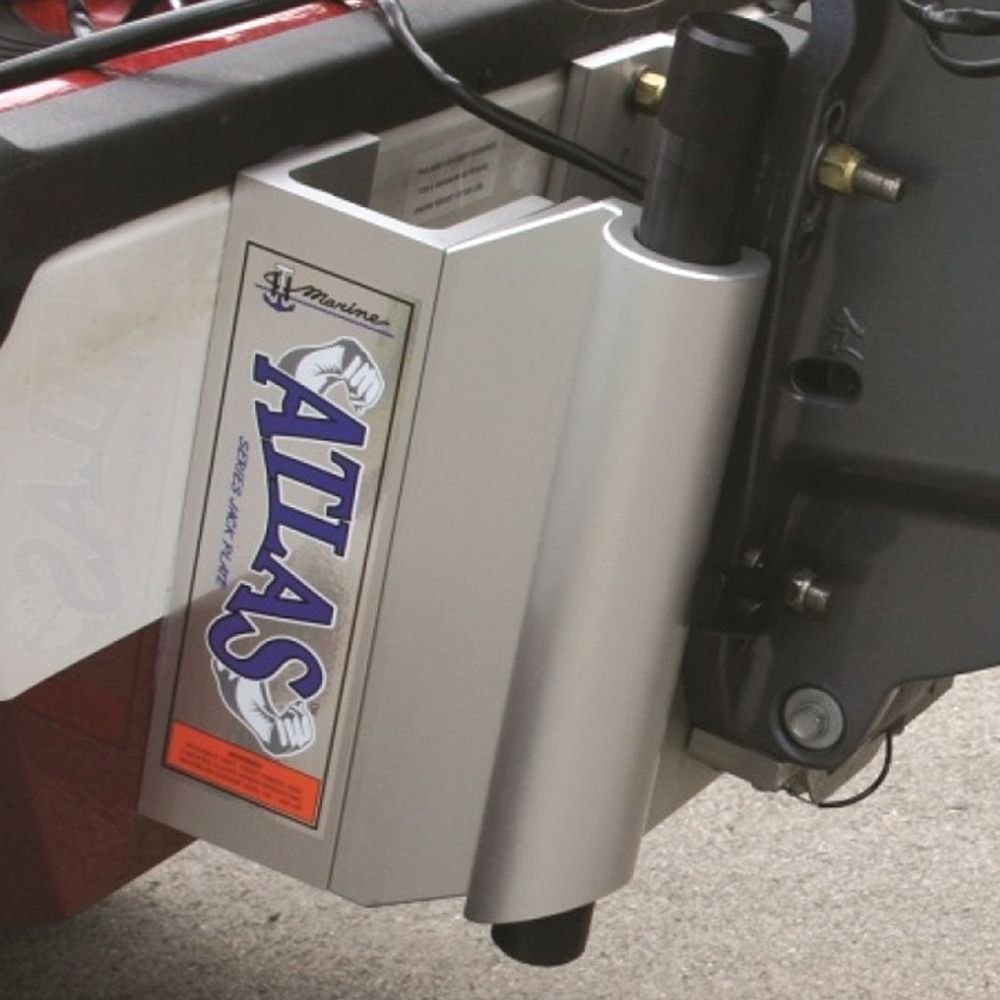

Atlas™ 10" Setback Hydraulic Jack Plate (AHJ-10V-DP) by T-H Marine®. T-H Marine's Atlas™ hydraulic jack plate is truly the next generation in jack plate design, built for the heaviest and most powerful outboard engines on the market today, even the big four strokes. The innovative high tech engineered polymer rod and slot lifting design guarantees trouble free action. This plate also features the newest concept in one-piece hydraulics from the most respected name in hydraulic design, providing the best of all worlds: Speed and Self contained lifting action. This all new pump will lift the heaviest outboard from bottom to top in less than 8 seconds.


Setback: 10"

  • Rated for engines up to 300 HP or up to 625 pounds dry weight
  • Atlas™ is truly the best hydraulic jack plate in the world - Atlas™ is factory installed by more boat manufacturers than any other plate
  • Atlas™ is used by more Professional fisherman than any other hydraulic jack plate
  • Atlas™ is the #1 selling hydraulic plate in the world / sold & serviced by more outlets
  • Atlas™ hydraulic actuator is made in the U.S.A., the competition's is from China
  • Atlas™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate - the competition copied
  • Atlas™ is first plate to offer predrilling for shallow water anchers - the competition copied
  • Atlas™ is first and still only plate that does not require regular grease lubrication - the competion design cannot do that
  • Atlas™ is first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure
  • Atlas™ is first plate to offer very simple actuator replacement in the field
  • Atlas™ was first major development in hydraulic jack plates in over a decade - spurring hydraulic jackplate improvement
  • Self Contained Hydraulic Pump System (No Reservoir or lines to install)
  • Hydraulic actuator is made in the U.S.A
  • Fast! - Bottom to Top in Less than 8 Seconds
  • Rod and Slot Lifting Design - Trouble Free Lifting Action
  • Hi-Tech Engineered Polymer Rods - 6 Times More Abrasion Resistant than Steel
  • Rods Made from Self Lubricating Material, no grease required
  • Easy Two-Pin Pump Removal - Quick Maintenance
  • Installs in Half the Time of Comparable Jack Plates
  • All Atlas™ plates are predrilled for Power-Pole® and Minn-Kota Talon® bracket mounting
  • Stroke Length - 5 Inches
  • Height Adjustment Up to 7 Inches
