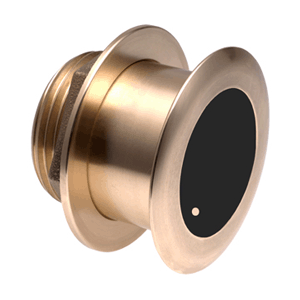

Garmin B164 1kW Tilted Element 12° - 8-Pin

Garmin B164 1kW Tilted Element 12° - 8-Pin Product Description

1 kW

Step up to a 1 kW without a fairing! The 1 kW, flush-mount, Tilted Element transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.

Available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

B164 1kW Tilted Element 12° - 8-Pin

Garmin's bronze, thru-hull mount transducer with 12° tilt provides depth and temperature data. Garmin's transducer has an operating frequency of 50 or 200 kHz and mounts on a 8-15° deadrise angle.
