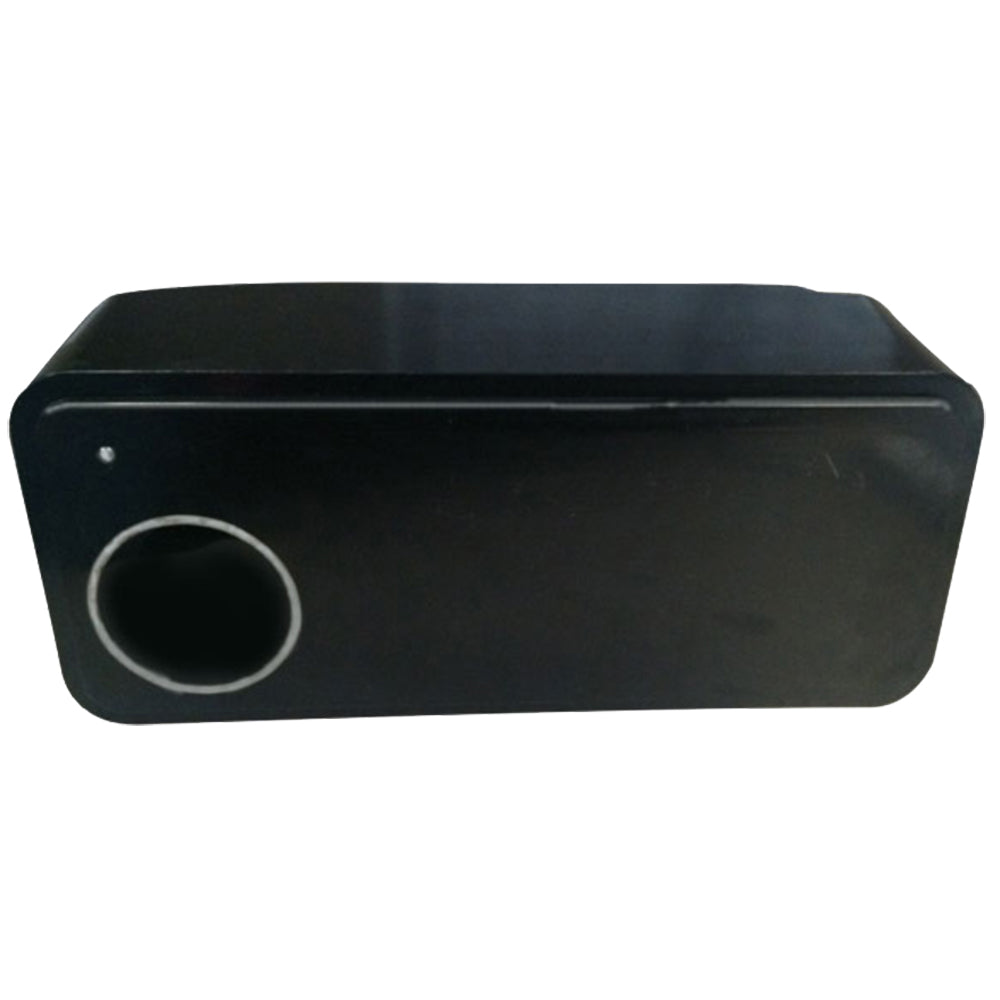

CM599C-LHW Wide Broadband CHIRP Transducer, No Connector, Tank Mount

Get more coverage under your boat with Airmar's unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat is essential down to 152 m (500').

The low-frequency band is rated to 3 kW and produces amazing deep-water performance to 3,048 m (10,000'). Get the best of both worlds with Airmar's dual-frequency, Chirp-ready transducer with wide-beam coverage.

• Depth and fast-response water-temperature sensor
• 3 kW for superior deep-water performance
• 3 kW low frequency: 28 to 60 kHz
  • 23' to 9' port-starboard beamwidth
  • 11' to 5' fore-aft beamwidth
  • Maximum depth performance to 3,048 m (10,000')
• 1 kW high frequency: 150 to 250 kHz
  • 25' constant beamwidth
  • Maximum depth of 152 m (500')
• 132 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Urethane housing with Curved-edge Design for wet-box installation
• Also available as an external (R509LHW) mount
• Exclusive Xducer ID technology
