SHAKESPEARE VHF 6.5" BROADBAND GALAXY 20FT RG-8X CABLE

Shakespeare Galaxy 6.5' Broadband Antenna Product Description

Whether used onboard ship or on tactical base stations in environmentally harsh locations, this antenna provides military and commercial radio users with a high performance, broadband design built to critical specifications. Shakespeare’s Model Broadband antenna is designed specifically for today’s high-tech communications systems for military, commercial, law enforcement, and disaster preparedness applications. This offers VSWR of less than 2:1 across the 136-174 Megahertz VHF band, providing nominal 4dBi gain across the entire band. RF power up to 125 Watt continuous is no problem. Shakespeare has achieved a unique patented electrical design requiring no tuning or ground plane to put the power pattern on the horizon at any frequency in the band. The antennas allow high grade communications across this normally hard-to-cover band.

Shakespeare HS27741R Attributes

• Type: Monopole
• Length: 6-1/2 Inch
• Gain: 4 dB
• Mounting Type: Mast Mount
• Color: White
• Material: Brass

Shakespeare HS27741R Features & Benefits

• Built To Handle Continuous Duty Cycle At Maximum Input Power
• Exceptional Performance
• Extreme Environmental Tolerance
• Special Sleeve For Mast Mounting
• Shakespeare’s Unique Design Is Protected By U.S. Patent Number 5.982,332
• Limited Lifetime Warranty

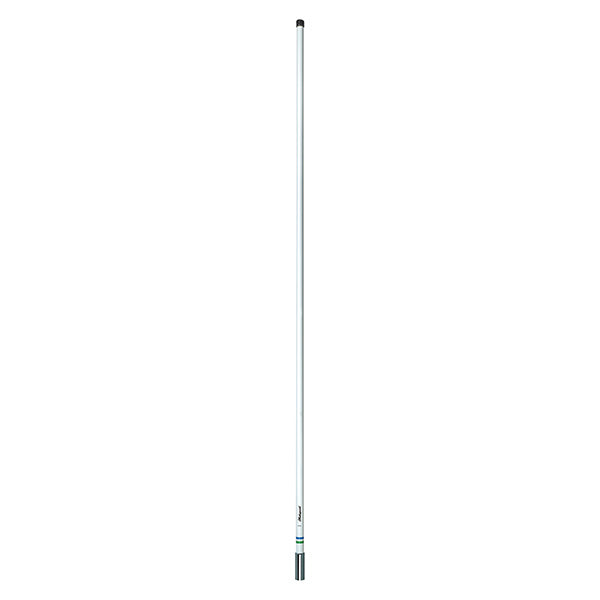

Galaxy 6.5' Broadband Antenna

6.5 ft. Broadband

136-174 MHz Broadband

The HS 2774-1 is a highly sophisticated antenna with performance maximized from 136 to 174 MHz. It will handle continuous duty at maximum input power. The self-supporting antenna is designed for military, commercial, law enforcement, and disaster preparedness. No tuning or ground plane required.

Features:

• and soldered brass elements for maximum range and efficiency
• Stainless steel ferrules, standard 1in-14 threads
• Includes 20 feet of RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Use only Shakespeare Style 4187-HD for self-supporting applications. Use a Style 410-R if an upper support bracket installation is preferred.
• Covers: 136-174 MHz
• One section
• Includes FME Cables
