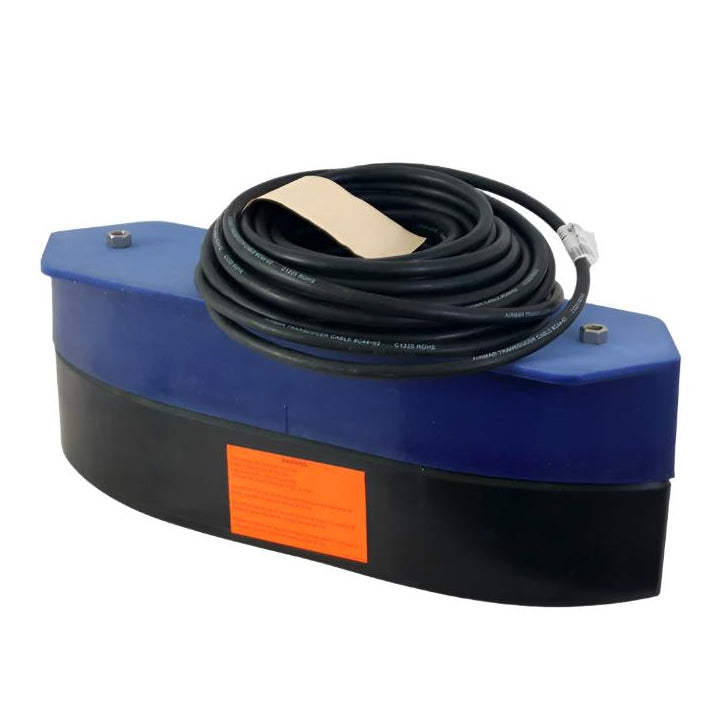

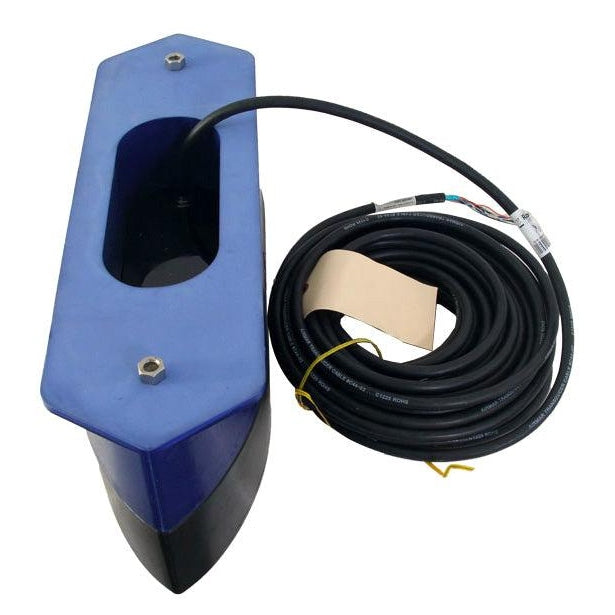

R509C-LH 2-3KW Broadband CHIRP External Mount Transducer, No connector

The R509LH is the go-to transducer for today top captains who want maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R509LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210kHz and has a narrow, 8 to 4, beam, delivering amazing target resolution and bottom detail.

• Depth and fast-response water-temperature sensing
• 2 to 3 kW of power for exceptional deep-water performance
• Low frequency: 28 to 60kHz
  • 23 to 9 port-starboard beamwidth
  • 11 to 5 fore-aft beamwidth
  • Maximum depth of 3048m (10000')
• High frequency: 130 to 210kHz
  • 8 to 4 beamwidth
  • Maximum depth of 457m (1500')
• 112 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200??kHz plus everything else in the bandwidth

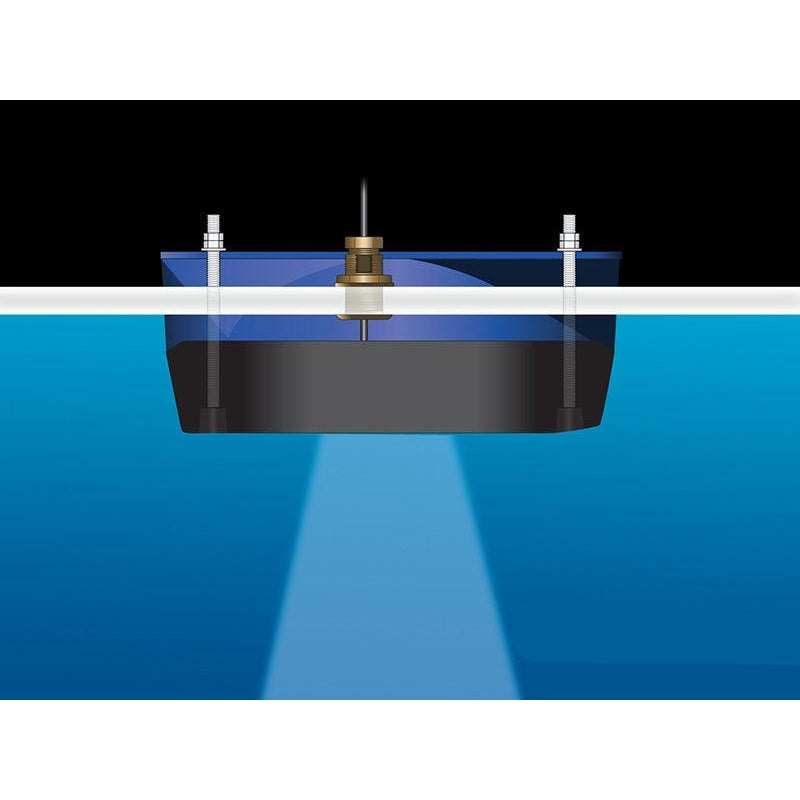

• Urethane housing with fairing for optimal performance
• Also available as cavity/welded tank (CM599LH) and in-hull (R599LH) mounts
• Patented Xducer ID technology
