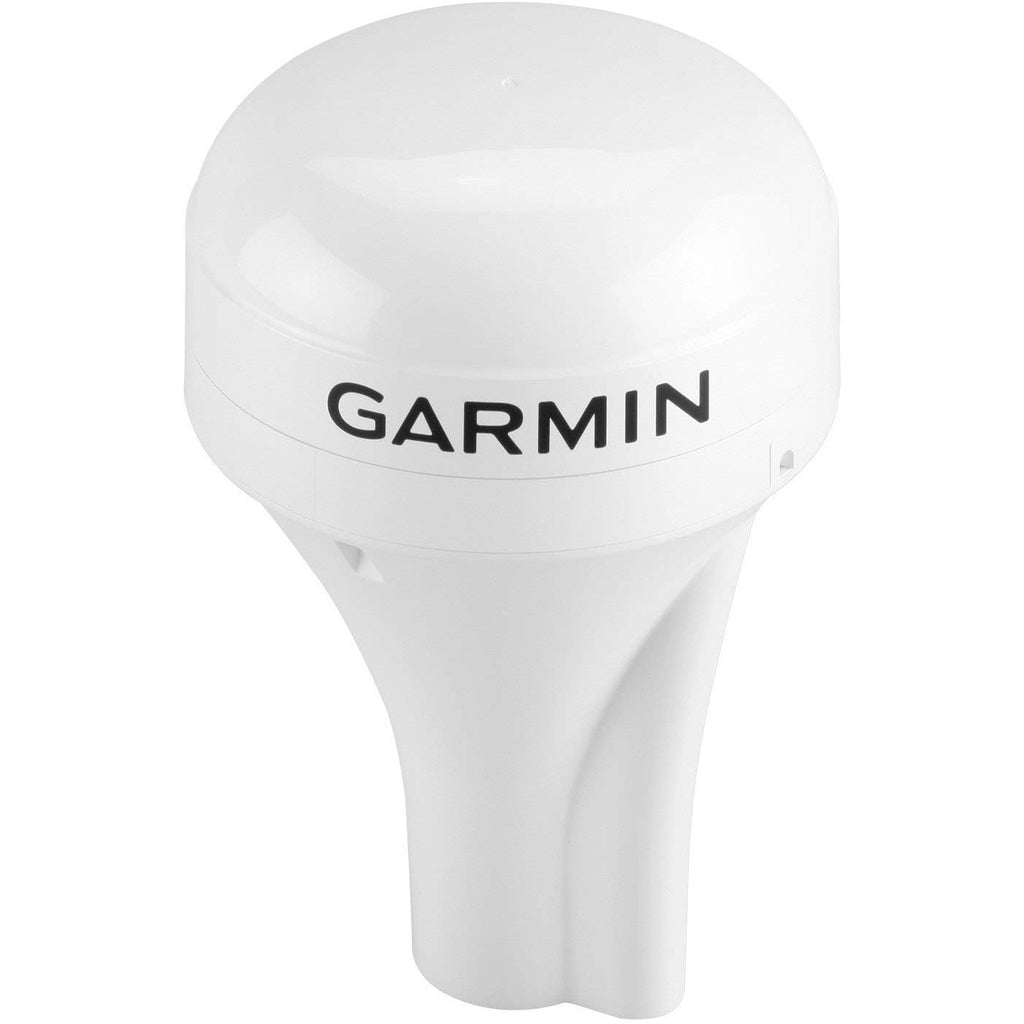

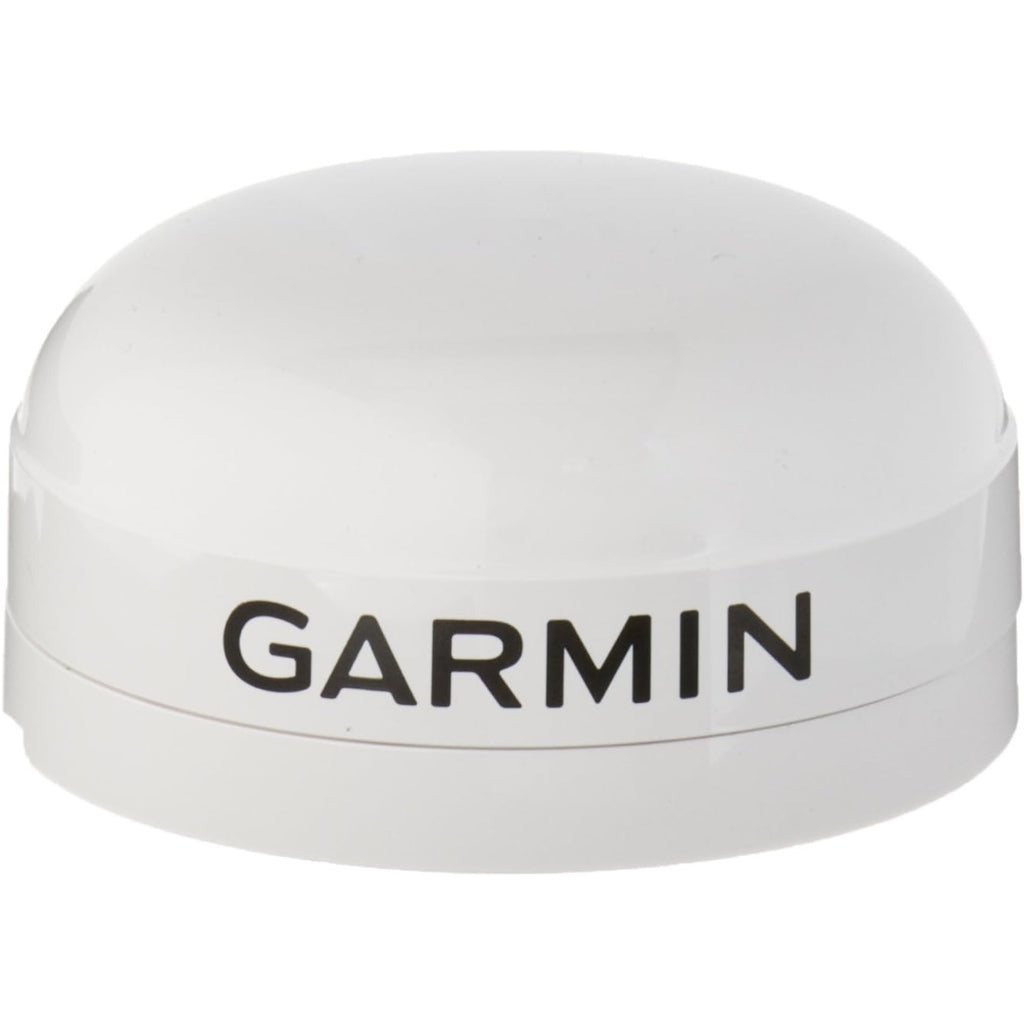

GA 38 GPS/GLONASS Antenna

Garmin GA 38 GPS/GLONASS Antenna Product Description

Built to take advantage of the GLONASS system and constellation of satellites as well as standard GPS, this robust external antenna is packaged in a low-profile water resistant housing and provides 3 easy mounting solutions: pole, surface or under-deck. External GPS and GLONASS antennas provide increased flexibility and installation options as well as the potential for enhanced reception of GPS and GLONASS signal for those products with built-in GPS and GLONASS antennas.

Garmin 101201700 Attributes

• Mounting Location: Pole/ Surface/ Under-Deck Mount
• Color: White
• Temperature Range: -22 Degree Fahrenheit To 176 Degree Fahrenheit
• Dimensions: 3-19/32 Inch Diameter x 1-15/18 Inch Height
• Material: Plastic
• Waterproof Rating: IPX7 Waterproof Rating
• Includes: Pole Mounting Bracket/ Surface Mounting Bracket/ Under Deck Mounting Bracket/ Mounting Hardware

Garmin 101201700 Features & Benefits

• Low-Profile Water Resistant Housing
• Provides 3 Easy Mounting Solutions
• Antennas Provide Increased Flexibility
• Fully Gasketed, High-Impact Plastic Alloy; Waterproof To IPX7
• Limited 1 Year Warranty

Garmin 101201700 Warranties

• garmin-marine-warranty-policy.pdf

GA 38 GPS/GLONASS Antenna

Built to take advantage of the GLONASS system/constellation of satellites as well as standard GPS, this robust external antenna is packaged in a low-profile waterproof housing and provides 3 easy mounting solutions: pole, surface or under-deck (for the underside of fiberglass decks).

External GPS/GLONASS antennas provide increased flexibility and installation options as well as the potential for enhanced reception of GPS/GLONASS signal for those products with built-in GPS/GLONASS antennas.

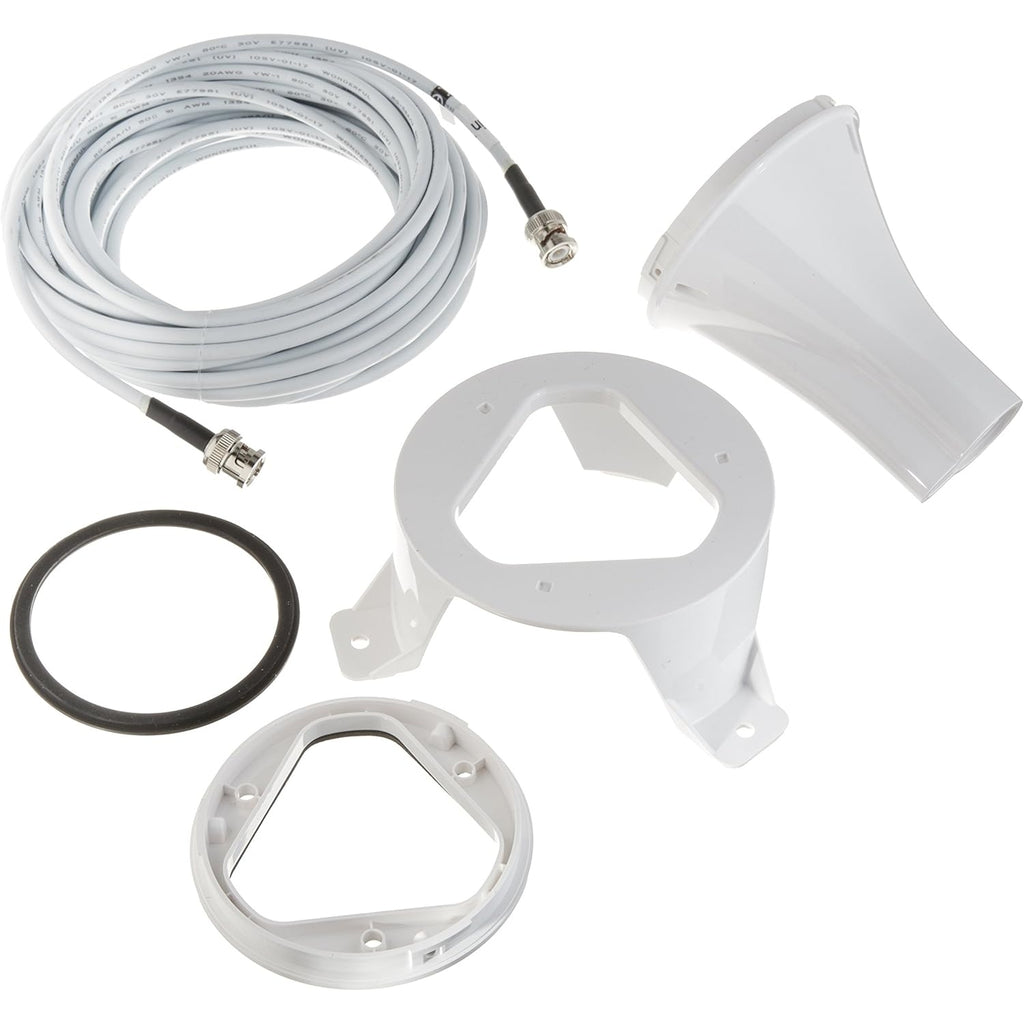

In the Box

• GA 38
• Surface mounting bracket
• Pole mounting bracket
• Under-deck mounting bracket
• Mounting hardware
• Antenna cable (32 ft/10 m)
• Installation instructions

General Specifications

• Dimensions (DxH): 3 19/32" x 1 15/18" (91.6 mm x 49.5 mm)
• Weight: 7.1 oz (201 g)
• Temperature range: -22° F to 176° F (-30° C to 80° C)
• Case material: Fully gasketed, high-impact plastic alloy, waterproof to IPX7
