Blue Sea System ANL Fuse Block with Insulating Cover - 35 to 750A - Boatyard Malaysia

Blue Sea System

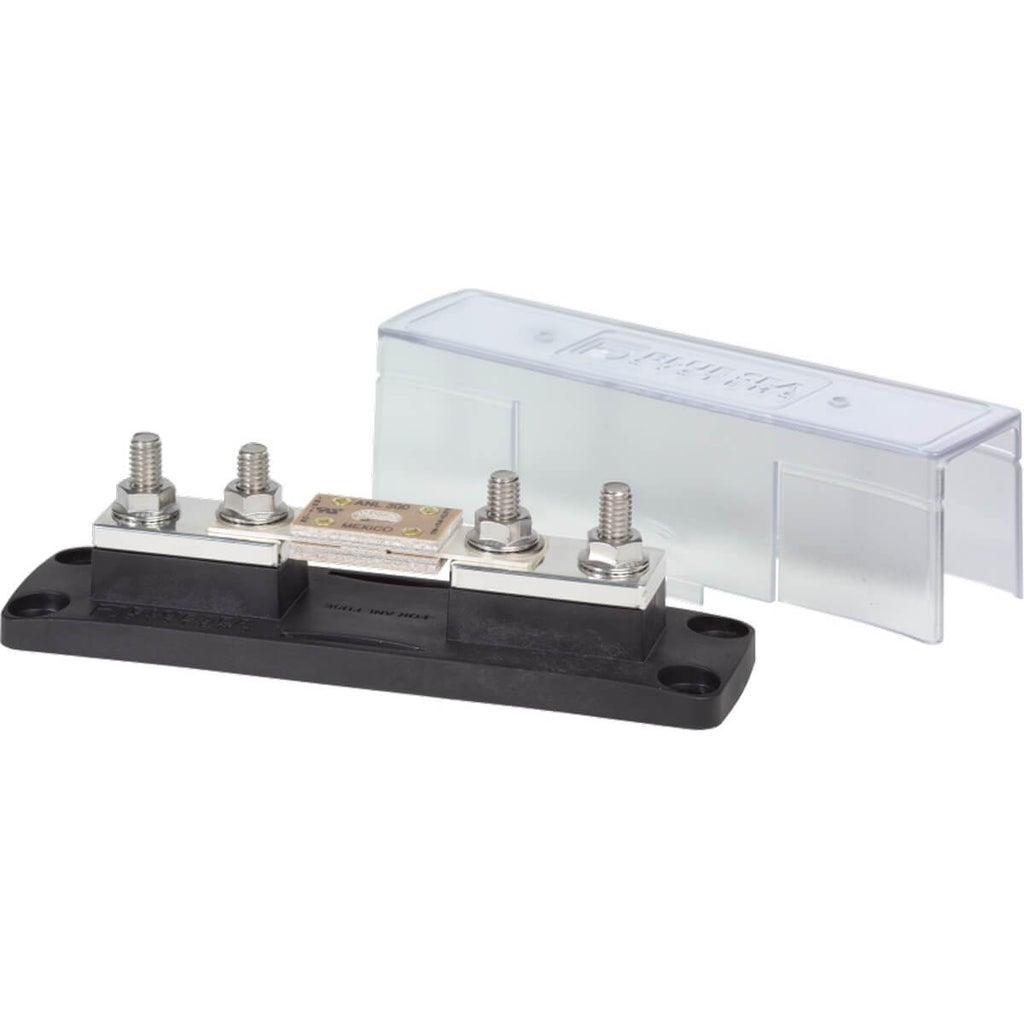

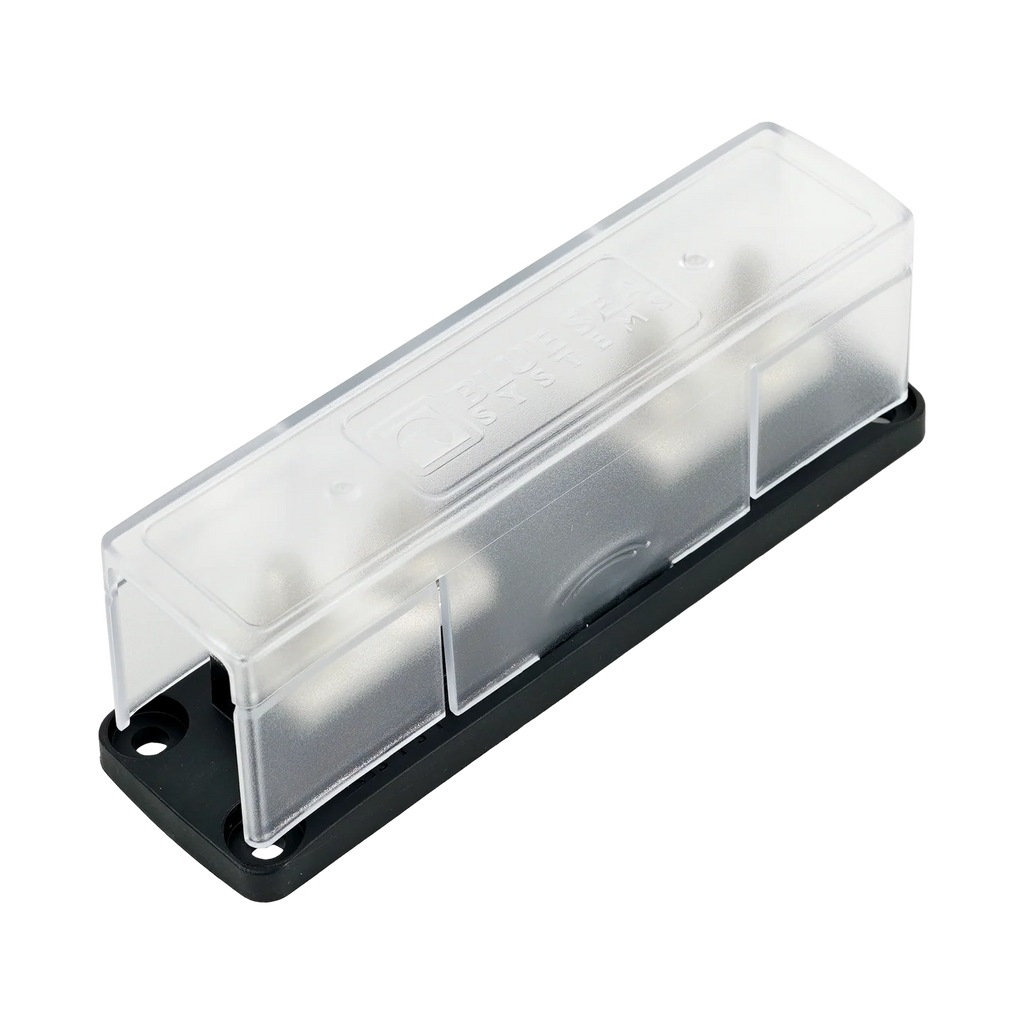

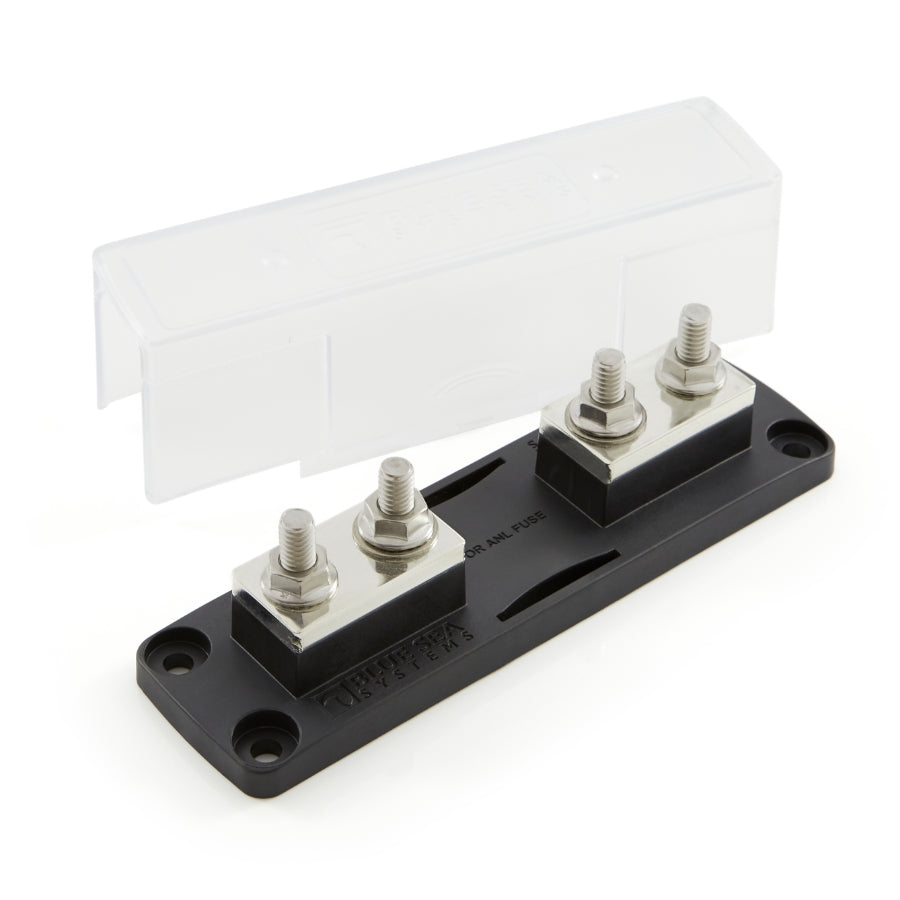

ANL Fuse Block with Insulating Cover - 35 to 750A

SKU: 5503
Pre Order
RM477.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Cover included
  • Accepts 5/16" (M8) ring terminals
  • For use on systems up to 32 Volts DC
  • Swing out design allows replacement of the fuse without removing fasteners
  • Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Insert molded studs ensure secure fuse mounting
  • Insulating cover satisfies ABYC/USCG requirements
  • Cover breakouts allow wire access in any direction
  • Fuse sold separately
SPECIFICATIONS
  • Maximum Voltage: 32V DC
  • Stud Size: 5/16"
  • Base Material: Reinforced Polycarbonate
  • Fuse Mounting Blocks: Tin-Plated Copper
  • Maximum Cable Size: 4/0 AWG
  • Maximum Torque: 107 in-lb (12.09 Nm)
  • Stud Torque: 107 in-lb (12.09 Nm)
  • Terminal Stud Size: 5/16" - 18 (M8)
  • Weight: 1.06lb (0.48 kg)
DOCUMENTATIONS
