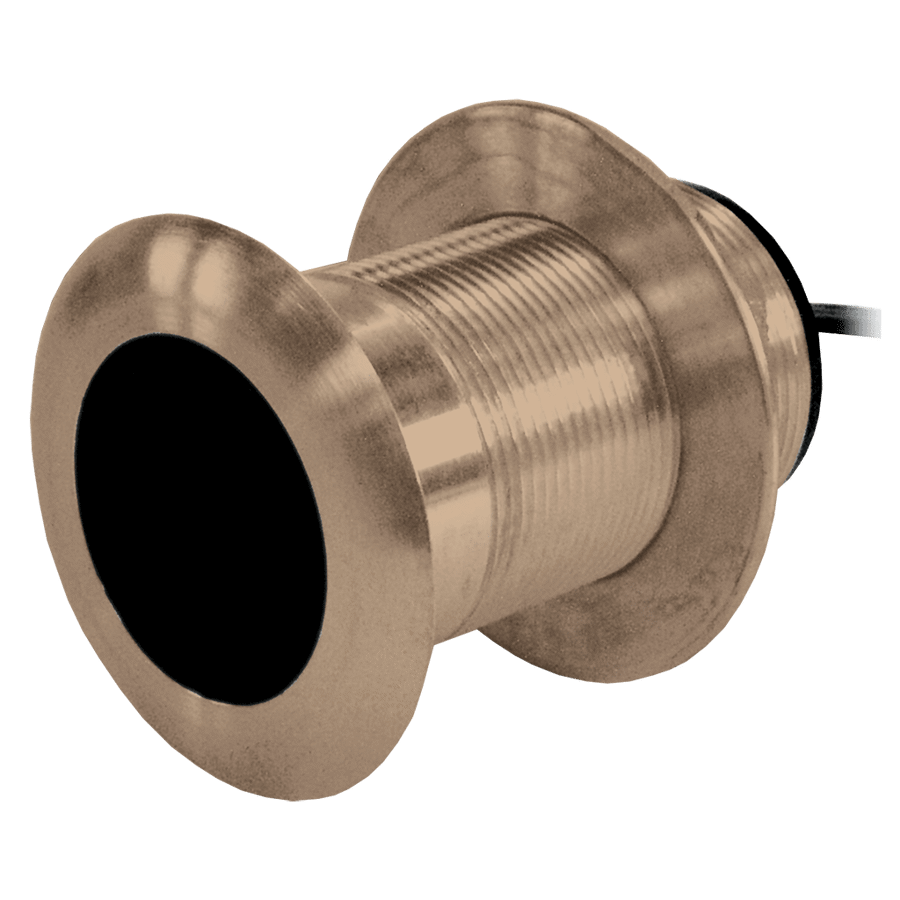

B117-DT-9N 600W Thru Hull Transducer Navico 9-Pin xSonic Connector

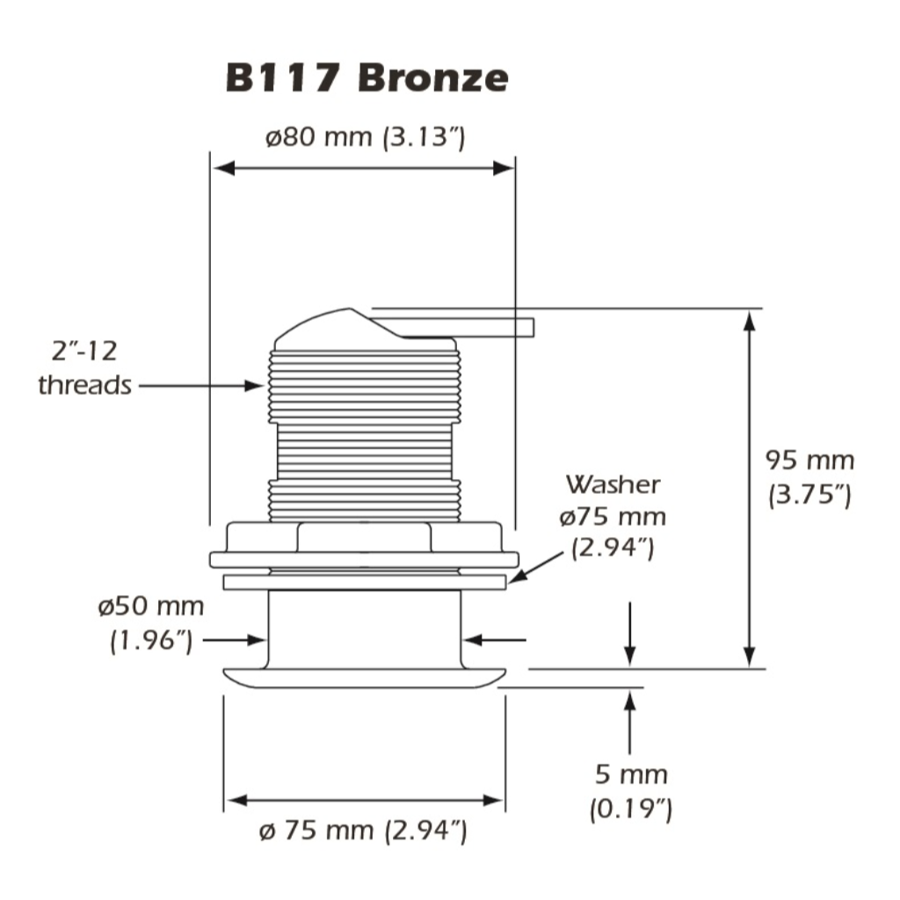

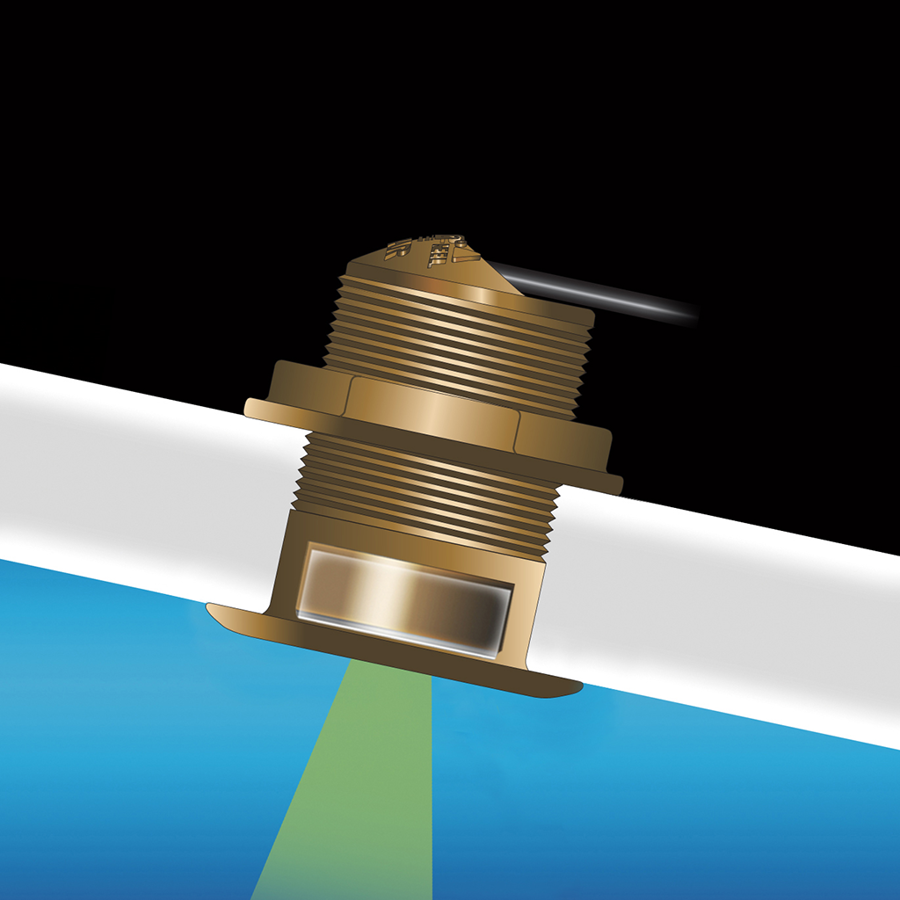

The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.

Fits: Lowrance units with blue collar 7-Pin xSonic Connector

Features:

• Bronze Housing
• Depth and Temperature
• Usable Shaft Length: ~66.5 mm (2.62)
• Replacement nut 405
• 10 m (33) cable length
• Boat Size: 8 m (25) and up
• Ideal for center-console and trailered boats
• Frequency: 50/200 kHz
• Maximum Depth Range:
• 50 kHz: 800-1200 ft
• 200 kHz: 400-700 ft
• Cone: 50 kHz45, 200 kHz12
• RMS Power: 600 W
