Airmar Technology

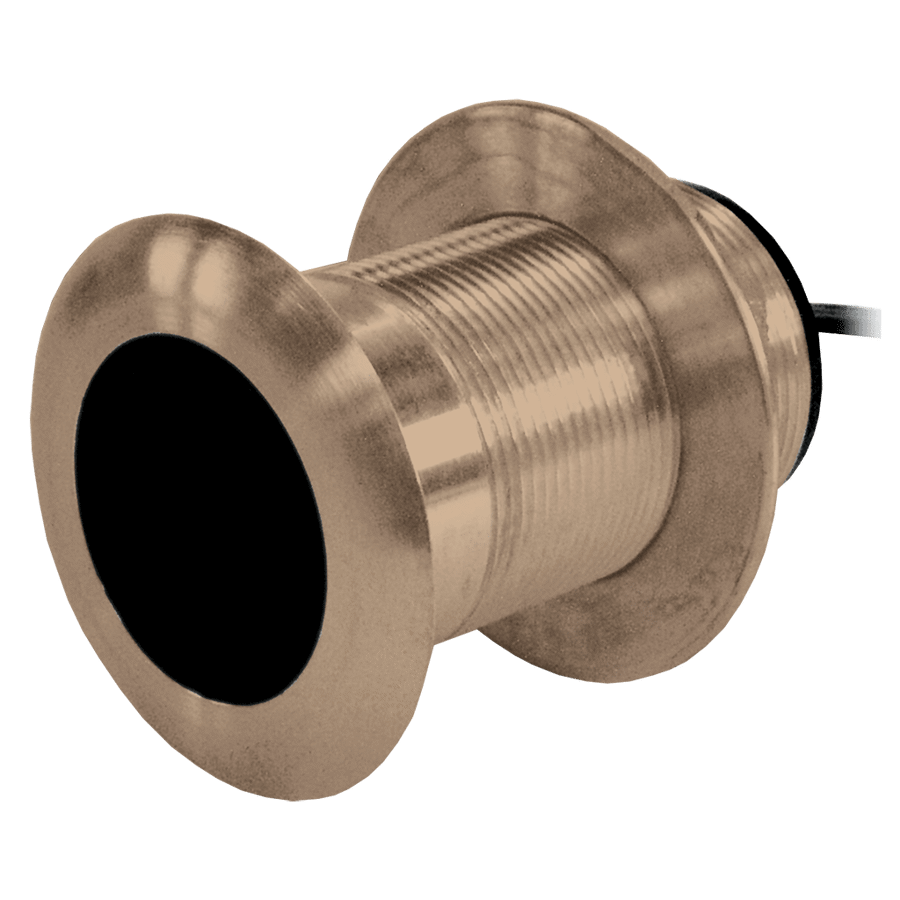

B117 50/200kHz Raymarine Bronze Low Profile Depth and Temperature Transducer
RM1,772.00
Buy Now, Pay Later with
Enjoy flexible payments for up to 24 months. Learn more.

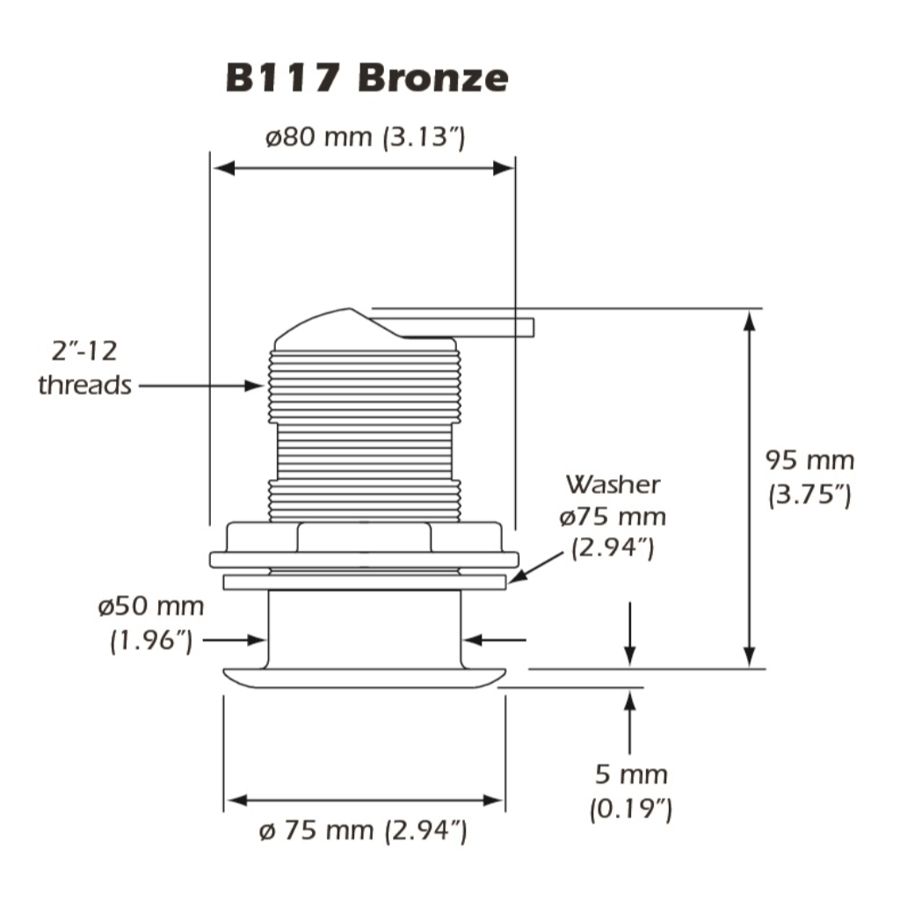

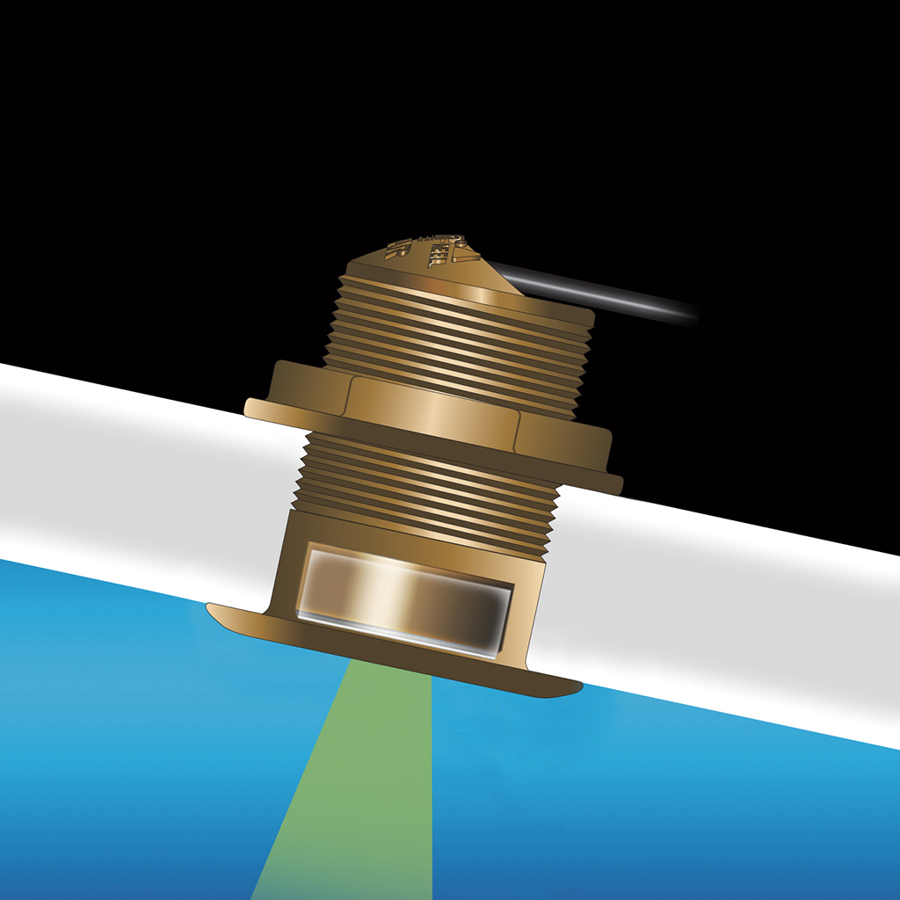

The Airmar B117 features a 50/200 kHz, dual-frequency, single ceramic element in a low-profile bronze housing. The nearly flush design minimizes drag with only 5 mm (2/10") extending outside of the hull.
Features
Depth only or depth and temperature
600 W
Dual-frequency elements:
50 kHz with a wide 45 beam for performance to 353 m (1200')
200 kHz with a 12 beam for performance to 206 m (700')
Right-angle cable exit offers low headroom and protection when transducer is stepped on
Included rubber washer allows tightening of the hull nut to irregular hull surfaces
Housings are ABYC H-27 compliant
Low-profile, bronze housing with minimum drag
Recommended boat size: up to 8 m (25')
Plastic P319and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles
600 W
Dual-frequency elements:
50 kHz with a wide 45 beam for performance to 353 m (1200')
200 kHz with a 12 beam for performance to 206 m (700')
Right-angle cable exit offers low headroom and protection when transducer is stepped on
Included rubber washer allows tightening of the hull nut to irregular hull surfaces
Housings are ABYC H-27 compliant
Low-profile, bronze housing with minimum drag
Recommended boat size: up to 8 m (25')
Plastic P319and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles
Specifications
Weight:
Plastic 0.6 kg (1.3 lb)
Bronze 0.9 kg (2.0 lb)
Hull Deadrise: Best performance on hull deadrise angle through 7 Can accommodate up to a 12 deadrise angle.
Acoustic Window: Urethane
Hole Diameter: 51 mm (2")
Plastic 0.6 kg (1.3 lb)
Bronze 0.9 kg (2.0 lb)
Hull Deadrise: Best performance on hull deadrise angle through 7 Can accommodate up to a 12 deadrise angle.
Acoustic Window: Urethane
Hole Diameter: 51 mm (2")
