Black Oak 10" Double Row 5W Combo Black

SKU: 10C-D5OS
Pre Order
RM2,428.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

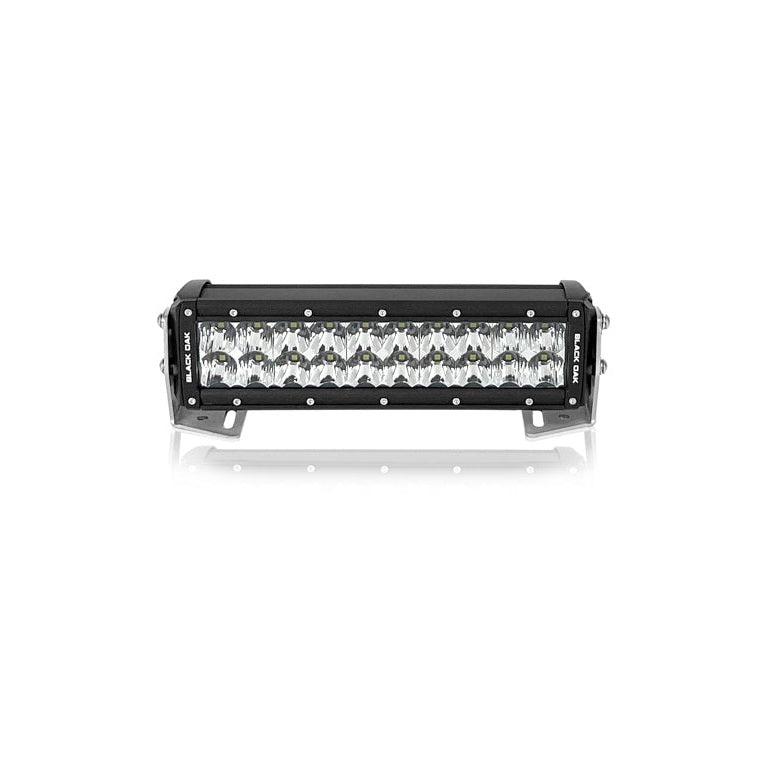

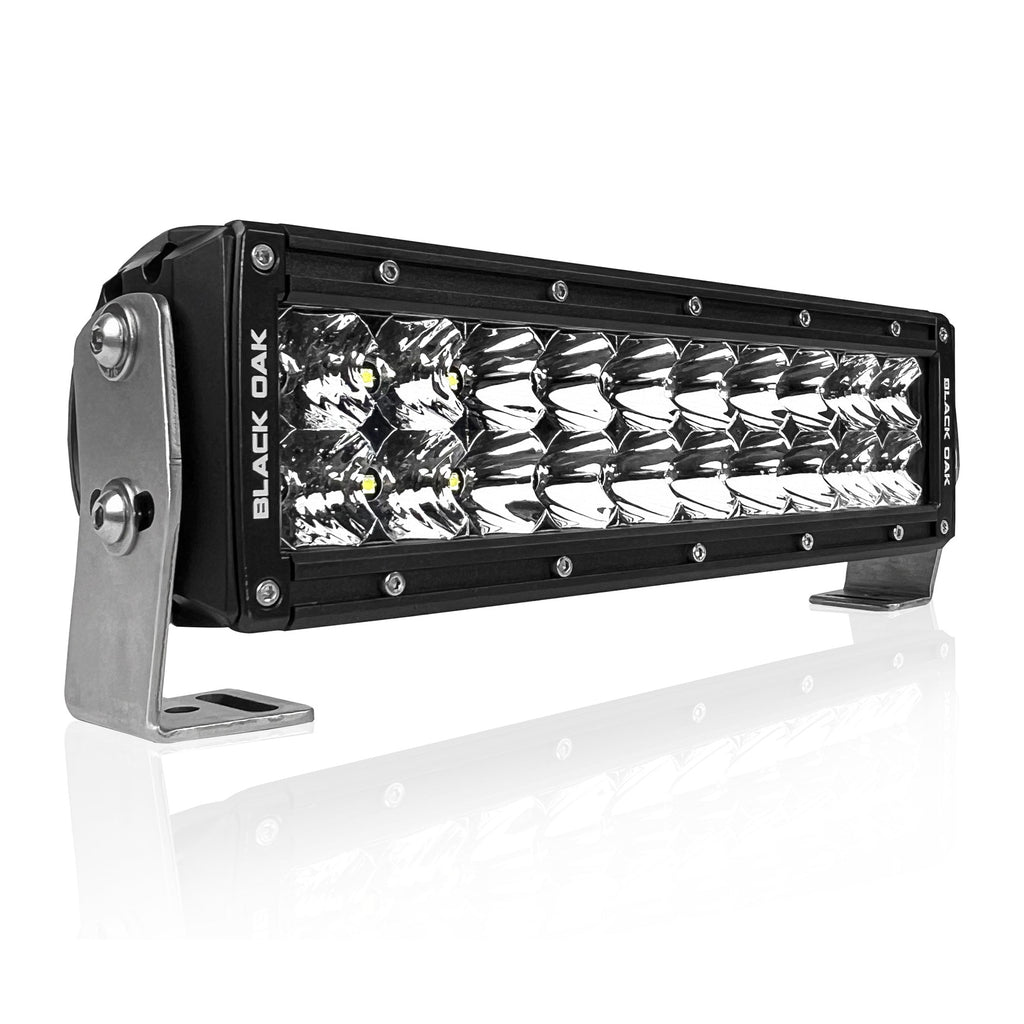

10 Inch Straight Double Row LED Light Bar – Black Housing

Serious Output. Clean Install. Built for the Trail.

When you need dependable off-road lighting with a little more reach and coverage, the 10-inch Straight Double Row LED Light Bar delivers powerful, forward-facing illumination in a versatile, mid-size footprint. Designed for trucks, Jeeps, UTVs, side-by-sides, and work vehicles, this bar strikes the ideal balance between compact size and real-world performance—making it a go-to option for bumper mounts, racks, and auxiliary lighting setups.

Built around a rugged black aluminum housing and high-output LEDs, this light bar is engineered to handle vibration, dust, mud, rain, and harsh trail conditions without flinching. Its straight-profile design allows for a clean, low-profile install while still delivering the brightness and durability needed for demanding off-road and work environments.

Our most popular configuration pairs 5-watt high-output LEDs with a Combo beam pattern, blending a focused center spot for distance with wide flood optics for improved peripheral visibility. The result is balanced, usable lighting that enhances awareness, control, and confidence—whether you’re navigating trails after dark, working late, or pushing past sunset.

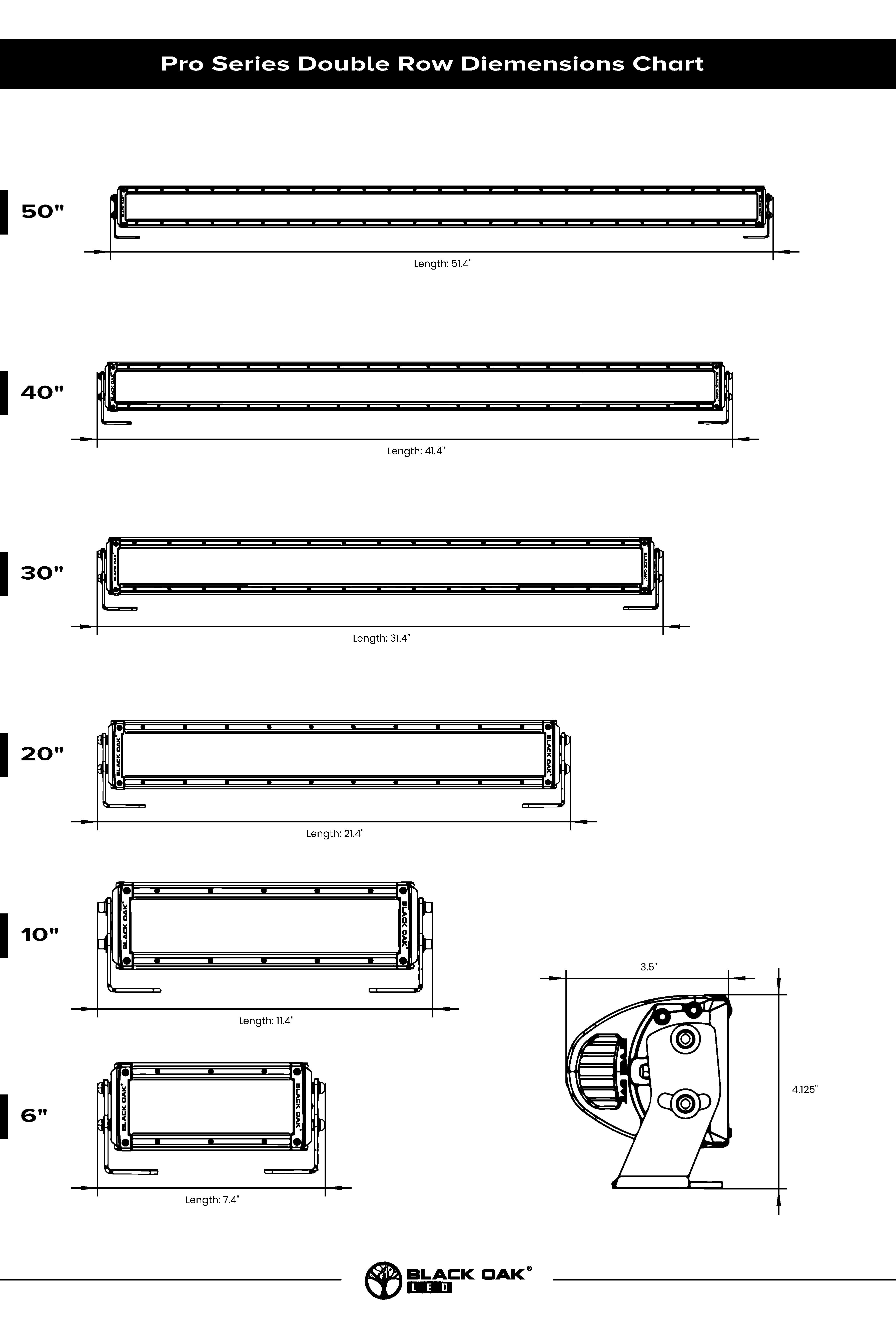

SIZES & DIMENSIONS

Height (4) x Length (15) x Width (9)

WHAT'S IN THE BOX
  • (1) LED Light Bar
  • Stainless Mounting Brackets and Hardware
  • Complete Wiring Harness
FEATURES
  • Lifetime Warranty
  • IP69K-Rated Housing – Fully sealed against salt, spray, pressure washing, and sun exposure
  • Premium CREE® and OSRAM® LED Chips – Engineered for maximum output and longevity
  • 316 Stainless Steel Mounting Brackets – Marine-grade corrosion resistance
  • Ceramic-Coated Finish – Enhanced UV stability and corrosion protection
  • Military-Grade Breather – Equalizes pressure and prevents internal moisture buildup
  • Premium Lexan® Lens – Designed to resist fading, hazing, and yellowing over time

Premium Lexan Lens + IP69K Sealed Housing

Each light is built with an optical-grade Lexan lens—twice as strong as glass and engineered to resist fading or yellowing—paired with an IP69K-rated housing that blocks out salt, spray, sun, and high-pressure water. The result is a crystal-clear, fully sealed system designed to perform for years in the harshest marine or off-road environments.

Premium OSRAM® LEDs

High-efficiency OSRAM LEDs deliver exceptional brightness, clarity, and long-term reliability—engineered for demanding marine use and sustained high-output performance.

Complete Wiring Harness Included

Every light bar comes ready to install with a pre-terminated 12-gauge wiring harness, inline fuse, relay, and switch — plus heavy-duty stainless mounting brackets for a secure, professional-grade setup right out of the box.

Ceramic-Coated, Hydrex-Sealed Construction

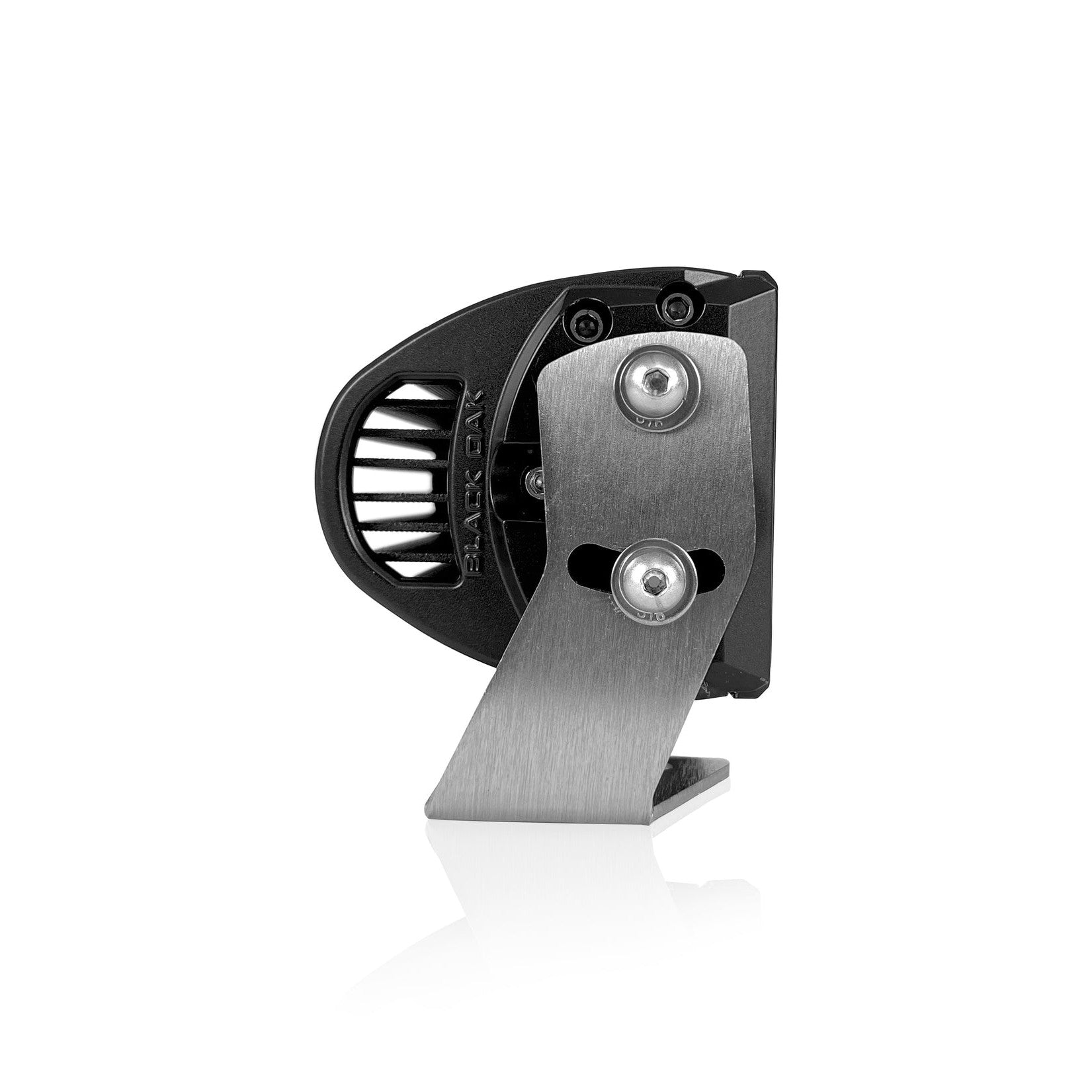

Finished with a corrosion-resistant ceramic coating and sealed with our Hydrex gasket system for true IP69K performance. 316 stainless bolt-in mounts provide unmatched strength and durability in saltwater or off-road environments.

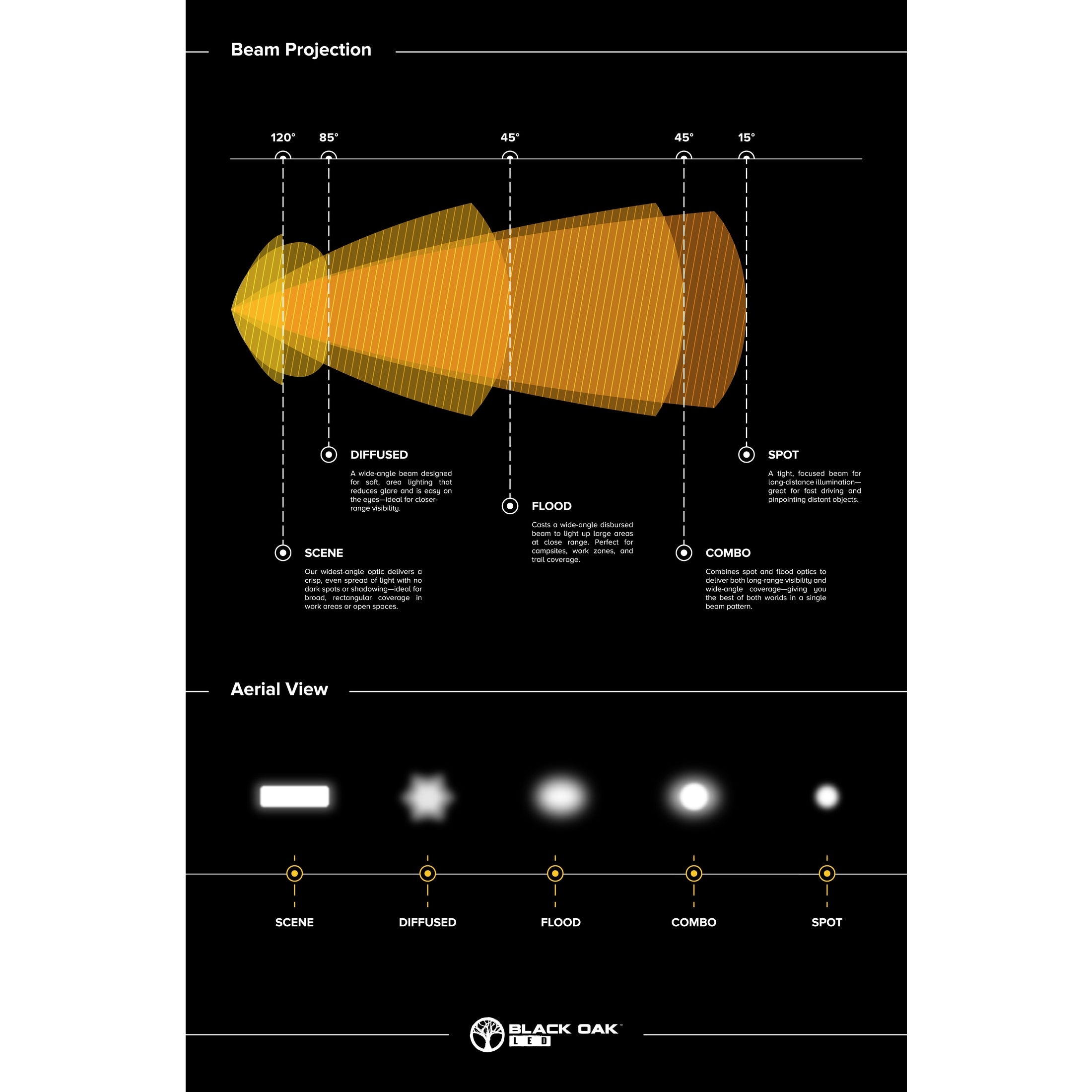

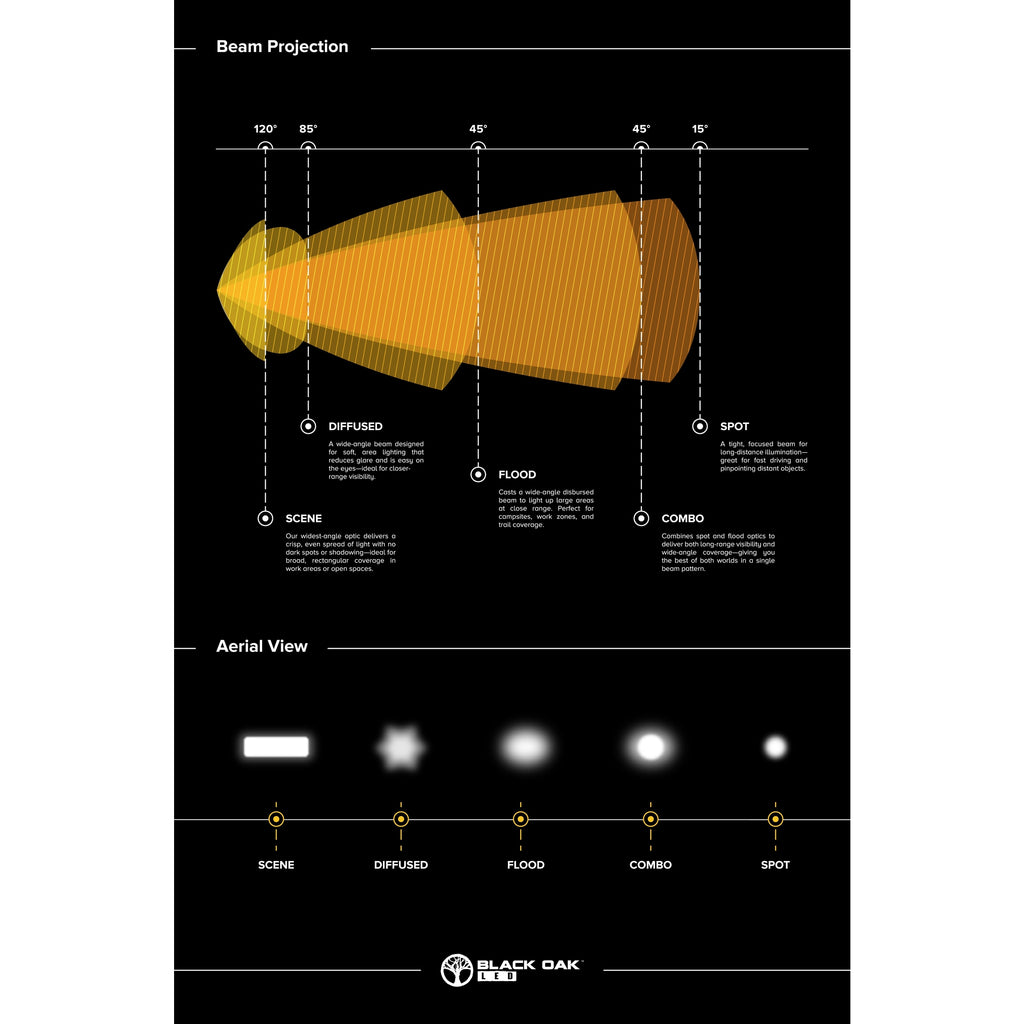

Precision Beam Patterns

Choose from spot, flood, or combo configurations for the perfect lighting spread. Our advanced reflector design ensures maximum throw distance and balanced side illumination for total visibility in any situation. Pro Tip: Combo is usually the best choice — it gives you the best of both worlds, with the spot pattern in the center for distance and the flood pattern on the ends for wide coverage.

Lifetime Warranty

Enjoy complete peace of mind knowing your light is backed by our industry-leading lifetime warranty. We stand behind every product we build — if it ever fails due to workmanship or materials, we’ll repair or replace it, guaranteed.

SPECIFICATIONS

Feature

  • 5 Watt
  • 3 Watt

Power & Performance

  • Total Wattage:10060
  • Total Amp Draw:4.14
  • Operating Voltage:12-30V DC12-30V DC
  • Raw Lumens:13,2007,500
  • Color Temperature:6,0006,000
  • LED Diode Qty:2020
  • LED Chip:OsramOsram
  • Beam Pattern:Spot or FloodCombo, Spot, Flood
  • Beam Angle:Both - Combo15° - Spot45° - FloodBoth - Combo15° - Spot45° - Flood
  • Mode:On/OffOn/Off
  • Dimmable?:Yes! (Separate dimmer module Required, NOT included)Yes! (Separate dimmer module Required, NOT included)

Durability & Lifespan

  • Life Expectancy:50,000 Hours50,000 Hours
  • Operating Temp:-40° to 145° F-40° to 62° C-40° to 145° F-40° to 62° C
  • Waterproof Rating:IP69KIP69K
  • Warranty:Limited LifetimeLimited Lifetime
  • Guarantee:30 Day Money Back31 Day Money Back

Wiring & Installation

  • Cord Lead From Light:16"16"
  • Wire Harness Included?:YesYes
  • Wire Harness Length:12'12'
  • Wire Gauge:1614
  • Fuse Size:10 Amp10 Amp
  • Connector Type:2 Pin Deutsch2 Pin Deutsch

General

  • Weight:3.8 Lbs3.8 Lbs
  • SKU - Combo:10C-D5OS10C-D3OS
  • SKU - Spot:10S-D5OS10S-D3OS
  • SKU - Flood:10F-D5OS10F-D3OS
