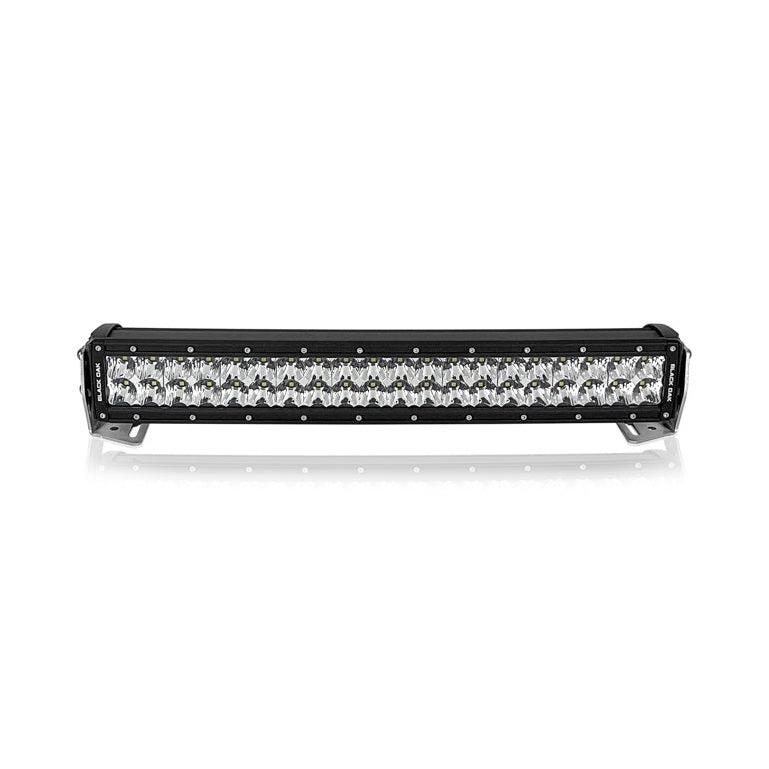

Black Oak 20" Double Row 5W Combo Black

Black Oak Led

Black Oak 20" Double Row 5W Combo Black

SKU: 20C-D5OS
Pre Order
RM3,978.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

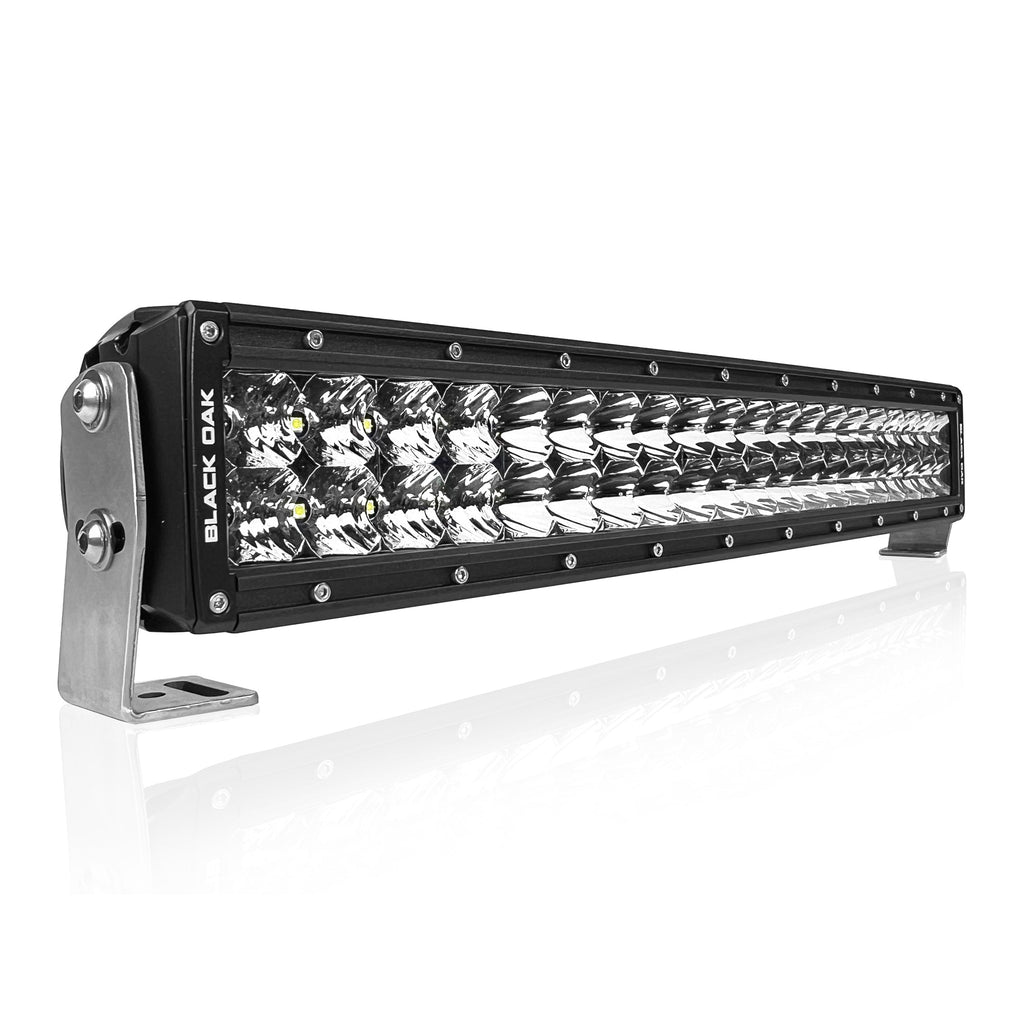

20 Inch Double Row LED Light Bar – Black Housing

Powerful Output. Rugged Durability. Built for the Trail.

When the sun dips below the horizon and the trail keeps calling, you need lighting that doesn’t quit. The 20-inch Double Row LED Light Bar delivers robust, off-road illumination that enhances visibility, confidence, and trail performance in demanding conditions. Designed for trucks, Jeeps, UTVs, side-by-sides, and work rigs, this mid-size bar strikes an ideal balance between size and output — perfect for bumper, roof rack, or bull bar mounting.

Engineered around premium components and housed in rugged black aluminum, this light bar is built to withstand vibration, rain, mud, and trail abuse without hesitation. Its double row design combines high-output LEDs with advanced optics to deliver powerful forward throw and wide peripheral coverage, giving you clearer sight lines when navigating trails, backroads, or work zones after dark.

Our most popular configuration—the 5-watt high-output Combo beam—delivers the best of both worlds, combining long-range distance lighting through the center spot optics with wide flood coverage for enhanced peripheral visibility. The result is balanced, real-world illumination that keeps you confident whether you’re pushing into the night, navigating obstacles, or lighting up a work area.

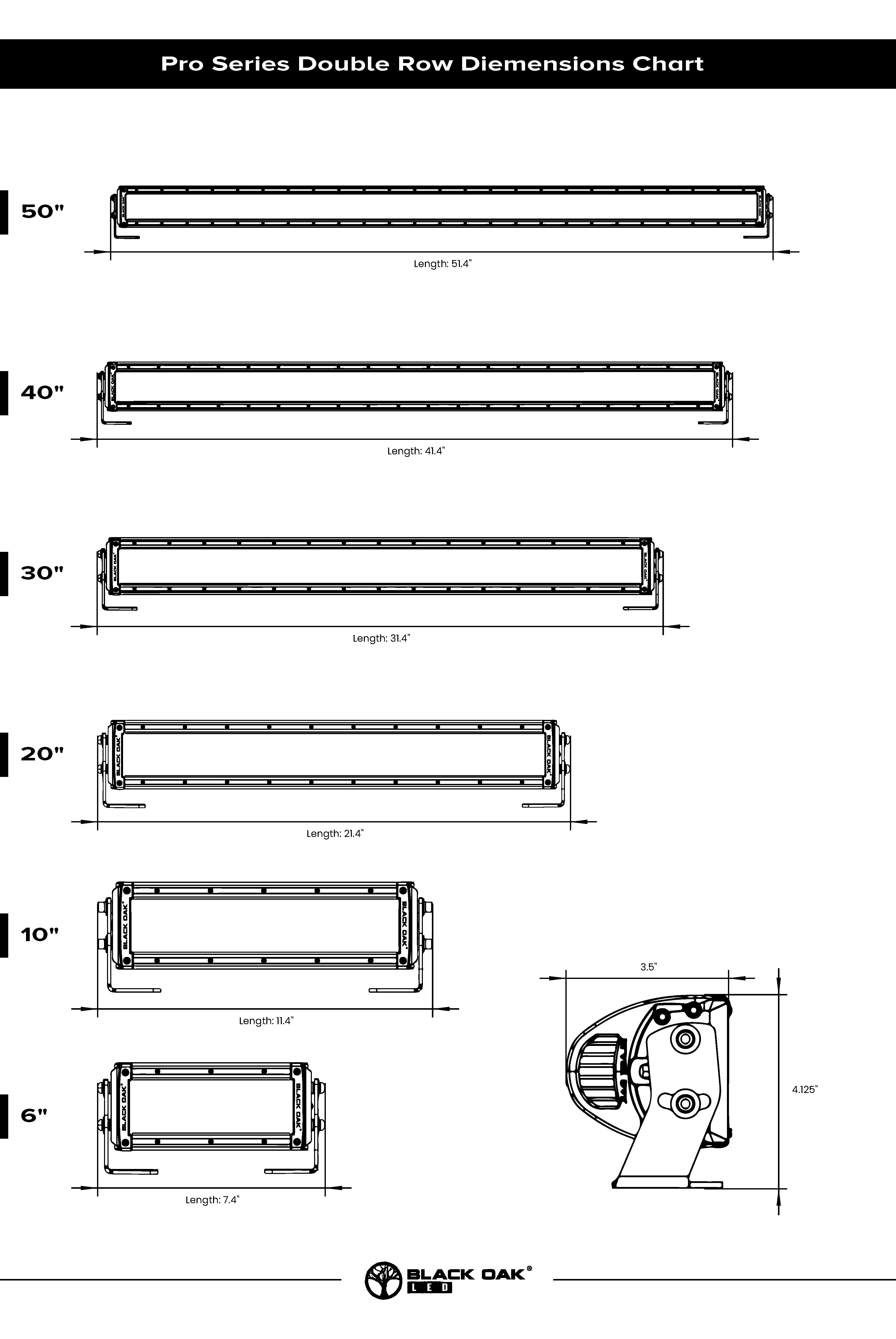

SIZES & DIMENSIONS

Height (6) x Length (25) x Width (6) inch
WHAT'S IN THE BOX
  • (1) LED Light Bar
  • Stainless Mounting Brackets and Hardware
  • Complete Wiring Harness
FEATURES
  • Lifetime Warranty
  • IP69K-Rated Housing – Fully sealed against salt, spray, pressure washing, and sun exposure
  • Premium CREE® and OSRAM® LED Chips – Engineered for maximum output and longevity

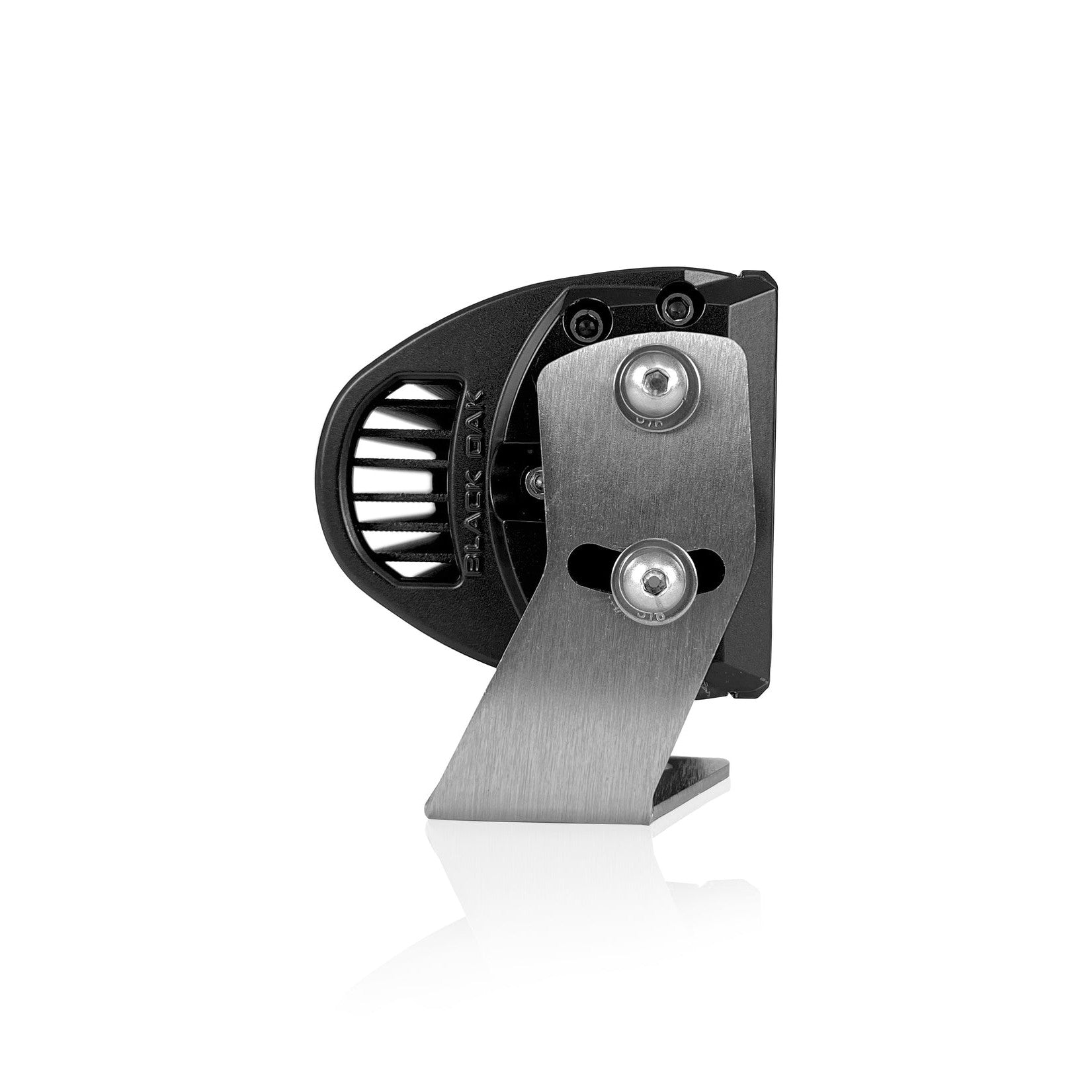

  • 316 Stainless Steel Mounting Brackets – Marine-grade corrosion resistance
  • Ceramic-Coated Finish – Enhanced UV stability and corrosion protection
  • Military-Grade Breather – Equalizes pressure and prevents internal moisture buildup
  • Premium Lexan® Lens – Designed to resist fading, hazing, and yellowing over time

Premium Lexan Lens + IP69K Sealed Housing

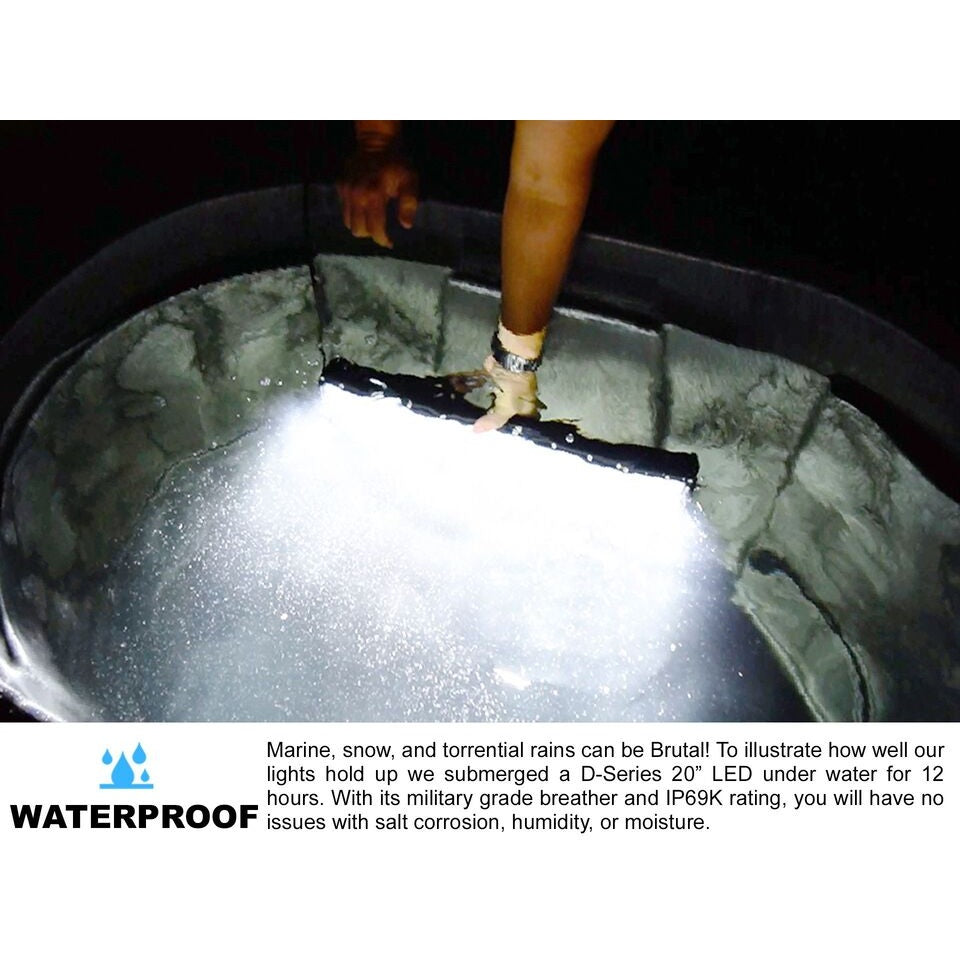

Each light is built with an optical-grade Lexan lens—twice as strong as glass and engineered to resist fading or yellowing—paired with an IP69K-rated housing that blocks out salt, spray, sun, and high-pressure water. The result is a crystal-clear, fully sealed system designed to perform for years in the harshest marine or off-road environments.

Premium OSRAM® LEDs

High-efficiency OSRAM LEDs deliver exceptional brightness, clarity, and long-term reliability—engineered for demanding marine use and sustained high-output performance.

Complete Wiring Harness Included

Every light bar comes ready to install with a pre-terminated 12-gauge wiring harness, inline fuse, relay, and switch — plus heavy-duty stainless mounting brackets for a secure, professional-grade setup right out of the box.

Ceramic-Coated, Hydrex-Sealed Construction

Finished with a corrosion-resistant ceramic coating and sealed with our Hydrex gasket system for true IP69K performance. 316 stainless bolt-in mounts provide unmatched strength and durability in saltwater or off-road environments.

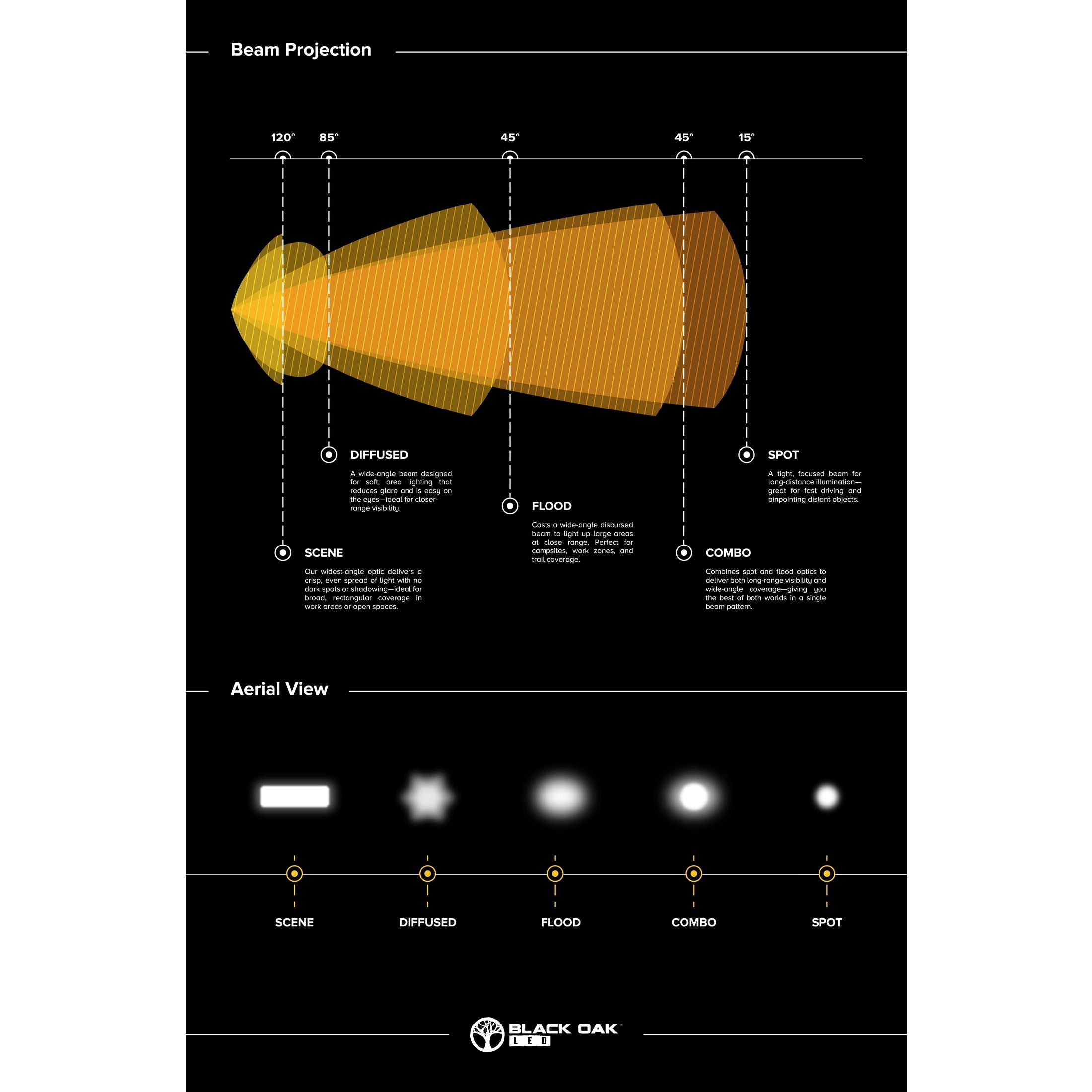

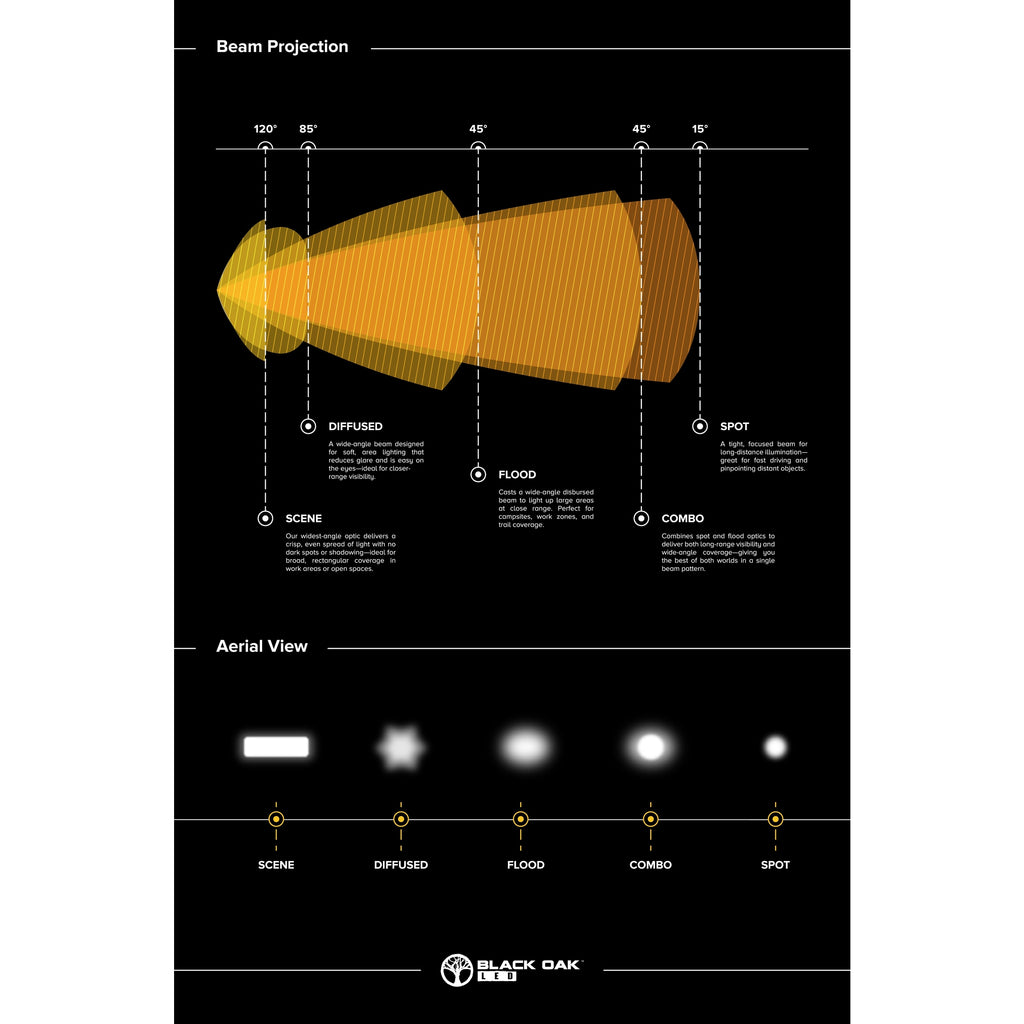

Precision Beam Patterns

Choose from spot, flood, or combo configurations for the perfect lighting spread. Our advanced reflector design ensures maximum throw distance and balanced side illumination for total visibility in any situation. Pro Tip: Combo is usually the best choice — it gives you the best of both worlds, with the spot pattern in the center for distance and the flood pattern on the ends for wide coverage.

Lifetime Warranty

Enjoy complete peace of mind knowing your light is backed by our industry-leading lifetime warranty. We stand behind every product we build — if it ever fails due to workmanship or materials, we’ll repair or replace it, guaranteed.
SPECIFICATIONS

Feature

  • 5 Watt
  • 3 Watt

Power & Performance

  • Total Wattage:200120
  • Total Amp Draw:8.48.1
  • Operating Voltage:12-30V DC12-30V DC
  • Raw Lumens:26,40014,900
  • Color Temperature:6,0006,000
  • LED Diode Qty:4040
  • LED Chip:OsramOsram
  • Beam Pattern:Combo, Spot, or FloodCombo, Spot, Flood
  • Beam Angle:Both - Combo15° - Spot45° - FloodBoth - Combo15° - Spot45° - Flood
  • Mode:On/OffOn/Off
  • Dimmable?:Yes! (Separate dimmer module Required, NOT included)Yes! (Separate dimmer module Required, NOT included)

Durability & Lifespan

  • Life Expectancy:50,000 Hours50,000 Hours
  • Operating Temp:-40° to 145° F-40° to 62° C-40° to 145° F-40° to 62° C
  • Waterproof Rating:IP69KIP69K
  • Warranty:Limited LifetimeLimited Lifetime
  • Guarantee:30 Day Money Back31 Day Money Back

Wiring & Installation

  • Cord Lead From Light:16"16"
  • Wire Harness Included?:YesYes
  • Wire Harness Length:12'12'
  • Wire Gauge:1414
  • Fuse Size:10 Amp10 Amp
  • Connector Type:2 Pin Deutsch2 Pin Deutsch

General

  • Weight:6.3 Lbs6.3 Lbs
  • SKU - Combo:20C-D5OS20C-D3OS
  • SKU - Spot:20S-D5OS20S-D3OS
  • SKU - Flood:20F-D5OS20F-D3OS
