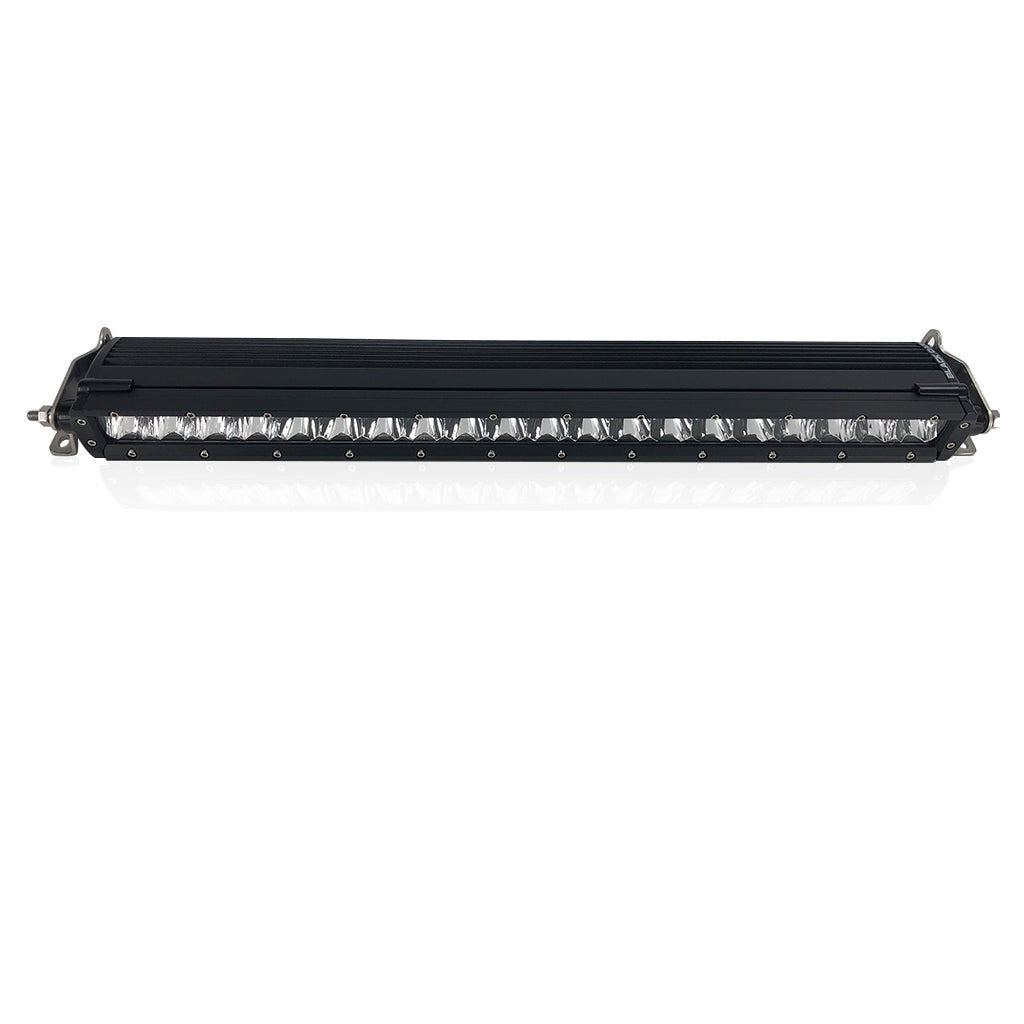

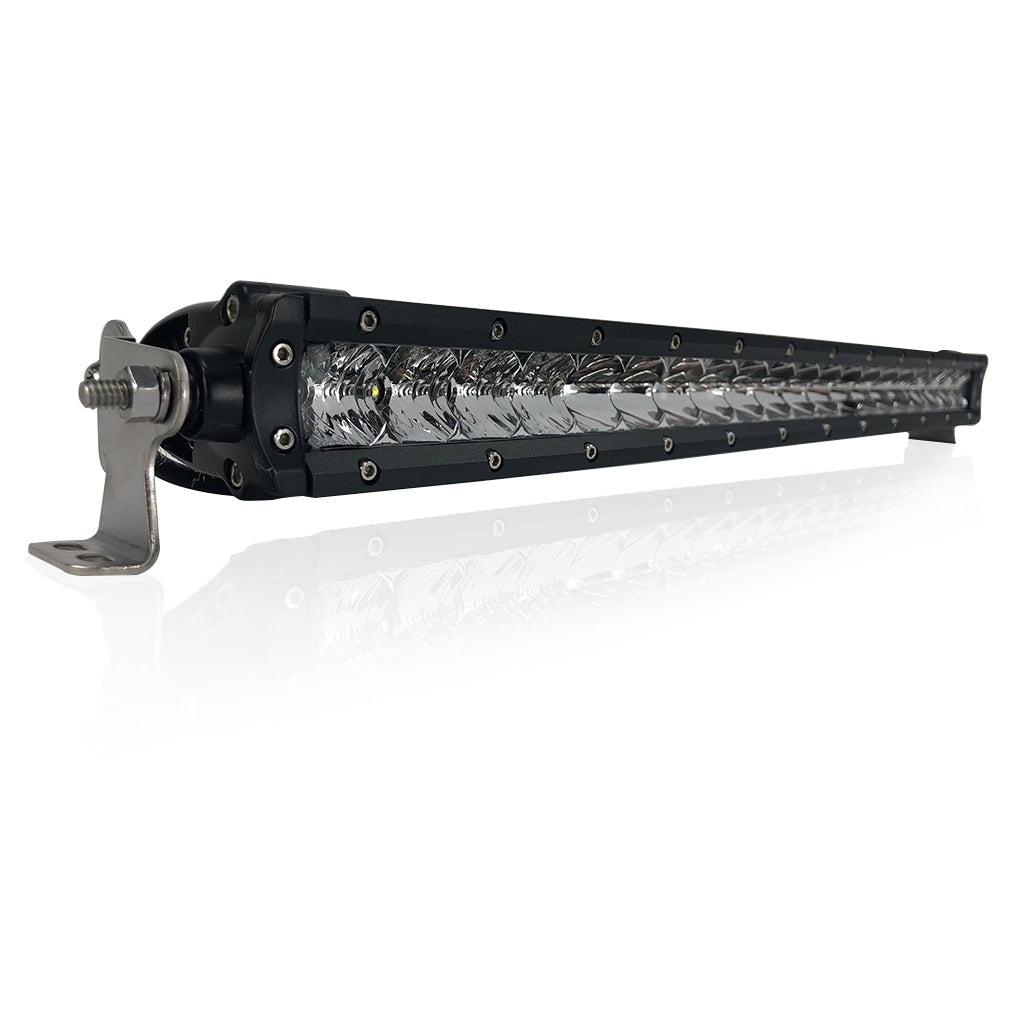

Black Oak 20" Single Row 5W Combo Black

SKU: 20C-S5OS
Pre Order
RM2,984.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

This light has been upgraded to the New Pro Series 3.0, see below for all the new features.

Top LEDs in a Compact Size:

This slim LED light bar could hide in a grill, trim, rack, or mounted below your bumper. While it may be easy to hide a single row of LEDs with your switch off, the extemely bright Osram LEDS will be impossible to conceal once you hit that switch.  The lumen output of our most popular single row is guaranteed to impress you and everyone who comes in contact with this slim LED light bar.

Choose Your Look:

Choose between Combo, Spot, or Flood and really tailor your lights for what you need them for. Every 20-inch single row LED light bar is guaranteed to last in any condition and still put out the beam pattern you chose. Try it for 30 days, unless its too bright we don't see you sending it back but we will take it back and give you a full refund in any case.

Built to Last:

While the 20-inch single row LED light bar may not look like it can take a beating, we can assure you that this guy may be part Irish. With a case height of only 2 inches thick this bar is still rated with the same IP69K rating so you know your single row will continue kicking and screaming for years to come. We back this with our lifetime limited warranty so you can be sure your good times will continue for years to come.

Activities & Uses:

- Off-Road Spot light

- T-Top boat light

- Jeep hood light

- UTV dune riding

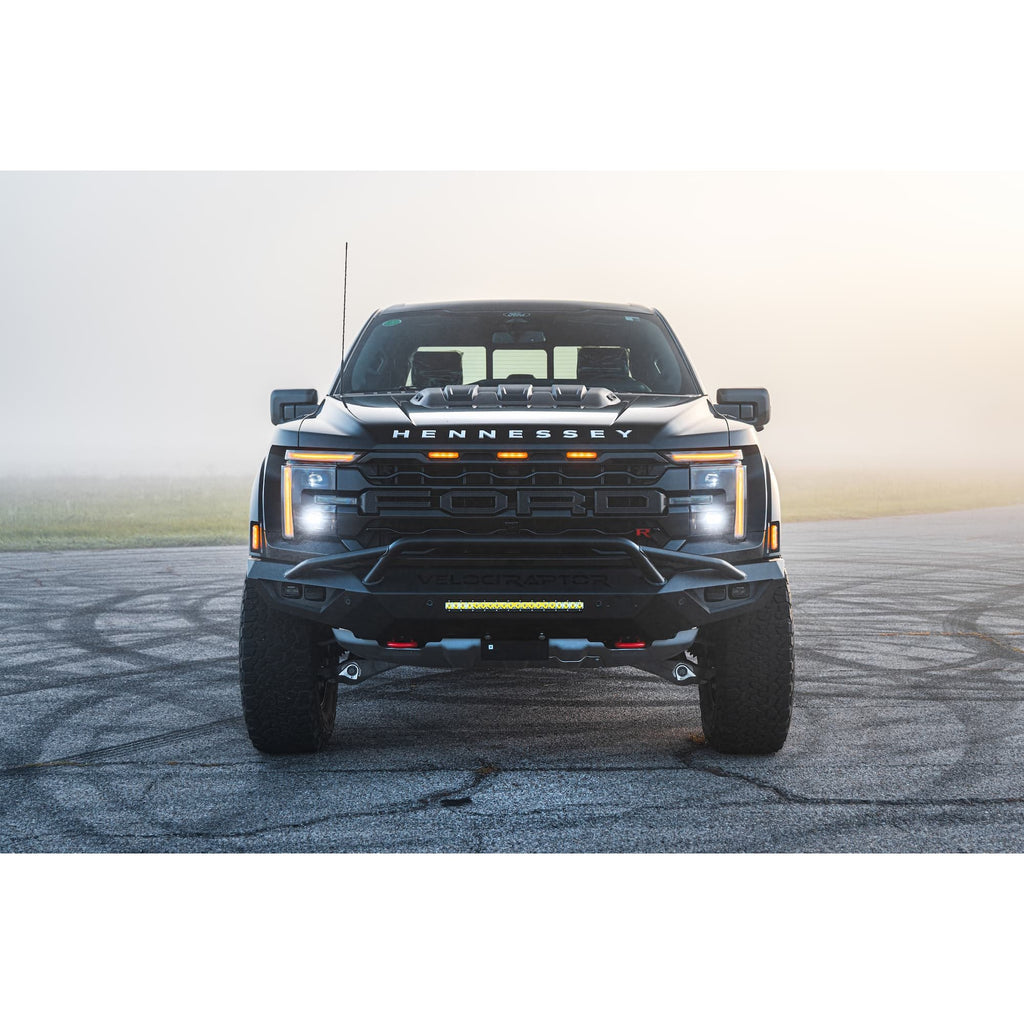

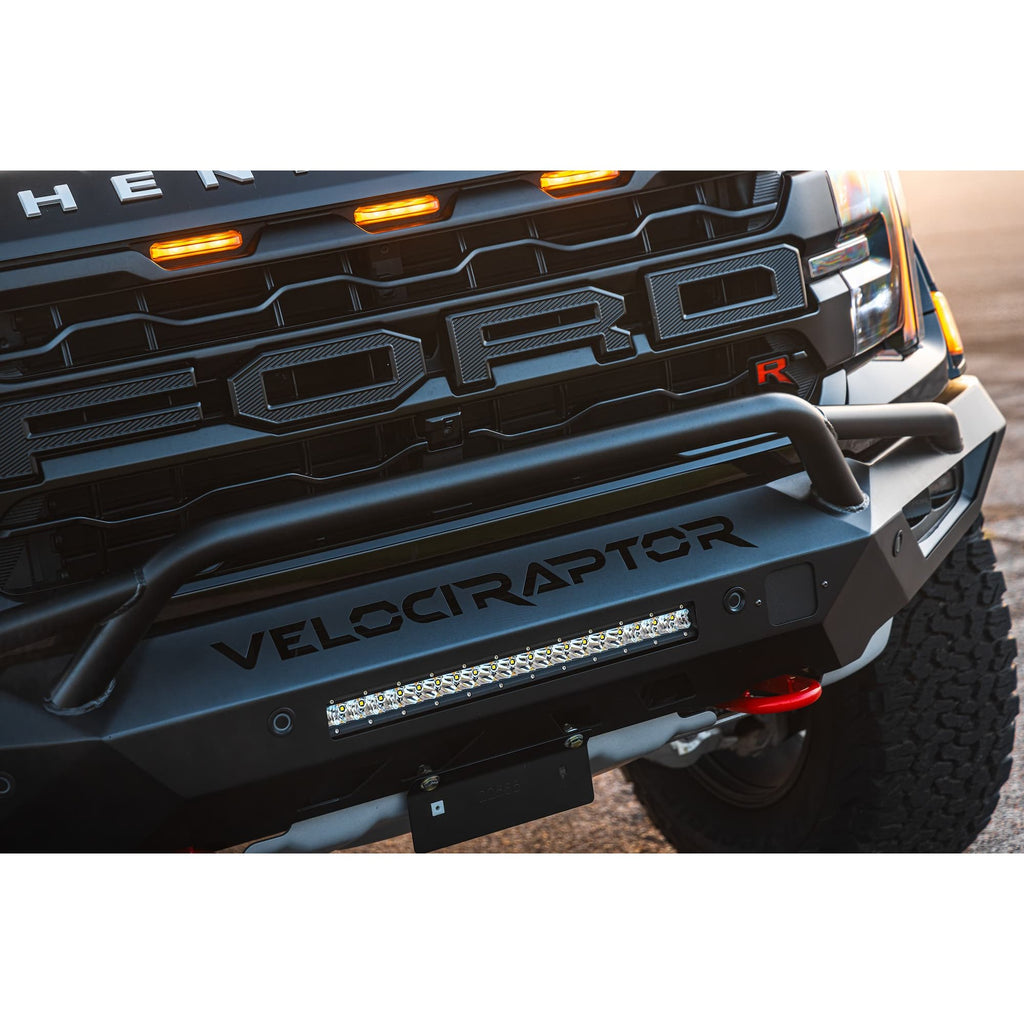

- Lower bumper truck lights

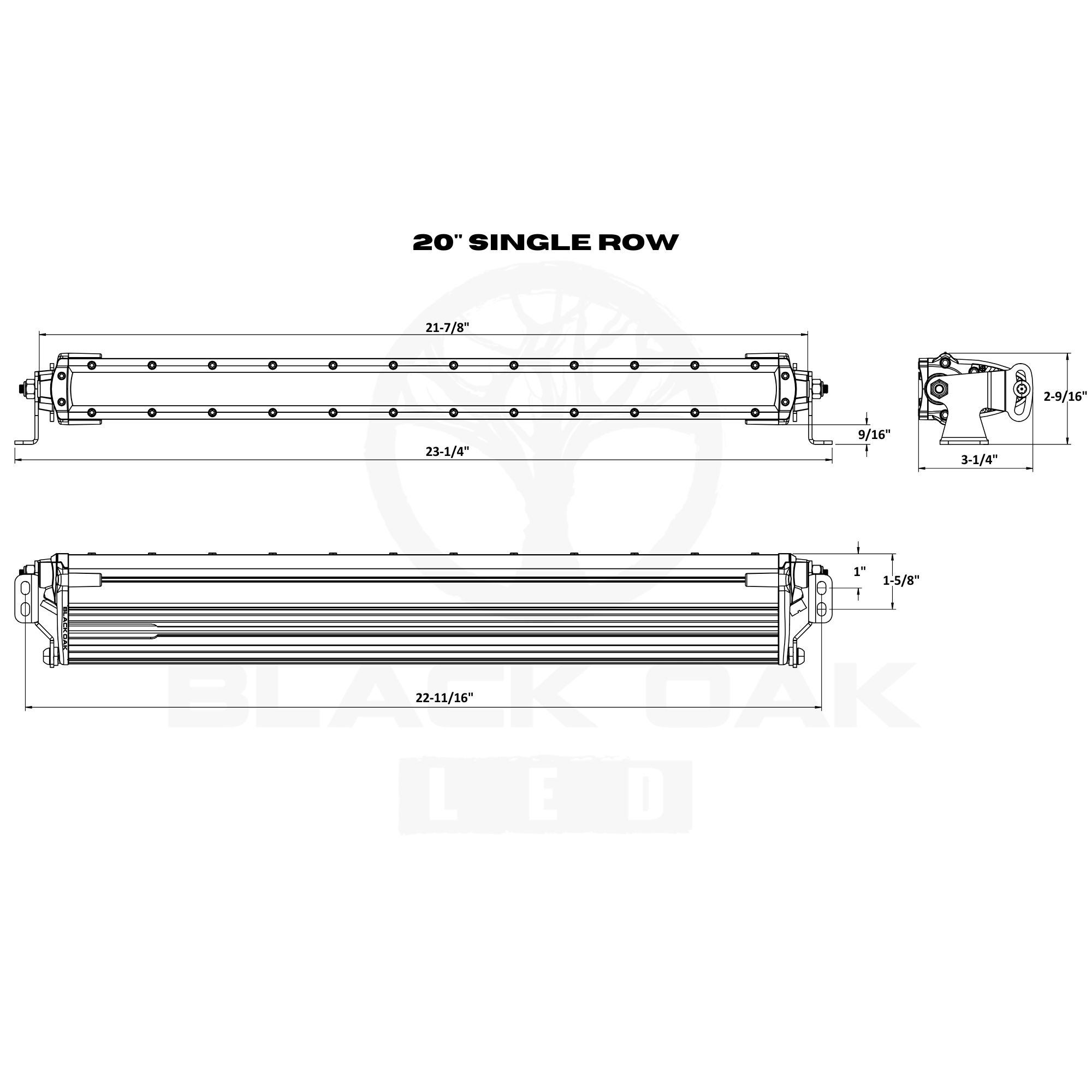

SIZES & DIMENSIONS

Height (6) x Length (25) x Width (6) Inch

WHAT'S IN THE BOX

-  Complete wiring harness with fuse, relay, and switch

-  Mounting brackets

-  All hardware, ready to install!


FEATURES

Upgrades and Features:

360° Ceramic Protection from UV, Salt Water and Corrosions


“One of the most popular trends lately has been ceramic coating vehicles and boats. We have since added a Baricoat ceramic coating to our lights. It is an added 3-part protection from UV, saltwater, and corrosion. You'll never have to worry about what weather you put these bars through as we made sure every aspect of these lights can hold up to any environment."




2 Stage Hydrex Seal Lock IP69


“We didn’t want to limit the introduction of the new Hydrex Seal to just the Double Rows and Pods, so we added it to our Single Rows as well. It has a 2 Stage gasket redundant waterproofing seal allowing it to have a strong, waterproof seal even after taking a beating. We wanted everything we build to be as marine grade as possible, so we made sure you won't have any issues with water intrusion.”


4x Times Stronger Dynamax Housing


“Do you ever find yourself battling some rough terrain? We made sure not to skimp out on the testing of our new Dynamax housing to make sure you would never have to worry about limiting your capabilities. As shown in the testing on our double rows, our single rows can take just as much of a beating. We made sure to prove that with using our light bars as a ramp for one of our trucks.”



More Security


“With Black Oak LED Lights, there is no room for failure. That’s why we even beefed up our bolts with stronger threads to offer better protection on our bars. We wanted to make sure there were no weak links in any part of our light bars, hence the decision to upgrade our hardware.”


SPECIFICATIONS

Feature | 5 Watt | 3 Watt

Power & Performance

  • Total Wattage: 100 | 60
  • Total Amp Draw: 6.7 | 5.7
  • Operating Voltage: 12-30V DC | 12-30V DC
  • Raw Lumens: 13,200 | 7,500
  • LED Diode Qty: 20 | 20
  • LED Chip: Osram | Osram
  • Beam Pattern: Combo, Spot, Flood | Combo, Spot, Flood
  • Beam Angle:Both - Combo15° - Spot45° - FloodBoth - Combo15° - Spot45° - Flood
  • Mode: All On | All On

Durability & Lifespan

  • Life Expectancy: 50,000 Hour | 50,000 Hour
  • Operating Temp: -40° to 145° F / -40° to 62° C | -40° to 145° F / -40° to 62° C
  • Waterproof Rating: IP69K | IP69K
  • Warranty: Limited Lifetime | Limited Lifetime
  • Guarantee: 30 Day Money Back | 31 Day Money Back

Wiring & Installation

  • Cord Length From Light: 16" | 16"
  • Wire Harness Included? Yes | Yes
  • Wire Harness Length: 12' | 12'
  • Wire Gauge: 16 | 16
  • Fuse Size: 15 Amp | 15 Amp
  • Connector Type: 2 Pin Deutsch | 2 Pin Deutsch

General

  • Weight: 4.6 Lbs | 4.6 Lbs
  • SKU - Combo: 20C-S50S | 20C-S3OS
  • SKU - Spot: 20S-S50S | 20S-S3OS
  • SKU - Flood: 20F-S50S | 20F-S3OS
