Black Oak 30" Curved Double Row 5W Combo Black

Black Oak Led

Black Oak 30" Curved Double Row 5W Combo Black

SKU: 30CC-D5OS
Pre Order
RM5,499.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

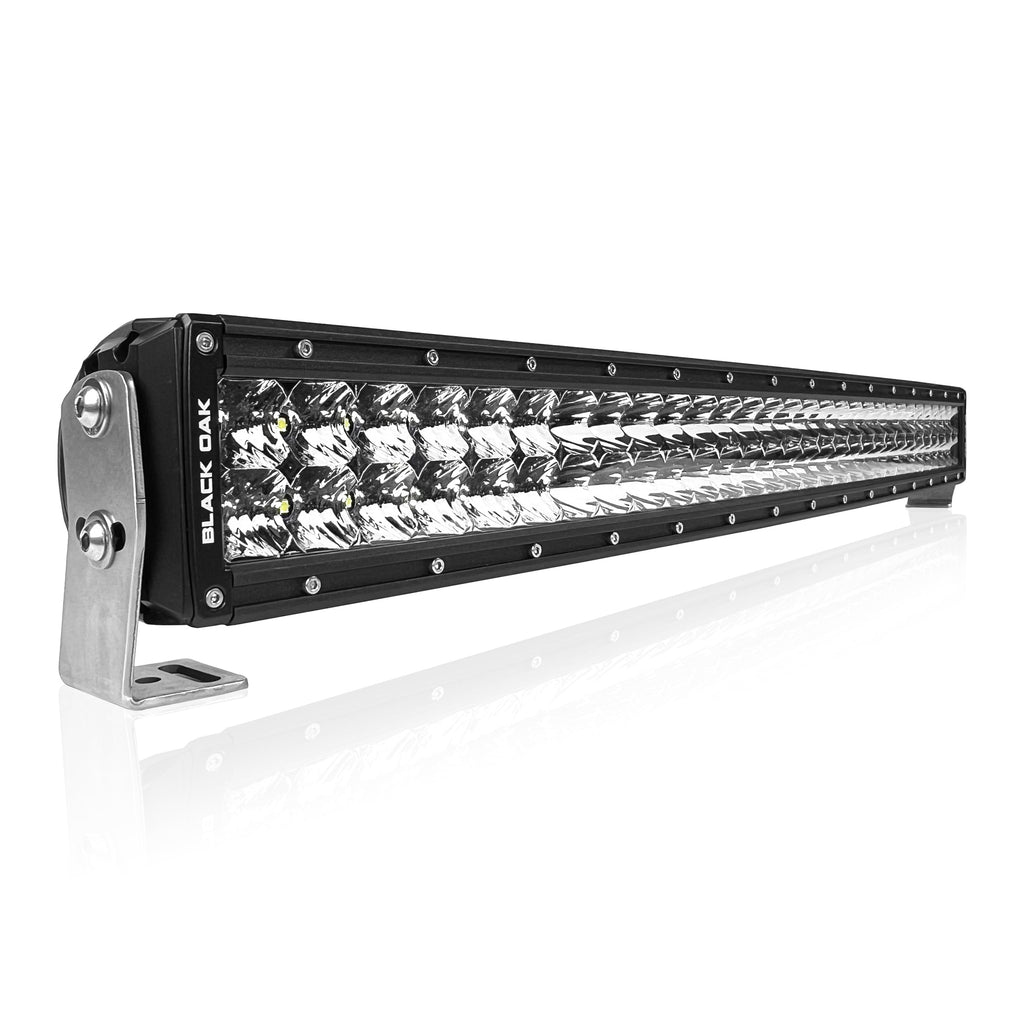

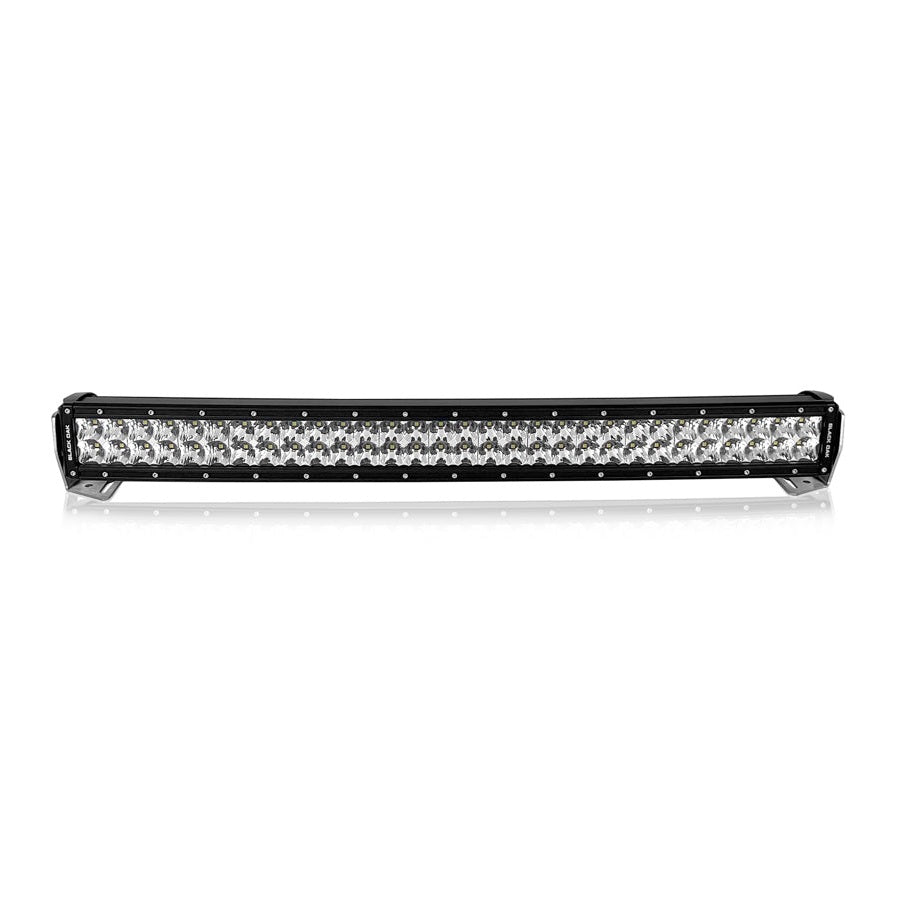

30 Inch Curved Double Row LED Light Bar – Black Housing

Expanded Coverage. Contoured Performance. Built for the Trail.

When the terrain widens and the trail demands more visibility, the 30-inch Curved Double Row LED Light Bar delivers powerful forward projection with enhanced side-to-side coverage. Designed to follow the natural contour of your vehicle, the curved profile improves peripheral illumination while maintaining a clean, aggressive look. Ideal for trucks, Jeeps, UTVs, overland builds, and work rigs, this larger platform is perfect for roof and windshield mounting applications.

Constructed with premium internal components and housed in rugged black aluminum, this light bar is engineered to withstand vibration, harsh weather, mud, and relentless off-road conditions. The double row configuration pairs high-output LEDs with precision optics to generate strong long-range distance lighting, while the curved design broadens your field of view — helping you spot obstacles sooner and drive with greater confidence after dark.

Our most popular configuration — the 5-watt high-output Combo beam — blends intense center spot projection with wide flood optics for balanced, real-world performance wherever the trail leads.

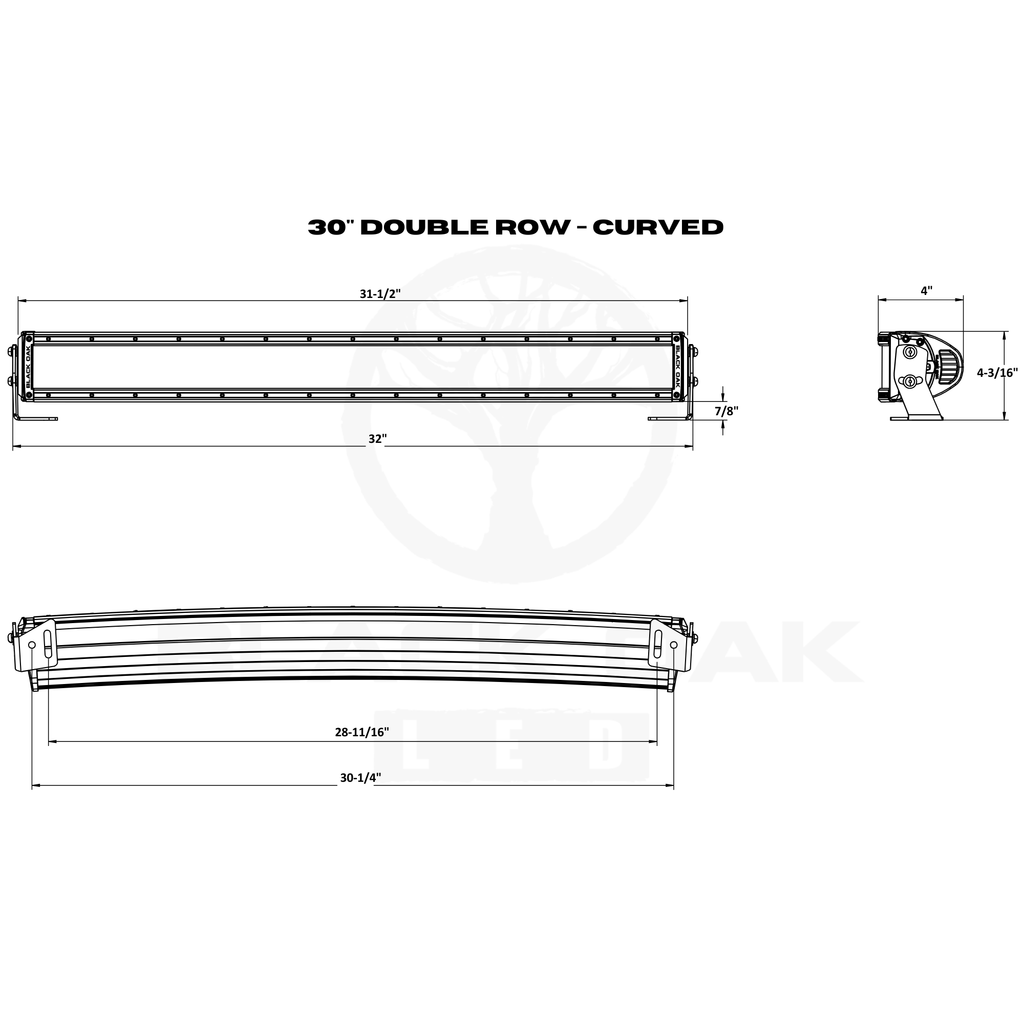

SIZES & DIMENSIONS

Height 6 x Length 35 x Width 7 inch
WHAT'S IN THE BOX
  • (1) LED Light Bar
  • Stainless Mounting Brackets and Hardware
  • Complete Wiring Harness
FEATURES
  • Lifetime Warranty
  • IP69K-Rated Housing – Fully sealed against salt, spray, pressure washing, and sun exposure
  • Premium CREE® and OSRAM® LED Chips – Engineered for maximum output and longevity
  • 316 Stainless Steel Mounting Brackets – Marine-grade corrosion resistance
  • Ceramic-Coated Finish – Enhanced UV stability and corrosion protection
  • Military-Grade Breather – Equalizes pressure and prevents internal moisture buildup
  • Premium Lexan® Lens – Designed to resist fading, hazing, and yellowing over time

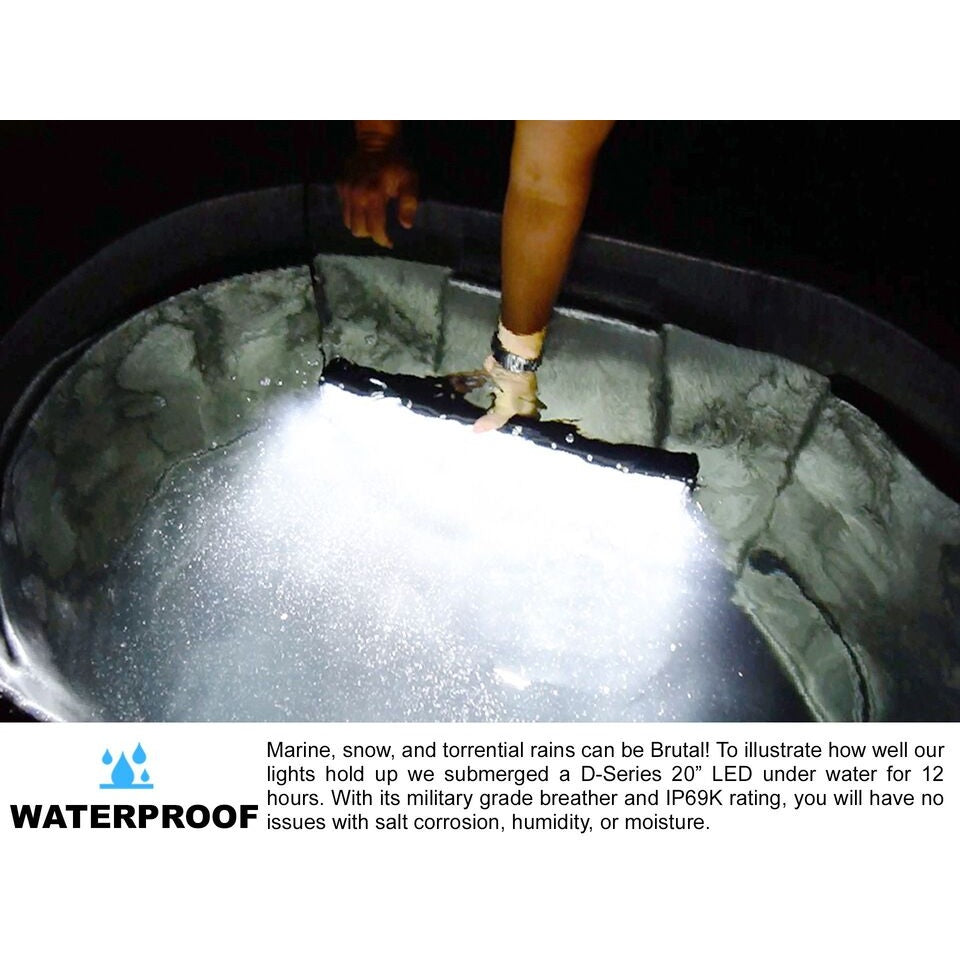

Premium Lexan Lens + IP69K Sealed Housing

Each light is built with an optical-grade Lexan lens—twice as strong as glass and engineered to resist fading or yellowing—paired with an IP69K-rated housing that blocks out salt, spray, sun, and high-pressure water. The result is a crystal-clear, fully sealed system designed to perform for years in the harshest marine or off-road environments.

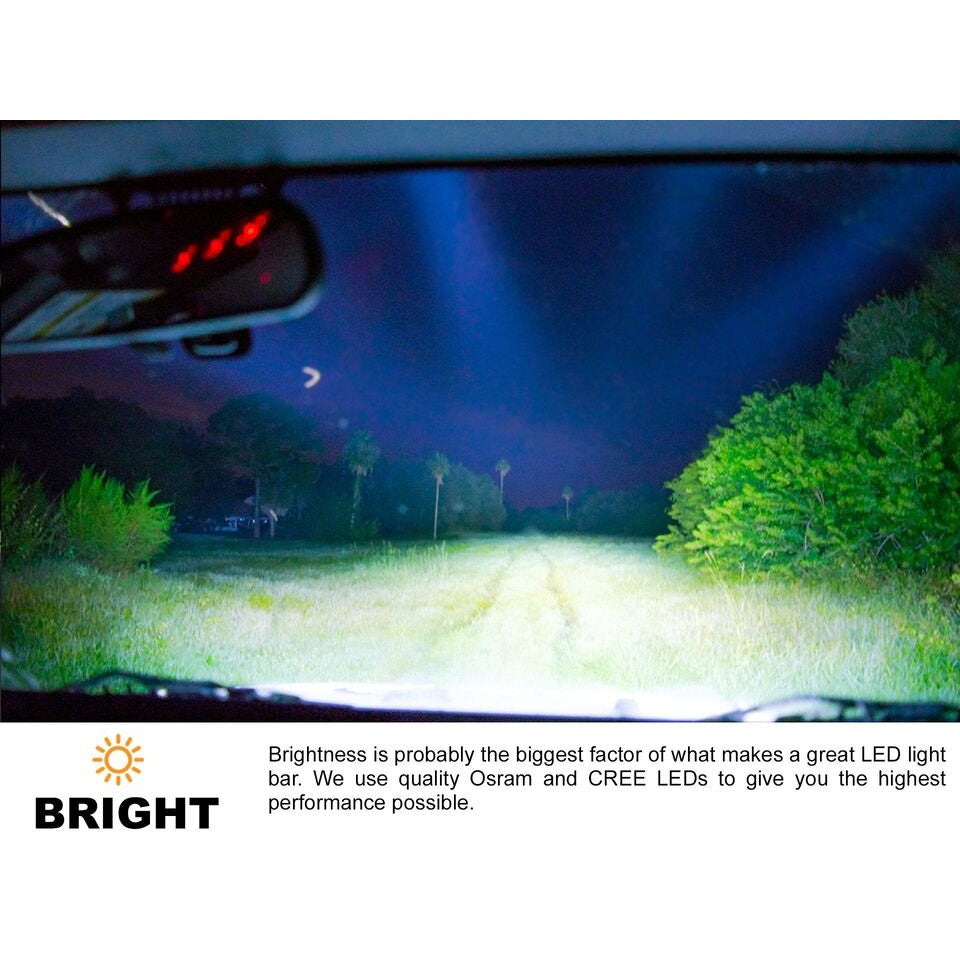

Premium OSRAM® LEDs

High-efficiency OSRAM LEDs deliver exceptional brightness, clarity, and long-term reliability—engineered for demanding marine use and sustained high-output performance.

Complete Wiring Harness Included

Every light bar comes ready to install with a pre-terminated 12-gauge wiring harness, inline fuse, relay, and switch — plus heavy-duty stainless mounting brackets for a secure, professional-grade setup right out of the box.

Ceramic-Coated, Hydrex-Sealed Construction

Finished with a corrosion-resistant ceramic coating and sealed with our Hydrex gasket system for true IP69K performance. 316 stainless bolt-in mounts provide unmatched strength and durability in saltwater or off-road environments.

Precision Beam Patterns

Choose from spot, flood, or combo configurations for the perfect lighting spread. Our advanced reflector design ensures maximum throw distance and balanced side illumination for total visibility in any situation. Pro Tip: Combo is usually the best choice — it gives you the best of both worlds, with the spot pattern in the center for distance and the flood pattern on the ends for wide coverage.

Lifetime Warranty

Enjoy complete peace of mind knowing your light is backed by our industry-leading lifetime warranty. We stand behind every product we build — if it ever fails due to workmanship or materials, we’ll repair or replace it, guaranteed.
SPECIFICATIONS

Feature

  • 5 Watt
  • 3 Watt

Power & Performance

  • Total Wattage: 300 / 180
  • Total Amp Draw: 12.7 / 12
  • Operating Voltage: 12-30V DC
  • Raw Lumens: 39,600 / 22,400
  • Color Temperature: 6,000
  • LED Diode Qty: 60
  • LED Chip: Osram
  • Beam Pattern: Spot or Flood / Combo, Spot, Flood
  • Beam Angle:Both - Combo15° - Spot45° - FloodBoth - Combo15° - Spot45° - Flood
  • Mode: On/Off
  • Dimmable?: Yes! (Separate dimmer module Required, NOT included)

Durability & Lifespan

  • Life Expectancy: 50,000 Hours
  • Operating Temp: -40° to 145° F / -40° to 62° C
  • Waterproof Rating: IP69K
  • Warranty: Limited Lifetime
  • Guarantee: 30 Day Money Back / 31 Day Money Back

Wiring & Installation

  • Cord Lead From Light: 16"
  • Wire Harness Included?: Yes
  • Wire Harness Length: 12'
  • Wire Gauge: 12
  • Fuse Size: 15 Amp
  • Connector Type: 2 Pin Deutsch

General

  • Weight: 10.8 Lbs
  • SKU - Combo: 30CC-D5OS / 30CC-D3OS
  • SKU - Spot: 30SC-D5OS / 30SC-D3OS
  • SKU - Flood: 30FC-D5OS / 30FC-D3OS
